BOOSPA KIT
Ref : A-000000-0c772

6-bus blower kit for concrete spa

Blower Kit 6 Jets for Concrete Spa
Includes everything needed to equip a spa with an air jet system.
6 jets
Blower control via electronic command
For concrete sealing

549,00 €
In Stock
  • Delivery

    Worldwide delivery

  • Delivery

    Pay in 4x free of charge with Read more

  • 100% compatible parts

    100% compatible parts

  • 2-year warranty (1 year for professionals)

    2-year warranty (1 year for professionals)

Technical characteristics

Boospa engineering


6-blower kit for concrete spas

6 air jets
Blower control by control box - Option for pneumatic button control via a pneumatic control kit (sold separately)

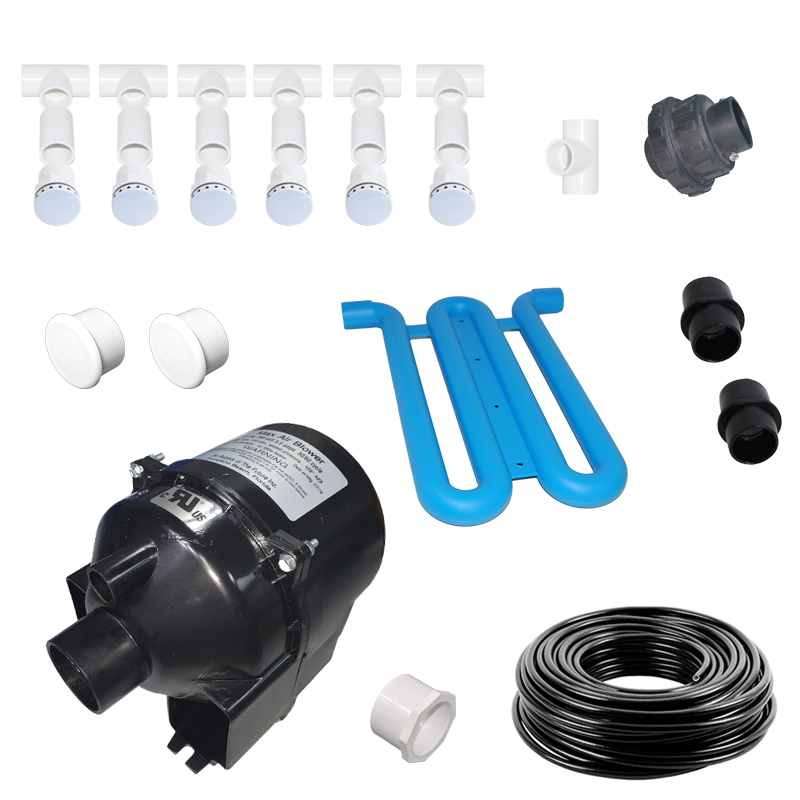

Includes all necessary components to equip a spa with an air jet system: Blower, piping, air jets, and fittings.
Simply build your spa with this ready-to-install kit

The Genesis Blower will propel air into the jets that can be placed in the stairs, sides, or bottom of a pool. The location of the sealed air jets depends solely on your preference, place them as you wish.

For concrete sealing, not compatible with liner sealing.

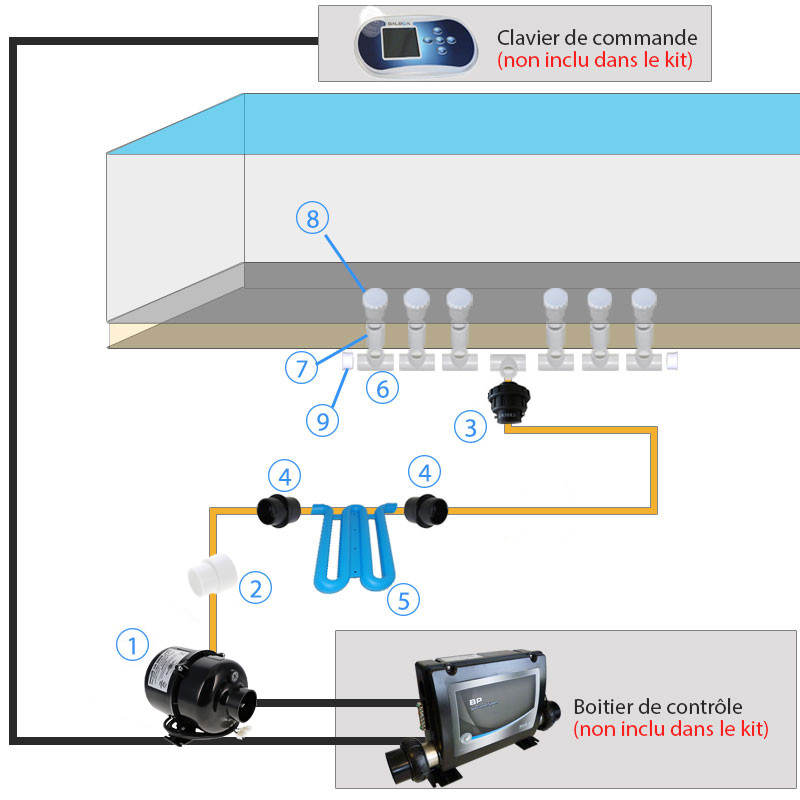

Blower kit assembly diagram



Electronic Blower kit assembly diagram

  • Part number 1: Blower
    • The blower is the main component of the kit. It is the air pump that will expel the air flow into your circuit up to the air jets.
    • Model:
  • Part number 2: Reducer 1.5" (48.5mm) to 1" (33.5mm)
    • Connects the blower to the 1" piping
    • Quantity: 1
  • Part number 3: Check valve
    • Very important piece that prevents water backflow in the circuit. We recommend not placing it directly after the blower. Leave some tubing between the two.
    • Quantity: 1
  • Part number 4: 1" to 32mm swan neck connector
    • Allows connecting the 32mm swan neck to a 1" piping
    • Quantity: 2
  • Part number 5: Swan Neck
    • Creates a constraint to prevent water backflow in the circuit
    • Quantity: 1
  • Part number 6: 1" (33.5mm) Tee
    • Allows distributing the jets into the air nozzles
    • Quantity: 7
  • Part number 7: 1" (33.5mm) Sleeve
    • Connects the nozzle to the tee. This piece needs to be sealed in concrete with the piping.
    • Quantity: 6
  • Part number 8:  Sealed air jet
    • This is the outlet of your blower system through which air is injected into the pool.
    • Quantity: 6
  • Part number 9:  1" M Plug
    • Used to close jet sections
    • Quantity: 2
  • Other parts: 5-meter coil of 1" (33.5mm) tubing + Blue PVC glue
MAX AIR BLOWER 1.5HP
Article referencePower (Watts)V / Hz
25132201200 W230 - 240V / 50-60 Hz


This is a standard kit; however, if you need an additional jet, you can add it to your cart by clicking the link below:


Additional JetBuy an additional jet for your Blower kit
( Maximum of 12 jets for a 900W Blower )





You can also contact us directly for a custom request, we have listed the most common fittings online but have stock covering all needs.
