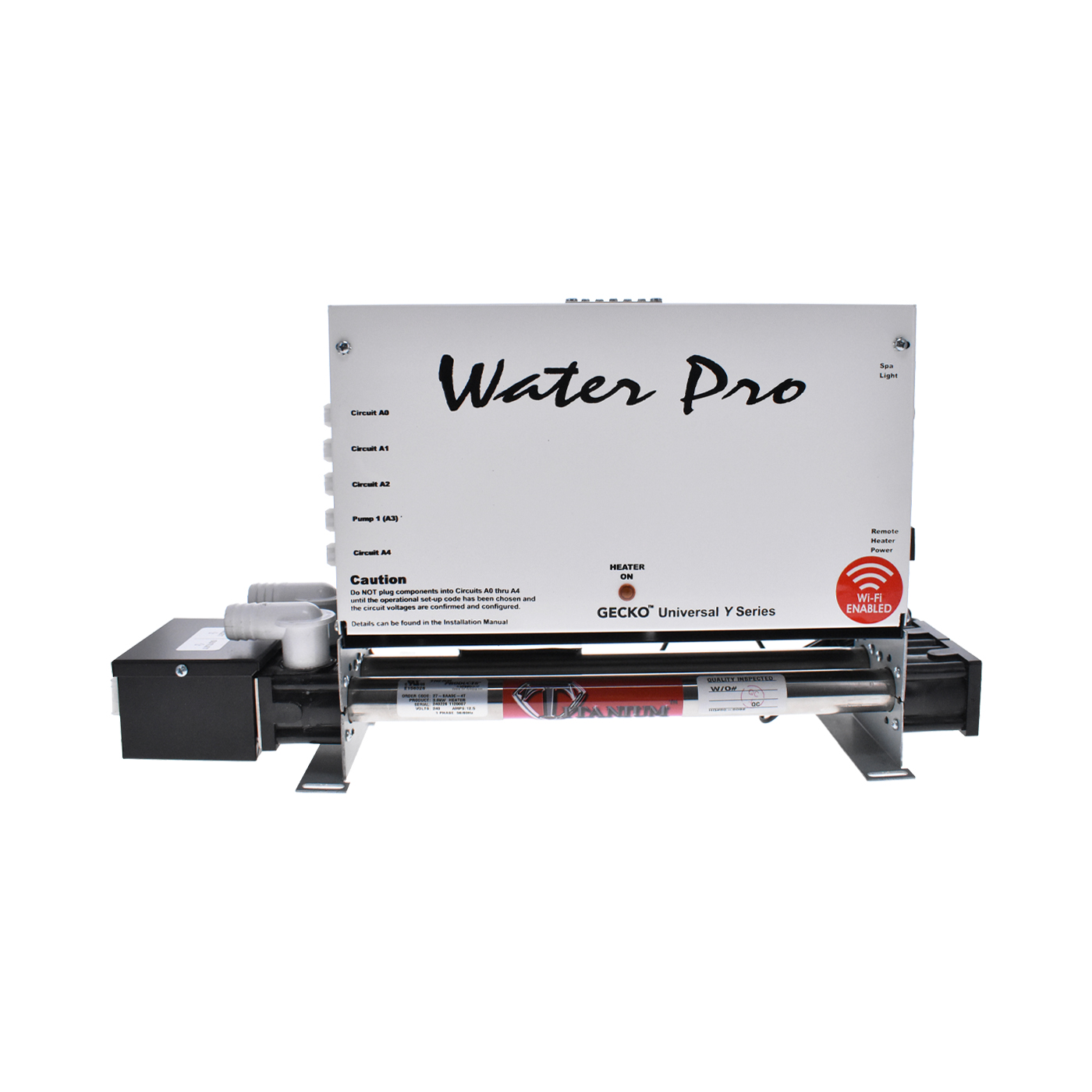

Gecko Universal HQ YE-5 Complete System + 3kW Heater + Gecko IN.K450 Keypad - CS6P52Y-US-4
The HydroQuip Electronic Box + 3/4 Heater + IN.K450 - CS6P52Y-US-4 is a complete solution for controlling and heating your spa. This product is designed to provide reliable performance and easy installation, with a variety of features.
Main Features:
- Lo-Flo Slide Heater Assy 1.375/3kW Heater: Adjustable heating power to meet your specific needs.
- 12V Light Assembly: Built-in lighting for a pleasant ambiance.
- 3/4” x 1” Threaded Adapter
- “ON” Heating Light Indicator: Visual display of the heating operation status.
- UL Recognition: Complies with US and Canadian safety standards.
- Low-Density Titanium Heating Element: Durability and energy efficiency.
- Smart-Freeze Protection: Protects your equipment from freeze damage.
- Enhanced safety to prevent overheating.
- Gecko IN.K450 Keypad model CS6P52Y-US-4 included
HQ YE-5 System Specifications:
| Components | Specifications |
|---|
| Platform | HQ YE-5 |
| Pump 1 | 1 or 2 speeds |
| Pump 2 | 1 or 2 speeds
|
| Pump 3 or Blower | 1 speed |
| Ozone | Yes |
| Circulation Pump | Yes |
| Heating Power | 3kW |
Kit Contents:
- IN.K450 Control Keypad model CS6P52Y-US-4
- Component Cables
- Flow Detector Assembly
- 3/4” Transparent Plumbing
- Stainless Steel Clamp Ring
- 12V Light Assembly
- 3/4” X 1” Threaded Adapter
Electrical Specifications
| Input Electrical | Output Electrical |
|---|
| Single Phase, 120/240VAC, 60HZ | Circuits |
| Pump(s): 13A |
| Blower: 8A |
| Ozone: 2A |
| Circulation Pump: 5A |
| Light: 1A |
| Heating: 23A |
Advantages of HQ YE-5 Complete System
- Easy Installation: The kit includes all necessary components for a hassle-free installation.
- Reliability: Robust design with high-quality materials for increased durability.
- Safety: UL certification and multiple protection devices for safe operation.
- Compatibility: Designed for use with a wide range of spas, ensuring optimal performance.
For any installation, it is important to consult the detailed user manual and wiring diagram included in the kit. Additionally, this system requires an optional Wi-Fi module (IN-TOUCH2 MODULE PT# 34-0216G-K, not included) for advanced connectivity and remote control.
