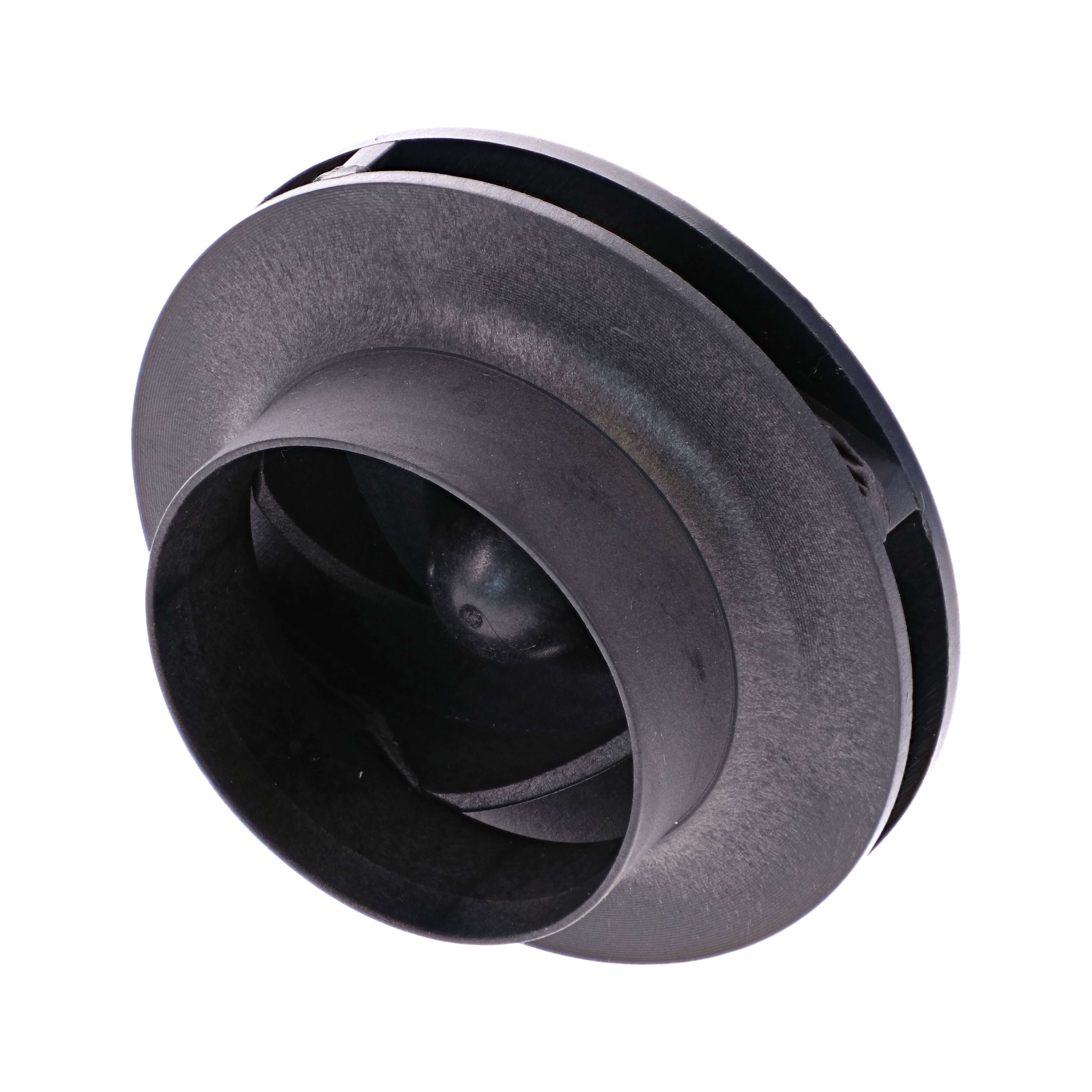

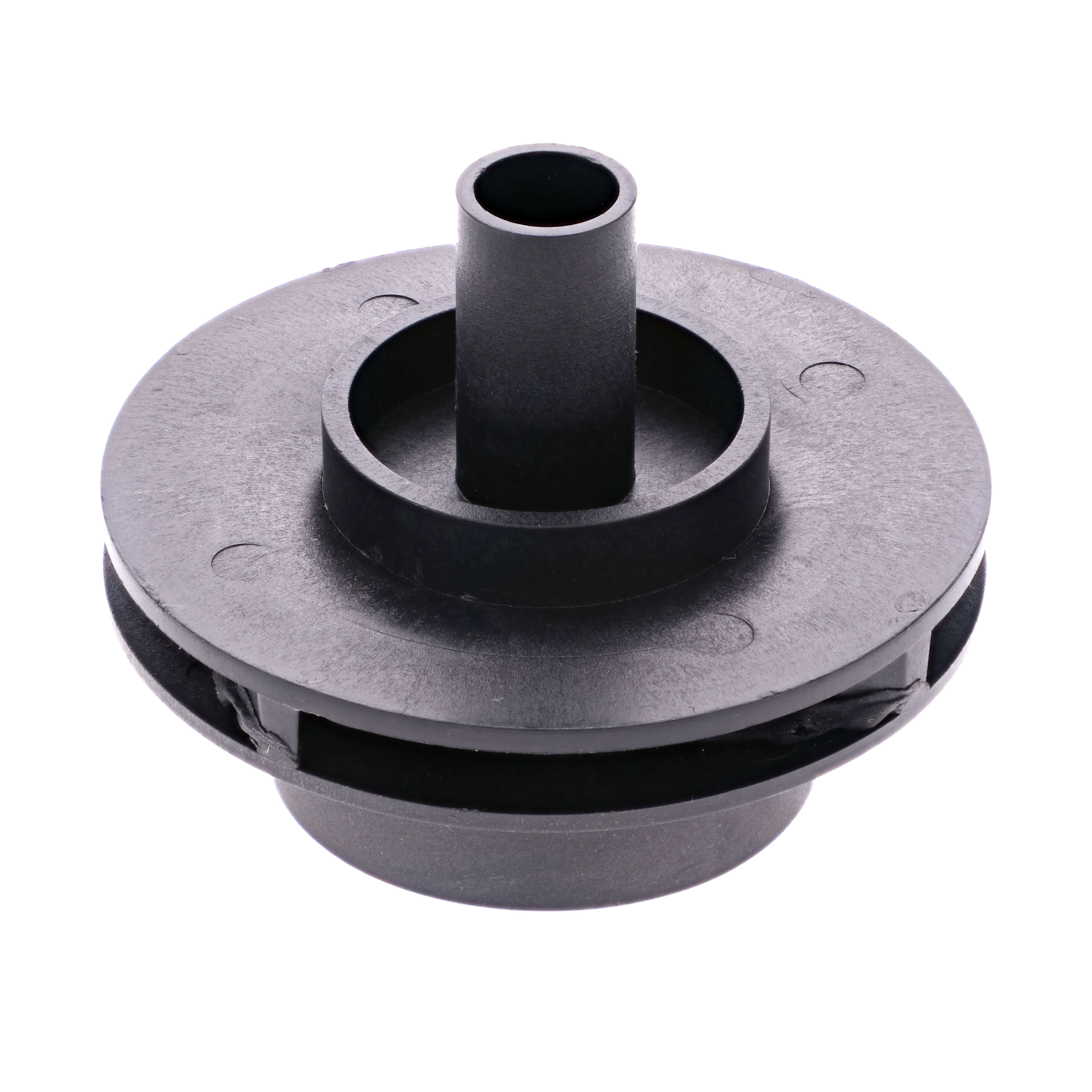

Turbine (impeller) for pump WCP250G
This turbine for pump WCP250G is used to partially convert the internal energy of your spa water into mechanical energy, creating flow.
If you need to replace your turbine or "impeller," you must position it as follows. It is the central element of the pump body WTC250G. (see photo below)
You can find the turbine at location number 3 in the image.
For more information, it is surrounded by the following elements which are not included with this item:
- Pump flange
- Flange gasket
- Turbine wcp250g
- "Rotor" part of the mechanical seal
- Spring or stator part of the mechanical seal
- Pump volute or pump rear
All these elements together form the pump body, including its 5 fixing screws.
Dimensions
The dimensions of the turbine WCP250G are as follows:
- Total length: 61mm
- Outer diameter of the turbine: 101mm
- Outer diameter of the opening: 51mm
- Inner diameter of the mechanical seal housing: 35mm
- Distance between the blades: 6mm
