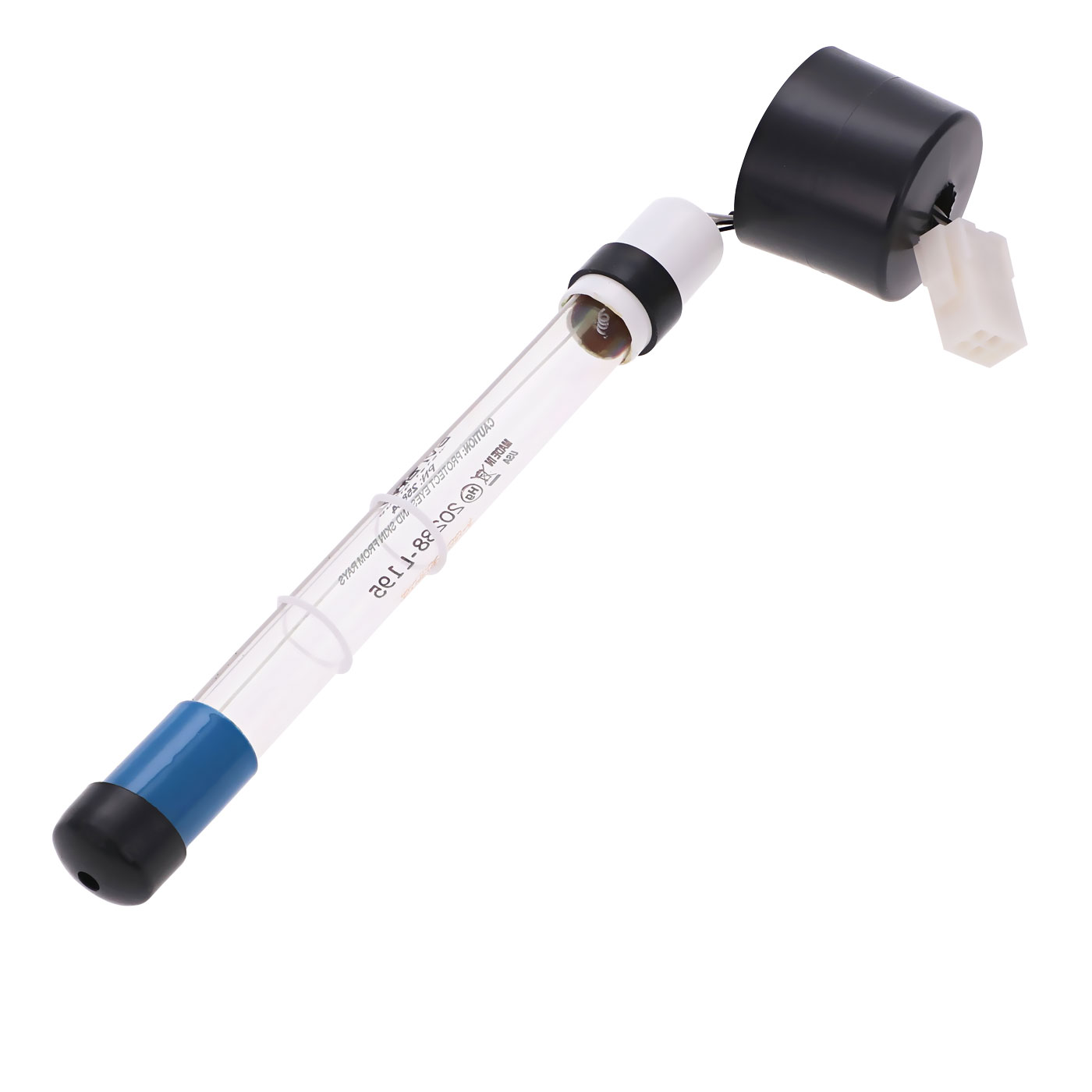

You can replace the following references: 6472-857 (Old reference) 6472-841 (New reference) BALBOA Reference: 54906 New model (Compatible with old generation) Compatible with Balboa Wave3one ozonator Power 7W (original model: 4W)
A lower-cost alternative: The Clearray-compatible UV lamp offers a more affordable alternative to this model.
Natural and automatic purification system. Please note, this is not the original lamp but it is perfectly compatible.
Equivalent references for Jacuzzi® and Sundance®: 6472-857 (Old reference) - 6472-841 (New reference) Manufacturer reference BALBOA: 54906 Power: 7W (original model: 4W)
The difference in power does not cause any incompatibility with your ClearRay system. The supplied bulb is perfectly adaptable to your device, the additional power enhances the device's sanitizing capacity and does not damage the system in any way.
The ClearRay system is present in the majority of Jacuzzi / Sundance brand spas since 2012. It is an innovative purification system using UV as a powerful disinfection agent. UV degrades stubborn bacteria which will then be completely eliminated by the standard treatment (Chlorine, bromine, active oxygen, etc.)
Dimensions:
Lamp length: 185mm (Compatible with older, longer lamps)

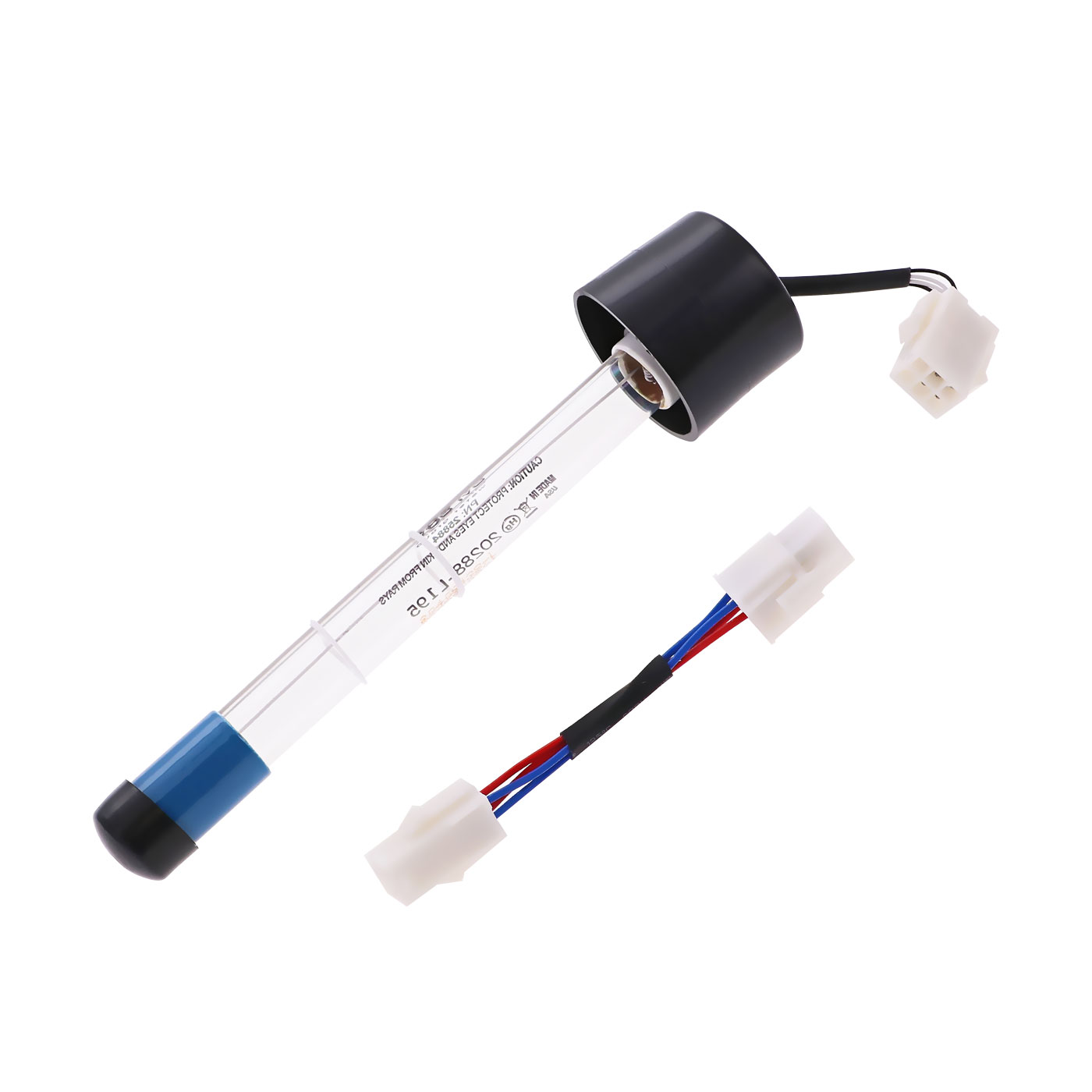

The distributed part also includes the ballast with the connection plug to be directly connected to your ClearRay system. It is recommended to replace your UV lamp every 1 or 2 years depending on the use of your spa.
UV Lamp Replacement:
Turn off your spa. You do not need to drain your spa for a simple bulb replacement. However, if you need to replace the quartz housing or the entire system, it is imperative that you fully drain your spa and your piping.
Remove the 4 screws from the ClearRay system protective cover
Remove the cover and the sealing gasket from the housing to access the bulb housing and its connector
Disconnect the bulb's connection plug
Gently remove the bulb from the quartz housing (3)
Replace the bulb with your replacement bulb 6472-857 by gently inserting it into the housing
(Use protective gloves to avoid direct contact between the bulb and your skin)
Simply reconnect the connection plug to the ClearRay system
UV Lamp: This is how ozone is produced in the upper atmosphere through sunlight rays
