Ref : A-000000-11066

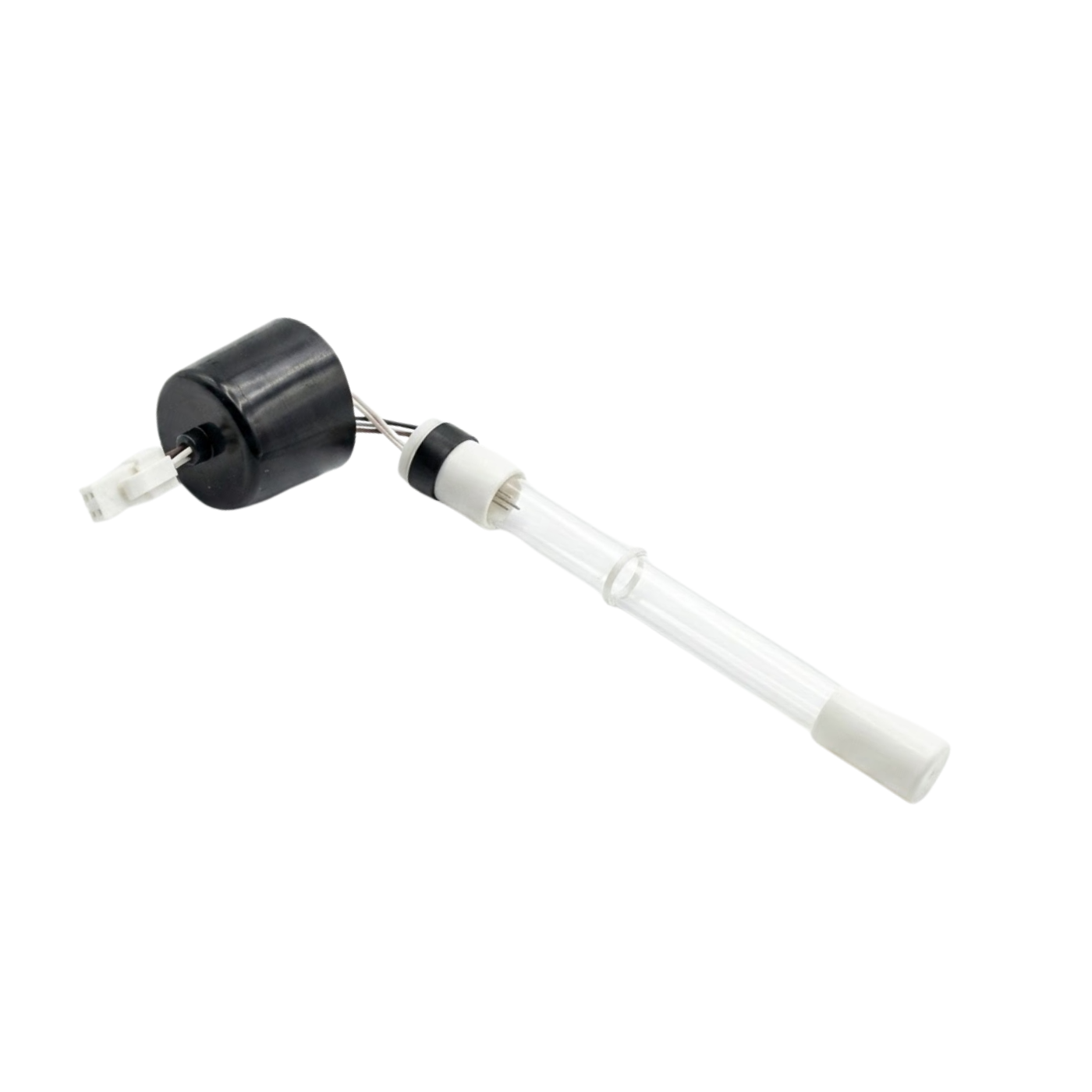

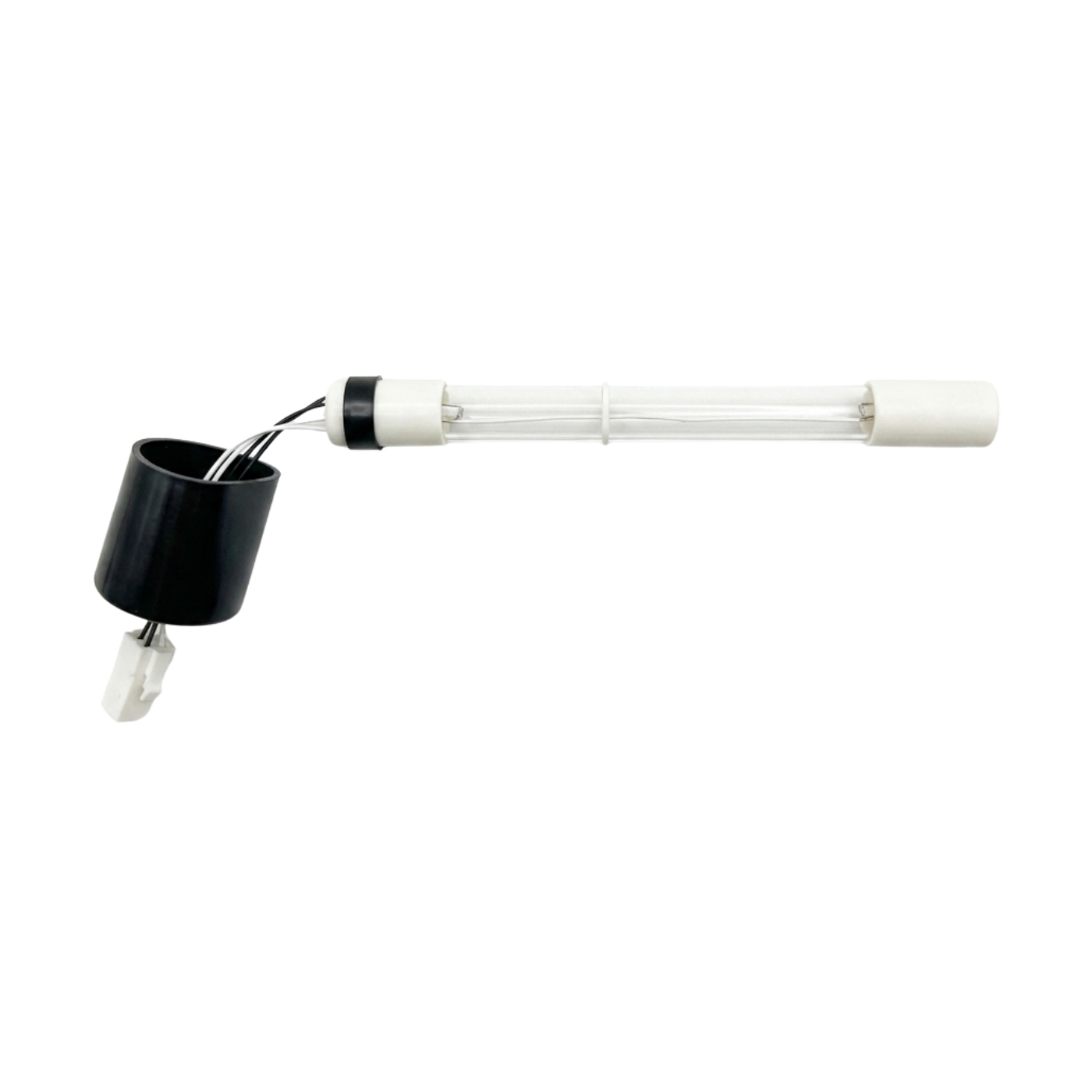

ClearRay compatible UV replacement lamp

You can replace the following references:
6472-857 (Old reference)
6472-841 (New reference)
New model (Compatible with old generation)
Compatible with Balboa Wave3one ozonator
Power 7W (original model: 4W)

Check compatibility with my SPA model
60,00 €
In Stock
  • Delivery

    Worldwide delivery

  • Delivery

    Pay in 4x free of charge with Read more

  • 100% compatible parts

    100% compatible parts

  • 2-year warranty (1 year for professionals)

    2-year warranty (1 year for professionals)

Technical characteristics

ClearRay Logo

UV Lamp compatible with ClearRay systems

Natural and automatic purification system.
Please note, this is not the original lamp but it is perfectly compatible.

Equivalent references for Jacuzzi® and Sundance®: 6472-857 (Old reference) - 6472-841 (New reference)
Power: 7W (original model: 4W)

The difference in power does not cause any incompatibility with your ClearRay system.
The supplied bulb is perfectly adaptable to your device, the additional power enhances the device's sanitization capacity and does not damage the system in any way.

The ClearRay system has been present in most Jacuzzi / Sundance brand spas since 2012. It is an innovative purification system that uses UV light as a powerful disinfection agent.
UV light degrades stubborn bacteria, which are then completely eliminated by standard treatment (chlorine, bromine, active oxygen, etc.)

Clearay Bulb - Exploded View

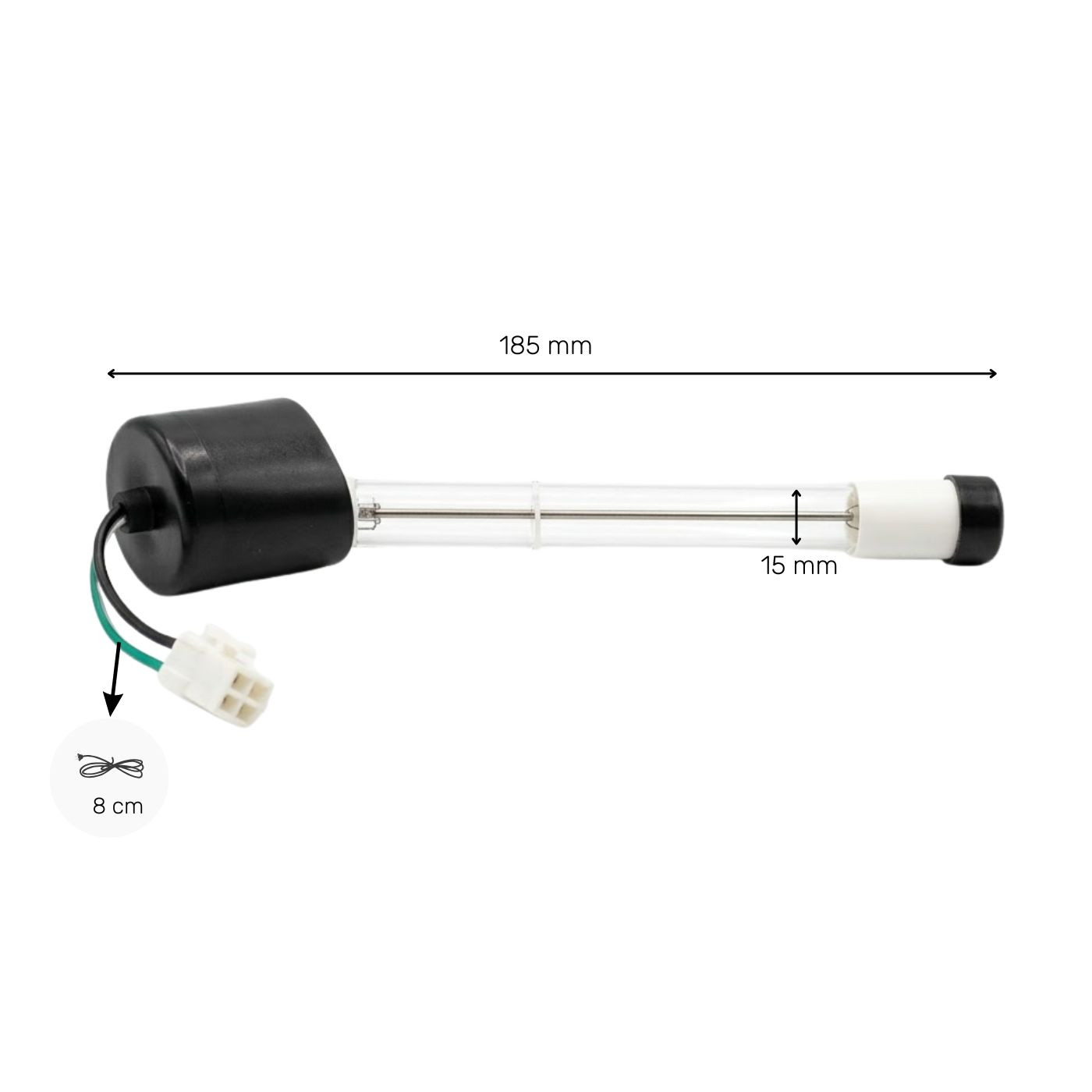

Dimensions:
  • Lamp length: 185mm (Compatible with older longer lamps)
The distributed part also includes the ballast with the connection plug to be directly connected to your ClearRay system.
It is recommended to replace your UV lamp every 1 or 2 years depending on your spa usage.

UV Lamp Replacement:
Clearay Bulb Replacement Instructions
  • Turn off your spa. You do not need to drain your spa for a simple bulb replacement. However, if you need to replace the quartz housing or the complete system, it is imperative that you fully drain your spa and your piping.
  • Remove the 4 screws from the ClearRay system protective cover
  • Remove the cover and the gasket from the housing to access the bulb housing and its connector

Clearay UV Lamp ReplacementClearay UV Lamp Replacement
  • Disconnect the bulb's connection plug
  • Gently remove the bulb from the quartz housing (3)
  • Replace the bulb with your replacement bulb 6472-857 by gently inserting it into the housing
  • (Use protective gloves to avoid direct contact between the bulb and your skin)
  • Simply reconnect the connection plug to the ClearRay system


UV Lamp: This is how ozone is produced in the upper atmosphere through sunlight rays

Videos

Frequently Asked Questions

Is this lamp compatible with ClearRay systems?

Yes. This replacement UV lamp is compatible with ClearRay systems found in Jacuzzi and Sundance spas.

Is this an original ClearRay lamp?

No. This is not the original lamp but a compatible replacement model for the ClearRay system.

Is the 7W power compatible with the original 4W lamp?

Yes. The supplied bulb has a power output of 7W and remains compatible with the ClearRay system designed for the original 4W lamp.

What are the dimensions of this UV lamp?

The lamp is 185mm in length. It is also indicated as compatible with older longer ClearRay lamps.

Are the ballast and connection plug included?

Yes. The provided part includes the ballast and the connection plug designed to be directly connected to the ClearRay system.

Is draining the spa necessary to replace the lamp?

No, draining is not necessary for a simple UV lamp replacement. However, a complete spa and piping drain is necessary to replace the quartz housing or the complete ClearRay system.

What precautions should be taken during replacement?

The spa should be turned off before any intervention. Use protective gloves and avoid direct skin contact with the lamp when inserting it into the quartz housing.

How often should the UV lamp be replaced?

Replacement is recommended every one to two years depending on spa usage. The exact frequency depends on the pace and duration of use of the installation.

What are the possible delivery methods?

Delivery depends on the product, your country, and your address. Depending on the order, shipping can be done to your home or to a pickup point. Exact options are displayed in your cart.

How can I track my package?

You will receive email notifications at different stages, with a tracking link or number upon shipment. You can also check your customer account.

Can I return the product if I made a mistake?

A return is possible within 14 days after receipt. For industry professionals, this period can be extended to 60 days.

What payment methods are accepted?

Payment can be made by credit card, PayPal, 4X PayPal, bank transfer, or check. For a bank transfer, shipment occurs after funds are received.

This product is compatible with several spa models

Here is a non-exhaustive list of spas with which this article is compatible. If you have any doubt, do not hesitate to contact us. Article made of high quality and solid materials. This model is guaranteed 1 and can replace the original part on the following spas:
Top Compatible models
  • WELLIS: Borneo WT00158
