Ref : A-000000-00416

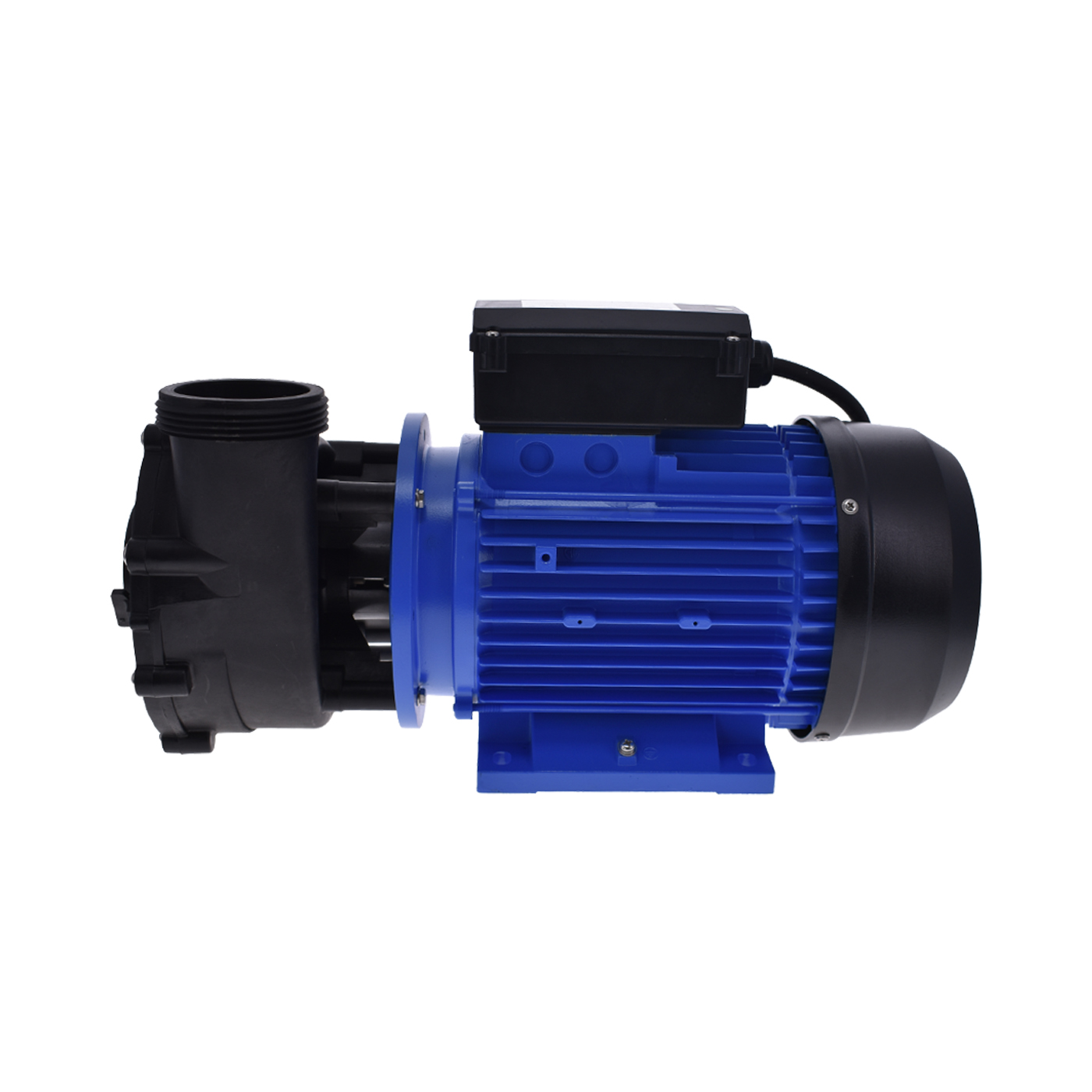

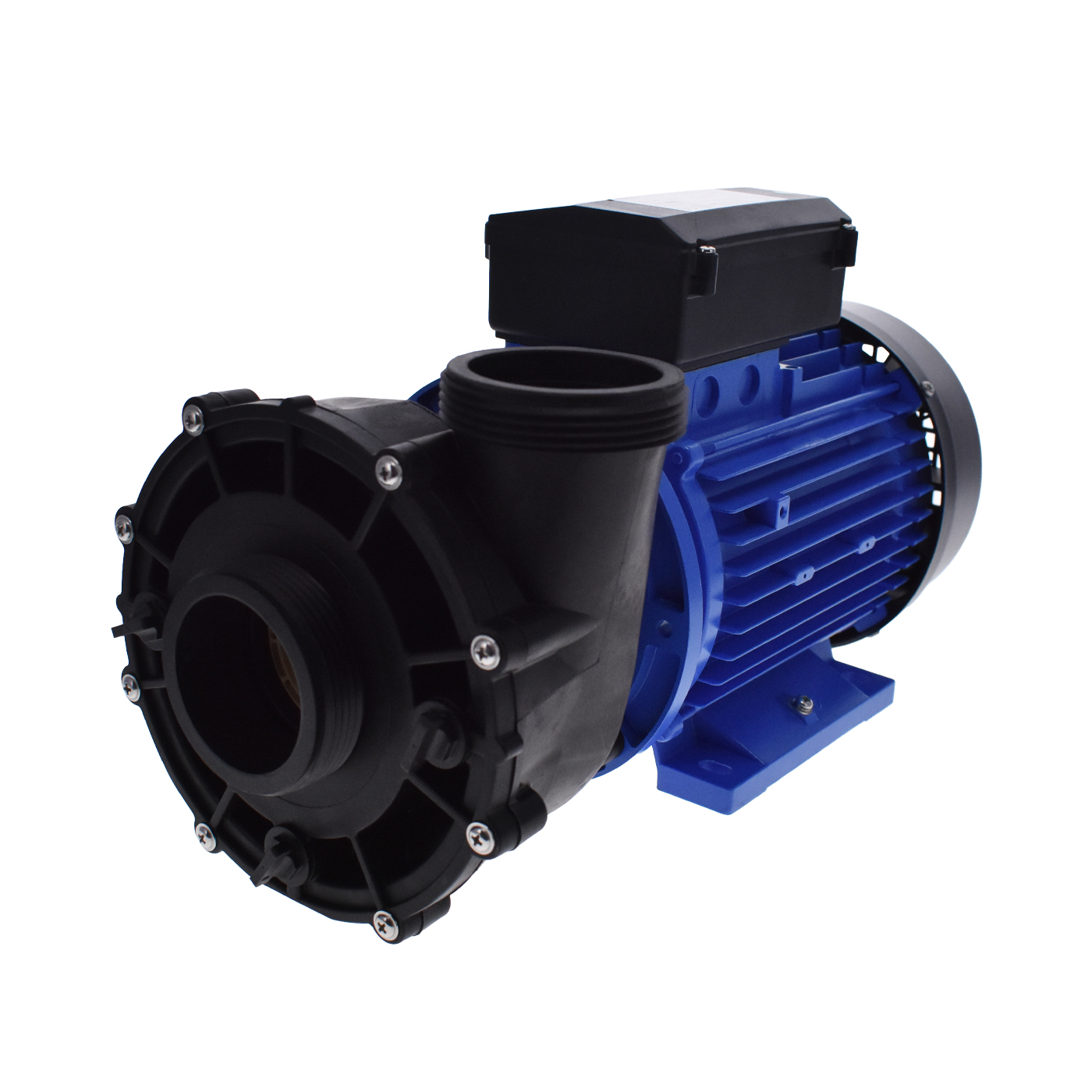

Spa pump LX Whirlpool WP200II - 2HP (1.5 Kw) - Dual-speed

Name: Spa pump LX Whirlpool WP200II - 2HP (1.5 Kw) - Dual-speed
Brand: LX
SKU: A-000000-00416
Price: 280 EUR
Availability: InStock
Rating: 4.59 (39 reviews)

Allows you to control the filtration of your spa as well as the massage
Power: 2 HP or 1.5 Kw
Maximum flow rate: 620 liters per minute
Included: 2 fittings for hoses with an outer diameter of 2 inches (60 mm)
Reference LX/Wellis: WP200II/ACM0594
Replaces identically the massage pump HDP1500II

280,00 €

In Stock

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

LX Whirlpool WP200II Spa Pump - 2HP (1.5 Kw) - Dual Speed

Dual speed pump for 2HP spa
LX/Wellis Reference: WP200II/ACM0594
Direct replacement for the massage pump HDP1500II
2 HP power equivalent to 1.5 Kw
Maximum flow rate of 620 liters per minute
This pump alone can manage your spa's filtration and massage
Designed for optimal performance and flow
Outer diameter of suction and discharge threads: 78 mm
Includes: 2 fittings for 2-inch outer diameter hose (60 mm)
IPX5 standard motor cooling for gradual temperature rise
Thermal overheating detector to preserve and extend the motor's lifespan
Equipped with a capacitor (Enables pump ignition/activation)
Specifically designed for spas

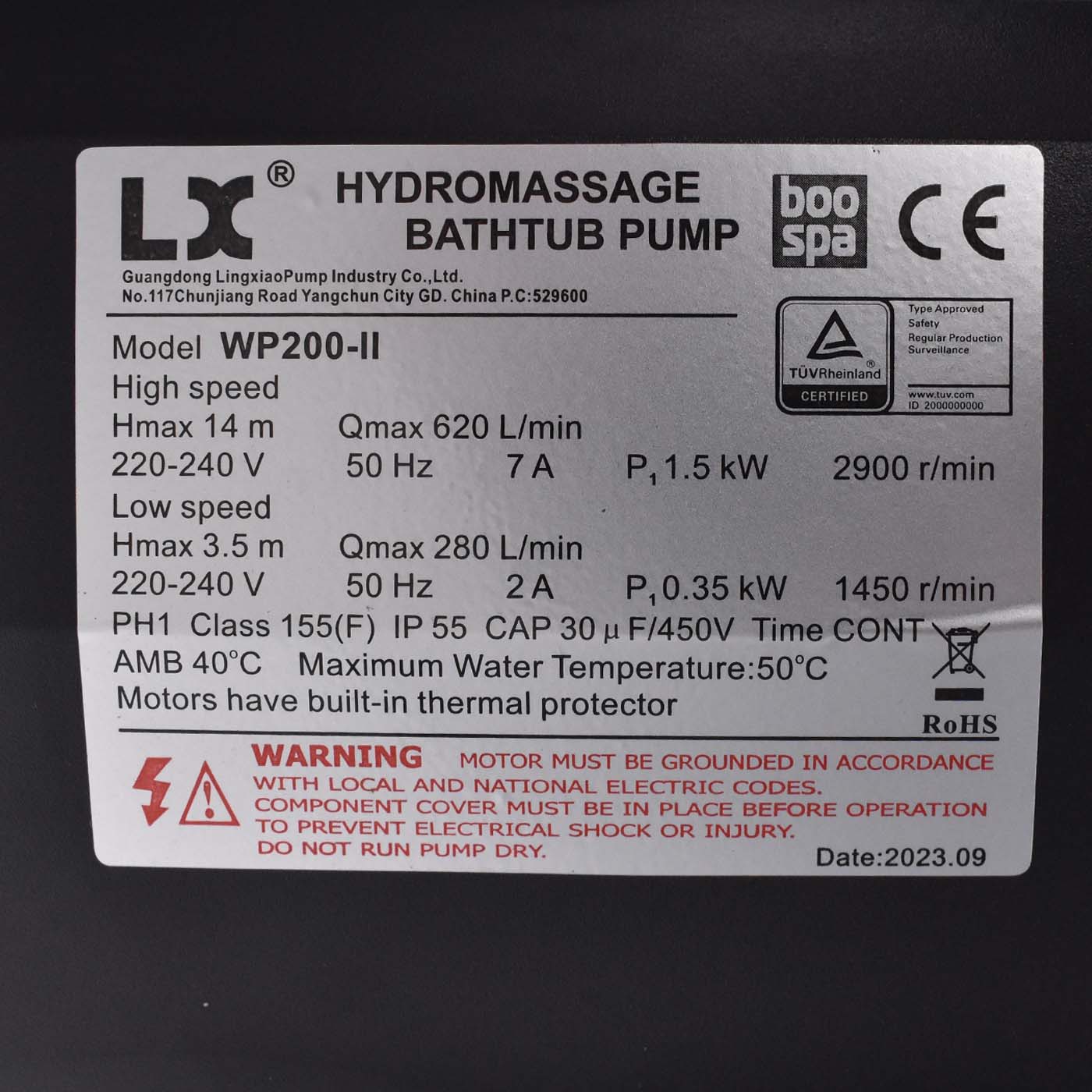

Model	Qmax (l/min)	Hmax (m)	Power		L	Weight (kg)
			HP	kW
WP200II	620	14	Low Speed: 0.375 HP	0.35 kW	431	17
			High Speed: 2 HP	1.5 kW
WP300II	730	18	Low Speed: 0.625 HP	0.45 kW	431	18
			High Speed: 3 HP	2.20 kW

Technical Diagrams

Pipe Connection

Supplied with 2'' outlet fittings (60mm inner)
You can also reuse your old pipe fittings if they are still functional.
If your piping differs, access our range of Pump Fittings and Unions to find the fitting that matches your piping

The pump body is adjustable to fit your piping. You can then have a left or right discharge according to your installation. To do this, simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then replace the screws in place.

Electrical Connection

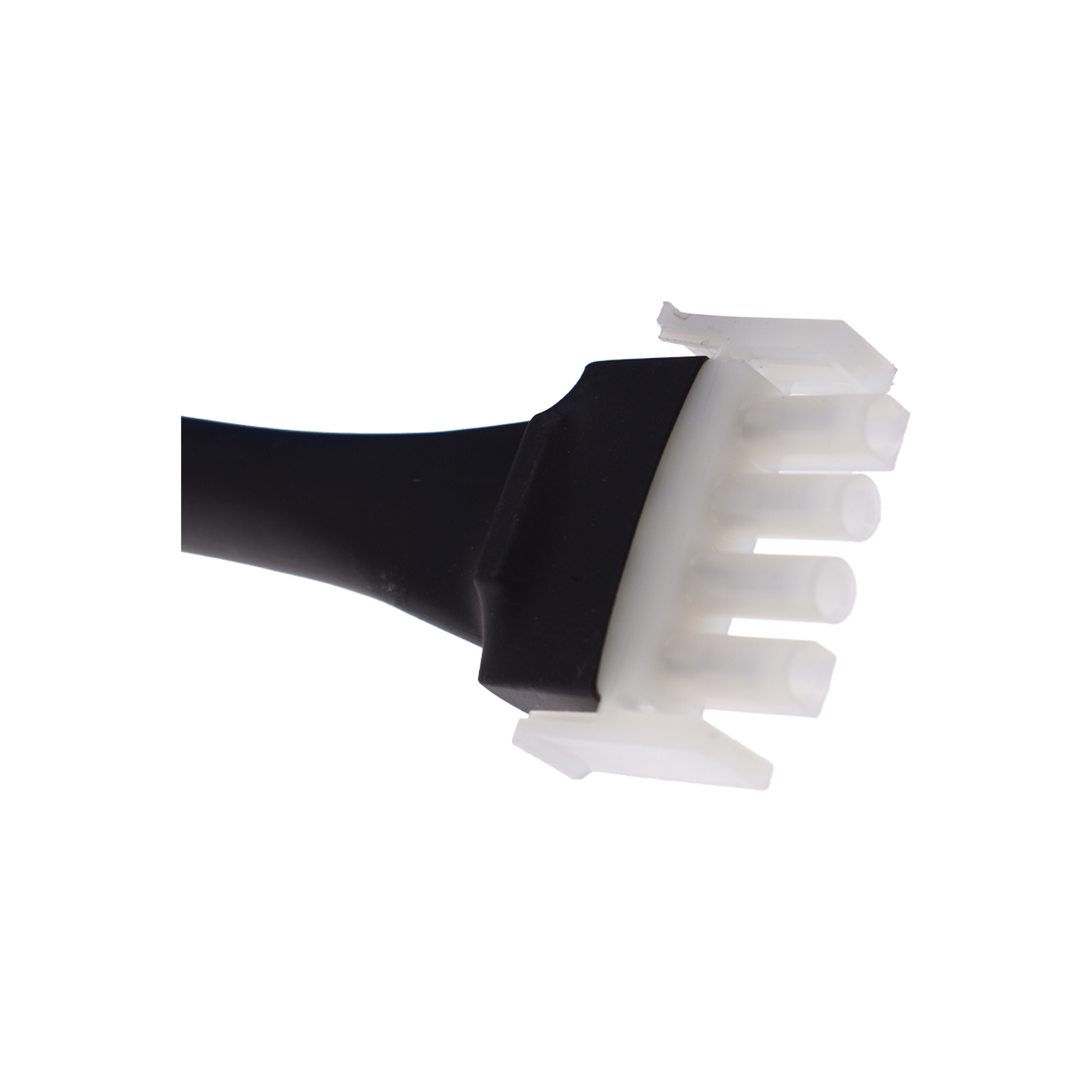

The pump comes with an AMP plug connection cable. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Spa Cables and Plugs section

Here are the most commonly used Plugs in the Spa industry:


AMP Plug	J&J Plug (PIN positions vary depending on the device)

Technical documentation

Download data sheet
