WATERWAY
Ref : A-000000-0d224

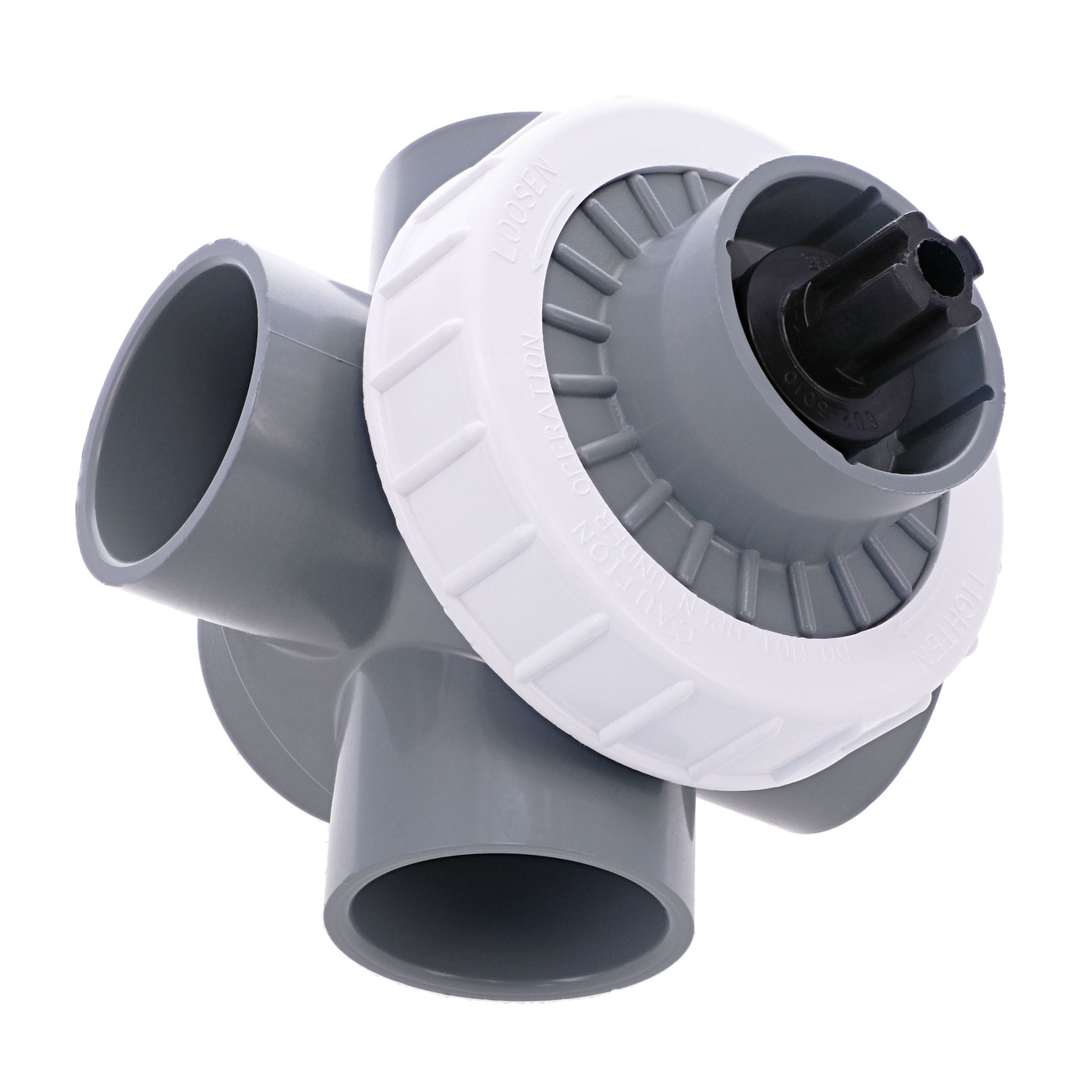

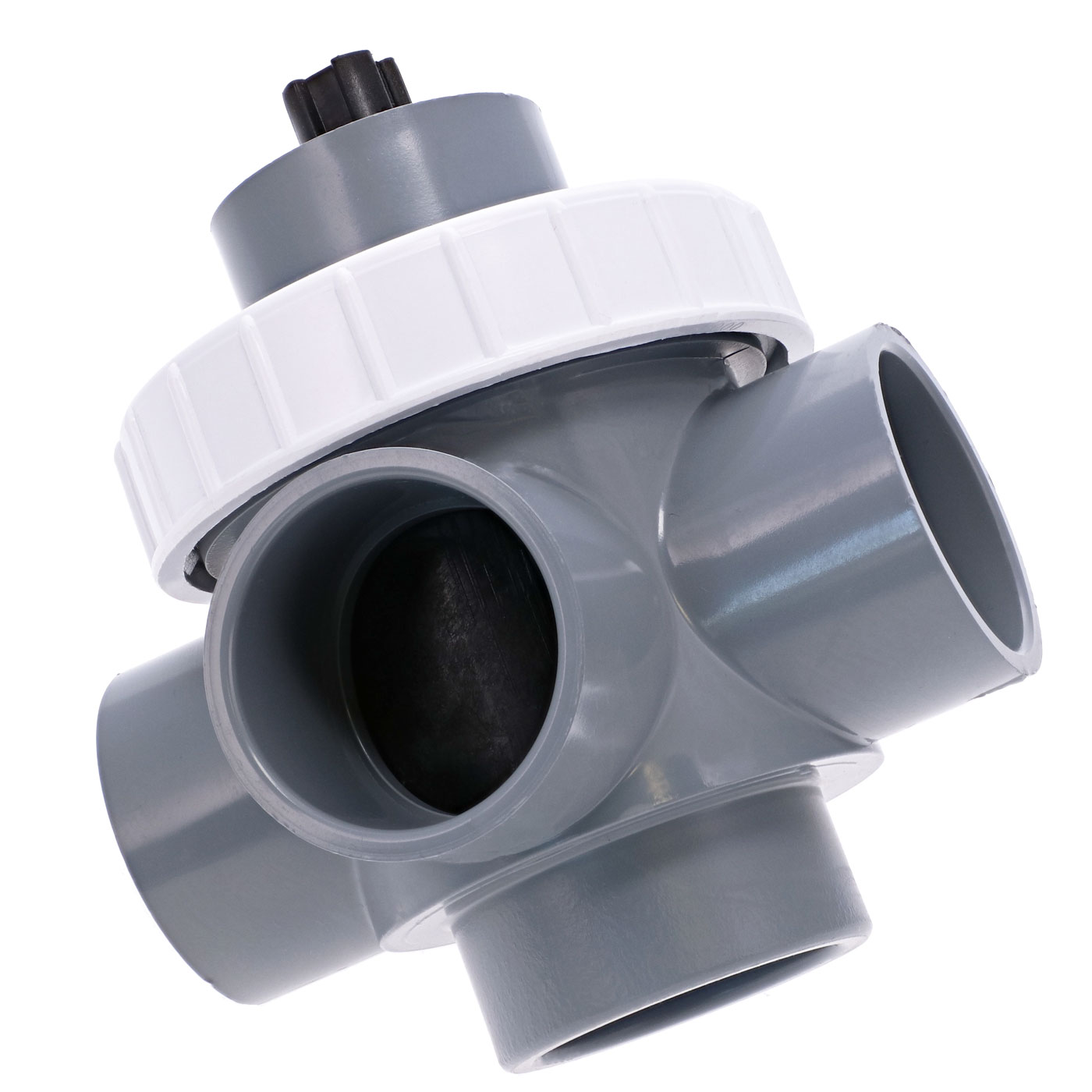

5-port 1.5" Motorized Waterway Diverter Valve

Within 30 days
75,00 €
63,73 £
Delivery Worldwide delivery
  • 100% compatible parts
    100% compatible parts

  • Warranty - 2 years
    Warranty - 2 years

Our technical team is at your disposal

Technical characteristics

Motorized valve for spa sequential massage system

This Waterway valve is made up of 5 ports. The water passes through the inlet at the bottom and comes out through the 4 outlets on the sides.
It is part of a spa sequential massage system and therefore can be motorized. It is suitable for pipes with a diameter of 1.5 inches.

Waterway reference : 600-3000

Dimensions of the Waterway Wave 600-3000 valve :
  • Internal diameter of the 5 ports : 48 mm (1.5")
  • Outside diameter of the water inlet port : 60 mm (2")
  • White clamping ring inner diameter : 95 mm
  • Motor recess internal diameter : 48 mm
  • Total height : 160 mm
  • Total width : 135 mm
Motor not included with this item.
