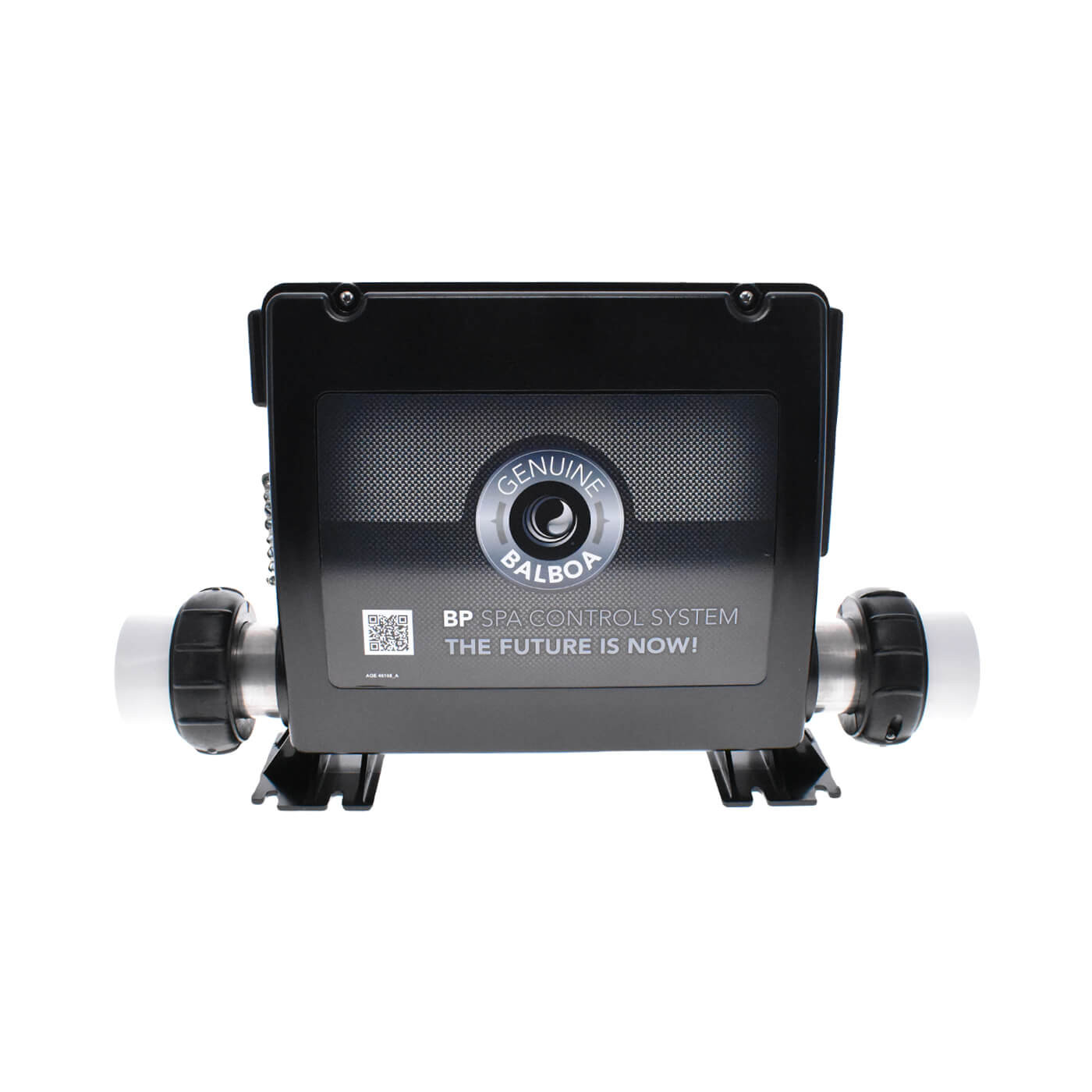

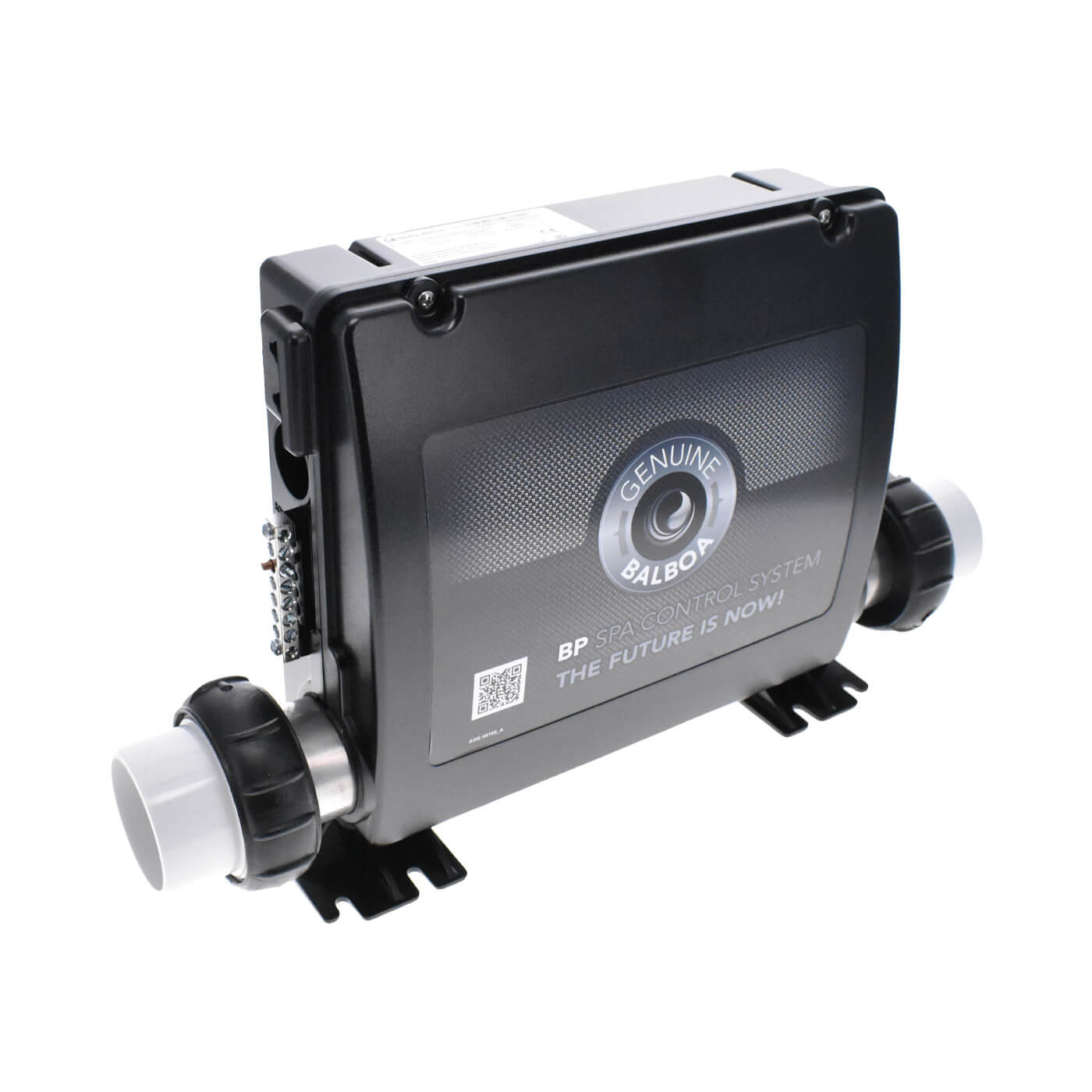

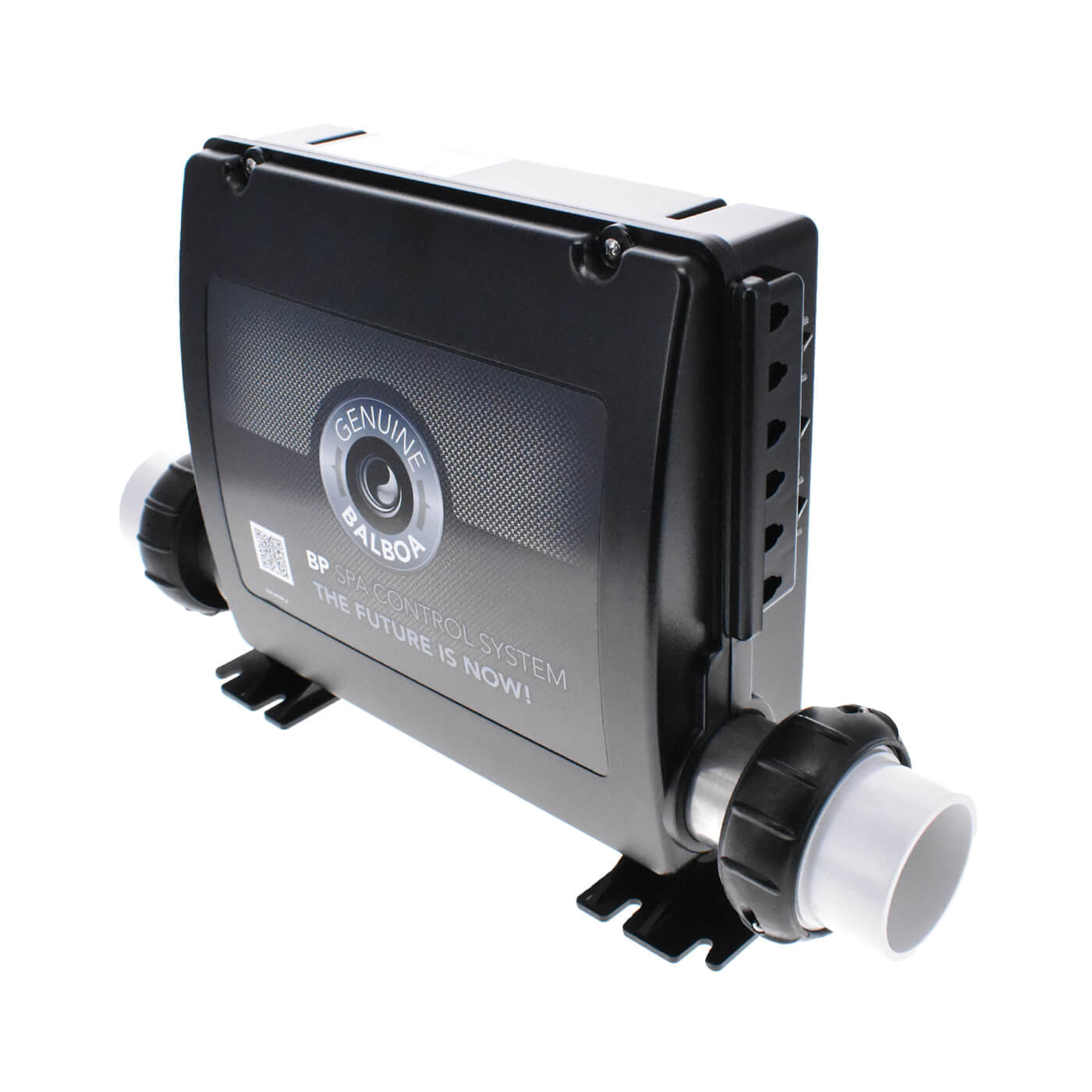

Complete Control Box BP8 G3381 BALBOA + 3kW Heater
The Balboa BP8 G3381 system is a complete control box designed for upgrading existing spas. This CE version includes a 3 kW Incoloy 825 heater and offers broad compatibility with Balboa control panels.
Panel Compatibility
The BP8 G3381 works with spaTouch™2, spaTouch™3, TP900, TP800, TP700, TP600, TP500, TP400T/W and TP200T/W panels.
Some functions require specific software versions depending on accessories (bba™, Clim8zone™, CHROMAZON3™).
Power and Supply
The system supports 230 V single-phase (1×16 A or 1×32 A) or three-phase (3×16 A) power. A neutral wire is required. The 50/60 Hz frequency is automatically detected.
Available Functions
- Pump 1: 230 V – 2 speeds – 12 A max
- Pump 2: 230 V – 1 speed – 12 A max
- Pump 3: 230 V – 1 speed – 12 A max
- Blower: 230 V – 4 A max
- Circulation pump: 230 V – 2 A max
- Ozonator: 230 V – 0.5 A max
- Spa light: 10 V – 2 A max
Settings and Configurations
The BP8 offers 18 possible configurations (Setups 1 to 18). Each setup combines different pump, blower, and circulation options based on the spa type. The box comes pre-set to Setup 1.
| Specifications | Details |
|---|

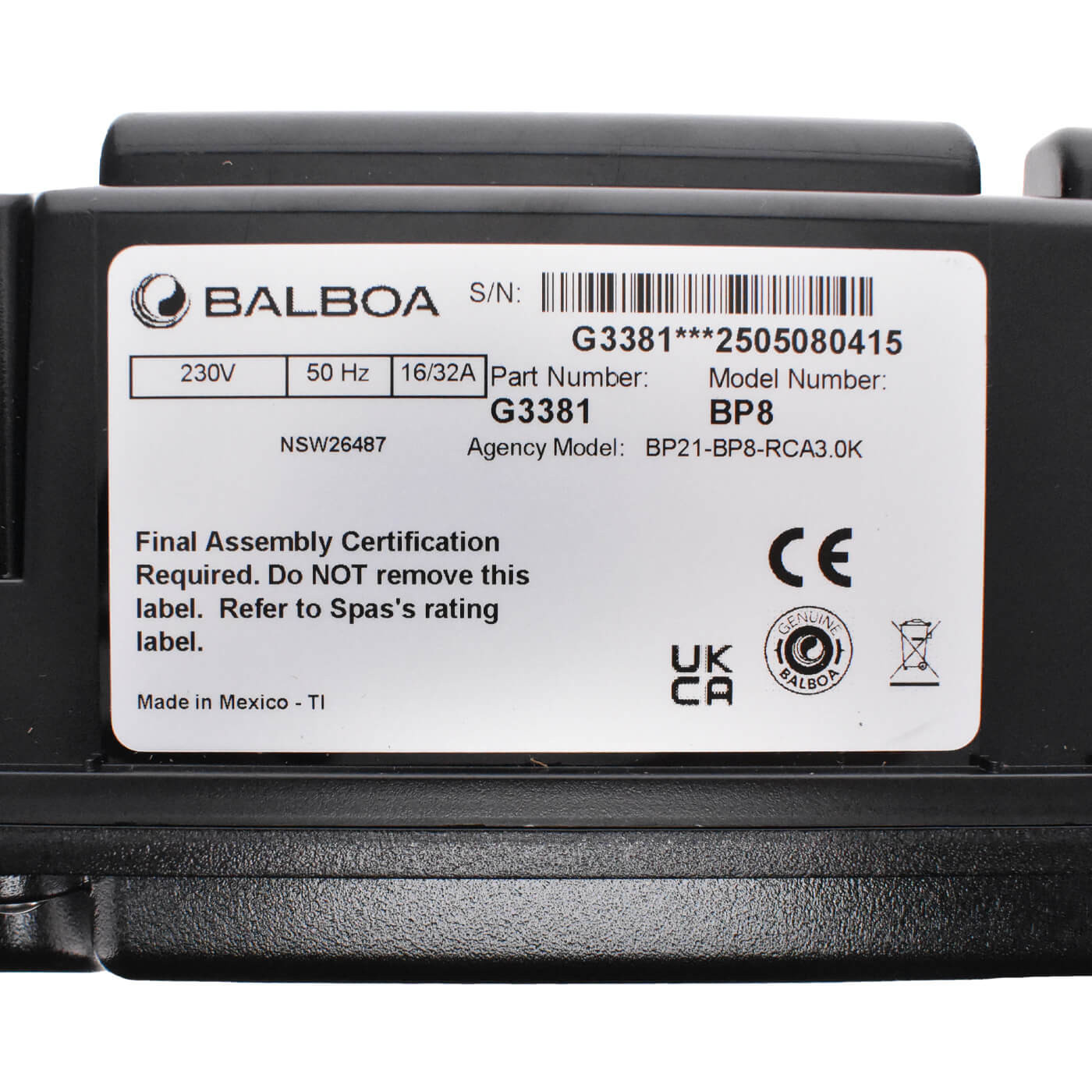

| Manufacturer reference | G3381 |
| Heating power | 3.0 kW (Incoloy 825) |
| Voltage | 230 V – 50/60 Hz |
| Max current | 1×16 A / 1×32 A / 3×16 A |
| Managed pumps | Up to 3 pumps + blower + circ pump |
| Light output | 10 V – 2 A |
| Panel compatibility | spaTouch™, TP900, TP800, TP700, TP600, TP500, TP400, TP200 |
| Wi-Fi compatibility | Yes, via the Balboa WiFi module (sold separately) |
| Software | Version 65.0 – file BP6013_65.0_BP8.hex |
FAQ
Can the BP8 G3381 replace an older Balboa control box?
Yes, it is designed for replacement installations (“aftermarket”). Check configuration before installation.
Does this model include the control panel?
No. The panel must be selected separately based on the listed compatibility.
What voltage is required for installation?
230 V, 50/60 Hz, with a mandatory neutral wire. Check your circuit breaker (16 A or 32 A depending on setup).
