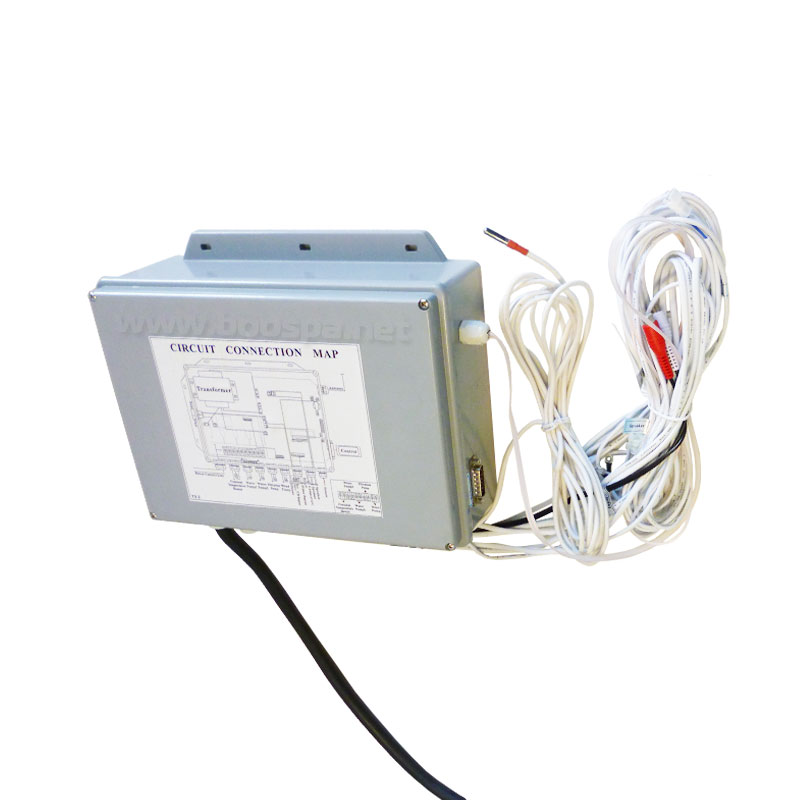

M24A HLW Control Box
Capable of accommodating 2 massage pumps.
Compatible with M24A control panels.

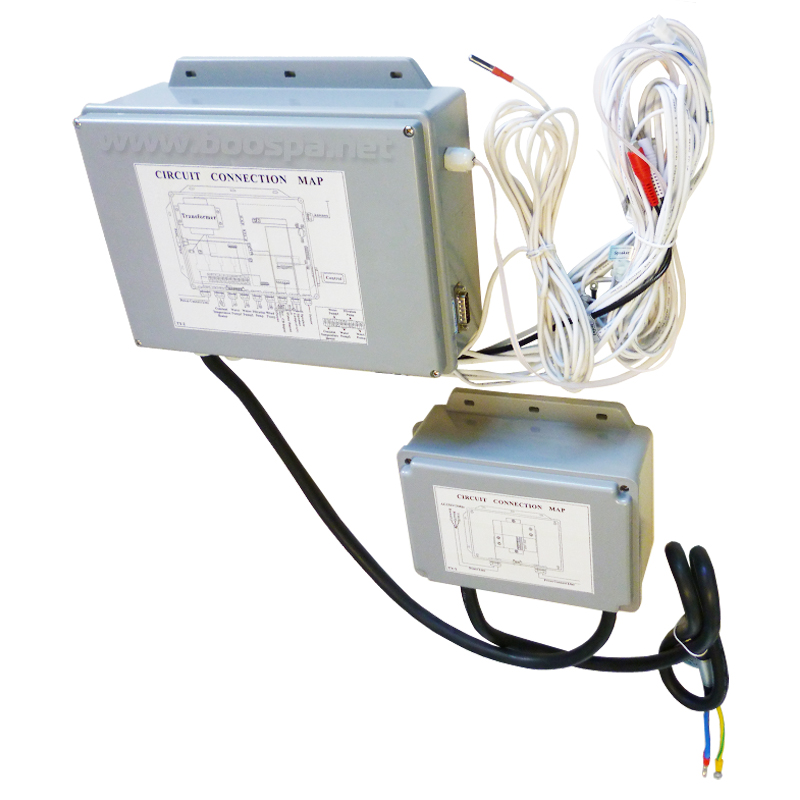

CONTROL BOX + M24A POWER SUPPLY UNIT
|
Electric:
| 220-240 Volts N-CE-CB Standards
|
Circulation Pump:
| 1 pump 220-240V
|
Massage Pumps:
| 2 pumps 220-240V
|
| Blower | 1 Blower 220-240V
|
Ozonator
| YES |
Memory Clock:
| YES
|
LED Lighting:
| 3 LED 12V (terminal block)
|
LED Lighting Control
| YES |
Heater Connection:
| 1 heater 3Kw 220V
|
Stereo Radio / CD:
| NO
|
Temperature Sensor:
| YES |
Water Level Sensor:
| YES |
Dimensions:- Control Box:
- Length: 30 cm
- Width: 22 cm
- Depth: 9 cm
- Power Supply Unit:
- Length: 21 cm
- Width: 16 cm
- Depth: 9 cm
Backlit Keyboard
|
 |
- 3 operating modes: standard mode, economy mode, and sleep mode.
- 24-hour clock display and cleaning cycle setting.
- Water temperature control and display
- Controls up to 2 massage pumps, one circulation pump, one air pump (blower)
- LED management
- Temperature displayed in Fahrenheit or Celsius
- Anti-freeze function
- Backlit keys
- 220/240V
- Low voltage for lighting
- Error messages for quick troubleshooting
Compatible with
Champion - Jazzi Pool - JnJ - Monalisa and many Chinese manufacturing brands.
