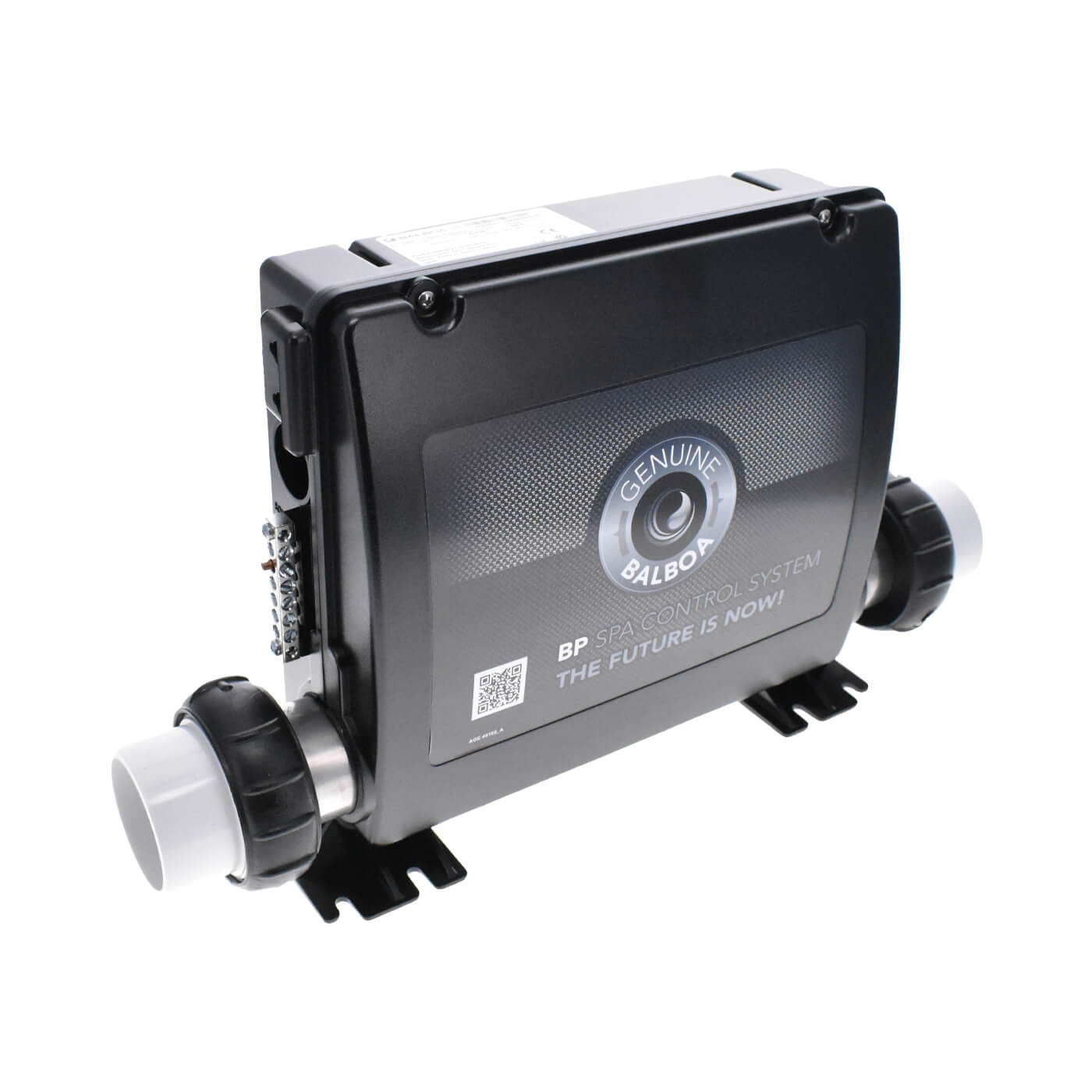

BP21P4BC Control Box + 3kW Heater - 56626
This control box is particularly versatile and can manage up to 5 pumps (including the circulation pump):
- Pump 1: single or dual speed
- Pump 2: single or dual speed
- Pump 3: single speed
- Pump 4: single speed
- Blower: single speed
- Circulation pump: dedicated outlet for a 24/7 filtration pump
Additional Equipment: Ozone (230V), Lighting (10V), and Audio/AV output.
It is often used for large spas or swim spas, as it can handle a significant amount of equipment simultaneously.
| Manufacturer | Balboa |
| Series | BP |

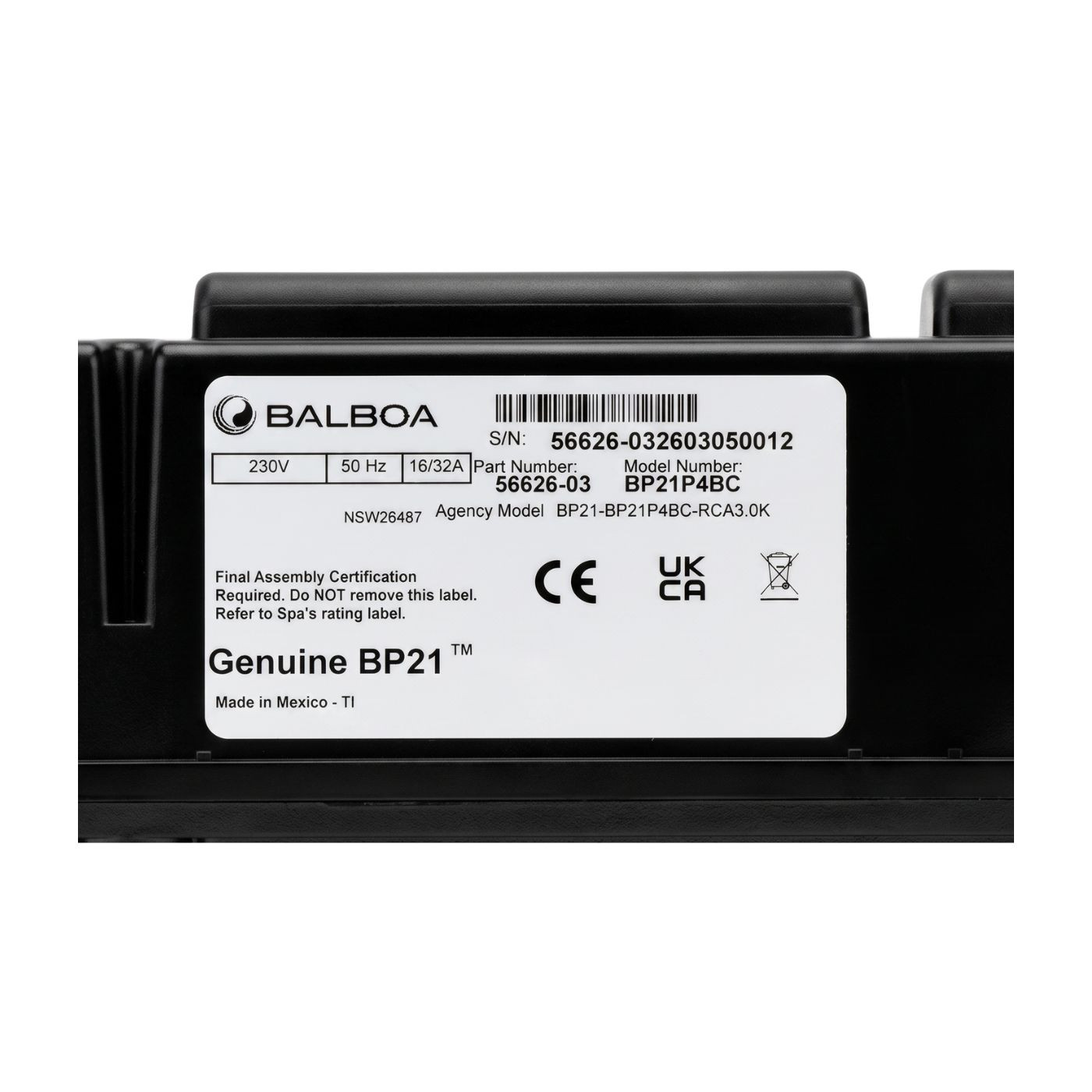

| Model | BP21P4BC |
| Reference | 56626 |
| Product Type | Control Box + Heater |
| Heater Included | Yes |
| Heater Power | 3 kW |
| Heater Connection | 2 inches |
| Pump 1 | Single or dual speed |
| Pump 2 | Single or dual speed |
| Pump 3 | Single speed |
| Pump 4 | Single speed |
| Blower | Single speed |
| Circulation Pump | Dedicated outlet for a 24/7 filtration pump |
| Additional Equipment | Ozone 230V, Lighting 10V, Audio/AV output |
| Compatible Keypads | Balboa TP series and Spa Touch |
| WiFi Compatible | Balboa ControlMySpa Module |
| Spa Compatibility | Large spas, swim spas |

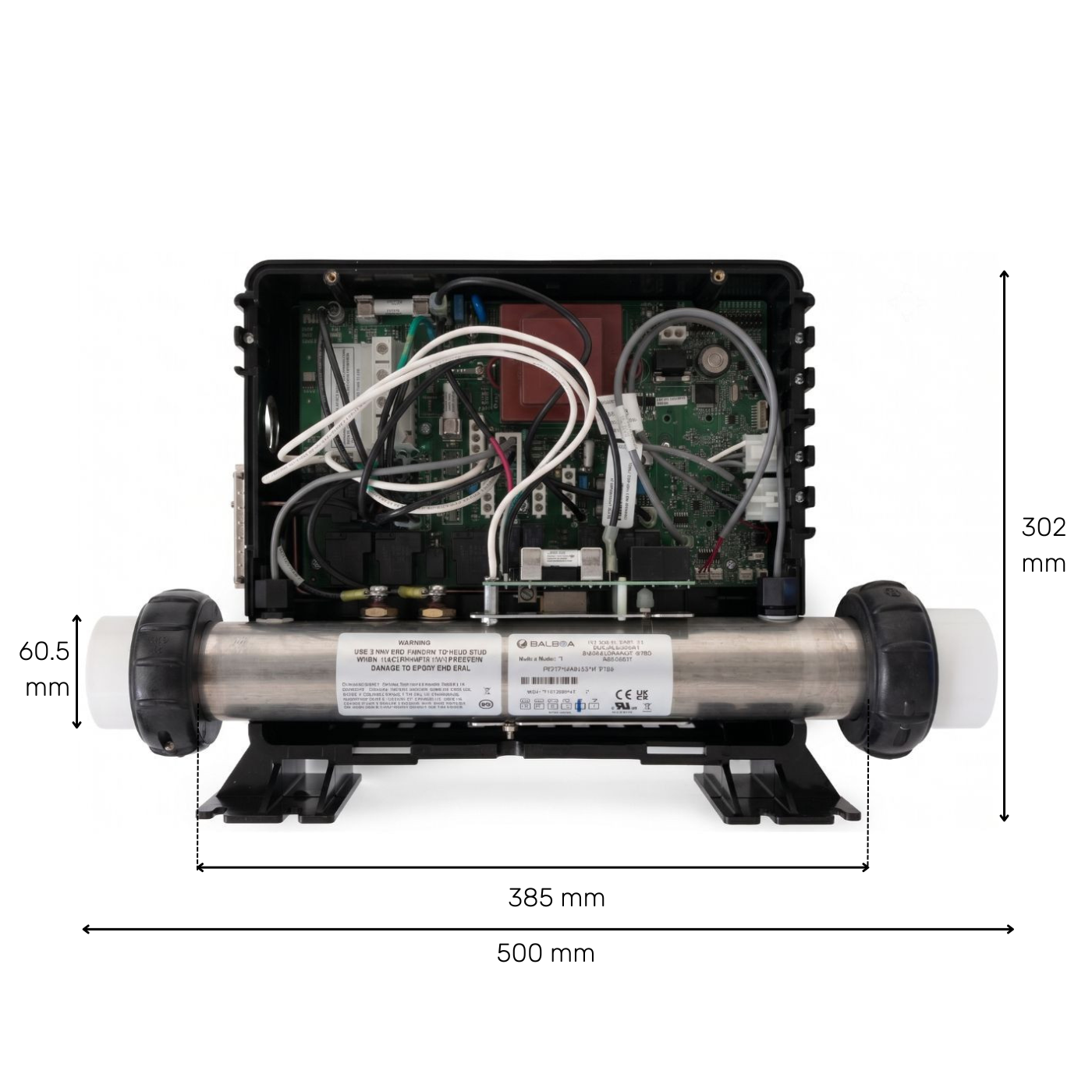

Dimensions
- Length: 500 mm
- Width: 108 mm
- Height: 302 mm
- Heater Length without connection: 385 mm
- Internal thread pitch: 60.5 mm (2" union)
Compatibility and Pre-Purchase Checks
Before purchasing, verify that your installation matches reference 56626 and model BP21P4BC. Check the configuration of your pumps, the presence of a 24/7 circulation pump, blower, Ozone outlets, lighting, and Audio/AV outputs.
This system is compatible with Balboa TP series keypads including TP600, TP700, TP800, TP900, spaTouch™2, spaTouch™3, and spaTouch 4. It is also compatible with the Balboa ControlMySpa WiFi module for remote spa control via the CMS app, as well as the Balboa CMZ8 heat pump. Before purchase, also ensure that reference 56626, electrical supply, the number of pumps to be connected, and the 2-inch heater connection match your current installation.
Installation / Replacement
Installation of a spa control box must be done with the power supply turned off. The connection must match your spa's configuration, the number of pumps, and the outlets intended for additional equipment. If in doubt, seek assistance from a qualified professional.
What You Receive
You will receive 1 Balboa BP21P4BC control box reference 56626 with an integrated 3 kW heater.
Frequently Asked Questions
How many pumps can this control box handle?
This control box can handle up to 5 pumps including the circulation pump. The configuration includes pump 1 single or dual speed, pump 2 single or dual speed, pump 3 single speed, pump 4 single speed, and a dedicated outlet for the circulation pump.
Is the blower compatible with this control box?
Yes, this control box includes management of a single-speed blower. This information should be verified against your spa's actual configuration before replacement.
Which keypads are compatible with this control box?
This control box is compatible with Balboa TP series and Spa Touch keypads. Ensure that the keypad installed on your spa belongs to one of these series.
Is the WiFi module compatible?
Yes, this control box is compatible with the Balboa ControlMySpa module. The WiFi module allows for remote control when the installation is compatible.
Is the heater included?
Yes, this control box comes with an integrated 3 kW heater. The heater connection is 2 inches.
Which additional equipment can be connected?
This control box includes outlets for Ozone at 230V, Lighting at 10V, and an Audio/AV output. These elements should be compared to your spa's configuration before installation.
