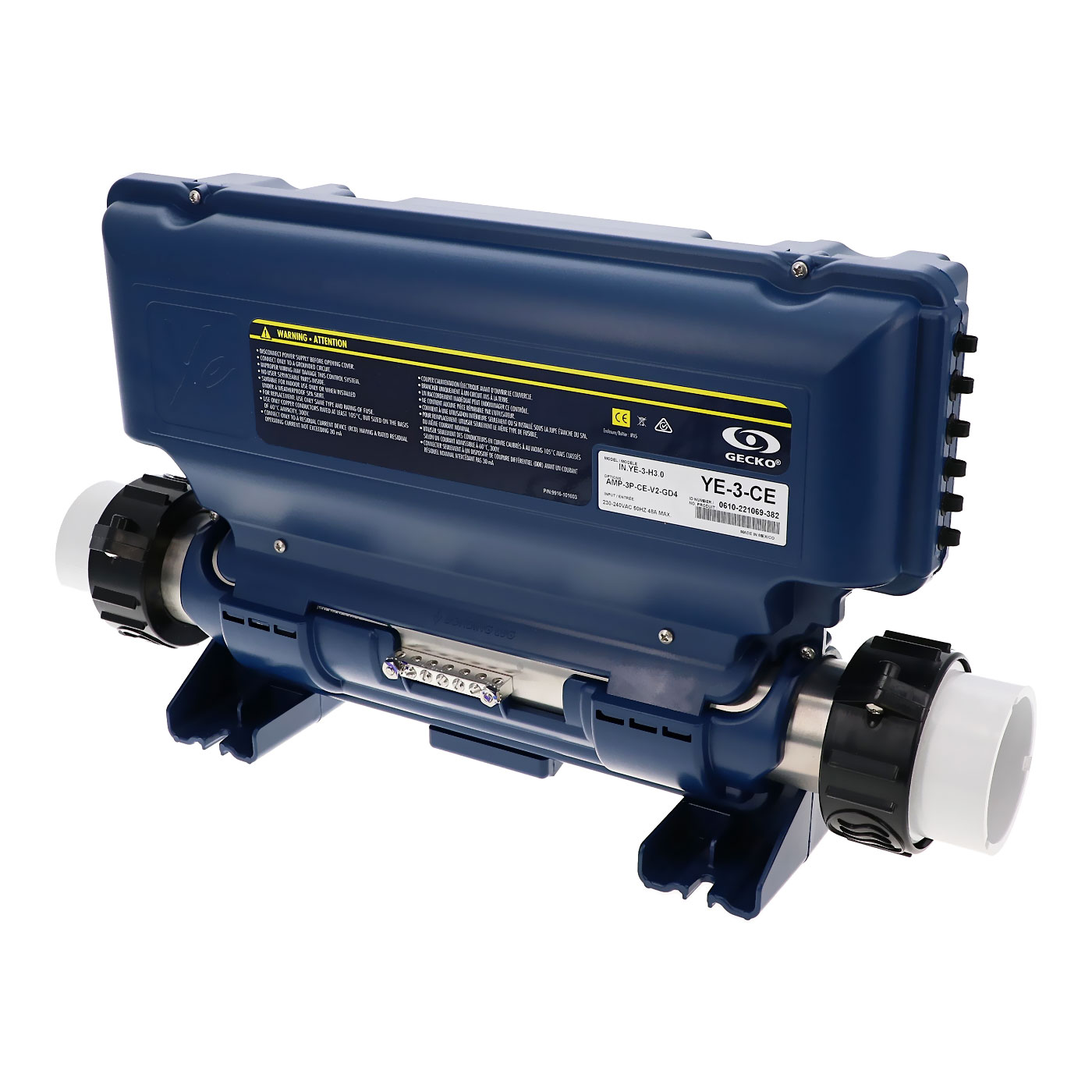

IN.YE-3 Gecko control system
Control all of your spa equipment with the IN.YE-3 control box by Gecko.
This control system supports
3 configuration outputs (hence the mention "3" in its name) unlike
in.ye-5 model which can take 5.
This control box is
equipped with a 3 kW heater and allows the control of :
- a first pump with 1 or 2 speeds
- a second pump with 1 or 2 speeds
- a circulation pump or an ozonator
- lighting with 12V AC output
- + auxiliary output 230V output
Overview
Compatibilities
The in.ye system is compatible with many keypads that it will automatically detect : But also the following auxiliary keyboards : Please note that this model is not compatible with in.temp heat pump.
Dimensions
Dimensions and connections :
- Heater connections : 2 inches (gasket and clamping ring included)
- 4-pin AMP plugs
