Control Box BP200G1 + 3 kW Heater
| Model | BP200 G1 |
| Brand | Balboa |
| Type | Control box with integrated heater |
| Heater Power | 3 kW |
| Technology | M7 |
| Compatible Pumps | 1 dual-speed pump or 1 single-speed pump with a circulation pump |
| Compatible Equipment | Ozonator, projector (max 1 A), audio system |
| Keypad Compatibility | TP200T, TP200W, TP260T, TP260W, TP400W, TP400T, TP500S, TP600, TP700, TP800, TP900, rectangular, oval, or trapezoidal spaTouch |
| WiFi Compatibility | Yes, with additional WiFi module |
| Height | 221 mm |
| Control Box Width | 321 mm |
| Heater Width | 381 mm |
| Control Box Depth | 71 mm |
| Total Depth | 161 mm |
| Heater Connection | 2 inches |
| Power Supply | Pre-configured single-phase |
| Balboa 3 kW System Reference | 59190 |
| Balboa 2 kW System Reference | 59192 |
| Heater Reference | 58419 |

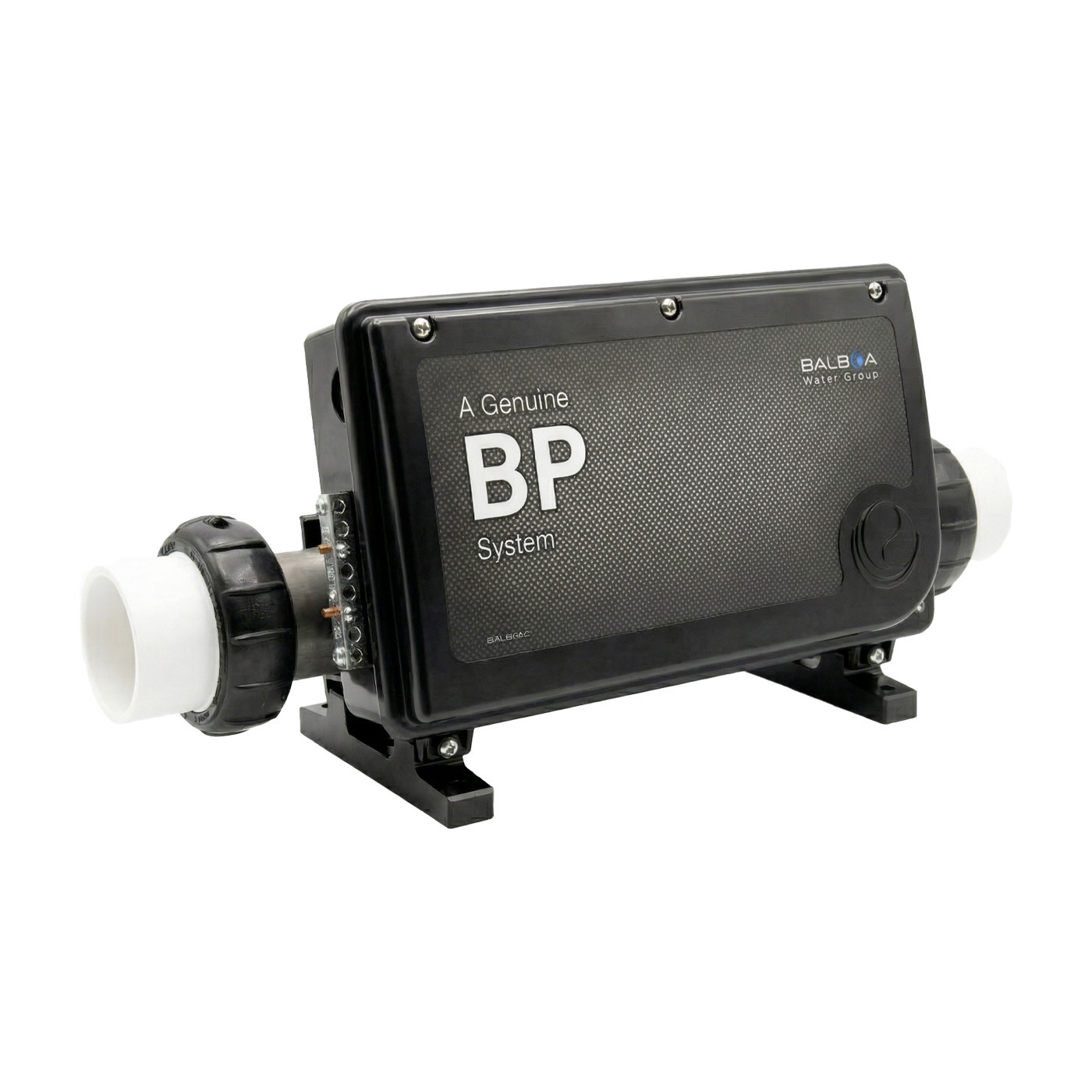

The Balboa BP200 G1 control box is a compact system with an integrated 3 kW heater. It can handle a dual-speed pump or a single-speed pump with a circulation pump, along with an ozonator, a projector, and an audio system.
Compatibility and Pre-Purchase Checks
Check the compatibility of your keypad and the power supply type of your installation before placing an order. This model is compatible with Balboa-compatible TP and spaTouch keypads and cannot be powered by three-phase electricity.
Installation / Replacement
The system comes pre-configured in single-phase. Check the 2-inch heater connections and equipment connections before installation.
What You Receive
1 Balboa BP200 G1 control box with integrated 3 kW heater, clamping rings, and gaskets.
Frequently Asked Questions
Which equipment can this control box manage?
The BP200 G1 can manage a 1 dual-speed pump or a 1 single-speed pump with a circulation pump, an ozonator, a projector with a maximum of 1 A, and an audio system.
Which keypads are compatible?
This model is compatible with TP200T, TP200W, TP260T, TP260W, TP400W, TP400T, TP500S, TP600, TP700, TP800, TP900 keypads, as well as rectangular, oval, or trapezoidal spaTouch keypads.
Is the heater included?
Yes, the system includes an integrated 3 kW heater. This heater is exclusively designed for the BP200 G1.
Is the system WiFi compatible?
Yes, the BP200 G1 can be remotely controlled with a smartphone by adding a compatible WiFi module.
