BALBOA INSTRUMENTS
Ref : A-000000-04932

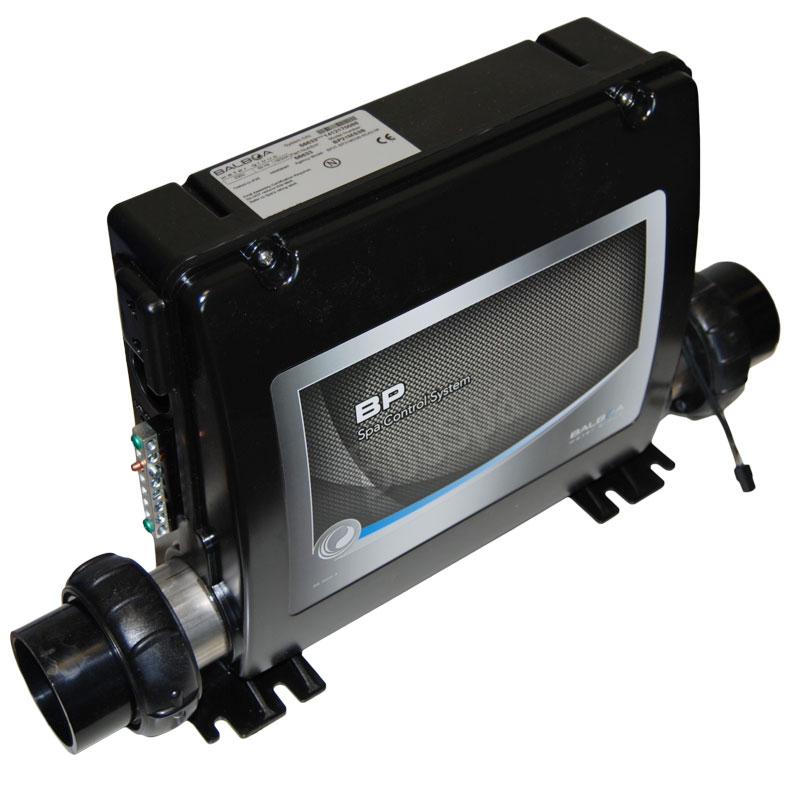

BP21MS3B Microsilk® Electronic Control Box

Within 30 days
708,33 €
598,37 £
Delivery Worldwide delivery
  • 100% compatible parts
    100% compatible parts

  • Warranty - 2 years
    Warranty - 2 years

Our technical team is at your disposal

Technical characteristics

Balboa BP2100G1 electronic control box
Equipped with a 3kW heater.
Compatible with MICROSILK® system
Available WIFI module that allows remote control.

The Balboa instruments BP series incorporates a new electronic management module that is much more efficient.
It is also capable of controlling a heater of more than 3Kw. Balboa instruments has once again reaffirmed its leader status with the quality of these control systems.
Its exceptional numerous functions turns it into a top of the range product in terms of performance.
The technology of its M7 sensors has been redesigned and is now equipped with a microprocessor solely dedicated to temperature management. It controls the security feature which avoids any eventual overheating.

NEW FUNCTIONALITIES:

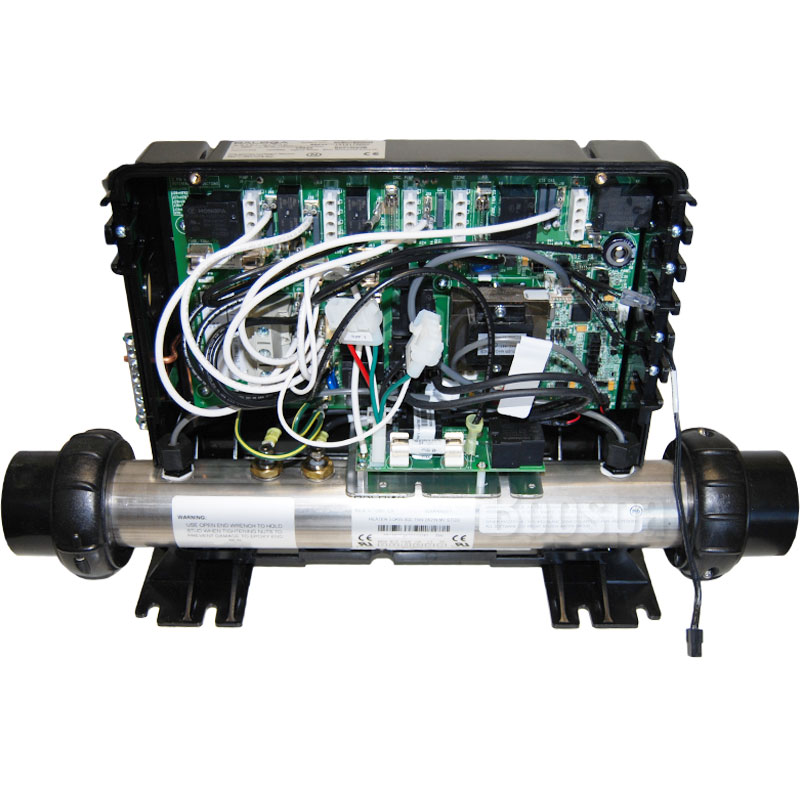

Simplified connection of the heater to the PCB :
connexion rechauffeur balboa BP
  • Overheating detection: detects when a defect is found in the circulation pump or in the relay.
  • Possibility to integrate a WI-FI module that allows remote control.

Wifi système de contrôle Balboa BPThe WIFI module is available as an option and allows to control your spa via the Balboa application. It allows you to access all of your spa’s functions wherever you may be.


TP800/TP900
interface balboa panel 1 interface balboa panel 2 interface balboa panel 3
  • Intuitive menus
  • New colors
  • 5 available background colors
  • Multiple languages
  • Clock
  • Complete spa diagnosis
  • Reminder messages


DIMENSIONS :
Control boxes dimensions
TECHNICAL SCPECIFICITIES:

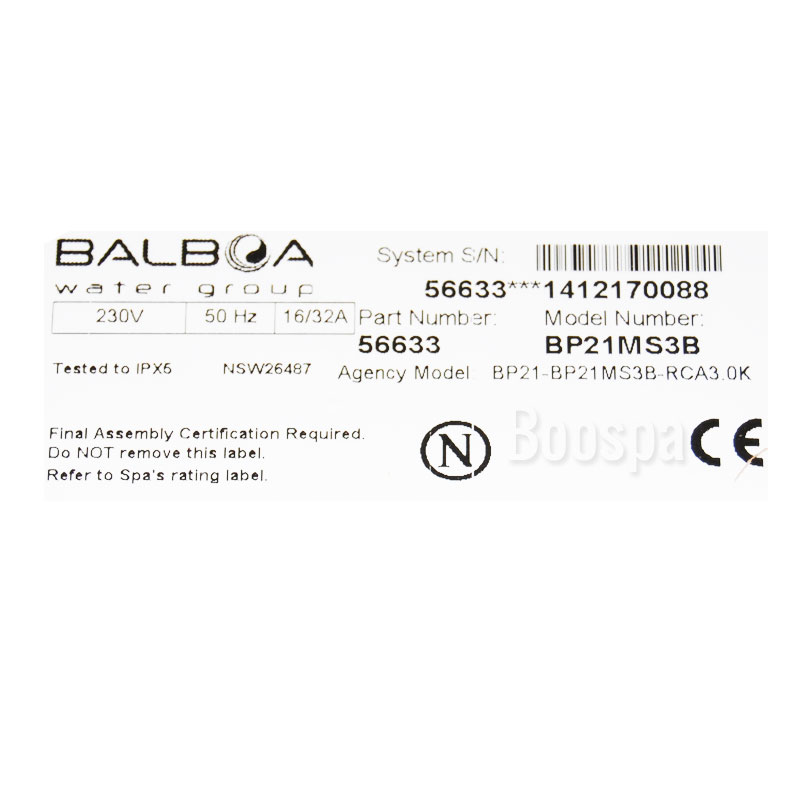

Serial number Description Pump 1 Pump 2 Pump 3  Microsilk® Circulation pump Blower Heater
56633 System BP21MS3B 2 speeds 2 speeds  1 speed  1 speed 220V 220V 3.0 kW 230V 800inc



Supply Stereo Ozonator Lighting Functionning temperature Storage temperature Humidity Norms
 220-240V / 50Hz  230V  230V  10V / 1A max  -20°C to 60°C  -25°C to 85°C  Up to 85%  IPx5/CE

  • Heater : M7 patented sensors
NEW RANGE OF CONTROL PANELS:
Topside panel Balboa
The new TopSide control panels with new elegant curves. They are equipped with a bigger LCD screen, simplified menus and integrated buttons for adjusting the temperature of your spa. A TopSide control panel will make using your spa easier and a lot more relaxing.

Compatible with the following control panels:
TP900, TP800
