The BP series from Balboa Instruments incorporates a new and much more efficient electronic management module. Capable of handling a heater of over 3kW, Balboa Instrument once again asserts its leadership status in the quality of these control systems. Its exceptional functional flexibility positions it as a high-end product in terms of performance. The technology of its M7 sensors has been redesigned, now equipped with a dedicated microprocessor for temperature management, triggering safety measures to prevent any potential overheating.

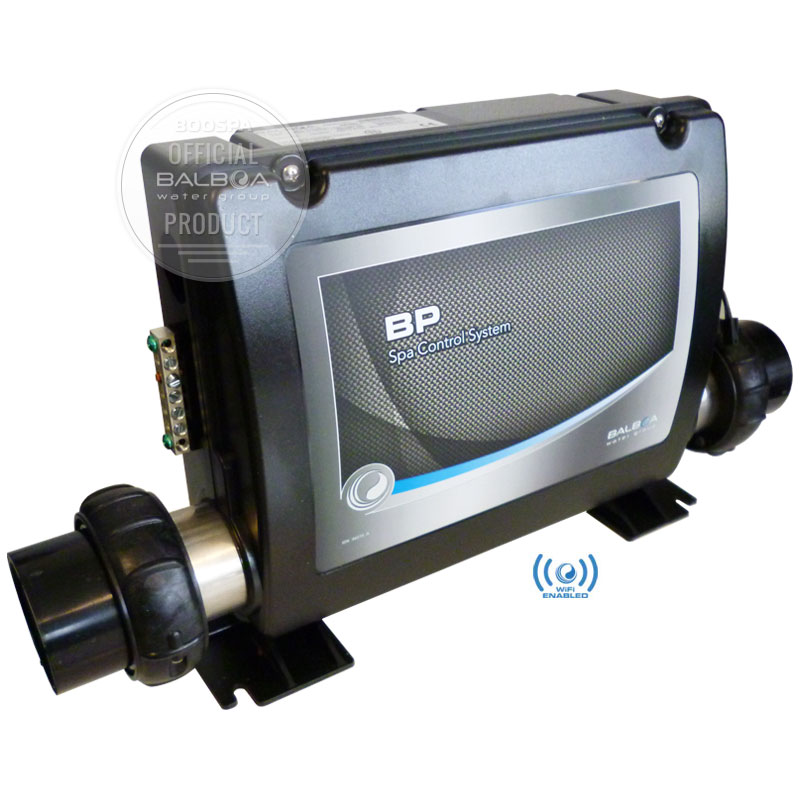

Complete electronic box BP6013G1 BALBOA Balboa Reference: 56610-XX
- 56610-01
- 56610-02
- 56610-03
- 56610-04
- 56610-05
- 56610-06
The last digit corresponds to the firmware version. All versions are perfectly compatible with each other.
2 massage pumps or 1 pump + 1 blower WIFI module available for remote control
Replaces BP601 boxes
There are several models of BP6013 (BP6013G1, BP6013G2, and BP6013G3). The choice of the model will be determined by the number of available massage pumps/blowers in your spa.
- BP6013G1: Capable of controlling 2 massage pumps or 1 massage pump and 1 blower
- BP6013G2: Capable of controlling 3 massage pumps or 2 massage pumps and 1 blower
- BP6013G3: Capable of controlling 3 massage pumps AND 1 blower
SPECIFICATIONS:- Power supply: Single or Three-phase 220/240V 50Hz
- Massage pumps: 2 or 1 + blower 220/240V
- Blower: 1 if no pump 2 220/240V
- Ozonator 220/240V
- Integrated 3kW heater
- Compatible with Wifi module 51159
- Auxiliary 220/240V
- Lighting: 1 output 12V
- Compatible with ALL keypads of the TP series (TP400 – TP500 – TP600 – TP800 – TP900 – SPATOUCH1 – SPATOUCH2 – SPATOUCH2T – SPATOUCH3 – SPATOUCH3+)
NEW FEATURES: | Simplified connection of the heater to the electronic board: | |
 | - Overheat detection in case of a fault on the circulation pump or relay.
- Possibility to integrate a WIFI module for remote control.
 The WIFI module is available as an option, controllable remotely via the Balboa application. It allows you to access all the functions of your Spa from anywhere.
|
DIMENSIONS:
NEW RANGE OF CONTROL KEYPADS:
The new TopSide control keypads feature more elegant curves. Equipped with an enlarged LCD screen, simplified menus, and support for button hold for temperature adjustment, they will greatly facilitate the use of your Spa.
Compatible with the following control keypads:
TP400 – TP500 – TP600 – TP800 – TP900 – SPATOUCH1 – SPATOUCH2 – SPATOUCH2T – SPATOUCH3 – SPATOUCH3+
