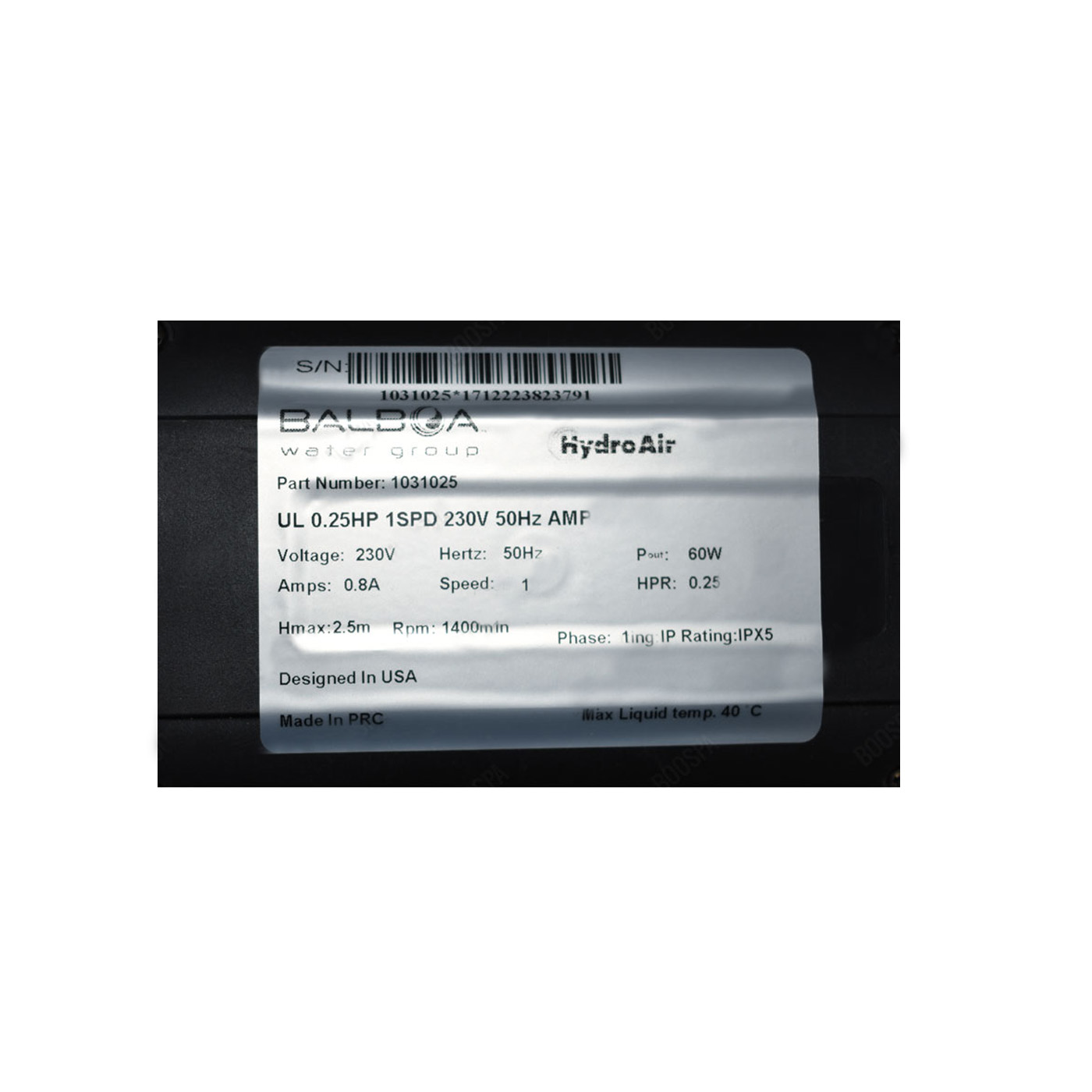

Balboa UL 0.25HP Circulation Pump
High performance and silent operation
BALBOA Reference: 1031025
0.25 HP - 200 watts
- New BALBOA Circulation Pump
- Orientable pump body for more flexible adaptation to any spa plumbing
- Compact design for minimal space requirement and easy installation in a spa
- Silent operation ensures a peaceful spa experience
- 230 V 50 Hz
- Designed for 24/7 filtration cycles, suitable for professional use
- Balboa Hydro-air Reference 1030025
Technical Diagrams
Pipe Connection
External thread diameter of 62 mm Supplied without fittings - Pipe fittings sold separately
You can also reuse your old pipe fittings if they are still functional.
If your piping differs, check out our Fittings and Unions range to find the fitting that matches your piping
The pump body is adjustable to fit your piping. You can have the outlet on the left or right based on your installation. Simply unscrew the 4 motor screws to rotate your pump body in the desired direction. Then, replace the screws securely.
Electrical Connection
The pump comes with a connection cable of 1.3 meters and an AMP plug. You can also keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Cables and Plugs for Spas section
Here are the most commonly used Plugs in the Spa world:
 |  |
| AMP Plug | J&J Plug
(PIN positions vary depending on the device) |
