WCP250G Circulation pump - 0.35HP - 250W
WCP250G circulation pump
0.35 HP - 250 watts - 260 L / min
2 Fittings for pipes 1.5" (48mm outside diameter) included
Technical characteristics
The specific features of the single-speed WCP series spa pump
- Silent operation
- Low vibration
- Overload protection
- Ingress protection : IPX5

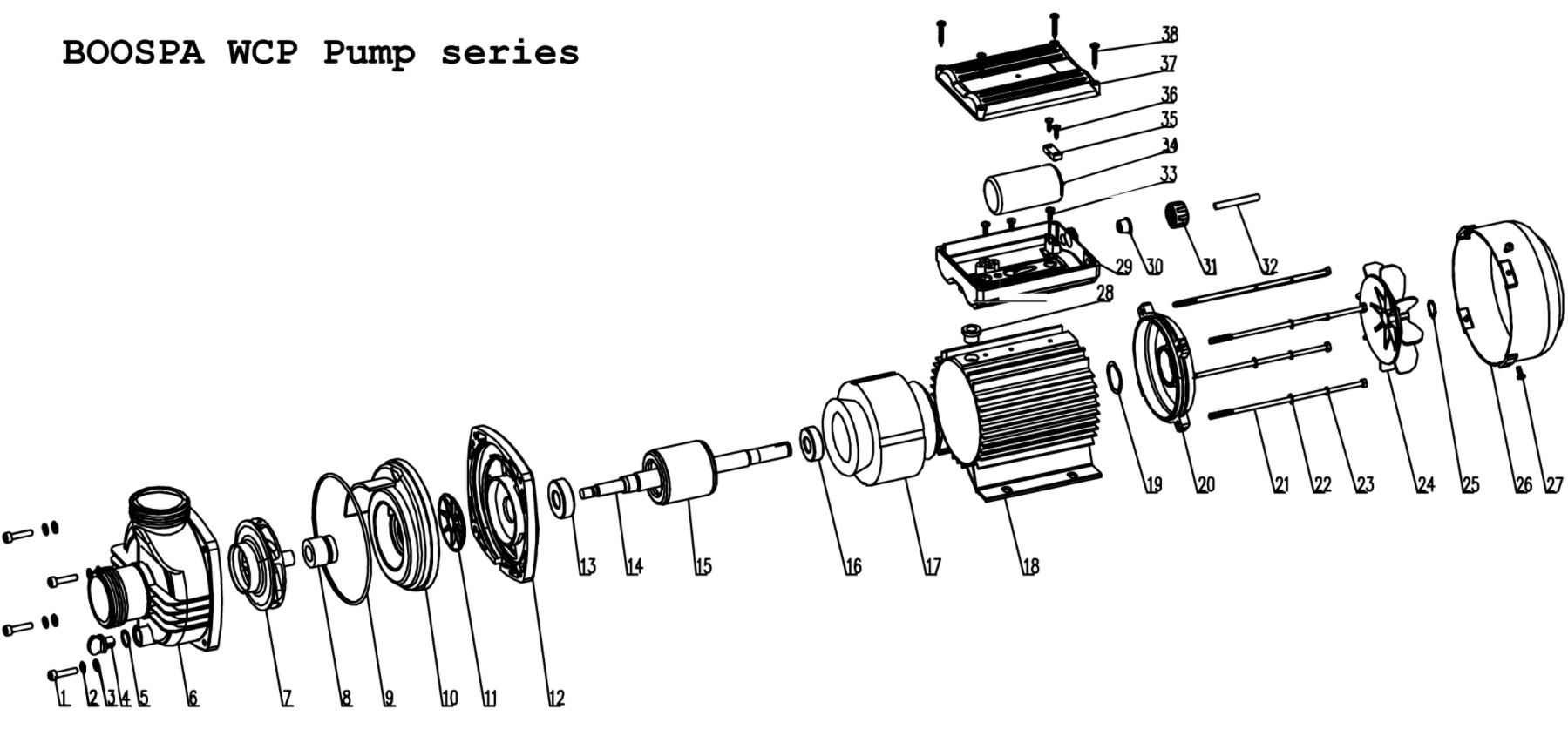

Drawings and characteristics of WCP compact pumps :
| Model |
Power |
V / Hz |
Qmax (L / min) |
Hmax (m) |
Pipe outside diameter |
Pump weight |
Dimensions packaging |
| WCP150G | 150W / 0.2HP | 220-240V / 50Hz | 180 | 3 | 48mm (1.5 inches) | 4.3 | 320 x 180 x 205 |
| WCP250G |
250W / 0.35HP | 220-240V / 50Hz | 260 | 3.8 | 48mm (1.5 inches) |
4.8 | 320 x 180 x 205 |
| WCP350G | 350W/0.5HP | 220-240V / 50Hz | 300 | 4.5 | 48mm (1.5 inches) | 5.2 | 320 x 180 x 205 |
WCP250G pump dimensions :
- Total length : 300 mm
- Total width : 167 mm
- Height : 190 mm
- Diameter of the delivery and suction screw threads : 62 mm
Pump supplied with :
- 2 fittings for piping diameter of 48mm
- Its power cable with AMP plug of about 2m
- 4 silentblocs
Technical documentation
