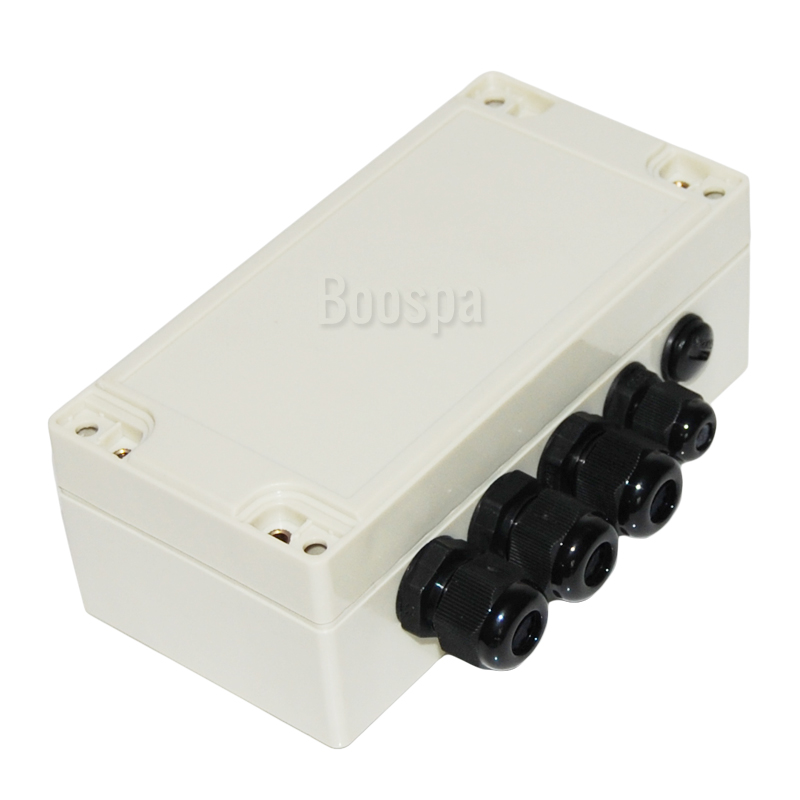

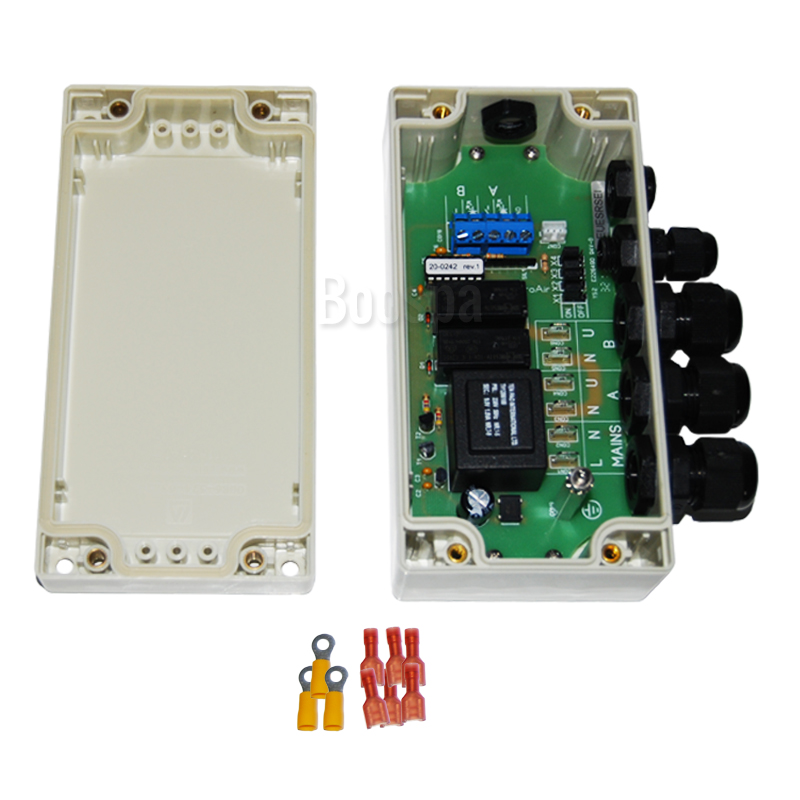

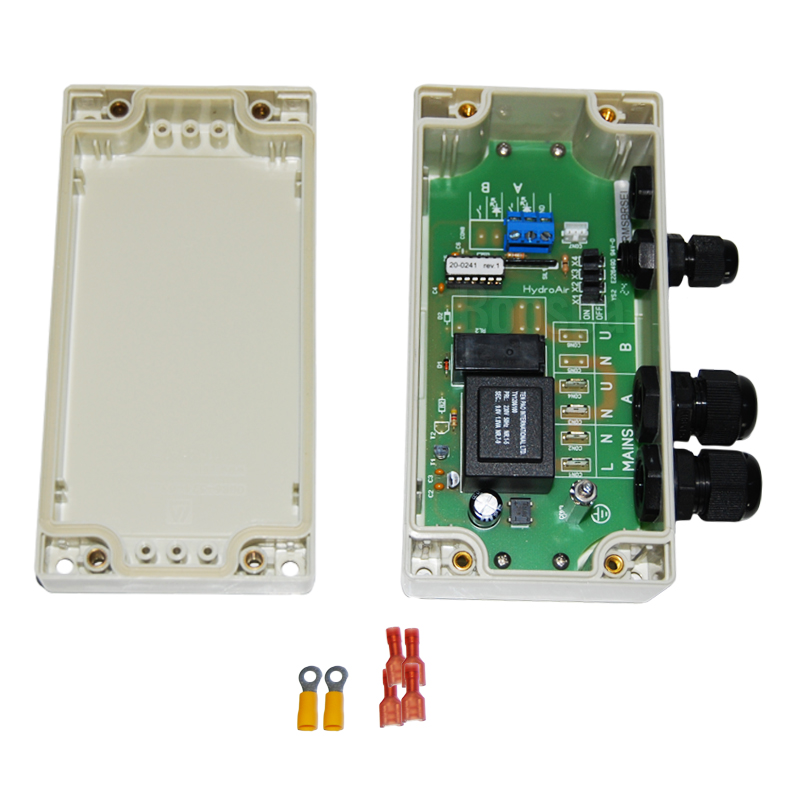

Classic Line Electrical Control Box
This control box allows you to independently control one or two blowers, pumps, or lighting. The main power supply is connected to the box as well as the two/one device. The control of the components is done through the BALBOA electric LED buttons.
The BALBOA LED buttons are sold separately Button references:- Pump LED Button: 21-1640
- Blower LED Button: 21-1650
- Lighting LED Button: 21-1660
|  |
Technical Specifications:
- Rated Voltage: 230V 50/60Hz
- Rated Power: 3680W
- Rated Current: 16A
- 2 available models: 1 or 2 outputs
- BALBOA References: 20-0241 and 20-0242
It is possible to individually load outputs A and B up to 3680W at 16A.
Compatible with
All systems.
