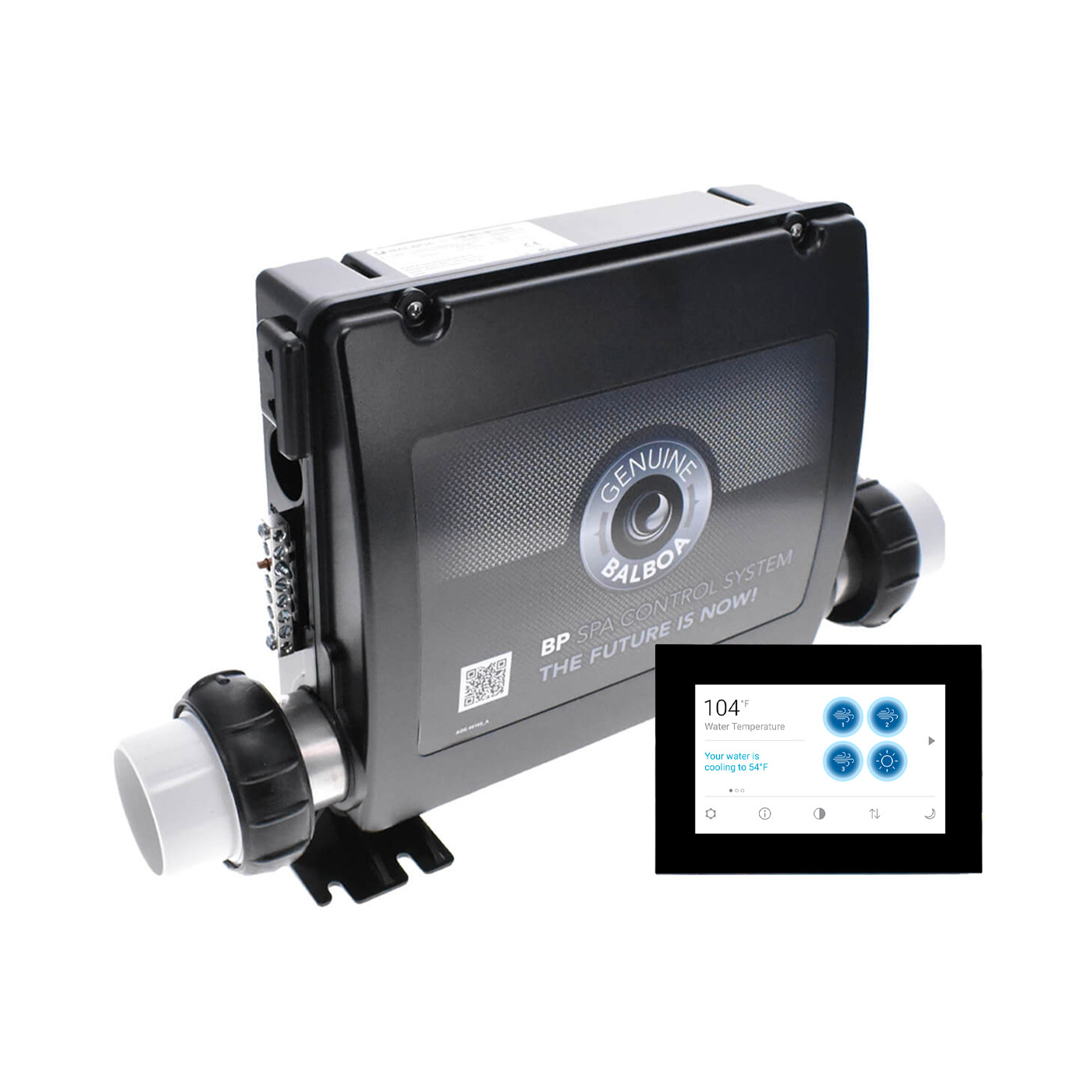

BP8 Control Box + SpaTouch 4 Touchscreen with Integrated WiFi
The Balboa BP8 + SpaTouch 4 pack is a premium all-in-one solution for smart spa control. It combines the power and versatility of the BP8 control box with the modern SpaTouch 4 touchscreen, featuring integrated WiFi for remote control via the ControlMySpa mobile app. The kit includes all necessary cables for a fast, plug-and-play installation.
Pack Contents

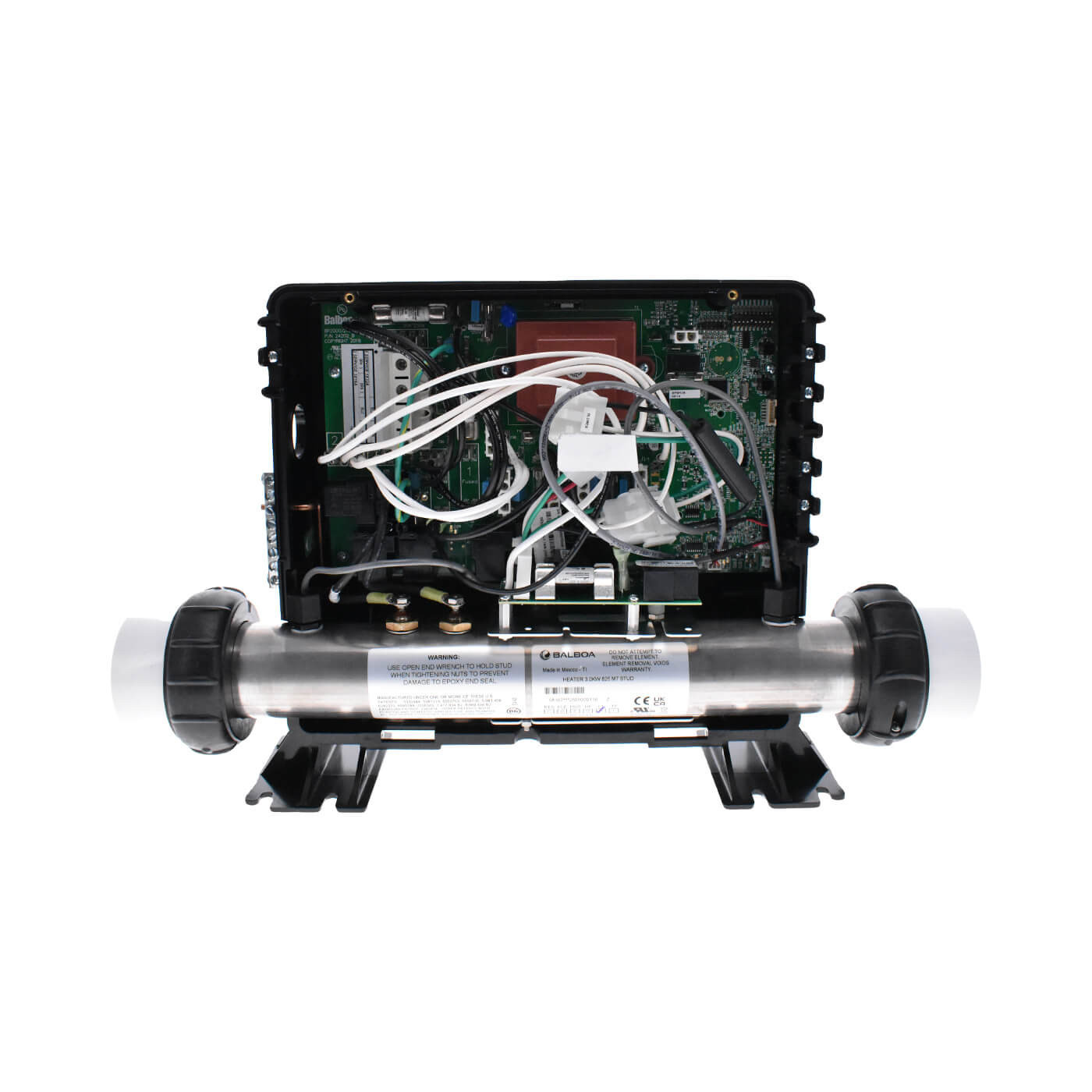

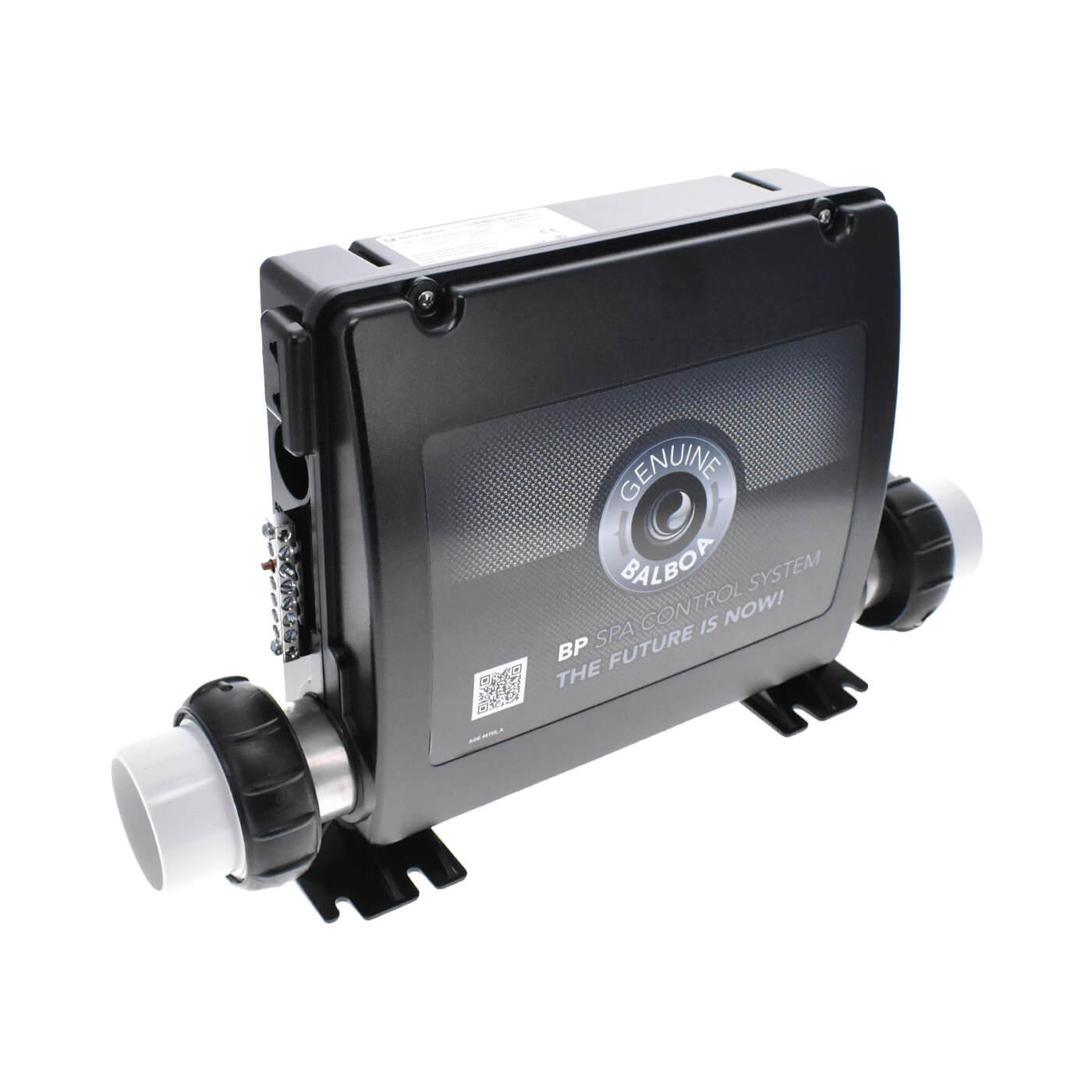

- 1 Balboa BP8 control box (Ref. G3381) with integrated 3 kW Incoloy heater
- 1 SpaTouch 4 touchscreen – integrated WiFi

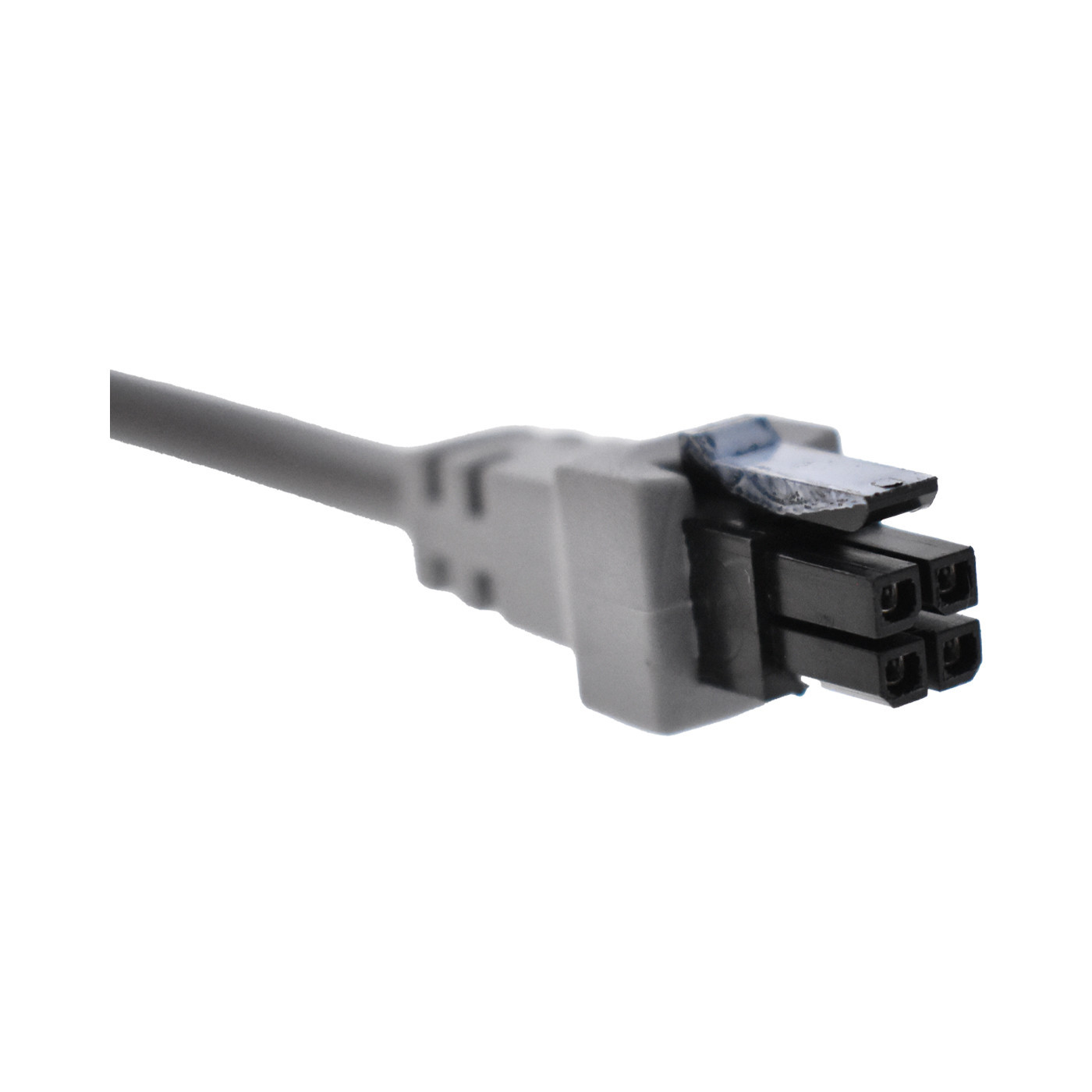

- 6 AMP extension cables for single-speed pumps
- 1 AMP extension cable for dual-speed pump
- 1 Balboa lighting kit: cable + socket + bulb holder
- 2" heater unions and gaskets included
This kit provides all the necessary components to fully install or upgrade a spa system without needing additional accessories.
Technical Features
- Balboa BP8 control box – manages up to 3 pumps, 1 blower, 1 circulation pump, 1 ozonator, and LED lighting

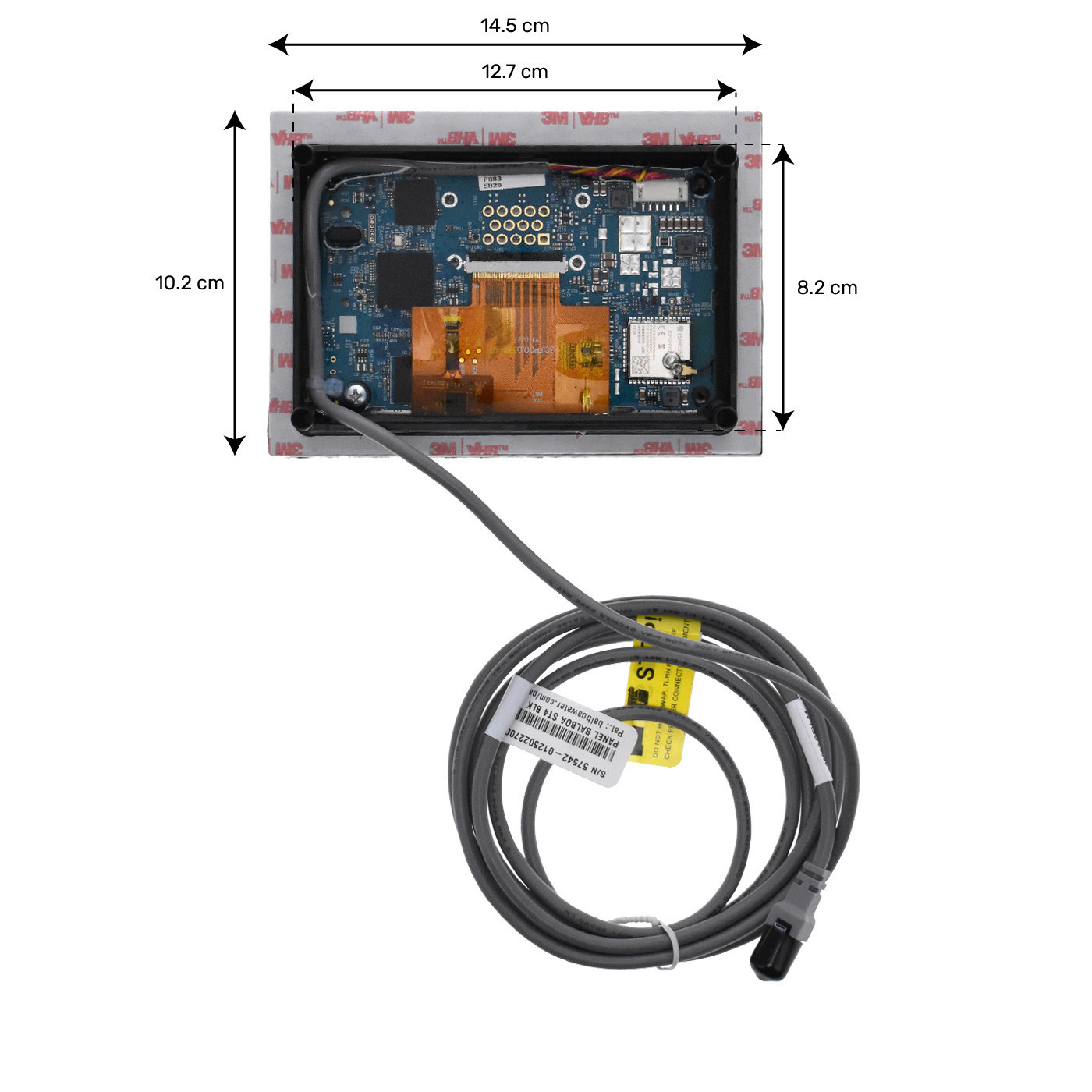

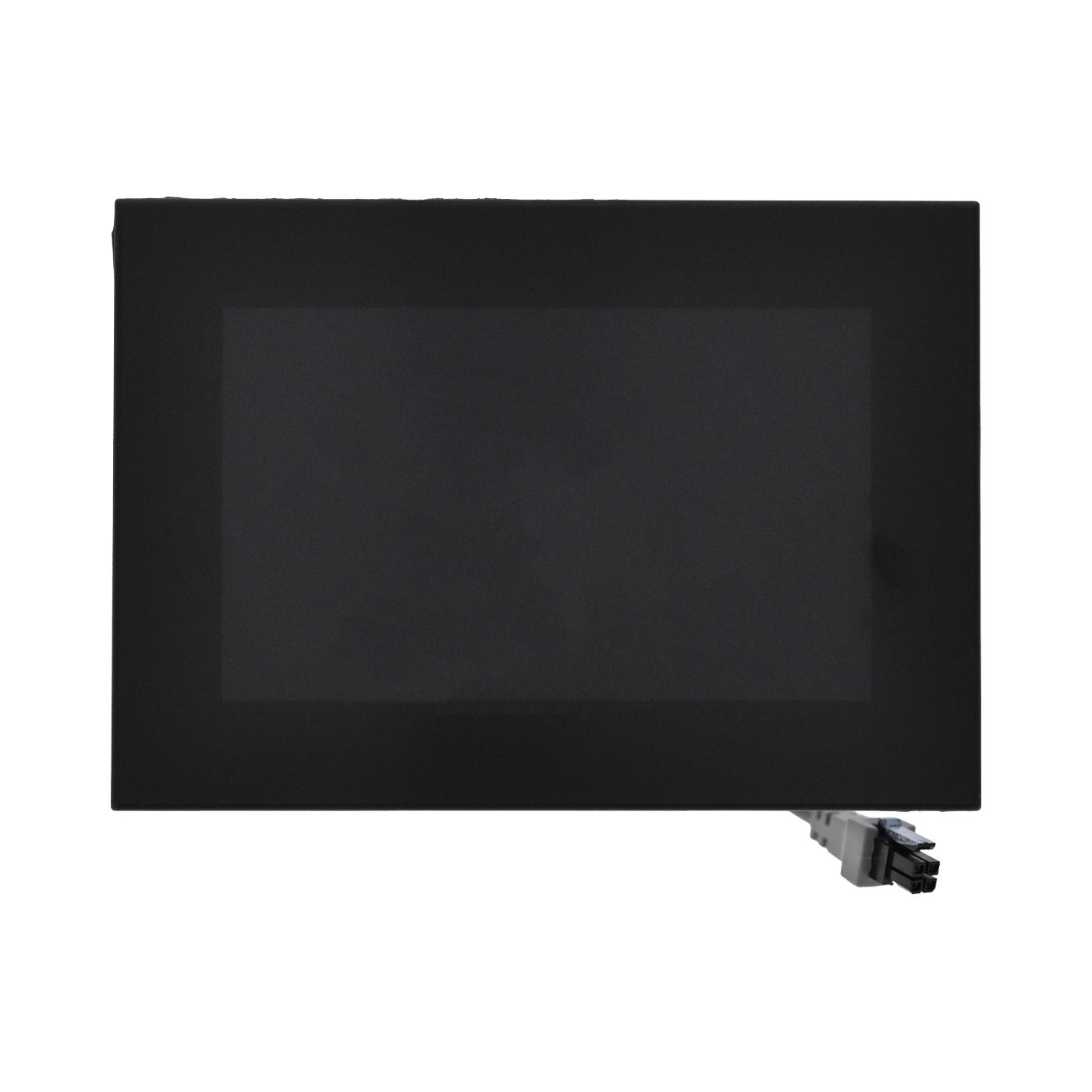

- SpaTouch 4: 7" high-resolution color touchscreen with integrated WiFi and app-based control (ControlMySpa)
- 3 kW Incoloy heater – efficient and long-lasting
- Compatible with TP and SpaTouch keypads and Balboa accessories
- Compact, moisture-resistant housing for easy installation
Dimensions & Installation
- Height: 310 mm
- Heater width (without fittings): 330 mm
- Heater width (with fittings): 430 mm
- Control box depth: 125 mm
- Heater connection: 2-inch (unions and gaskets included)
The BP8 is designed for quick and simple setup. The SpaTouch 4 connects via the included Balboa cable and mounts on the spa shell for full control of jets, temperature, lighting, filtration, blower, and automation. Before installation, check DIP switch settings and choose the correct Setup mode for your spa model.
| Specification | Details |
|---|
| Brand | Balboa Water Group |

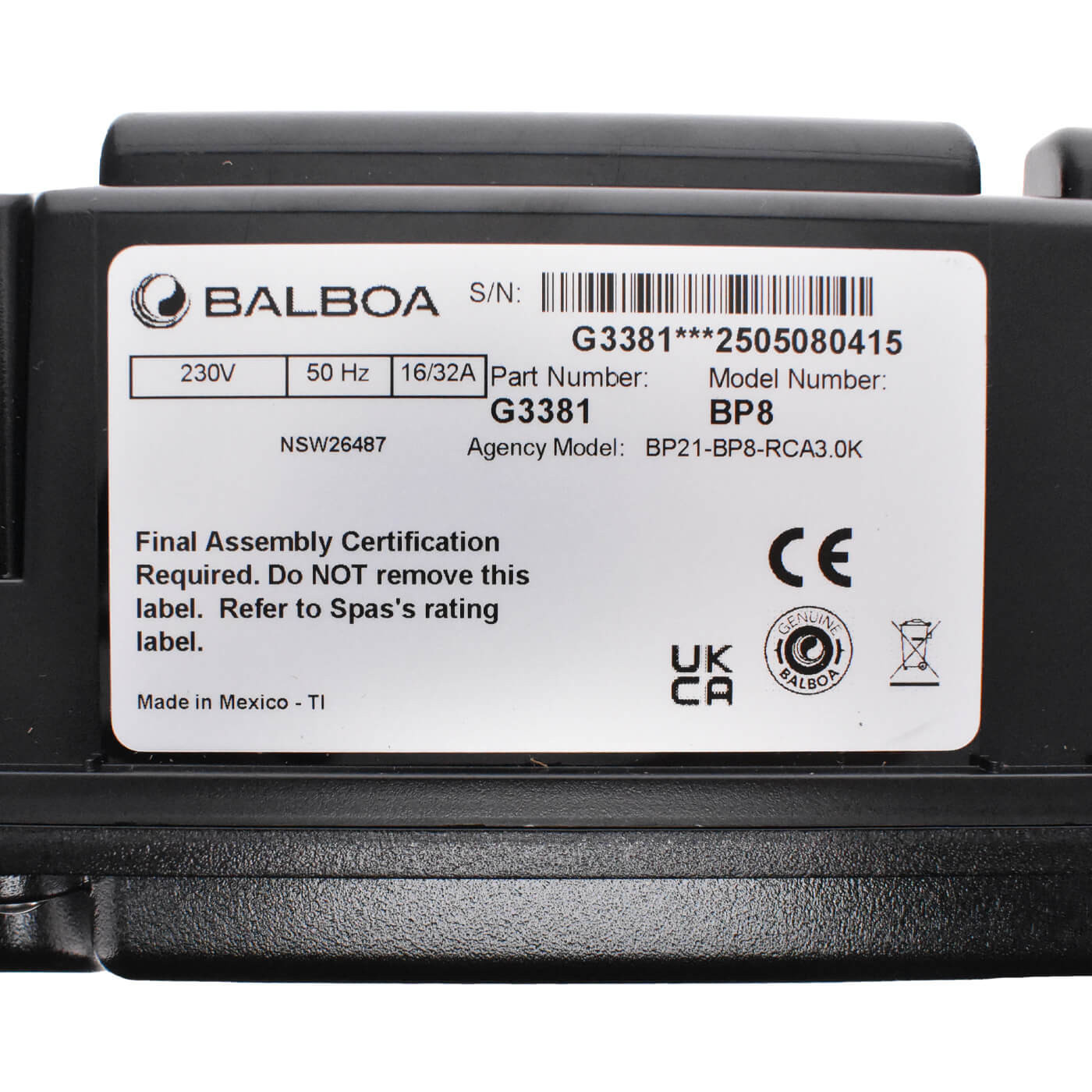

| Control box model | BP8 (Ref. G3381) |
| Touchscreen | SpaTouch 4 – 7" color display, waterproof, with built-in WiFi |
| Heater | 3 kW Incoloy (integrated) |
| Power supply | 230 V AC |
| Configuration | 3 pumps + blower + circulation pump + ozonator + LED lighting |
| Connectivity | Integrated WiFi – ControlMySpa app (iOS/Android) |
| Height | 310 mm |
| Heater width (without fittings) | 330 mm |
| Heater width (with fittings) | 430 mm |
| Control box depth | 125 mm |
| Heater connection | 2-inch – unions and gaskets included |
| Included accessories | 6 single-speed pump cables, 1 dual-speed cable, Balboa lighting kit |
Pack Advantages
- Built-in WiFi for remote control via smartphone or tablet
- High-resolution touchscreen for optimal user experience
- Complete kit with cables and fittings – ready to install
- Durable and efficient 3 kW Incoloy heater
- Compatible with existing Balboa-equipped or replacement spa systems
FAQ
Is WiFi included in the pack?
Yes, SpaTouch 4 features integrated WiFi for remote control using the ControlMySpa app.
Is this pack compatible with older Balboa GS systems?
Yes, the BP8 is compatible with older GS and BP systems, provided the connectors and wiring match.
Are all necessary cables included?
Yes, the pack includes 6 single-speed pump cables, 1 dual-speed cable, and a complete Balboa lighting kit.
Can I control the spa from my smartphone?
Yes, thanks to built-in WiFi, you can manage your spa remotely with the ControlMySpa app (available on iOS and Android).
What setup is required before powering on?
Ensure DIP switches are set correctly, select the appropriate Setup configuration, and check plumbing connections before switching on.
