    Product is no longer manufactured
    WONDER
    Ref : A-000000-08652

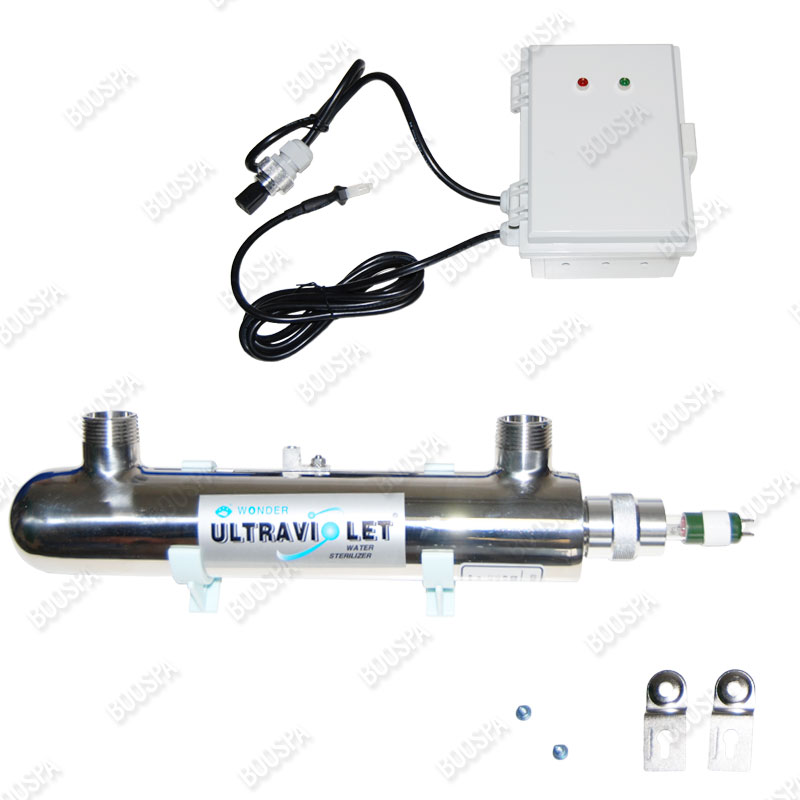

    Complete UV disinfection system PP-I

    Complete UV Disinfection System PP-I
    Natural and automatic purification system.
    Includes ballast, chamber, quartz, and UV bulb

    Final break
    See replacement products
    • Delivery

      Pay in 4x free of charge with Read more

    • 100% compatible parts

      100% compatible parts

    • 2-year warranty (1 year for professionals)

      2-year warranty (1 year for professionals)

    Technical characteristics

    Complete UV Disinfection System PP-I


    Natural and automatic purification system.
    Includes ballast, chamber, quartz, and UV bulb.

    The kit can be used in a spa that does not originally have a UV disinfection system.
    However, you will need to create a By-Pass on your filtration system and connect it to this system.

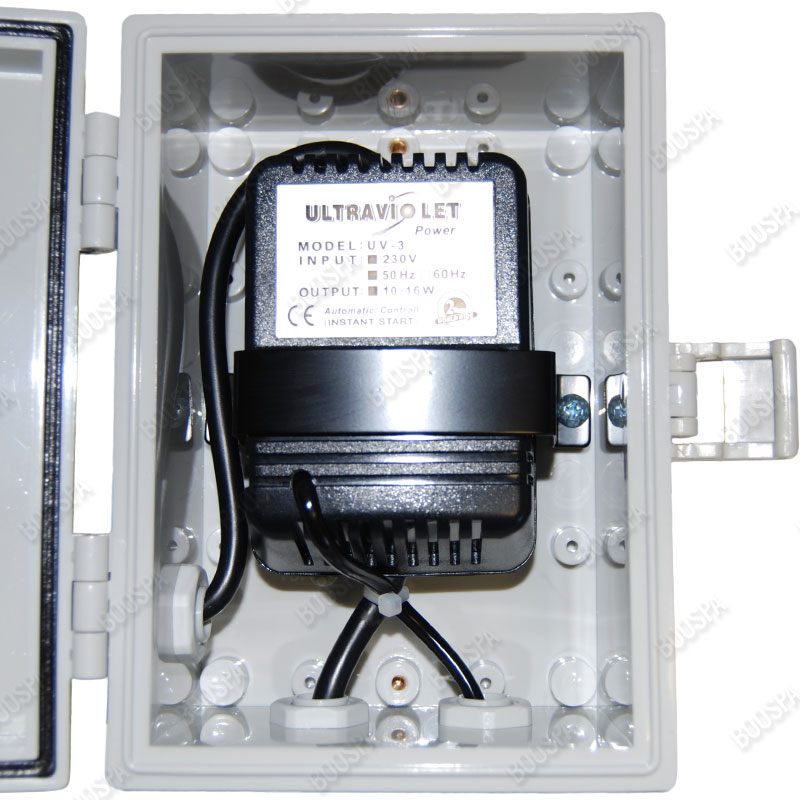

    The electrical connection of the Ballast (transformer) is made via an AMP plug, making it suitable for most spa control systems.

    Bulb connection illustration
    Chamber dimensions:
    • Length without ballast: 345mm
    • Length with ballast: 420mm
    • Diameter: 64mm
    • Connection thread: 33mm

    1" fitting not included in this kit

    Average UV bulb lifespan: 9000 hours (approximately 1-2 years depending on usage)
    Quartz tube lifespan: 2-3 years

    Composition of Wonder PP-I System:

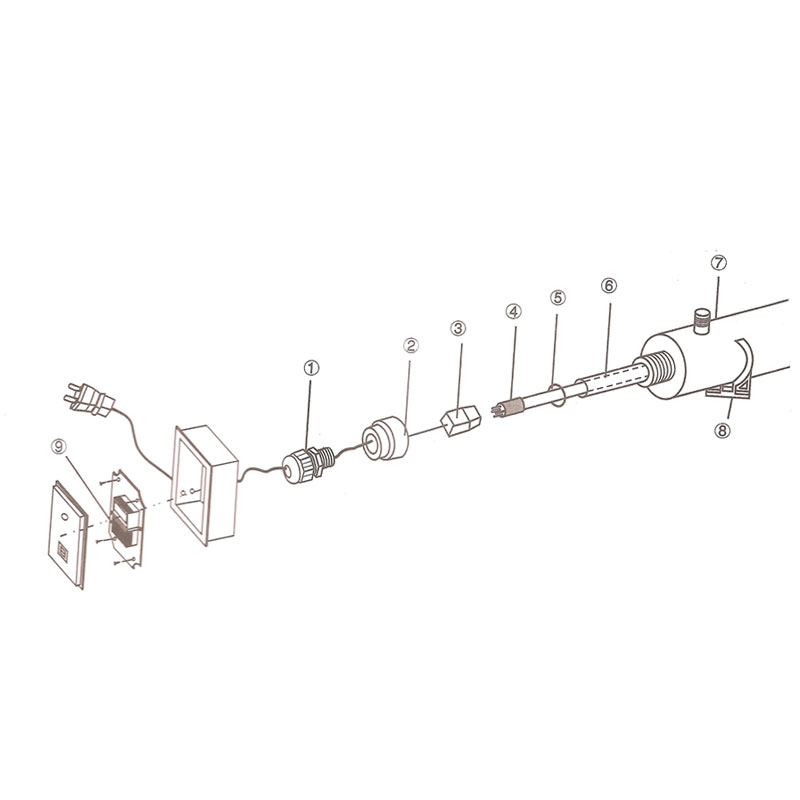

    PP-I Ozonator Diagram
    • Part n°1: PG135 Ballast sealing ring
    • Part n°2: A02 Aluminum union ring between ballast and chamber
    • Part n°3: 4P80 4-pin connector to the bulb
    • Part n°4: T515 UV 15W bulb
    • Part n°5: 21735 Sealing gasket
    • Part n°6: t245350 Quartz tube
    • Part n°7: ST635345 UV disinfection chamber
    • Part n°8: 1002 Fixing clip
    • Part n°7: UV-3-regular Ballast

    ModelFlow rate (l/min)Quartz DimensionsInlet and OutletBulb ModelBallast
    PP-I22.6Diameter 24.5mm / Length: 350mm1"T515UV-3-regular
    220-240V
    PP-II45.2Diameter 24.5mm / Length: 680mm1"T529UV-6
    PP-III90.4Diameter 24.5mm / Length: 910mm1.5"T540UV-6

    UV Lamp: This is how ozone is produced in the upper atmosphere through sunlight rays


    Compatible with

    Wonder brand UV lamp Ozonators
    • PP series: PP-I

    Commonly used in Wellis® brand spas
