Joyonway P20B29 Control Box
JOYONWAY is the trendiest new manufacturer of electronic parts for spa manufacturers. Their growth is skyrocketing, offering reliable control systems with unmatched quality/price ratio. BOOSPA is the official Joyonway after-sales service platform in Europe.
These systems can be easily replaced identically. However, they can also easily replace old spa control systems that are no longer available or too outdated. The manufacturer currently offers 4 control boxes to adapt to any spa.

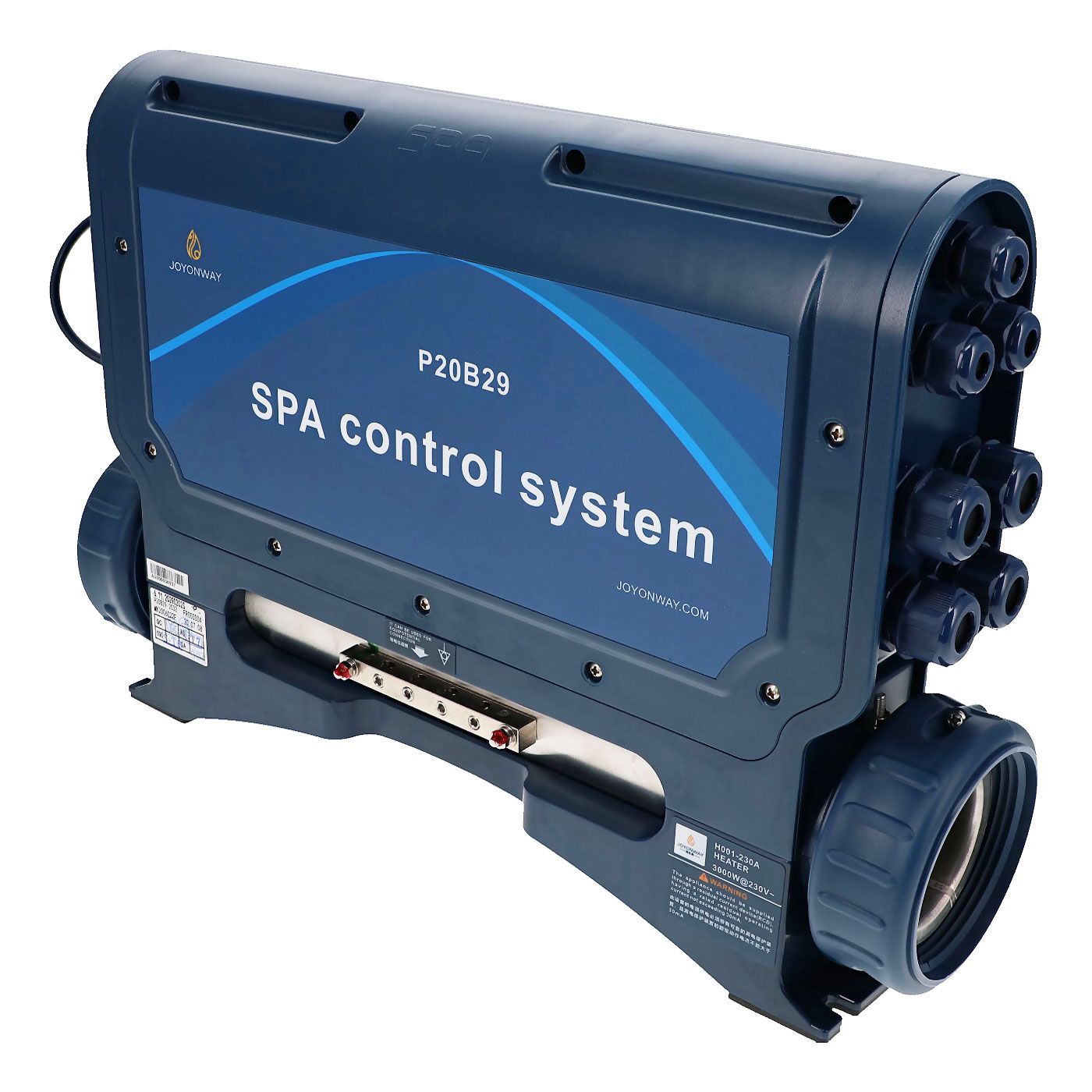

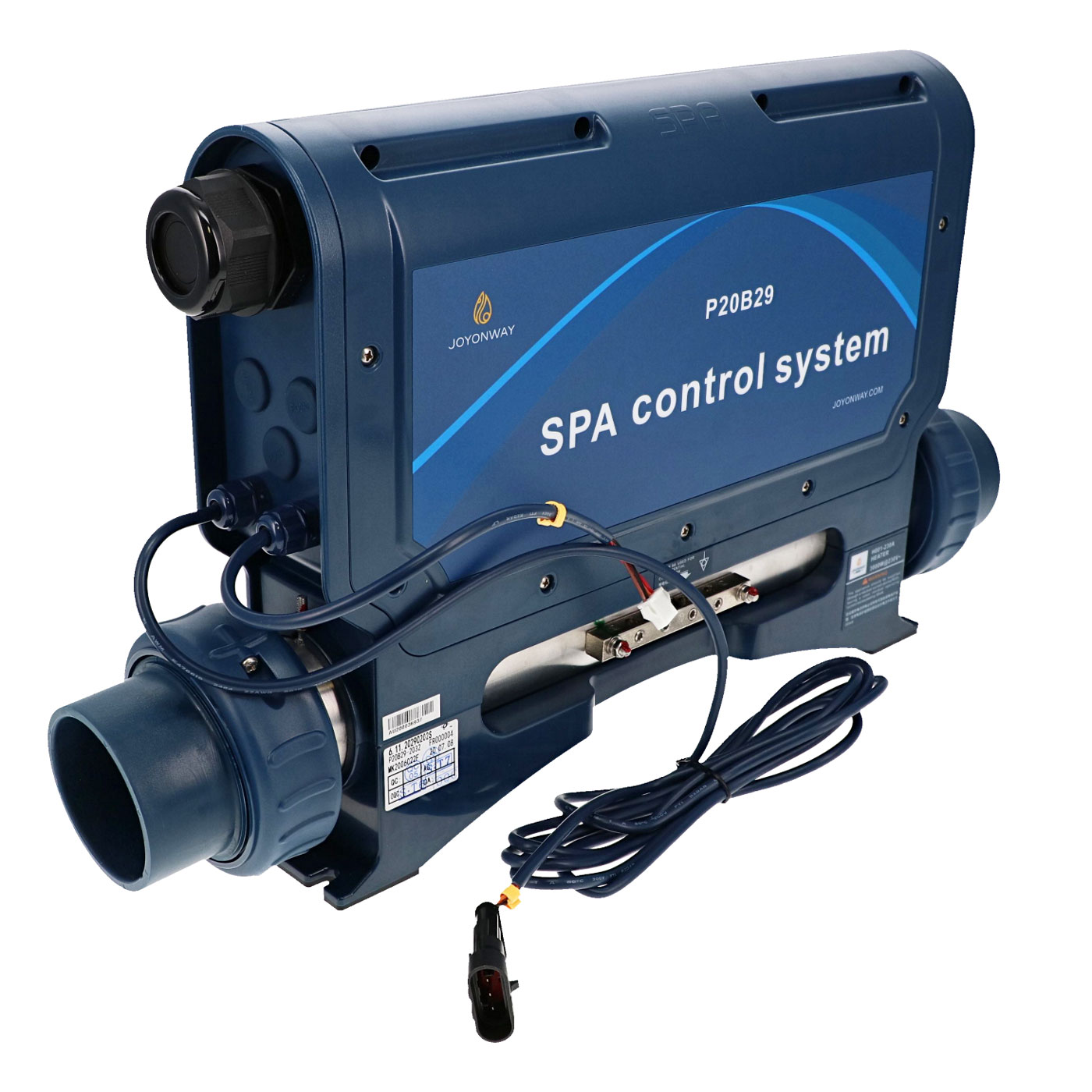

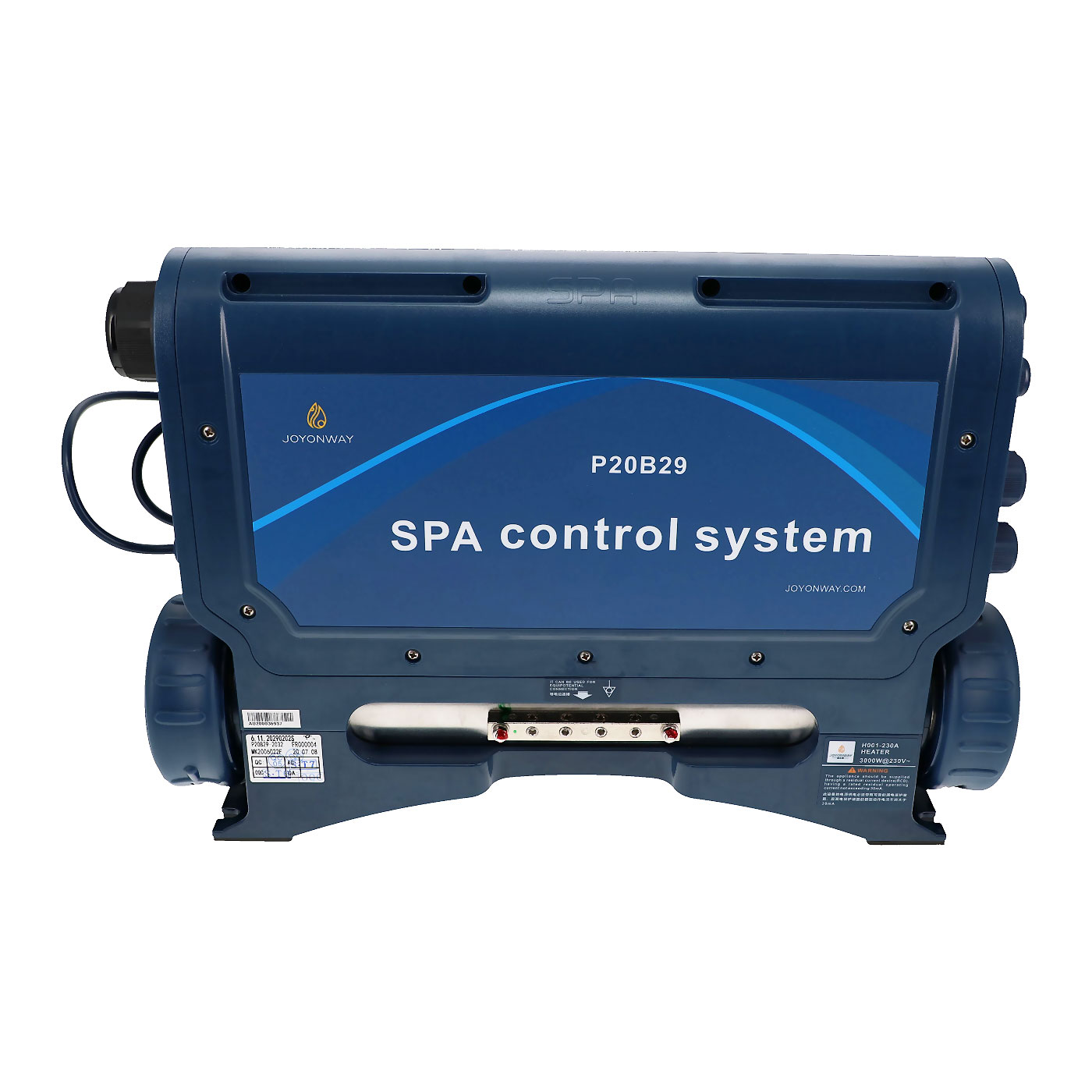

The P20B29 spa control box is the largest box from the brand. It allows you to control up to 4 massage pumps and a blower, making it ideal for spas requiring ample resources to operate fully.
(In the table below, the gray row outlines the features of the P20B29 control box)
Systems
| Pump 1
| Pump 2
| Pump 3
| Pump 4
| Blower
| Circ. Pump
| Ozone (Voltage)
| Lighting
| AV
| Heaters
| Keyboards
|
| P20B29 | 230V
1 or 2 speeds | 230V
1 or 2 speeds | 230V
1 or 2 speeds | 230V
1 speed | 230V
5A Max | 230V | 230V | DC
12V | 230V | 3.0kW | PB553
PB554
PB555 |
| P23B32 | 230V
1 or 2 speeds | 230V
1 or 2 speeds | / | / | 230V
10A Max | 230V | 230V | DC
12V | 230V | 3.0kW | PB553
PB554
PB555 |
| P25B37 | 230V
1 or 2 speeds | / | / | / | 230V
10A Max | 230V | 230V | DC
12V | / | 3.0kW | PB553
PB554
PB555 |
| P15B66 | 230V
1 or 2 speeds | 230V
1 speed | / | / | 230V
10A Max | 230V | 230V - DC 12V | DC
12V | 230V | H002
3.0kW | PB557
PB559 |
Other Features
- Easy-to-use screw terminals
- 2 connectors 2" (60mm outer diameter) included
- The box can be equipped with a Wi-Fi receiver (reference: WF01) enabling remote control of the box (not included)
- IPX5 Box
Dimensions
