JOYONWAY
Ref : A-000000-0o203

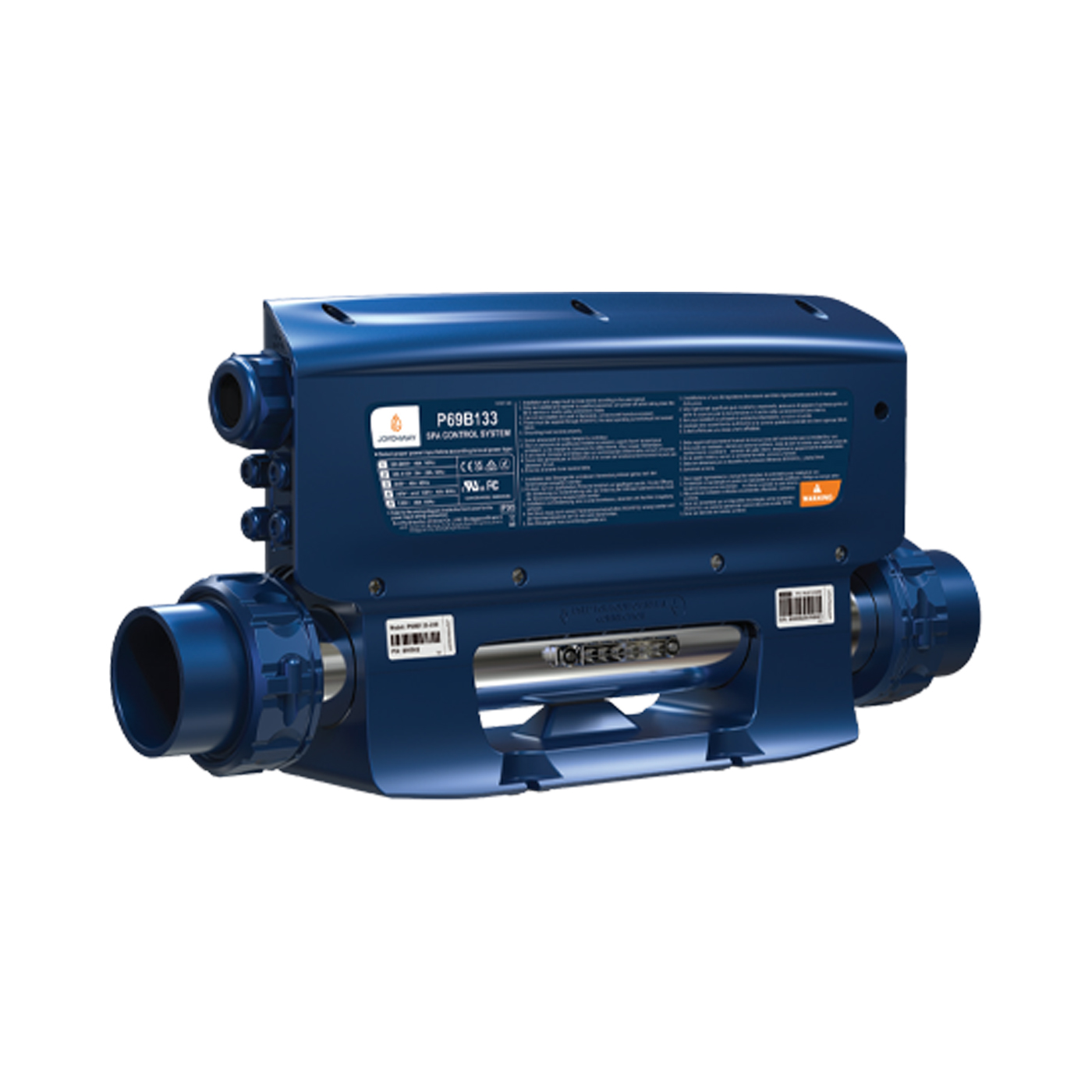

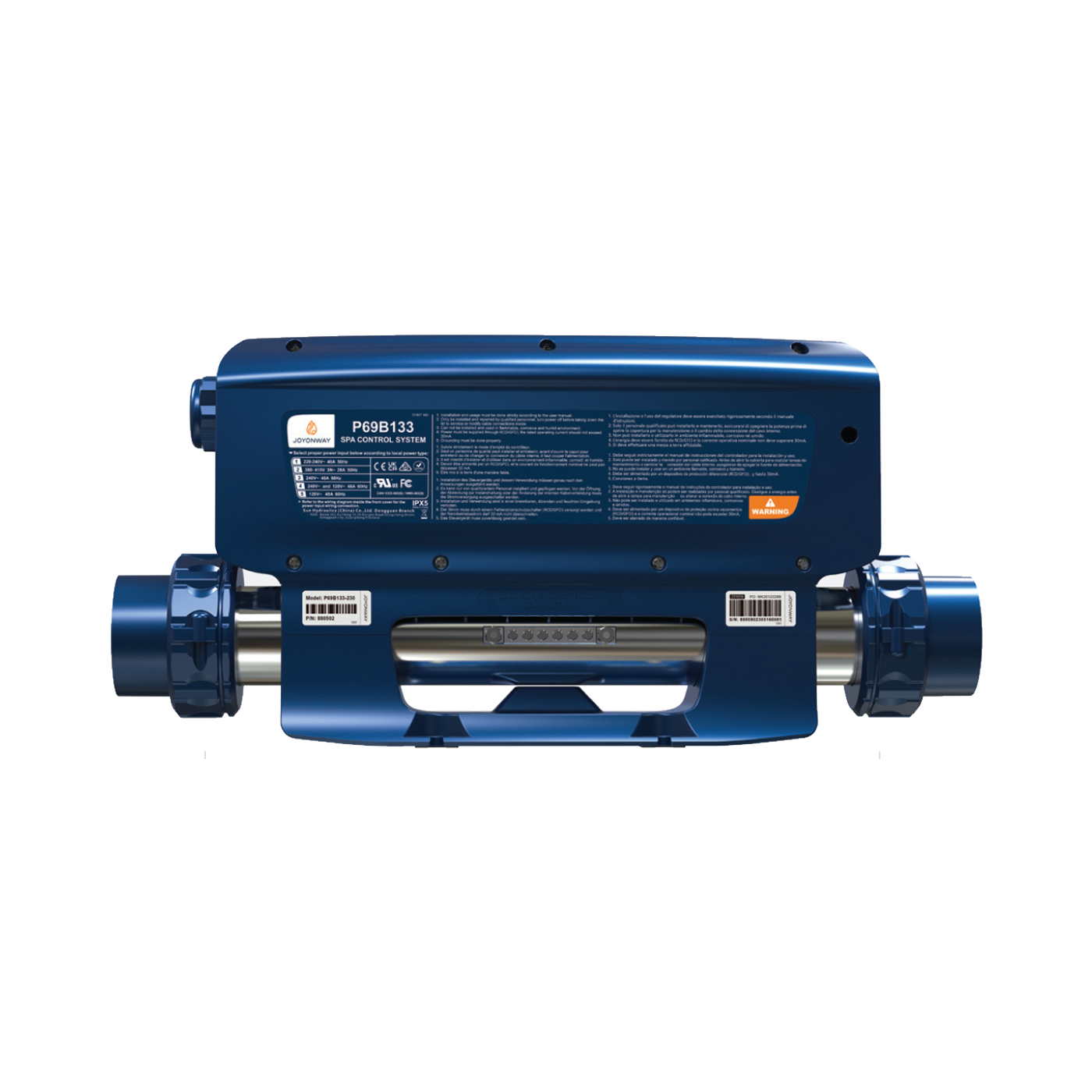

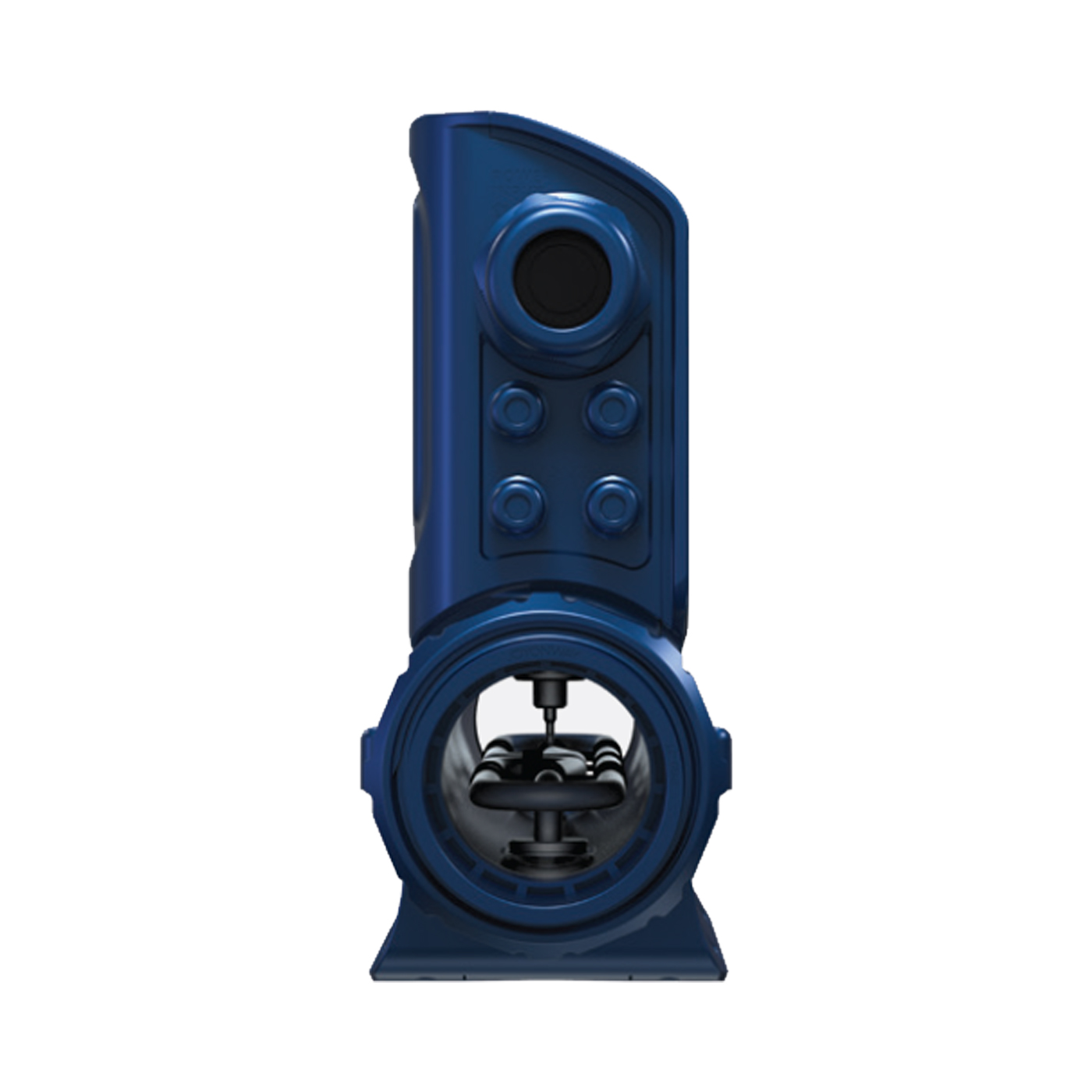

Control system P69B133 - 3kw - Joyonway
Allows control of up to 4 massage pumps.
Worldwide delivery The Joyonway P69B133 control box is designed to optimize the management of your spa, incorporating advanced technology with a 3 kW power. Compatible with a power supply of 100-240V~ 48A 50Hz/60Hz or 380-415V 3N~ 28A 50Hz, this robust system allows for easy and efficient use of multiple spa components.
| Feature | Specification |
|---|---|
| Dimensions | Length: 380 mm, Width: 100 mm, Height: 238 mm |
| Power Input | 100-240V~ 48A 50Hz/60Hz or 380-415V 3N~ 28A 50Hz |
| SPA Light Type | ON/OFF or RGB (+5V/3A or +12V/3A) |
| Single Speed Pumps | 4 sets (10.5A each) |
| Blower | 1 set (10.5A) |
| Circulation Pump | 1 set (3.5A) |
| Heater | 1 set (2000W, 3000W, or 4000W at 230V~) |
| Ozone | 1 set (1A) |
| Auxiliary Power Output | 1 set (10.5A) |
| Additional Functions | Clock, frost protection, heating timer, water circulation timer |
To maintain the efficiency and longevity of your Joyonway P69B133 control box, it is recommended to regularly check the connection and condition of connected components. Ensure that all electrical installations are performed by a qualified professional to avoid any electrical risk. It is also advisable to keep the box dry and away from excessive moisture to prevent any corrosion or premature failure.
