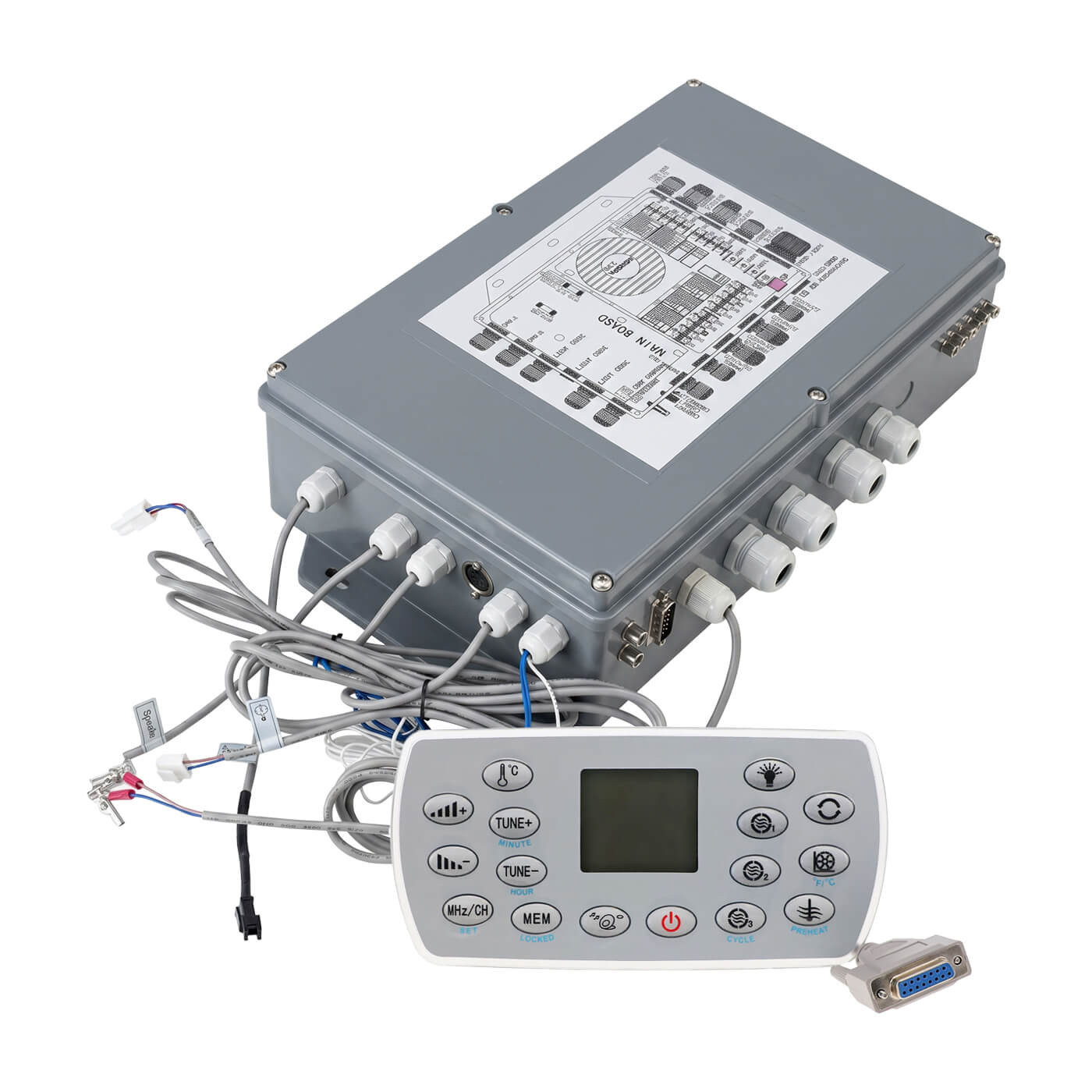

Control Box Ethink KL8-3 + Control Panel KL8-3H
Up to 3 Massage Pumps
Features of the KL8-3 - ETHINK control box:
- Power supply: 220-240V (N-CE-CB)
- Circulation pump: 1 X 220-240V
- Massage pump: 3 X 220-240V
- Blower: 1 X 220-240V
- Ozonator 12V (AC) only
- LED lighting: Standard Connection - Jazzi Connection - Round LED Connection 12V
- Heater power supply up to 3kW with pressure switch connection cable
- Radio control
- Temperature sensor and water level sensor included
- Compatible with heater H30-R1 or H30-R2 (without connection cable)
- Ethink KL8-3 spa control box: available without the control panel
|  |
Dimensions:
- Length: 29cm
- Width: 21cm
- Depth: 10cm

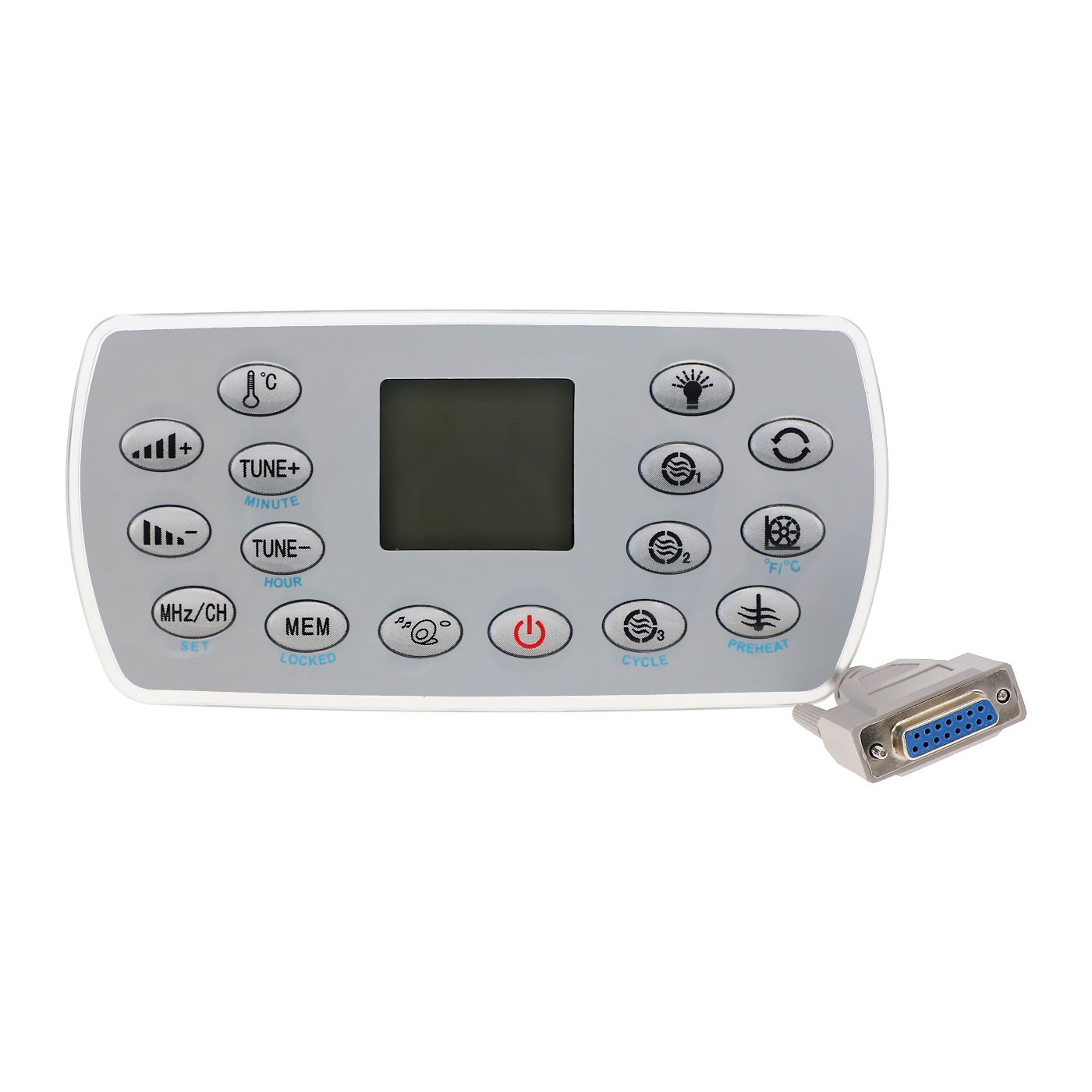

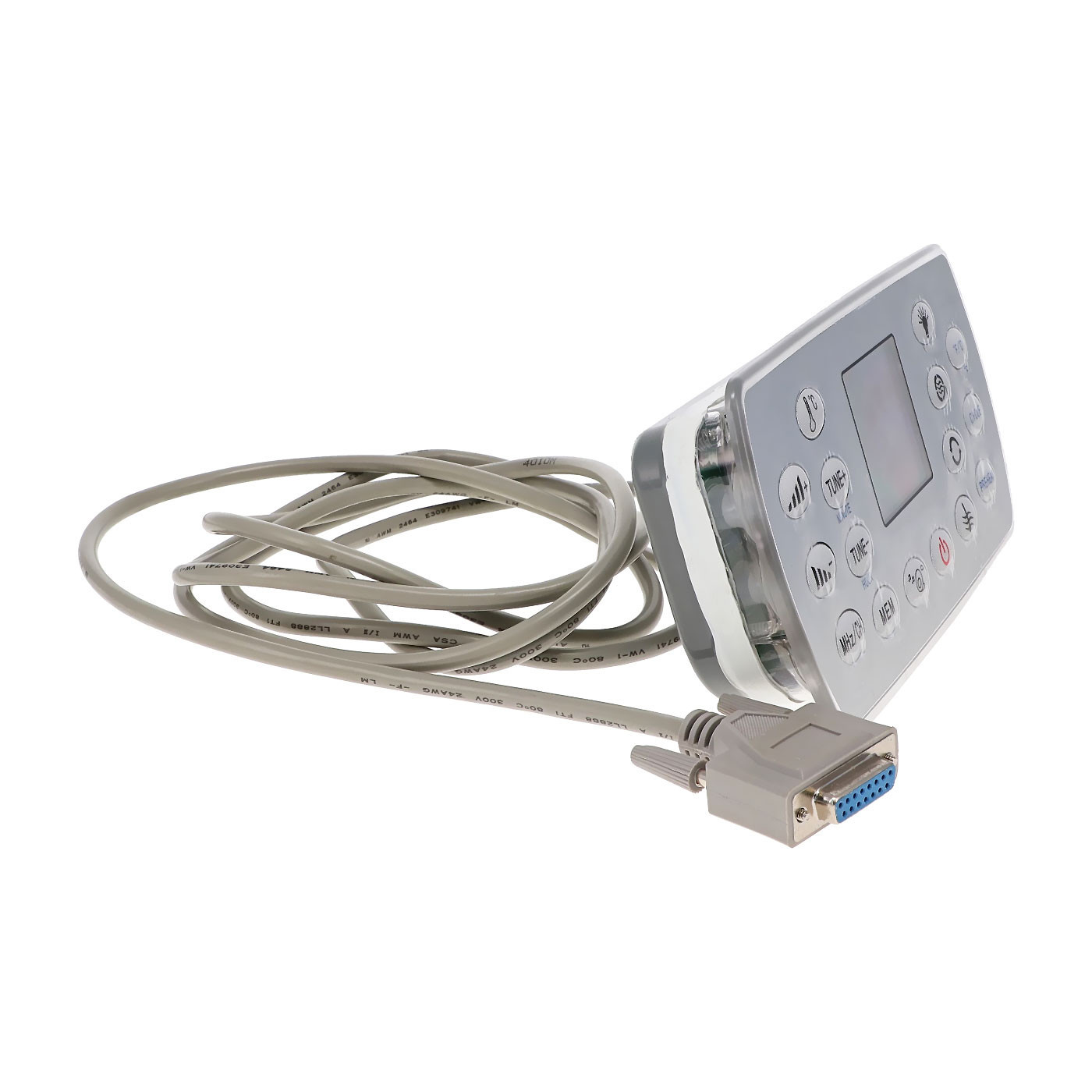

Features of the KL8-3H control panel:
- 3 operating modes: standard mode, economy mode, and standby mode.
- 24-hour clock display and setting for cleaning cycle.
- Water temperature control and display
- Control up to 4 massage pumps, one circulation pump, one air pump (blower)
- Management of LEDs and colors
- Temperature displayed in Fahrenheit or Celsius
- Anti-freeze function
- Backlighting of keys
- Low voltage for lighting and ozone
- Function settings by switch
- Error messages for quick troubleshooting
- Compatible with 220-240V and also 380V three-phase
- Requires a shortcut
- Ethink KL8-3H control panel: Available without the control box
| .jpg) |

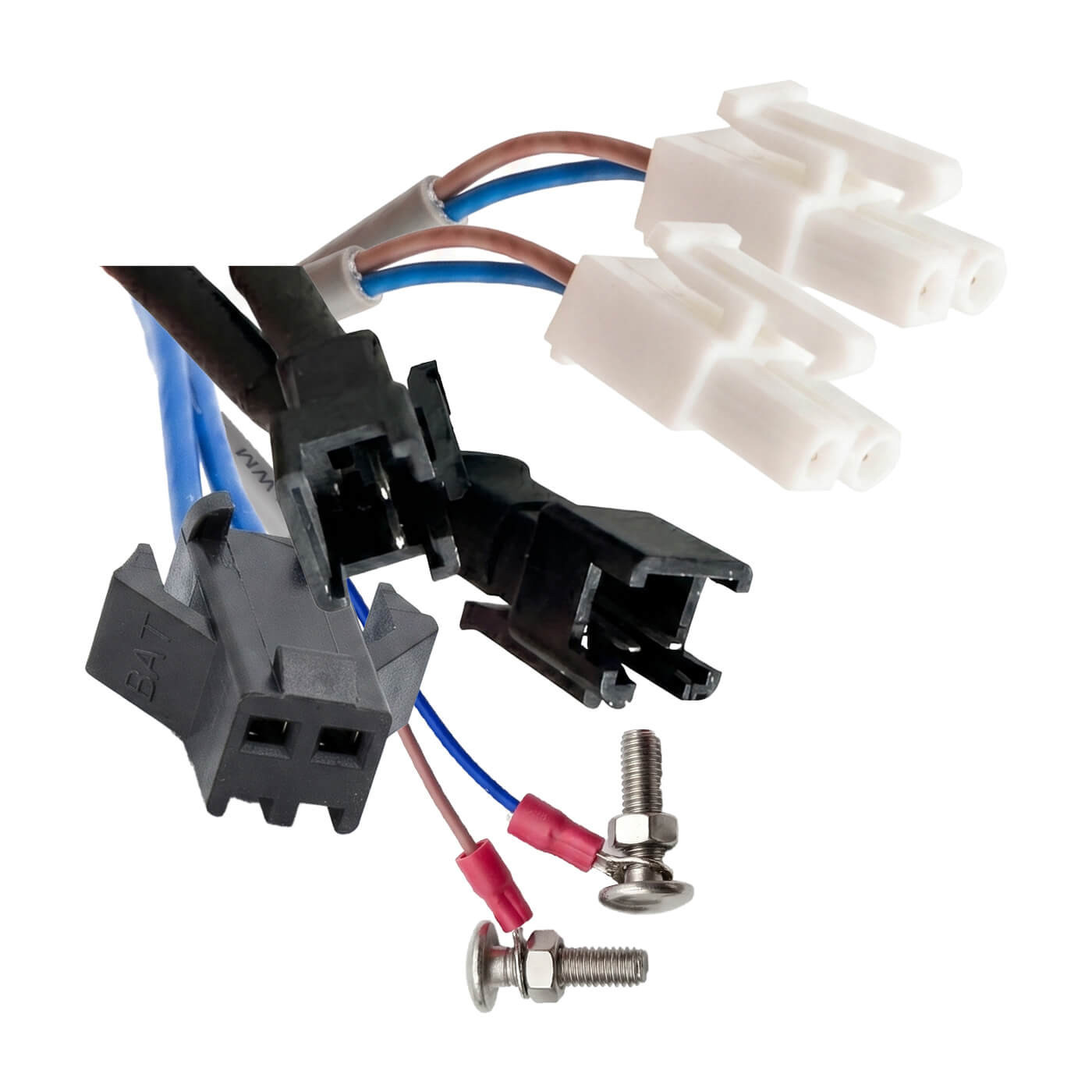

LED lighting connection:
Standard Connection
Round LED Connection
Jazzi Connection
Compatible with
Chinese spas such as Aquazzi, Blue Lagoon spas, Jazzi spas, JFC bien être, JnJ spas, Phybris spas, and many other spas equipped with a KL8 series control box
