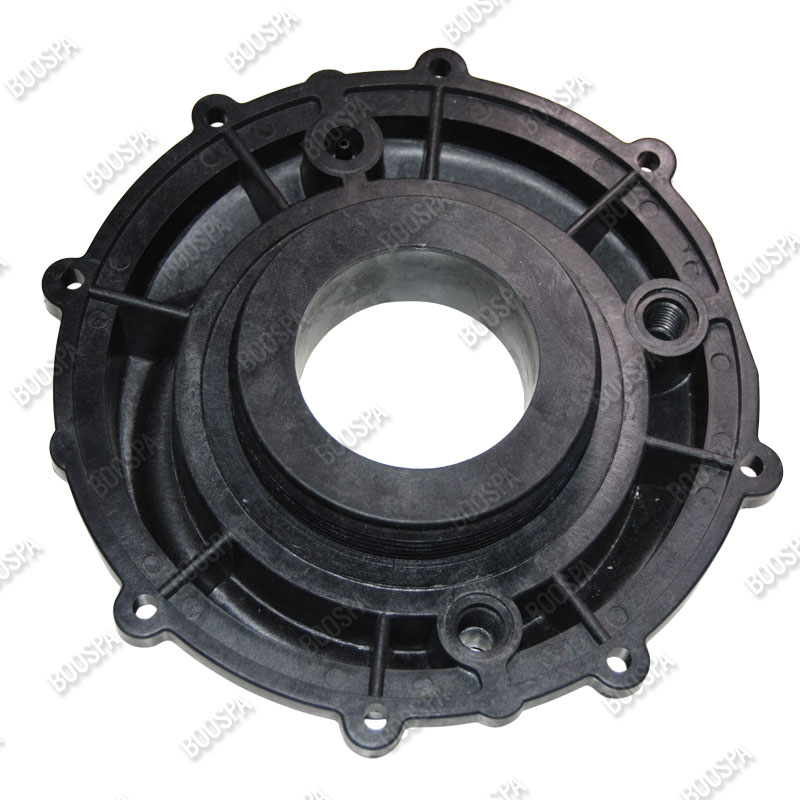

Front Faceplate for LX Pump Series WP/LP inlet 94mm 9.5mm

Ref : A-000000-06870

Front flange for LX WP/LP series pump, 94mm suction, 9.5mm.

Name: Front flange for LX WP/LP series pump, 94mm suction, 9.5mm.
Brand: LX
SKU: A-000000-06870
Price: 49 EUR
Availability: InStock

Front Flange for LX WP/LP Series Pump 94mm Suction
Corresponds to part number 7 in the exploded view
The thread diameter at the suction is 94-96mm

49,00 €

In Stock

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

Front Flange for LX WP/LP Series Pump with 94mm Suction
Corresponds to part number 7 in the exploded view
The thread diameter at the suction is 94-96mm

Suction 2.5 inches
Thread diameter at the suction: (94mm or 96mm depending on the model)

There may be several references for a single model, we ask you to refer only to the dimensions of the flange. However, the references may be as follows: B436-10, B351-03,

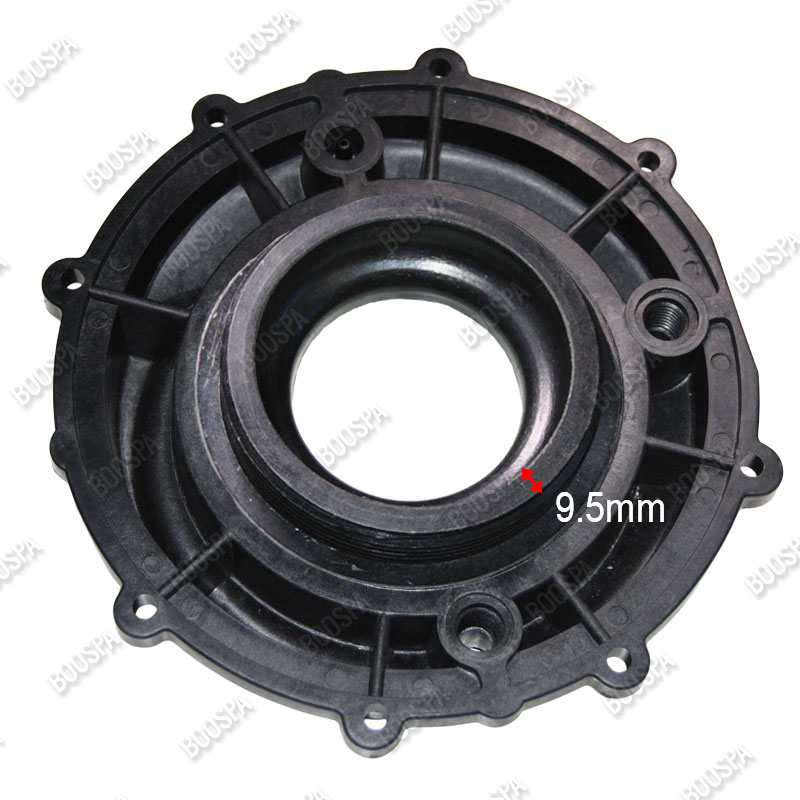

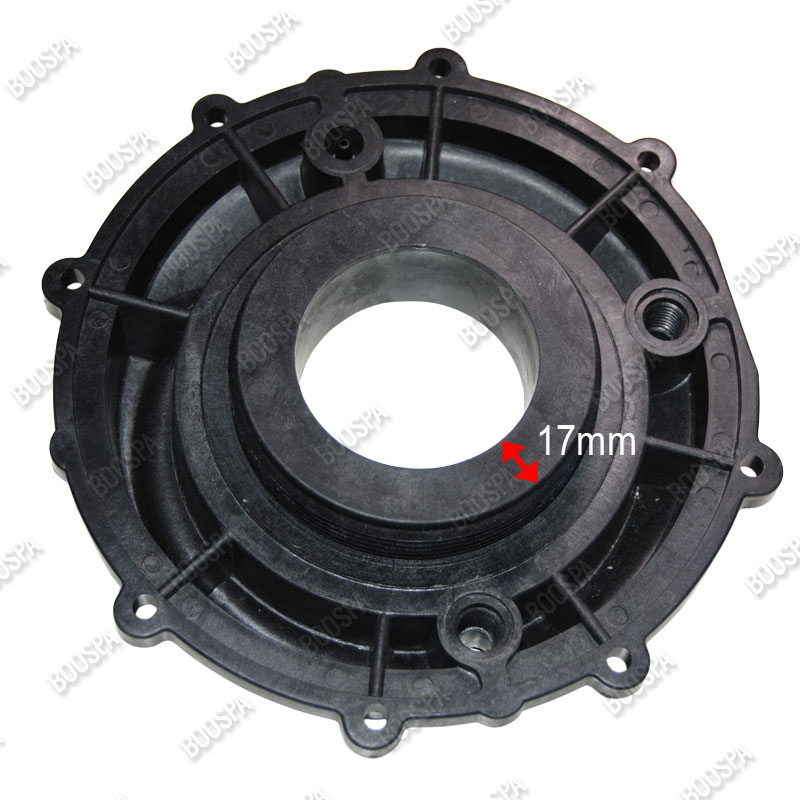

There are two versions of this front flange. They are identifiable by the thickness of the suction ring.
We invite you to check all the measurements indicated in the item presentation images.

Attention! The suction union fittings for the 9.5mm model do not match the standard 2.5" union fittings. It is a specific pump union fitting: 96mm Union Fitting

The massage pumps for LX Whirlpool spas are massage pumps commonly used in Asian spas.

Compatible with

All spas equipped with an LX WHIRLPOOL pump with a 2.5'' suction

Almost all spas of Asian manufacture.
