Complete Replacement Pack Gecko IN.YE-5 + IN.K450 + in.touch3

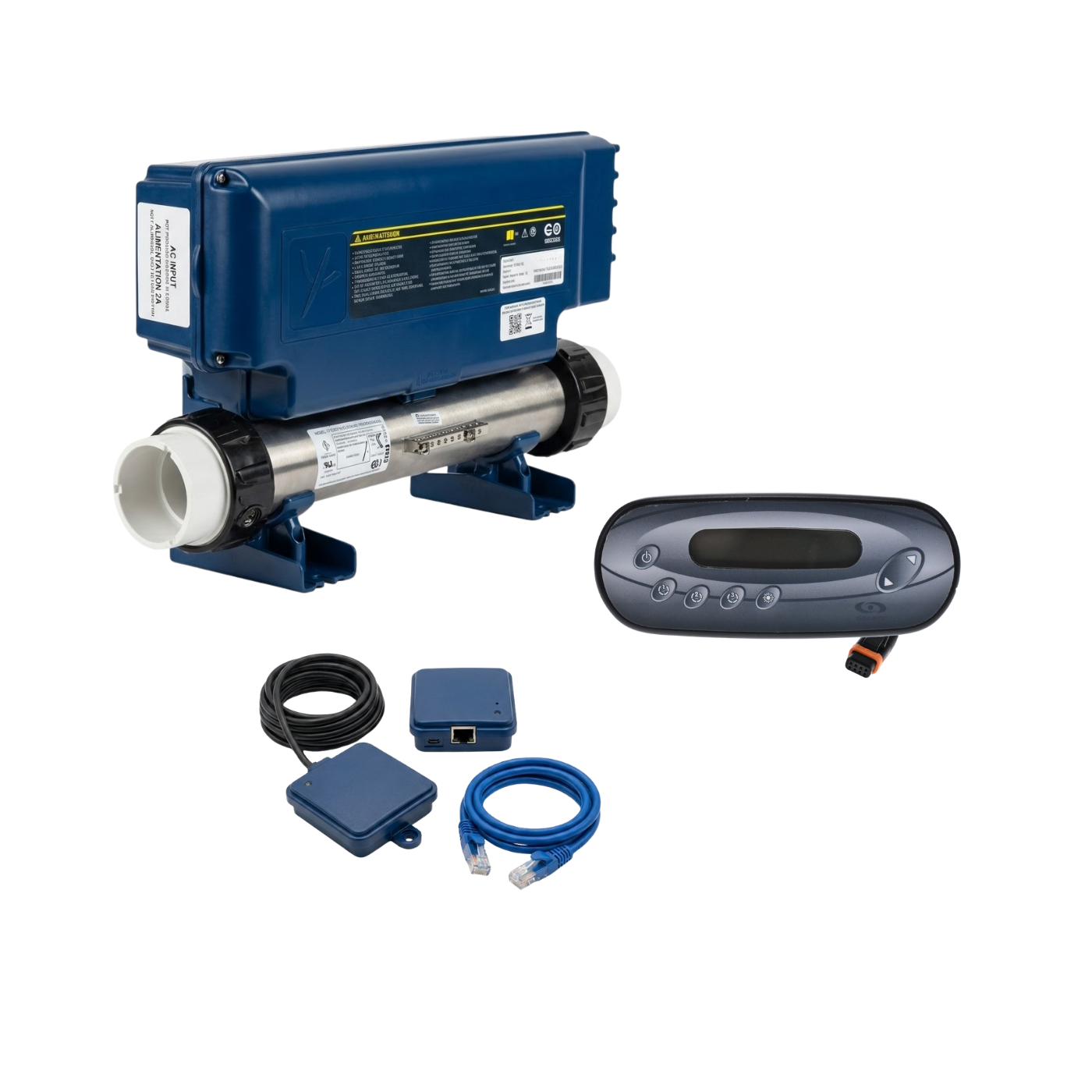

The GECKO 0610-300017 pack includes a control box in.ye-5 with an integrated 3 kW heater, an in.k450 keypad, and a Wi-Fi kit in.touch 3. It also includes the cables, plugs, and adapter plate required for this replacement configuration.

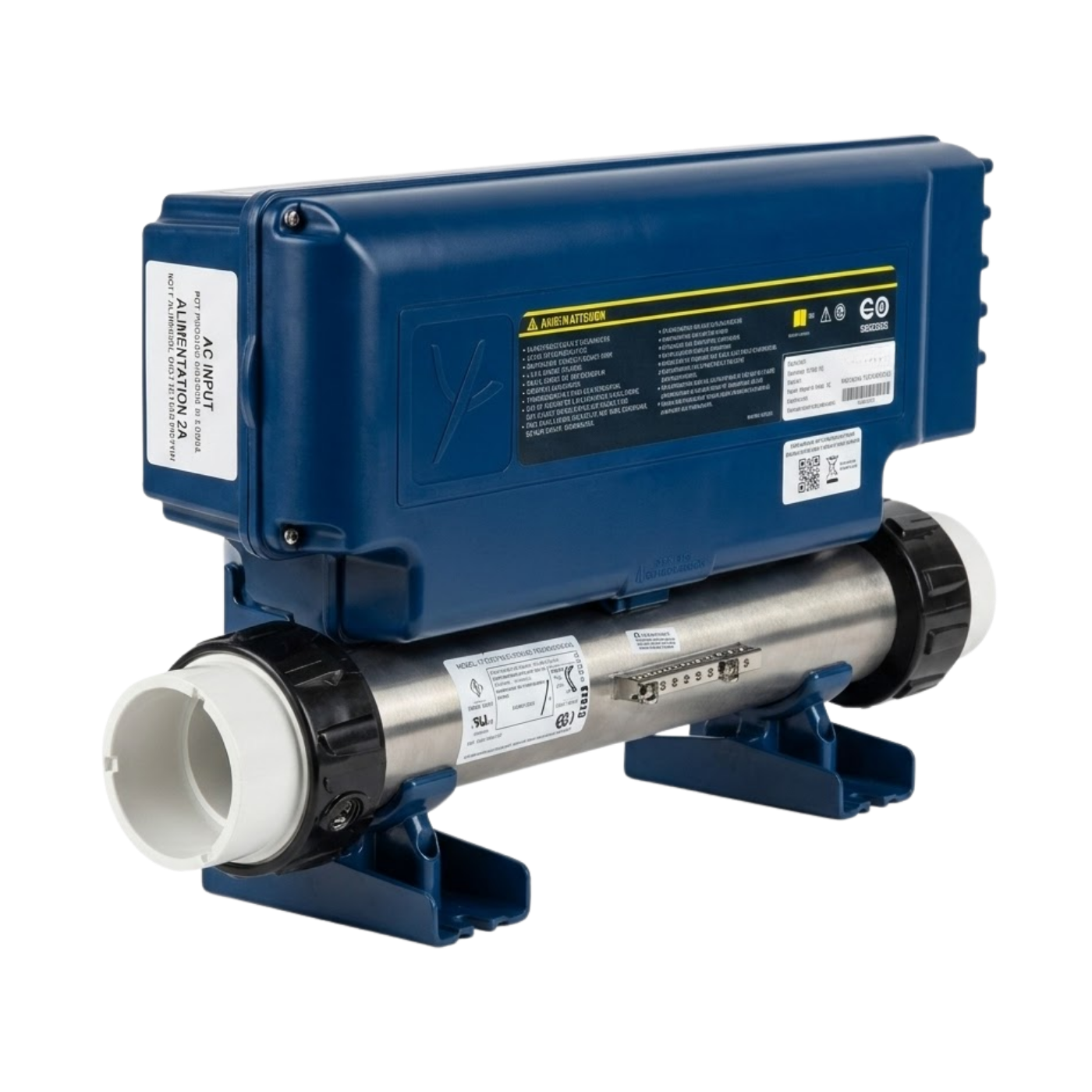

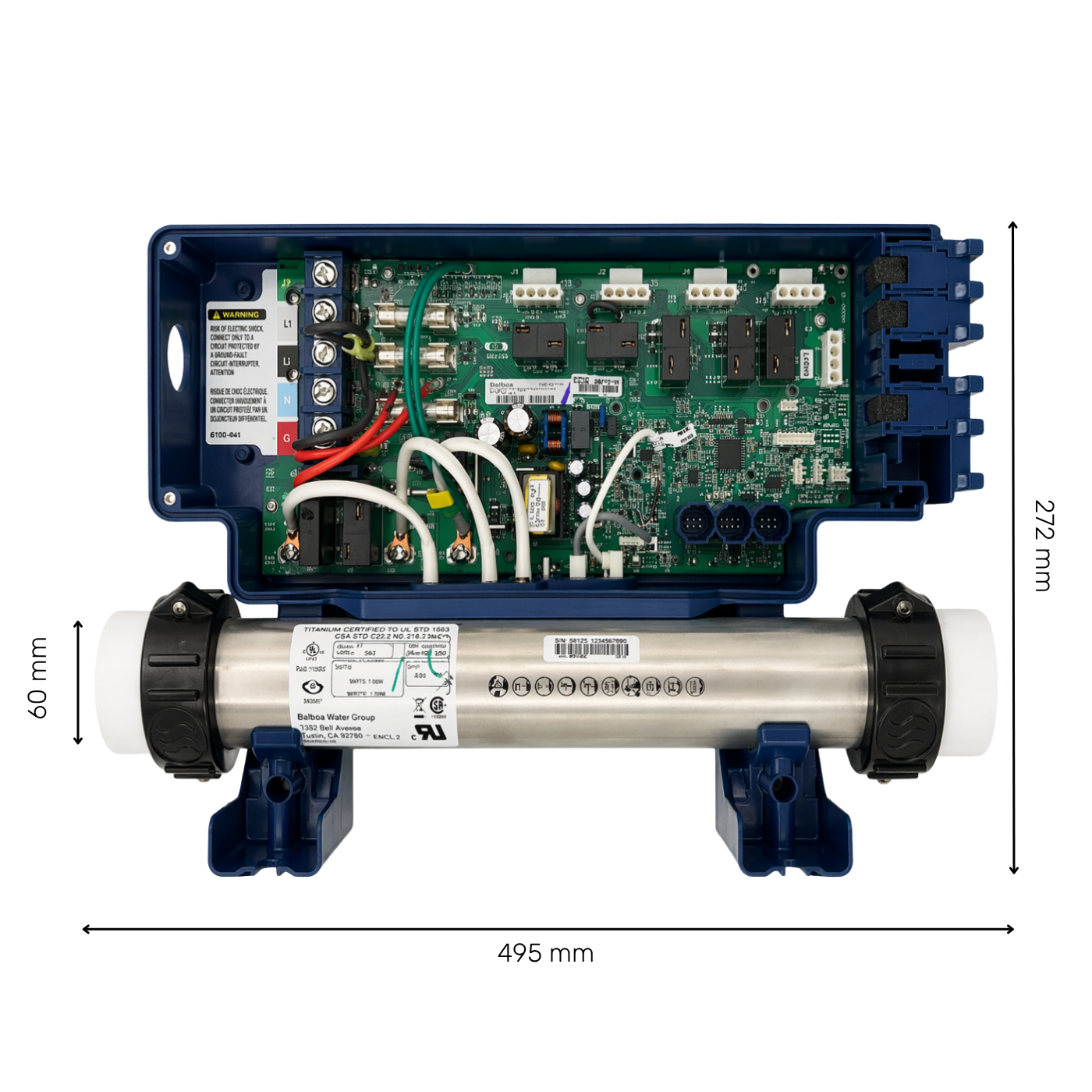

Control Box IN.YE-5 + Heater
| Model | GECKO IN.YE-5 |
| Reference | 0610-221045-338 |

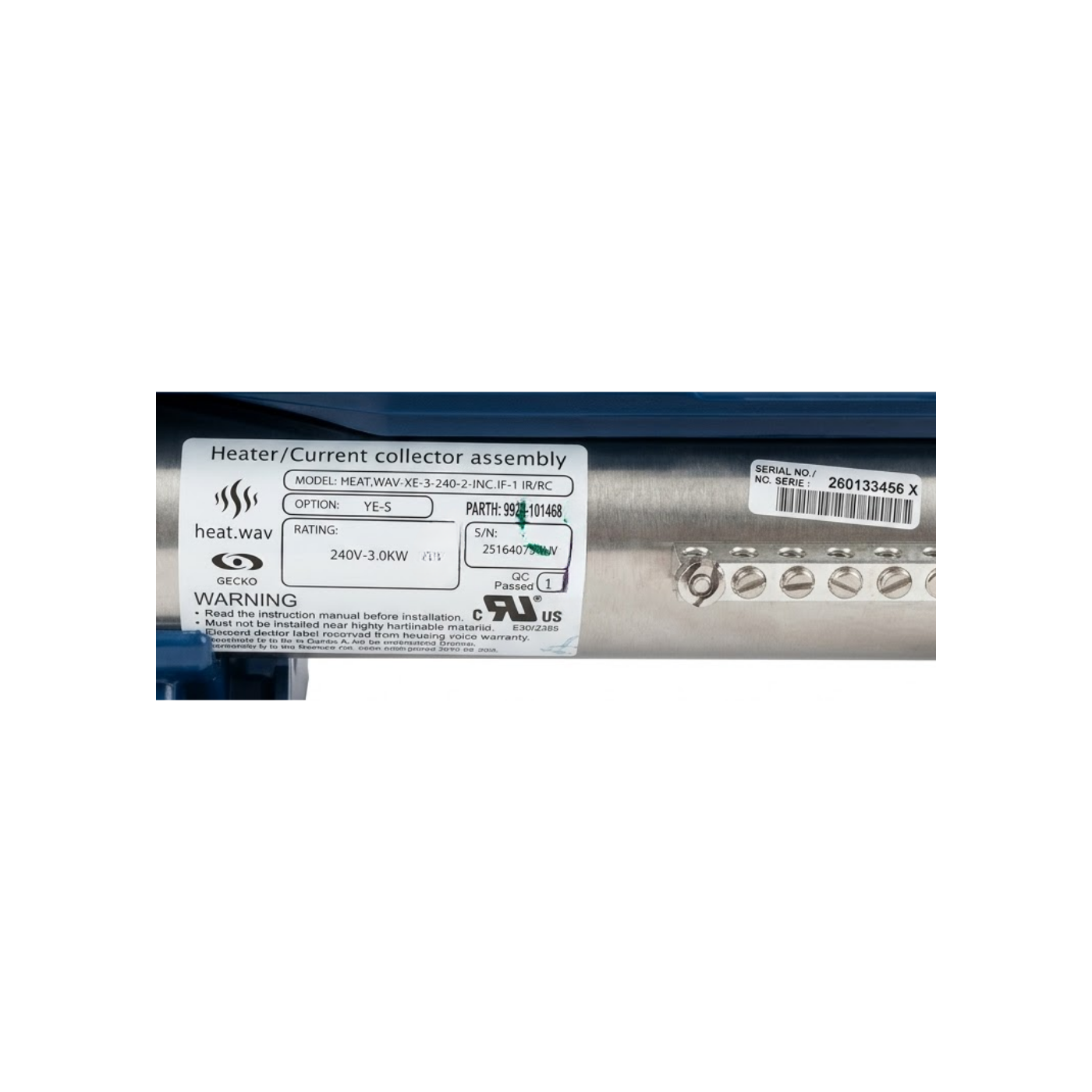

| Integrated Heater | 3 kW - 220/240 V |
| Number of Outputs | 5 configurable 220 V outputs |
| Compatible Pumps | 2 two-speed pumps or 1 two-speed pump + 2 single-speed pumps |
| Circulation Pump / Ozonator | 1 circulation pump or 1 ozonator |
| Lighting | 2 connections 12 V |
| Wi-Fi Connection | Compatible with GECKO in.touch |
| Programming Connection | in.stik |
| Keypad Compatibility | IN.K600, IN.K4, IN.K8, IN.K35, IN.K19, IN.K450, IN.K200, IN.K800, IN.K500, IN.K300 |
| Standards | N - CE - CB |
| Height | 272 mm |
| Width | 115 mm |
| Length | 495 mm |

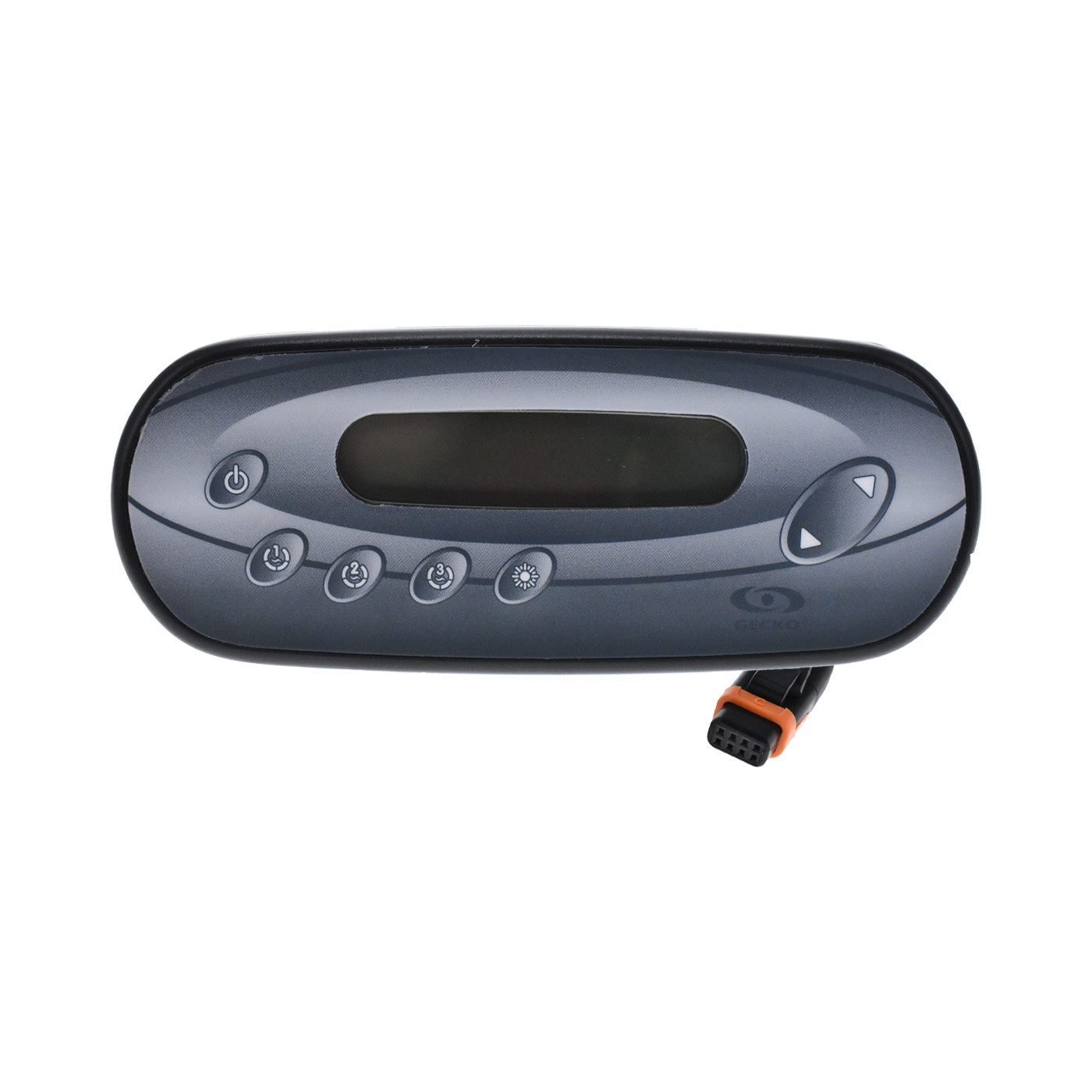

Control Keypad IN.K450
Model | GECKO IN.K450 |
| Reference | 0607-005012 |
| Display | LCD segment display |
| Keys | 7 raised keys |
| Function | Full control of spa functions |
| Technology | Advanced GECKO technology |

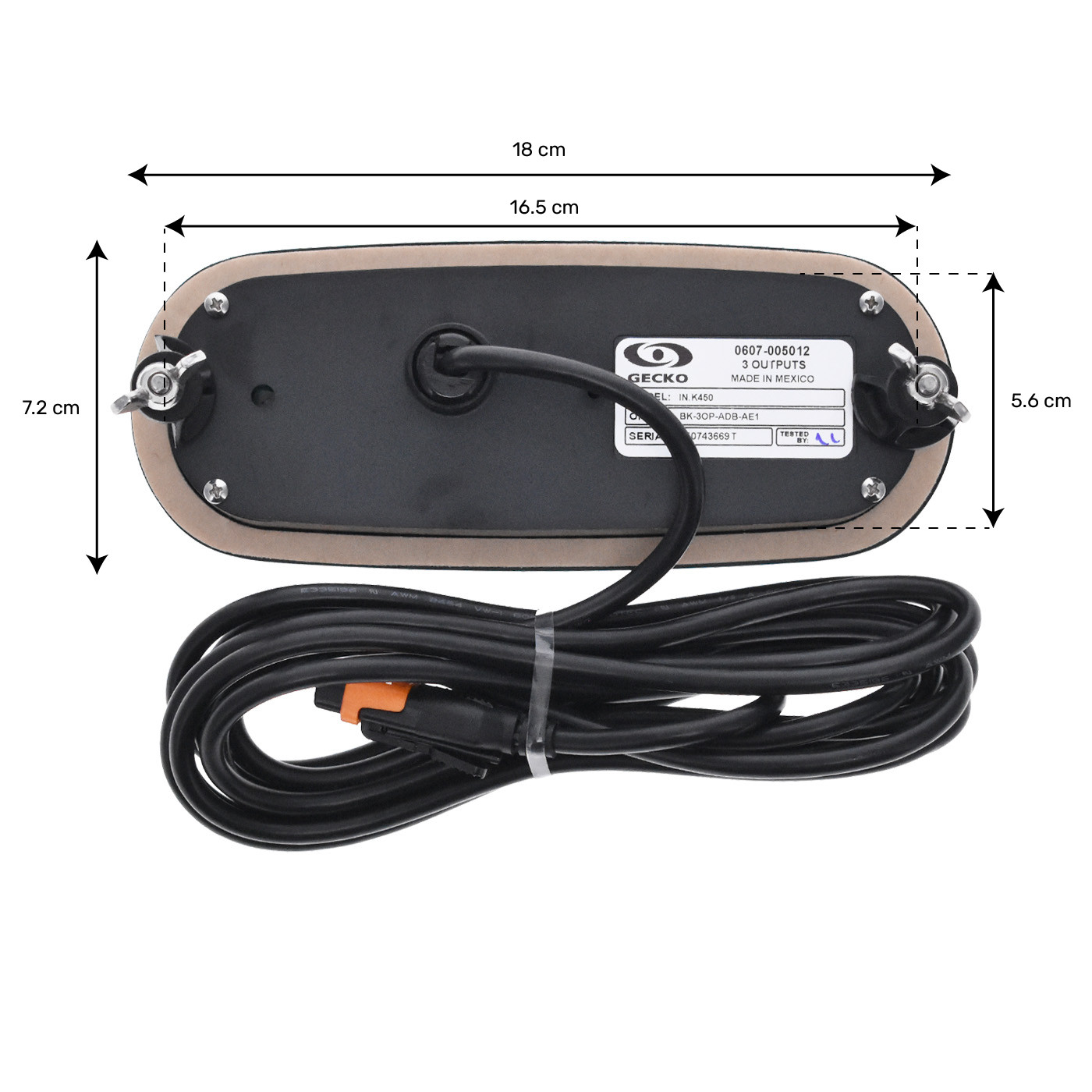

| Dimensions | 180 × 72 mm |
| Installation Dimensions | 165 × 56 mm |
| Mounting Bracket | Not included |
| Compatibility | IN.XM, IN.XM2, IN.XE, IN.YT, IN.YT-7, IN.YE-5, and IN.YJ-3 |

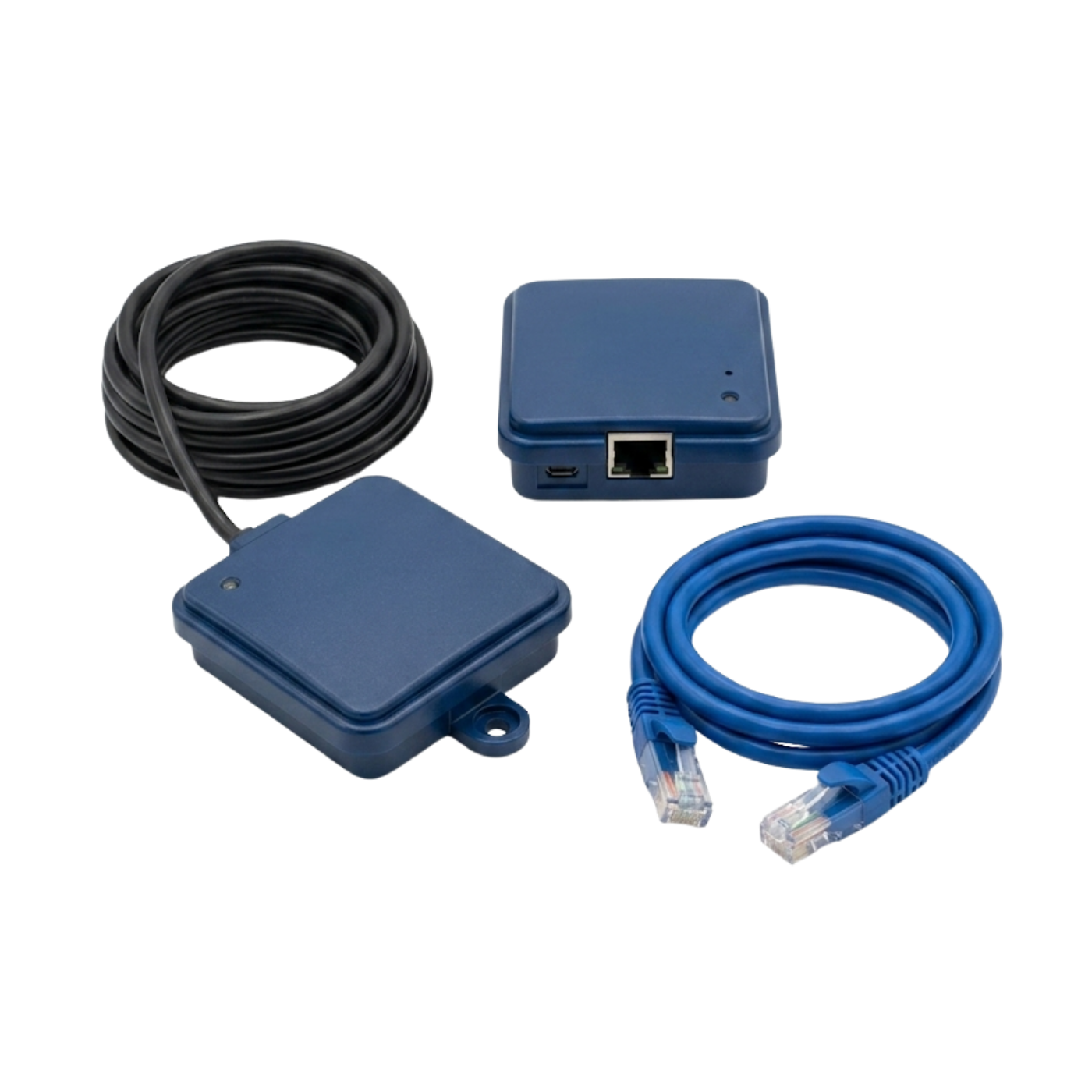

Wi-Fi Module in.touch 3
| Model | GECKO in.touch 3 |
| Reference | 0608-521048 |
| Function | Remote spa control via Gecko app |
| Wireless Updates | Wireless (OTA) |
| App | Gecko App |
| Compatibility | Compatible with GECKO in.touch systems |
| Waterlab Compatibility | Yes, for 24/7 water monitoring |
| Dimensions of EN module (modem) | 82 × 70 × 24 mm |
| Ethernet Cable | 90 cm |
| Power Cable | 120 cm |
| Connection Cable to Control Box | 240 cm |
Compatibility and Pre-Purchase Checks
The IN.YE-5 box can control two two-speed pumps or one two-speed pump with two single-speed pumps. It also has an output for a circulation pump or an ozonator, two 12 V lighting connections, in.touch and in.stik connections, and a keypad connection.
The IN.K450 keypad is compatible with GECKO IN.XM, IN.XM2, IN.XE, IN.YT, IN.YT-7, IN.YE-5, and IN.YJ-3 control systems. Before purchase, verify the complete reference of the installed box, the number and type of pumps, connectors, heater power, keypad dimensions, and installation area.
The 0610-221045-338 reference replaces many IN.YE configurations with a 3 kW heater. Specific references for Dimension One, Hotspring, Caldera, Wellis, Artic, or Leisure spas may require special verification before replacement.
Installation / Replacement
This pack is intended for replacing a spa control system. Installation must adhere to the existing electrical configuration, assignment of the five outputs, AMP connectors, heater connections, and keypad installation dimensions.
The in.touch 3 module allows connection to the GECKO app for remote spa control and wireless updates. The available functions in the app depend on the equipment installed on the spa.
What You Receive

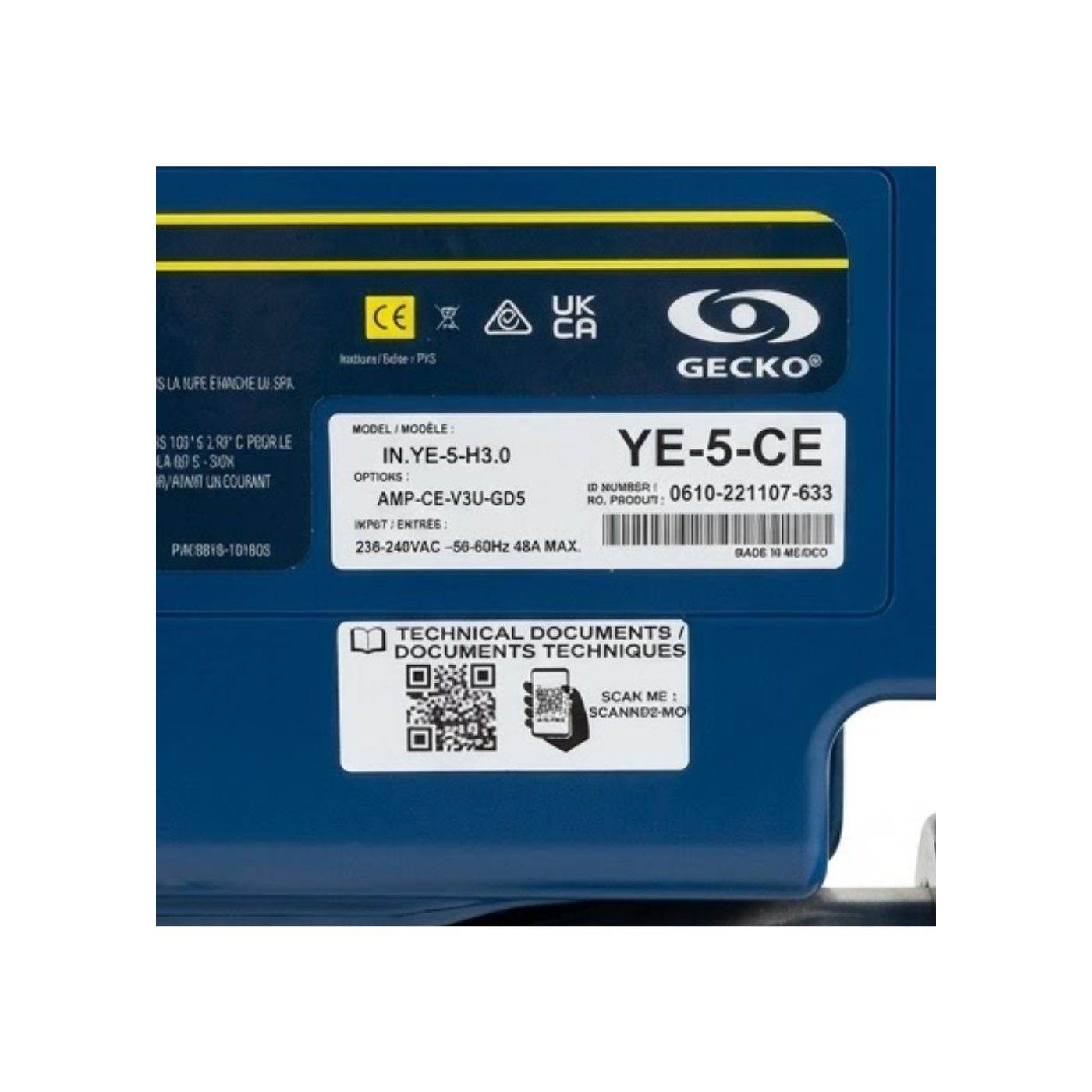

The set includes a GECKO in.ye-5 system reference 0610-221107-633, an in.k450-3OP keypad reference 0607-005012, an in.touch 3 kit reference 0608-521048, and an adapter plate reference 9917-102123.

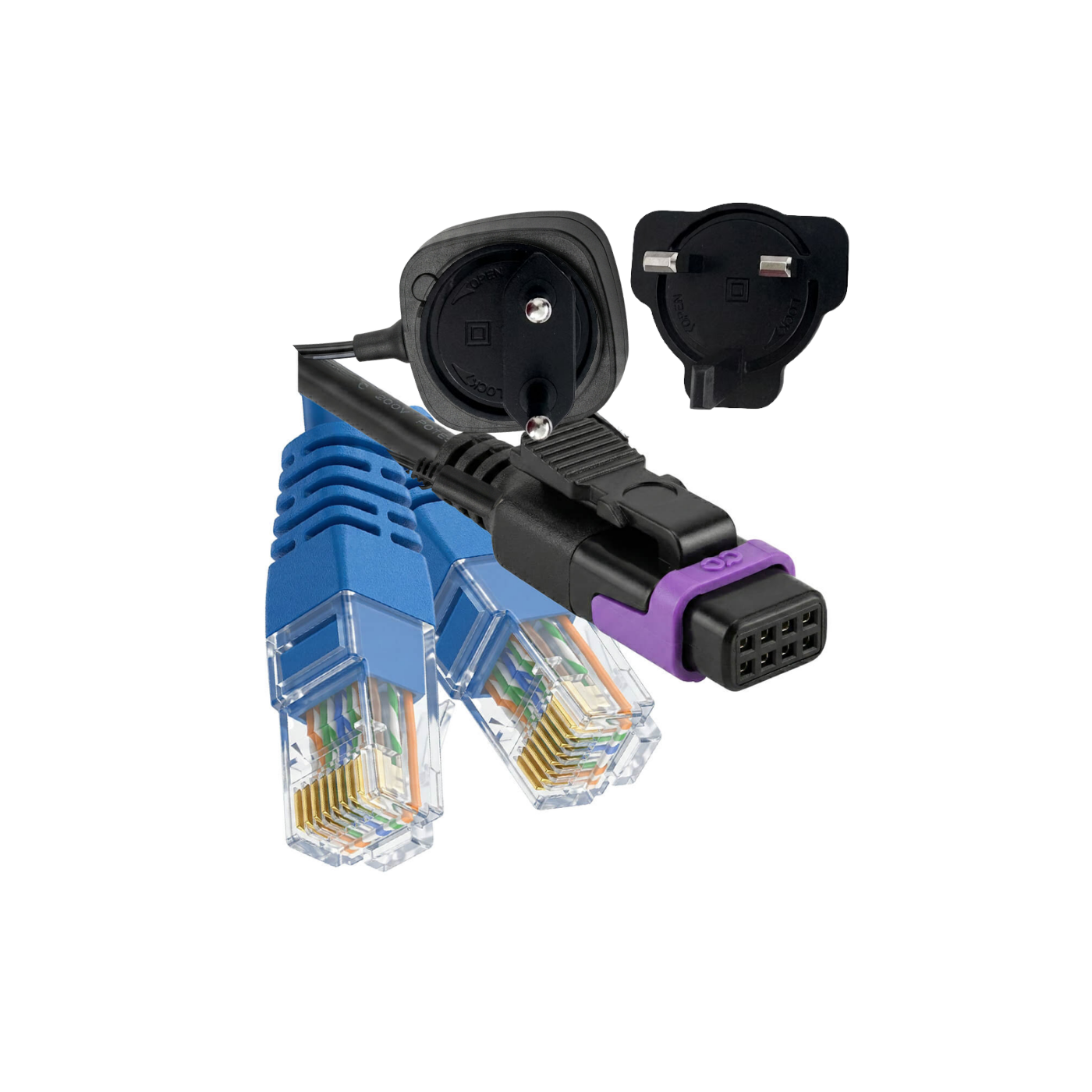

It also includes two two-speed AMP cables reference 95100519, two single-speed AMP cables reference 95100517, a lamp with references 9920-400489 and 9920-401507, a 90 cm Ethernet cable, a 120 cm charger cable, a 240 cm control box connection cable, a European plug, and an American plug. The keypad mounting bracket is not included.
Frequently Asked Questions
How many pumps can the GECKO IN.YE-5 box control?
The box can control two two-speed pumps. It can also be configured with one two-speed pump and two single-speed pumps.
Can the box control a circulation pump and an ozonator simultaneously?
The indicated configuration provides an output for a circulation pump or an ozonator. Available information does not confirm simultaneous use of both devices on this output.
What is the difference between the IN.YE-5 and the IN.YE-3?
The IN.YE-5 system has five configurable outputs. The IN.YE-3 model has three outputs.
What are the features of the IN.K450 keypad?
The keypad features a segment LCD display and seven raised keys. It allows control of functions supported by the control system and the spa's configured equipment.
What is the purpose of the GECKO in.touch 3 module?
The in.touch 3 module enables remote spa control via the Gecko app. It also supports wireless updates.
Which spa functions can be controlled with the Gecko app?
The app can adjust settings such as temperature, pump speeds, filtration cycles, lighting, or music. The availability of each control depends on the connected and configured spa equipment.
Is the in.touch 3 module compatible with GECKO waterlab?
The in.touch 3 module can integrate with GECKO waterlab for 24/7 water monitoring. GECKO waterlab must also be installed to receive monitoring functions and associated notifications.
What are the dimensions of the in.touch 3 module?
The CO module installed on the spa side measures 86 x 70 x 23 mm. The EN module installed on the modem side measures 82 x 70 x 24 mm.
