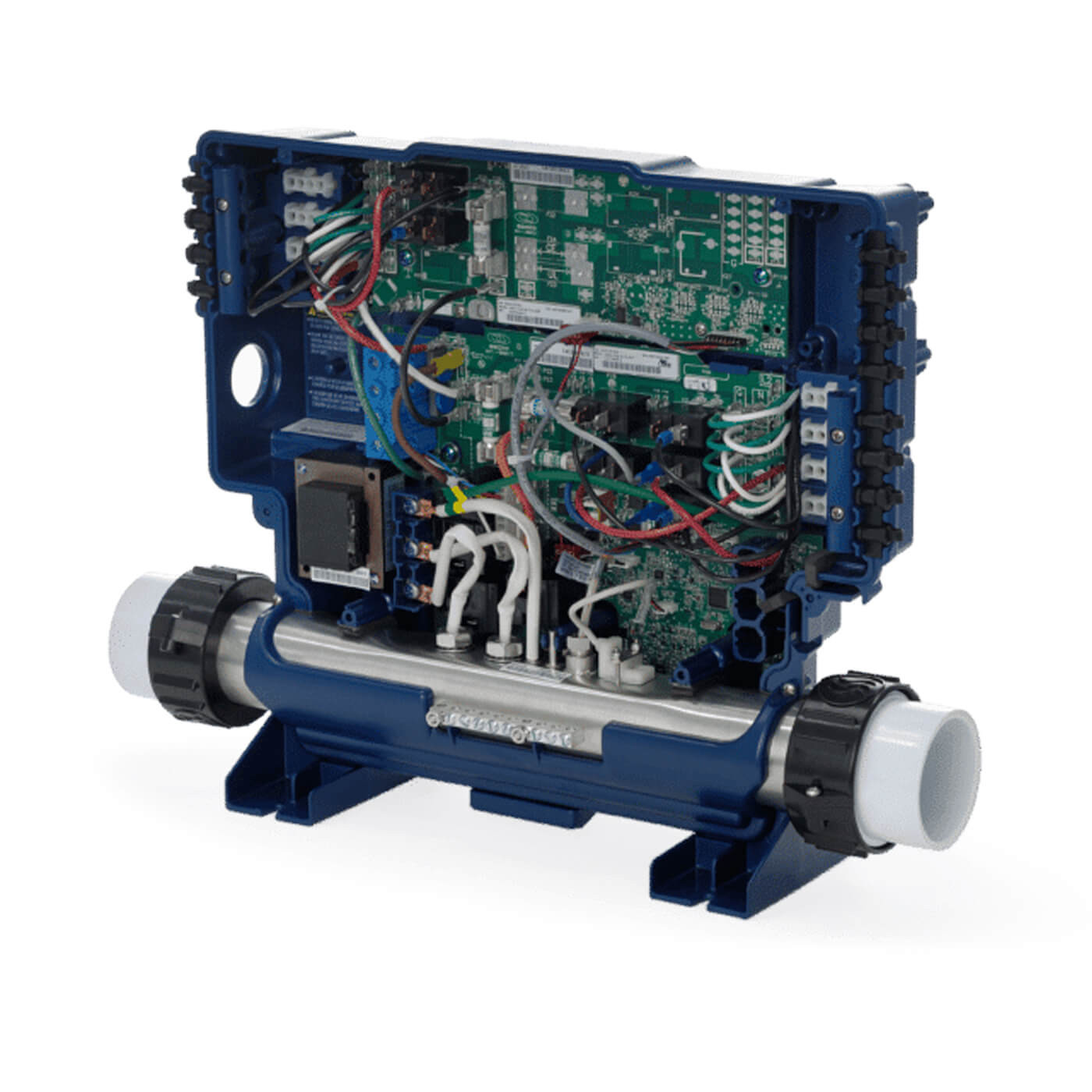

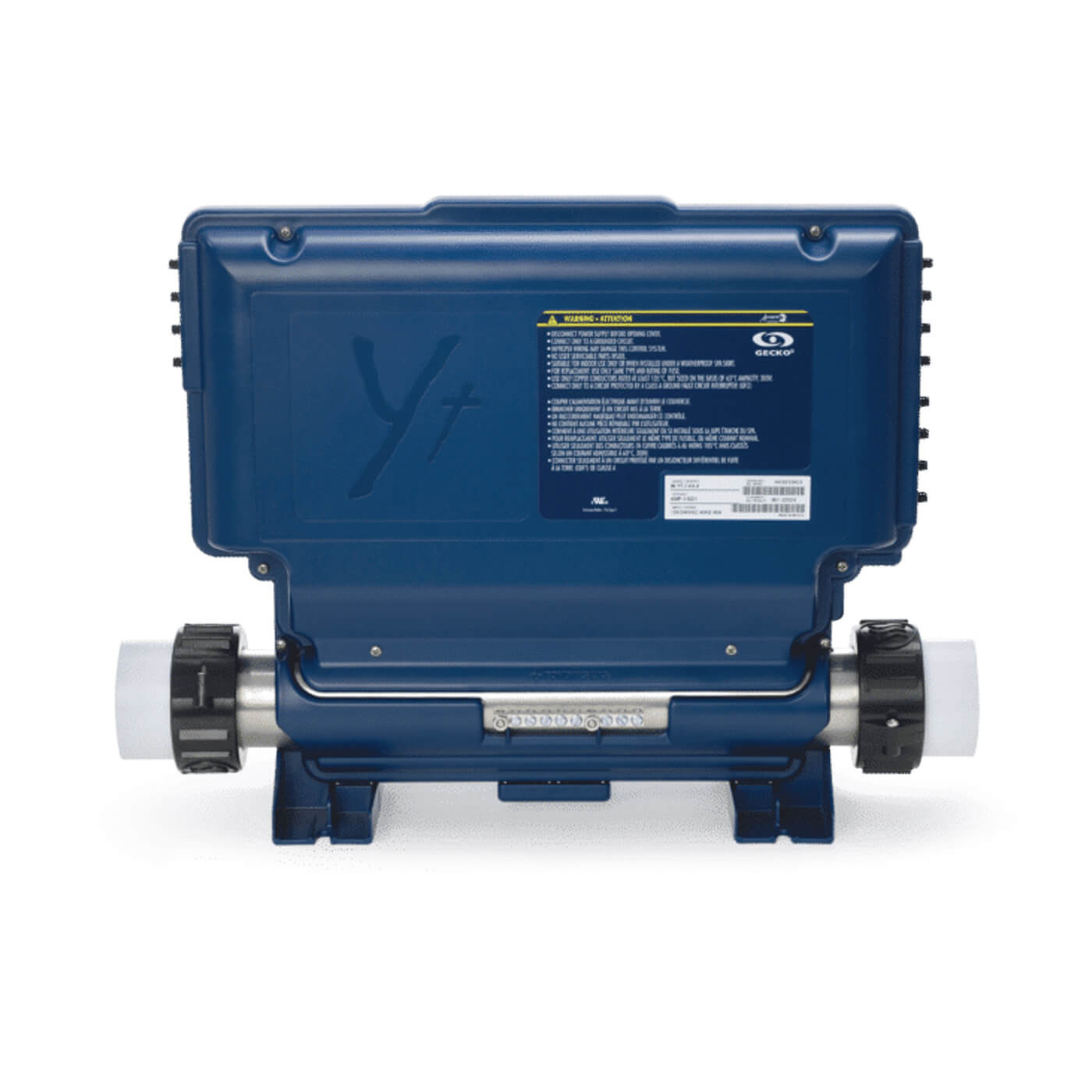

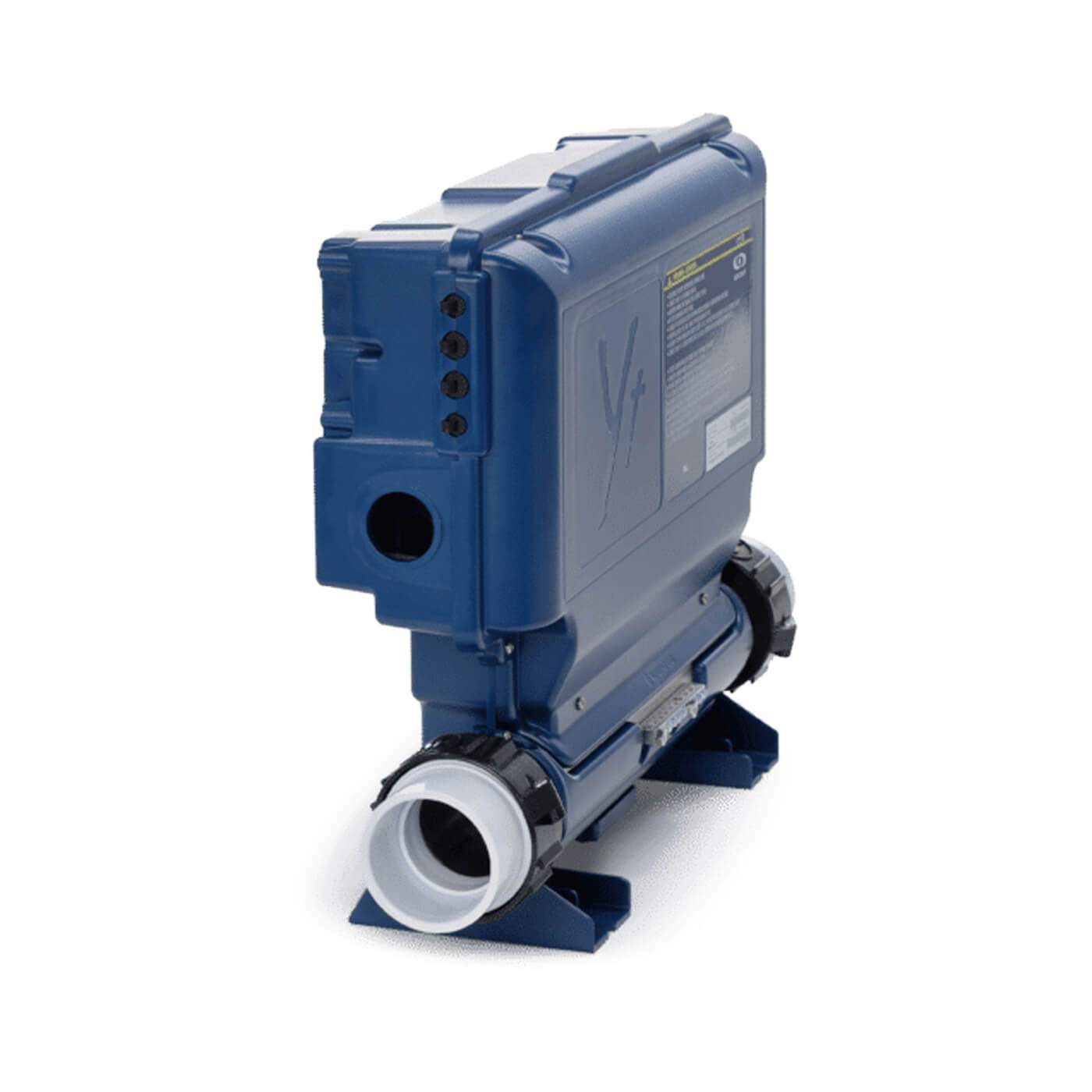

Spa box GECKO In.yt-8
The Gecko In.yt-8 box is a complete control system for medium or large spas. It manages the main spa equipment: pumps, blower, circulation, lighting, heating and accessories. Its integrated 3 kW heater ensures regular and efficient temperature rise.
Main functions
- Up to 8 configurable outputs for pumps, blower, circulation and ozone
- Compatible with multiple gecko keyboards (in.k200, in.k300, in.k500, in.k600, in.k800, in.k1000 etc.)
- Integrated RS-485 interface for additional equipment connection (eg. Gecko heat pump in.temp)
- IPX5 waterproof cabinet for reinforced moisture protection
- Adaptable configuration according to the type of spa (mono, bi or tri-phase)
Wifi connection (optional)
The In.yt-8 box is compatible with WiFi modules Gecko in.touch 2 and in.touch 3. This additional module drives the main functions of the remote spa from a smartphone or tablet. The Wifi connection is not included: the module must be added separately.
Installation
The housing operates on a 230 V / 50 Hz power supply (mono, bi or tri-phase). Its compact size and fixing system facilitate integration in the majority of spas. The wiring must be performed by a qualified professional to ensure compliance and safety of the installation.
| Features | Details |
|---|
| Mark | Gecko alliance |
| Model | In.yt-8 |
| Heater | 3 kW integrated |
| Configurable outputs | 8 Relays + 12 V AC Light Output |
| Communication interface | RS-485 integrated |
| Protection index | IPX5 (reinforced sealing) |
| Food | 230 V - 50 Hz (Mono / Bi / Tri-Phase) |
| Wifi compatibility | Modules in.touch 2 and in.touch 3 (sold separately) |
| Keyboard compatibility | in.k120, in.k200, in.k300, in.k35, in.k336, in.k8, in.k450, in.k500, in.k600, in.k800, in.k1000, in.k1001 |
| Housing width | 422 mm |
| Total width with fittings | 498 mm |
| Height | 368 mm |
| Depth | 120 mm |
FAQ
Does the IN.YT-8 housing integrates a Wifi connection?
No, the Wifi function requires the addition of a gecko module in.touch 2 or in.touch 3 sold separately.
How many pumps can it manage?
Up to five pumps according to the configuration (mono or bi-speed). Check the wiring diagram before installation.
Does this housing replace the old gecko models?
Yes, it is designed for new installations or replacing the Y-Series range. Check electrical compatibility before replacement.
What is the power of the integrated heater?
The integrated heater develops a power of 3 kW, suitable for most residential spas.
