Impeller for HSP1500 pump
This impeller is compatible with the HSP1500 pump.
If you need to replace your impeller, you should position it like this. It is the central element of the HSP1500 pump body. (see photo below)

You can find the impeller at location number 3 in the image.
For more information, it is surrounded by the following elements that are not included with this item:
- Front part of the pump body
- Flange gasket
- Impeller hsp1500
- Part 1 of the mechanical seal
- Part 2 of the mechanical seal
- Rear part of the pump body
All these elements together form the pump body along with, of course, its 8 fixing screws.

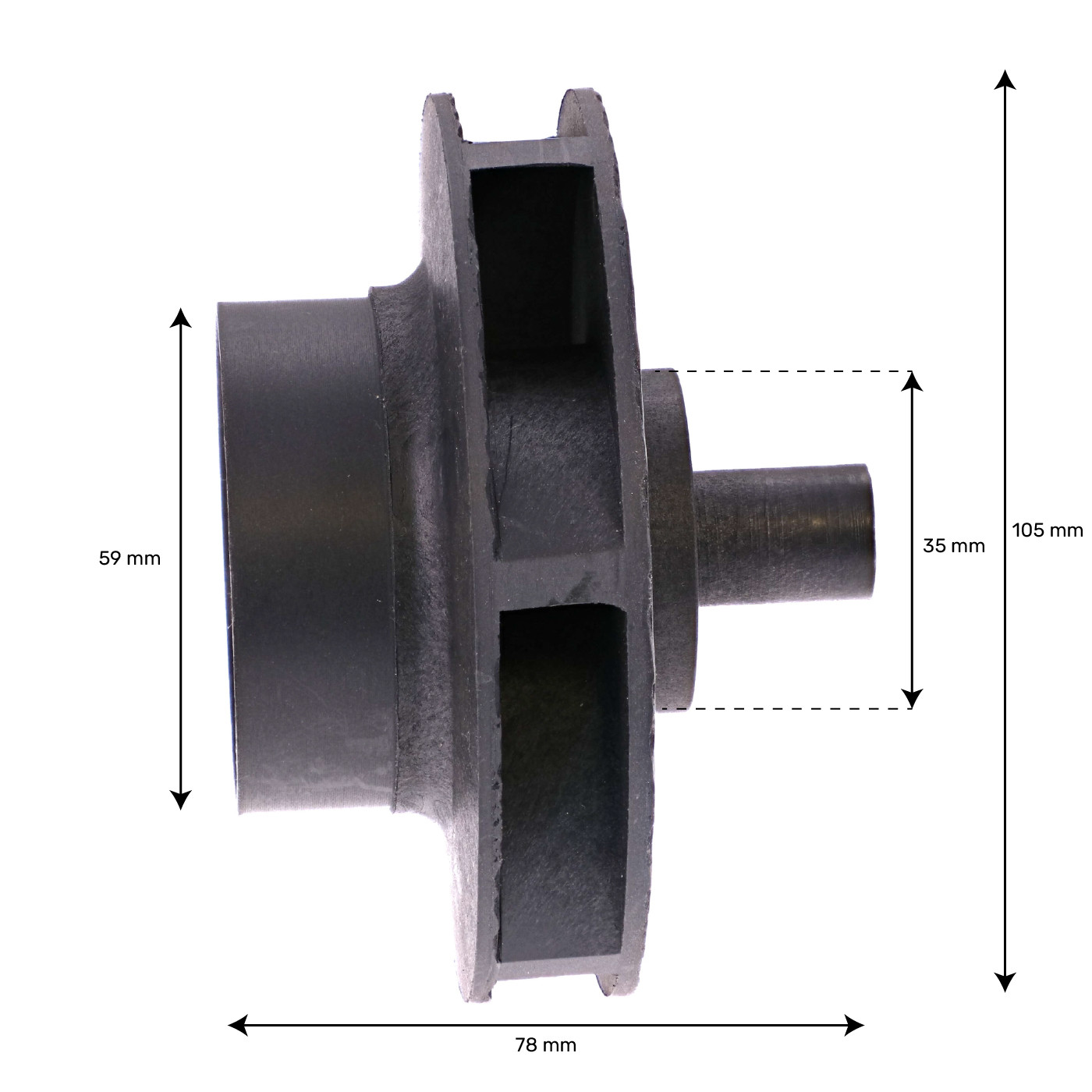

Dimensions
The dimensions of the HSP1500 impeller are as follows:


- Total length: 78mm
- Outer diameter of the impeller: 105mm
- Outer diameter of the opening: 59mm
- Inner diameter of the mechanical seal housing: 35mm
- Distance between the 2 blades: 13.50mm
Compatibility
This impeller is compatible with HSP1500 pump bodies
