Air regulation switch (Venturi)
JACUZZI branded front panel
Suitable for 1" 33mm outer diameter hose
Jacuzzi Ref: 6541-142
Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)
| Brand | JACUZZI |
| Type | Air Control Switch (Venturi) - toggle lever |
| Jacuzzi Reference | 6541-142 |
| Other Mentioned Reference | JAC6541-142 |
| Announced Compatibility | Jacuzzi J-300 (2002+). Jacuzzi J-300 Series (2007+). Sundance J-LX and J-LXL (2011+) |
| Hose | 1" 33 mm |

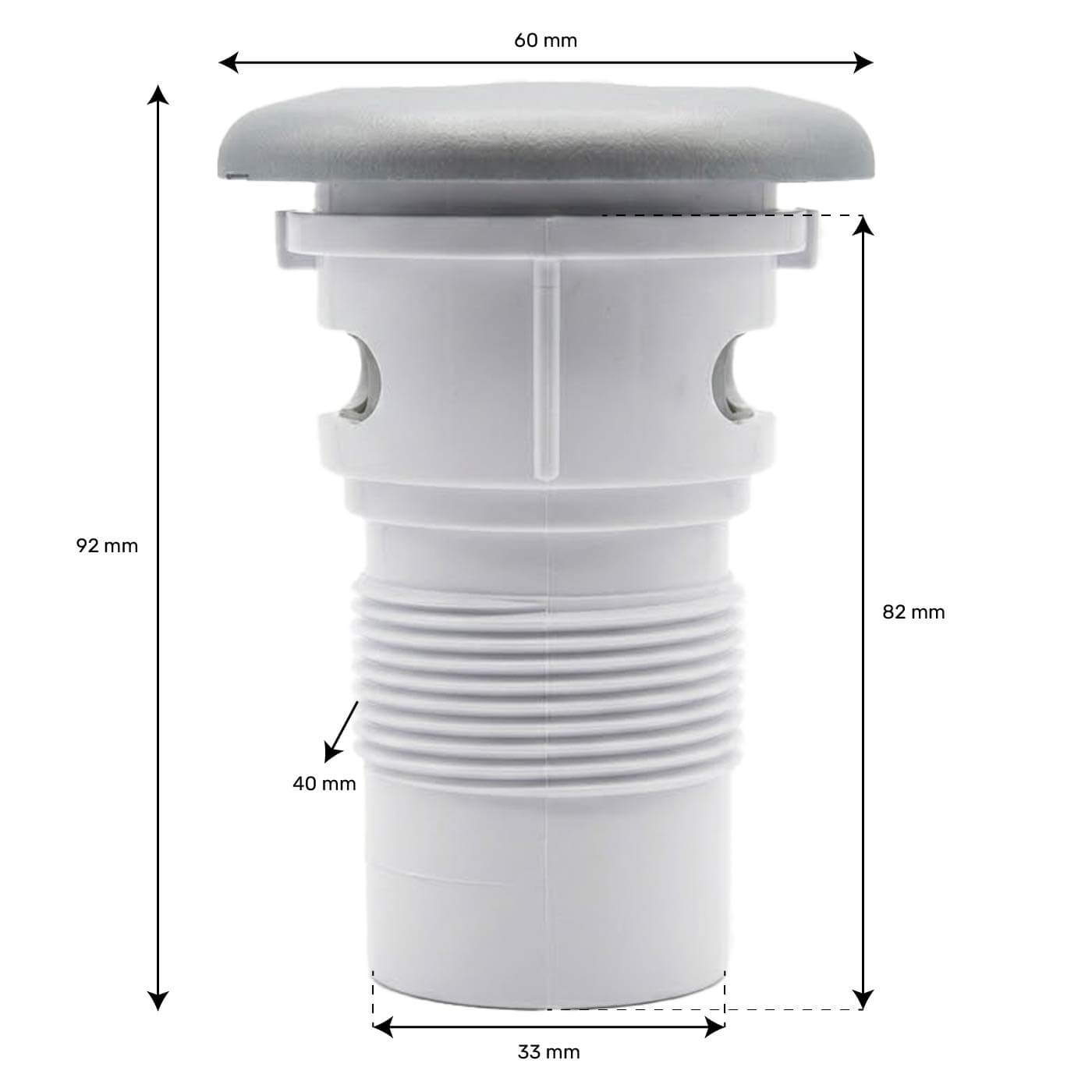

| Upper Part Diameter | 60 mm |
| Total Height | 92 mm |
| Height (body) | 82 mm |
| Threaded Zone Length | 40 mm |
| Lower Part Diameter | 33 mm |
| Associated Parts (sold separately) | Seal 6541-143. O-ring 6541-144 |

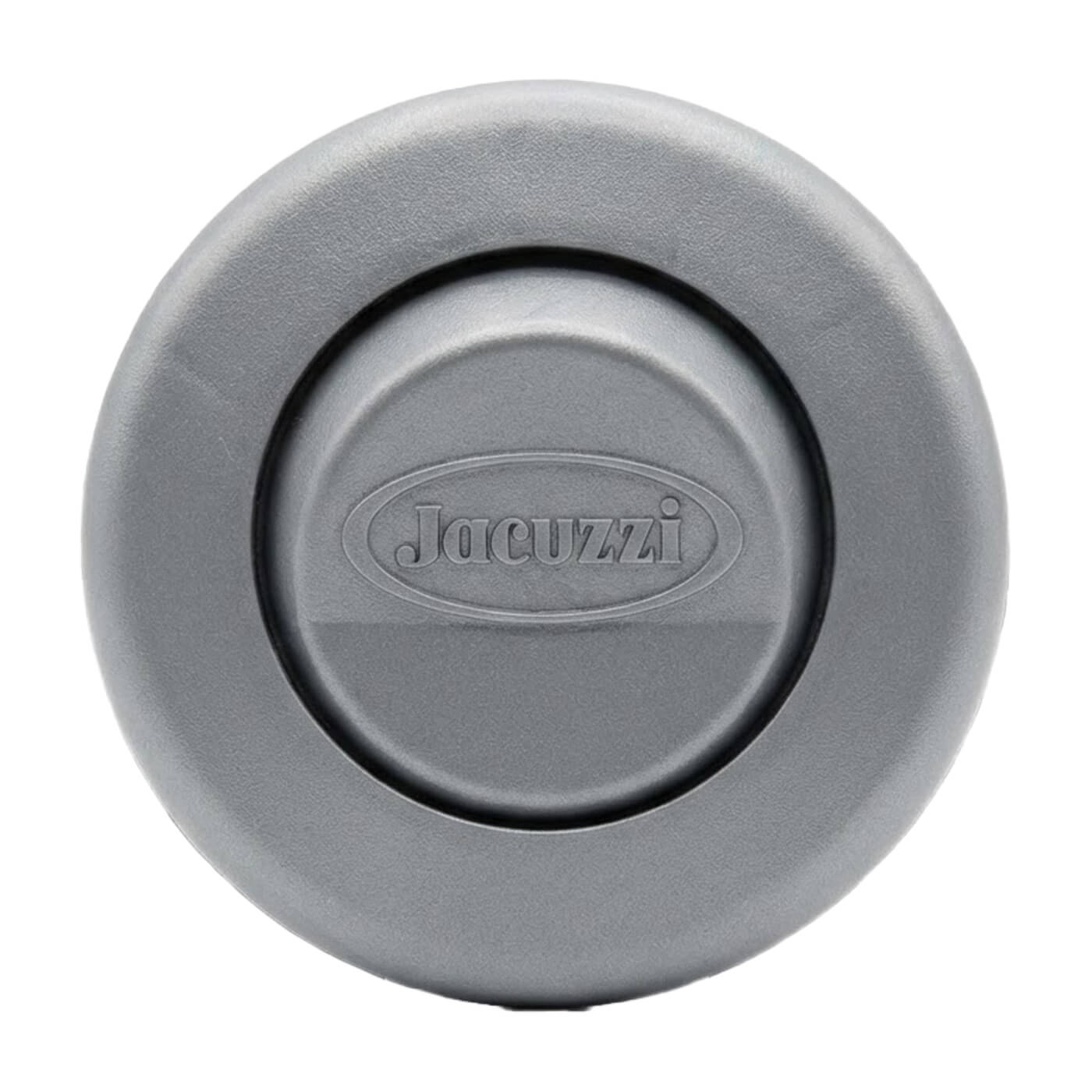

Jacuzzi Air Control Switch (Venturi) with JACUZZI logoed front. The lever toggles back and forth with a click to activate or cut off the air supply. Designed for installation on a 1" hose (33 mm outer diameter) with the dimensions indicated in the visual.This part allows you to open or close the air intake generated in the massage jets to increase or decrease the hydromassage power.
This part is listed as compatible with the Air Control assemblies for Jacuzzi J-300 (2002+), Jacuzzi J-300 Series (2007+), and Sundance J-LX / J-LXL (2011+). Before purchasing, check the reference 6541-142 (or JAC6541-142) on your original part and verify the dimensions: upper diameter 60 mm, total height 92 mm, lower part 33 mm. Also, ensure that your installation corresponds to a 1" hose with an announced outer diameter of 33 mm.
The recommended installation for a 1" hose involves cutting the hose and gluing it to the existing PVC. Make sure the bonding area is clean and dry, then follow the PVC glue curing time before refilling with water. Check for any air leaks and ensure the lever toggles correctly (ON/OFF click).
An Air Control Switch (Venturi) with JACUZZI logoed front, reference 6541-142 (JAC6541-142). The associated parts 6541-143 (seal) and 6541-144 (O-ring) are not included.
How does this Air Control Switch (Venturi) work?
The lever toggles back and forth with a click to activate or cut off the air supply. It manages the air supply to the Venturi circuit based on the lever position.
Which systems is it compatible with?
This reference is specified for Jacuzzi J-300 (2002+), Jacuzzi J-300 Series (2007+), and Sundance J-LX / J-LXL (2011+). To avoid errors, check the reference 6541-142 (or JAC6541-142) on your current part and compare the dimensions.
Which parts are sold separately?
Two associated parts are mentioned: seal 6541-143 and O-ring 6541-144. If your old installation has an air leak or the seals are worn, consider replacing them at the same time.
