Ref : A-000000-0c030

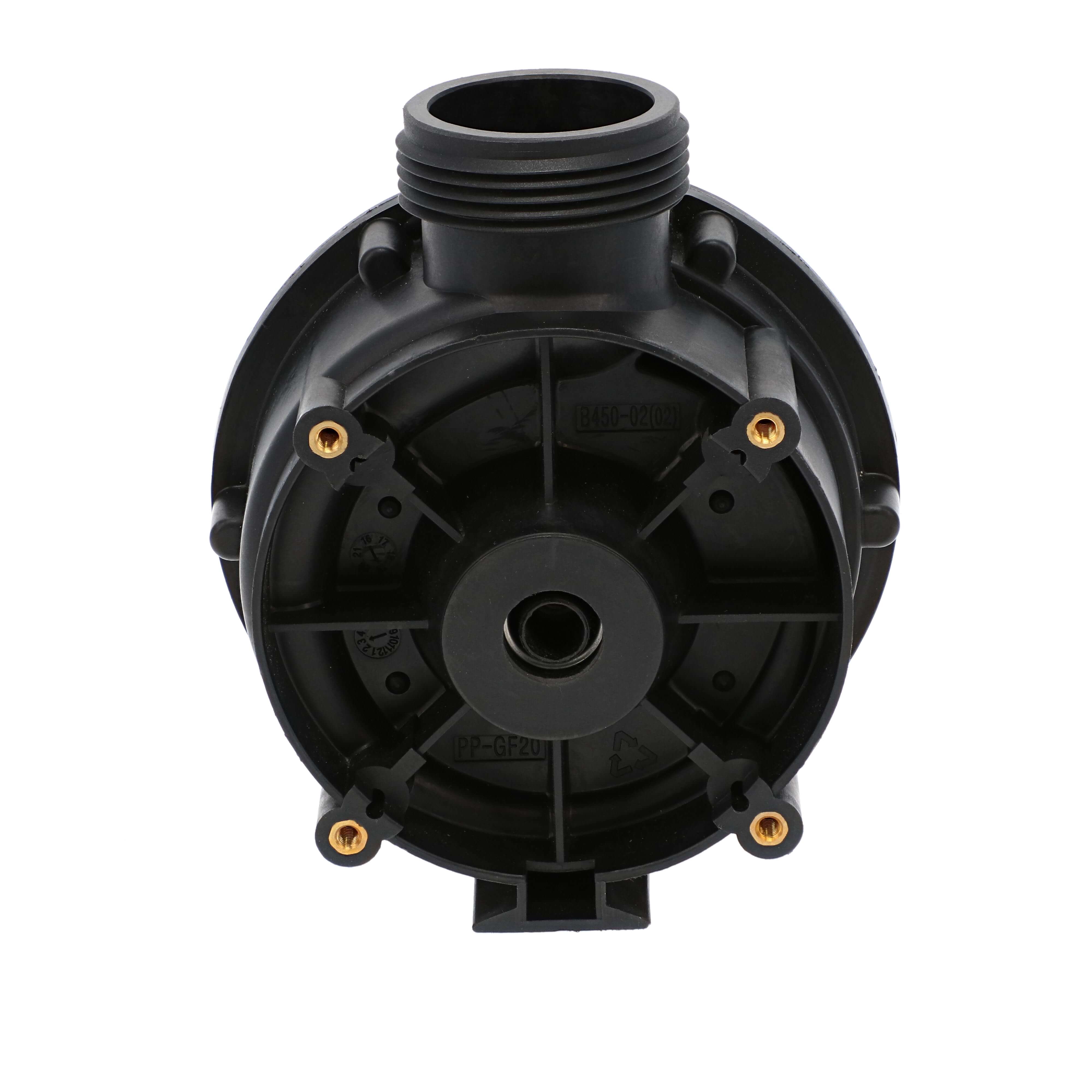

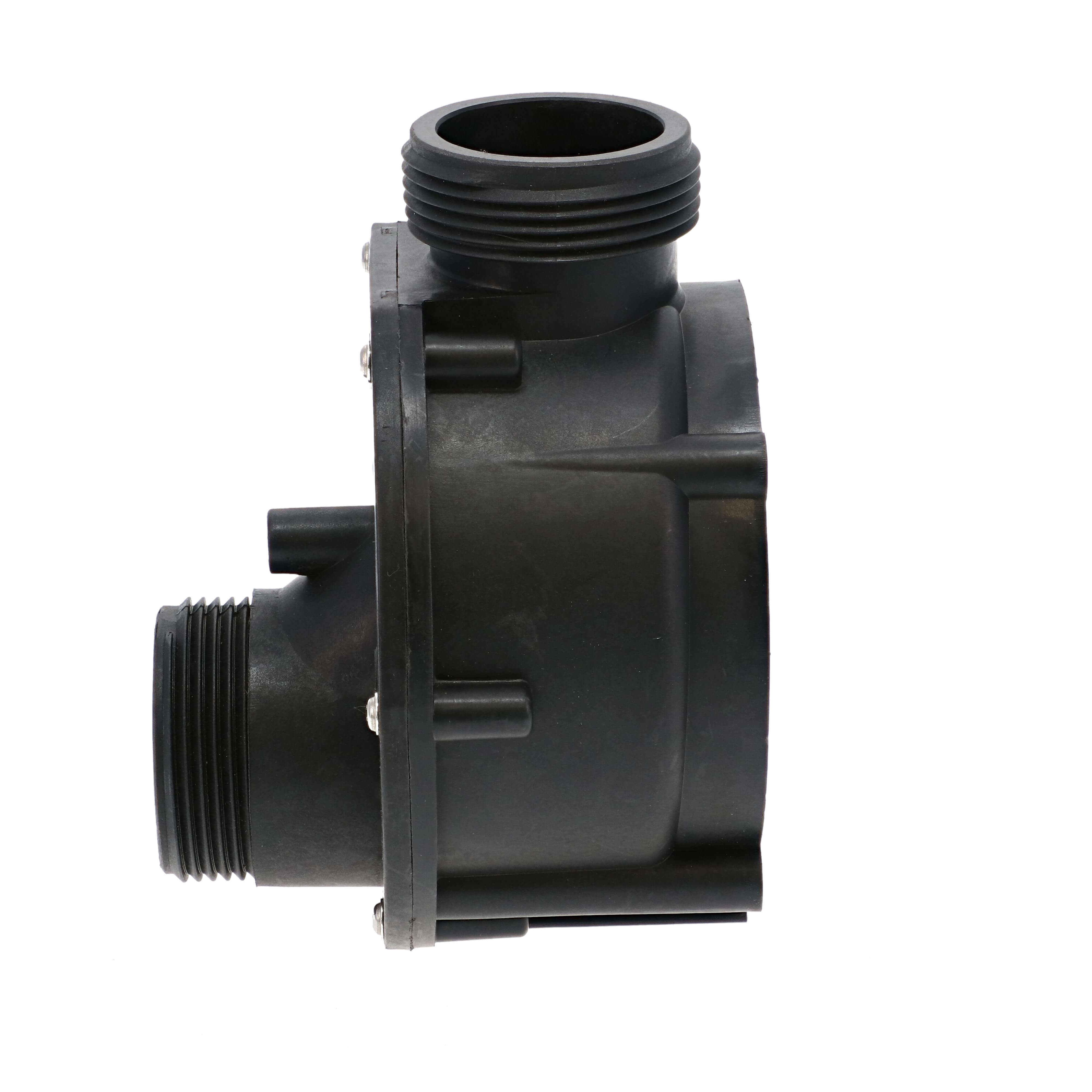

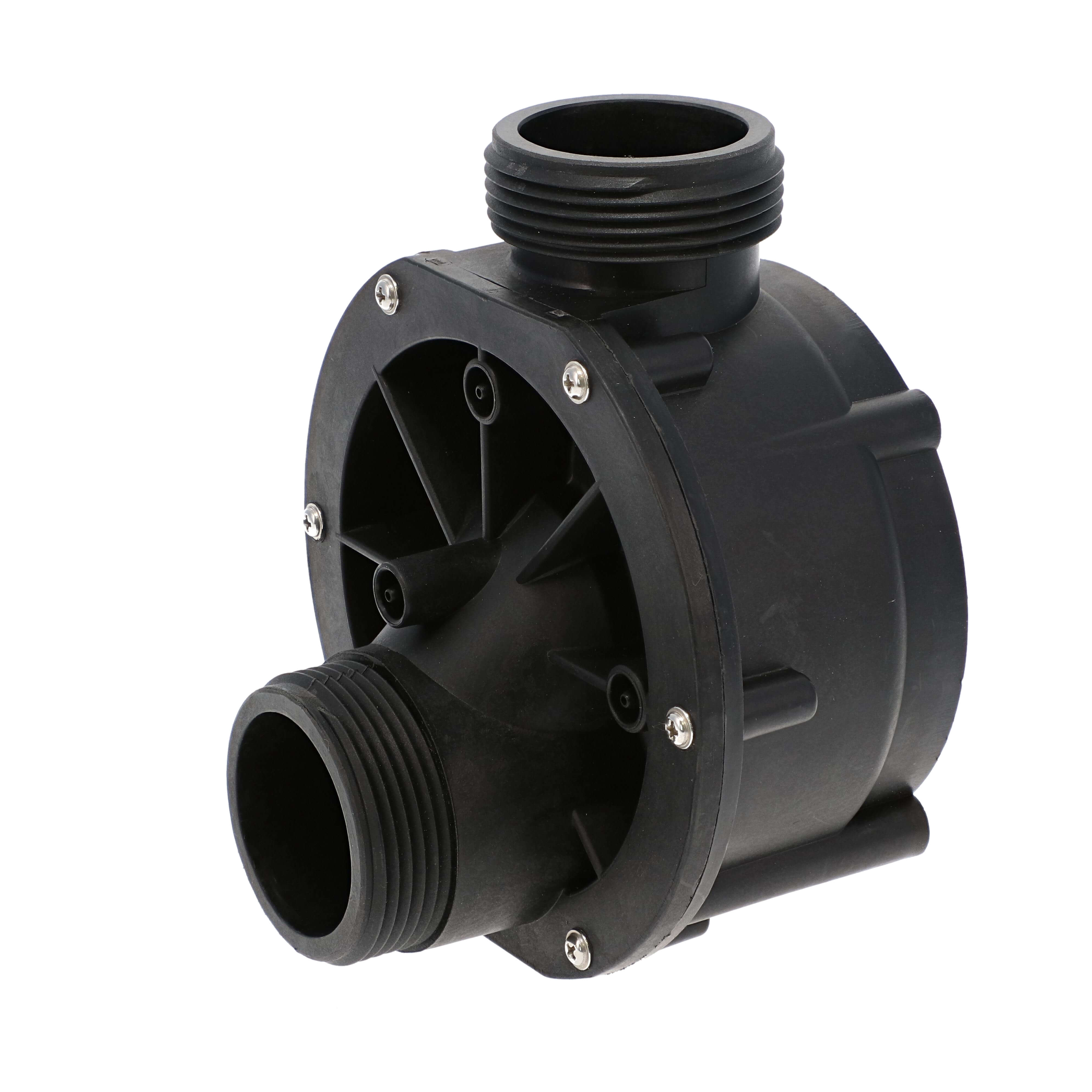

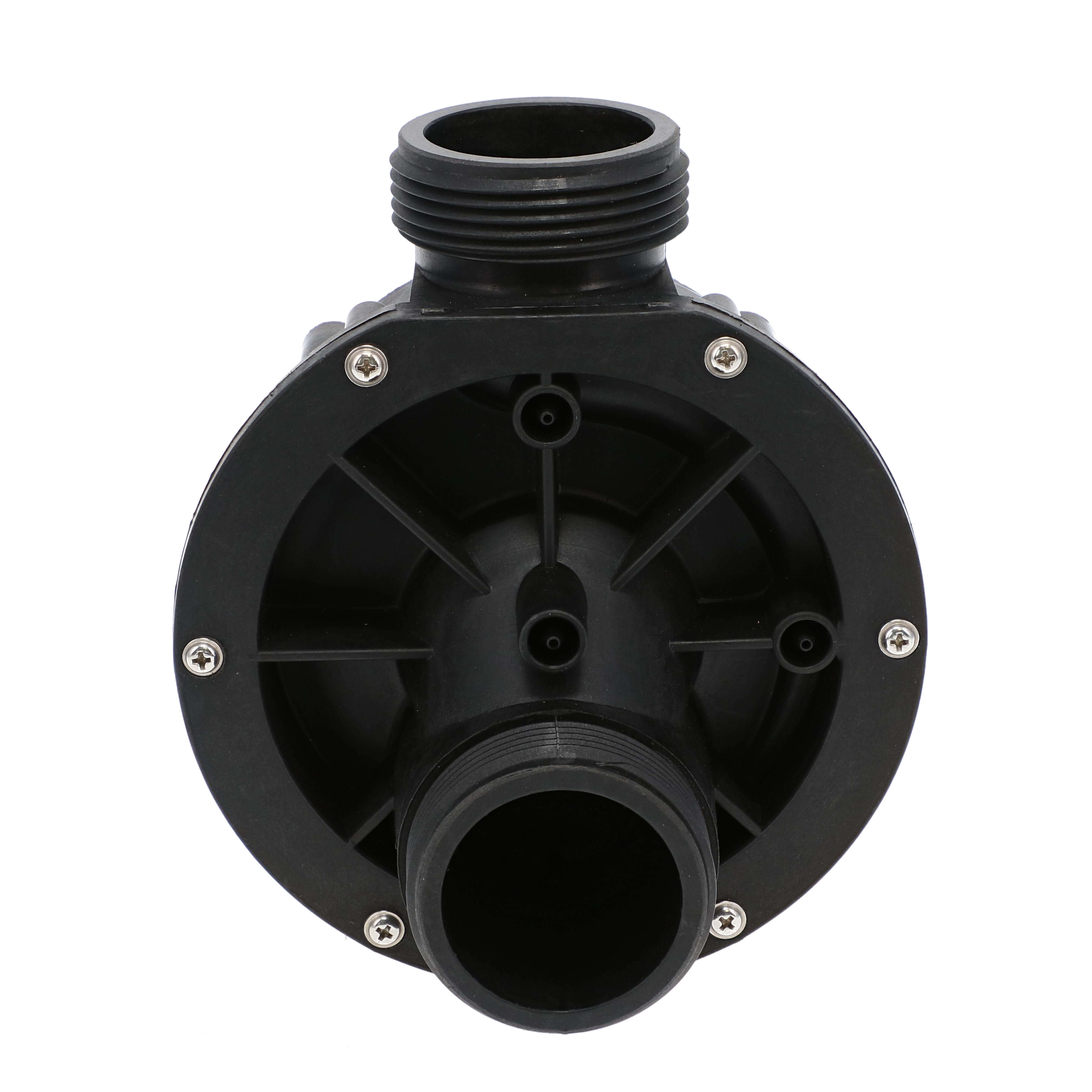

JA120 Pump Wet End

In Stock
57,50 €
48,10 £
Delivery Worldwide delivery
  • 100% compatible parts
    100% compatible parts

  • Warranty - 2 years
    Warranty - 2 years

Our technical team is at your disposal

Technical characteristics

LX Whirlpool JA120 wet end
This JA120 wet end includes :
  • Faceplate
  • Rear cover
  • Flange seal
  • Mechanical seal
  • Impeller
  • Screws
Dimensions :
ja120 wet end dimensionsja120 wet end dimensions ja120 pump connection diameter
  • Diameter of delivery and suction screw threads: 62mm (connects with a union pump for pipes 1.5 ")
  • Distance between fixing screws: 90mm
  • Diagonal between the fixing screws: 125mm
  • Height : 180mm
  • Width: 160mm
  • Depth: 130mm
