Technical characteristics

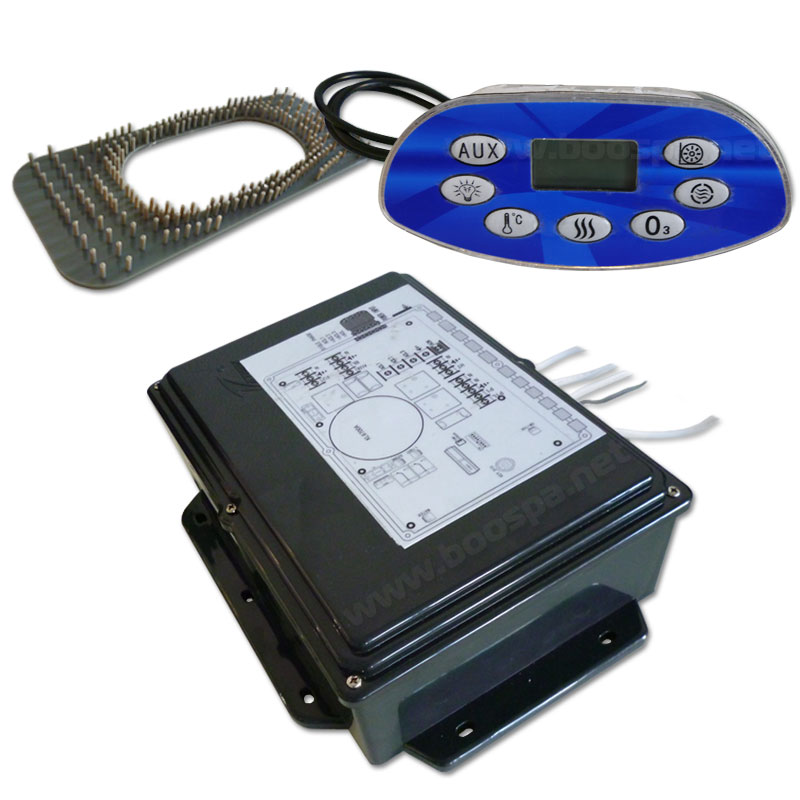

Complete spa management pack.
Control box + control panel (adaptable the the majority of the spas)Control 1 circulation pump and 2 massage pumps.

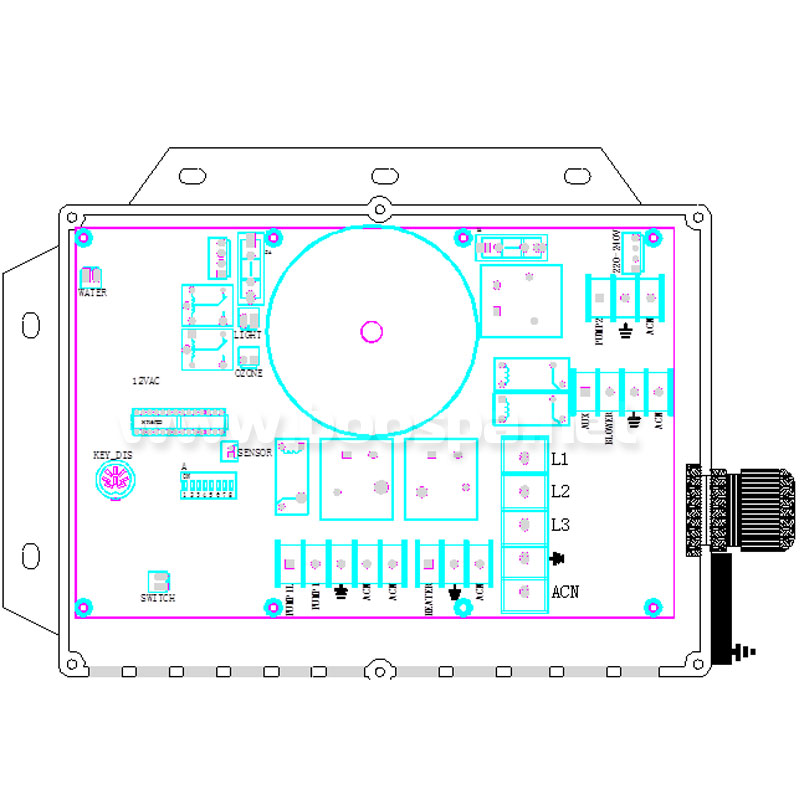

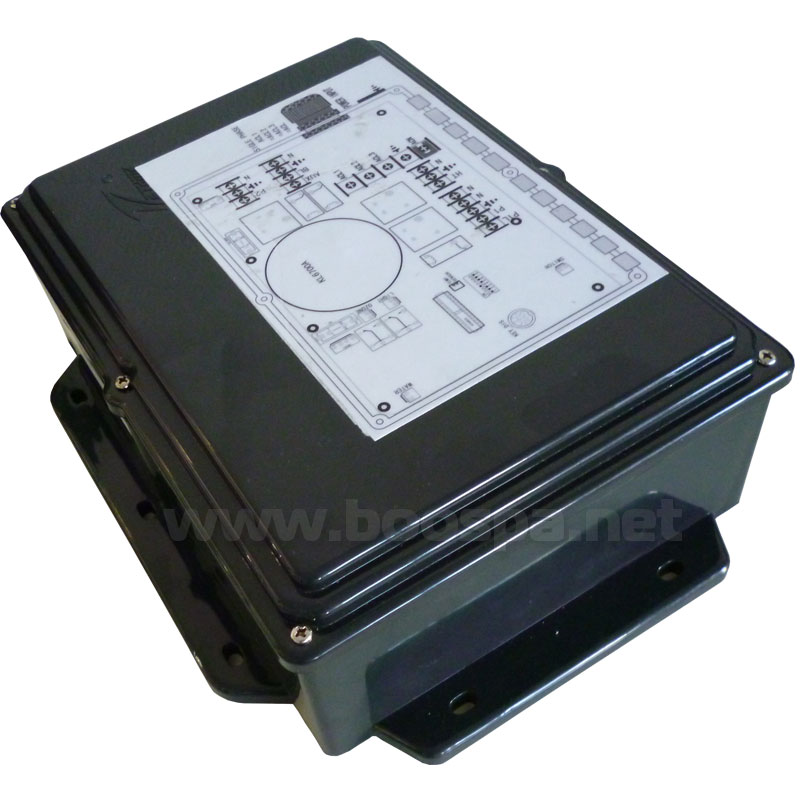

ETHINK KL-6700 CONTROL BOX |
| Electric: | 220-240 Volts Norms N-CE-CB |
| Circulation pump: | 1 pump 220-240V |
| Massage pump: | 2 pumps 220-240V |
| Blower | 1 Blower 220-240V |
| Memory clock: | YES |
| LED lighting: | Universal LED |
| LED lighting control: | YES |
| Heater connection: | 1 3Kw heater 220V |
| Stereo Radio / CD: | YES |
| Temperature sensor: | YES |
| Water level probe: | YES |
Dimensions:
Length: 29 cm
Width: 21 cm
Depth: 10 cm
LED LIGHTING CONNECTION |
| Universal connection | Standard ETHINK connection |
 |  |
ETHINK KL6700 CONTROL PANEL |
| Control Panel (w/ display backlight) |
 |
- Modes: standard mode, power saving mode and sleep mode.
- 24H adjustable clock (for the cleaning cycles).
- Control and display of water temperature
- For up to 2 massage pumps, one circulation pump and an air pump (blower)
- LEDs and color management
- Temperature displayed in Fahrenheit or Celsius
- Anti-frost mode
- Buttons w/ backlight
- 220/240V
- Low voltage for lighting and ozonator
- Switch for mode changes
- Error messages for a rapid identification of any problems
Compatible with
The majority of the spas on the market. Ideal for the replacement of a defective system or for an acrylic or concrete spa.
