Replacement rotor kit (R108) for E10 circulation pump
This kit is only suitable for E-10 circulation pumps.
The rotor from Laing / Xylem E-10 includes: - the impeller
- the magnetic section
- the carbon bearing

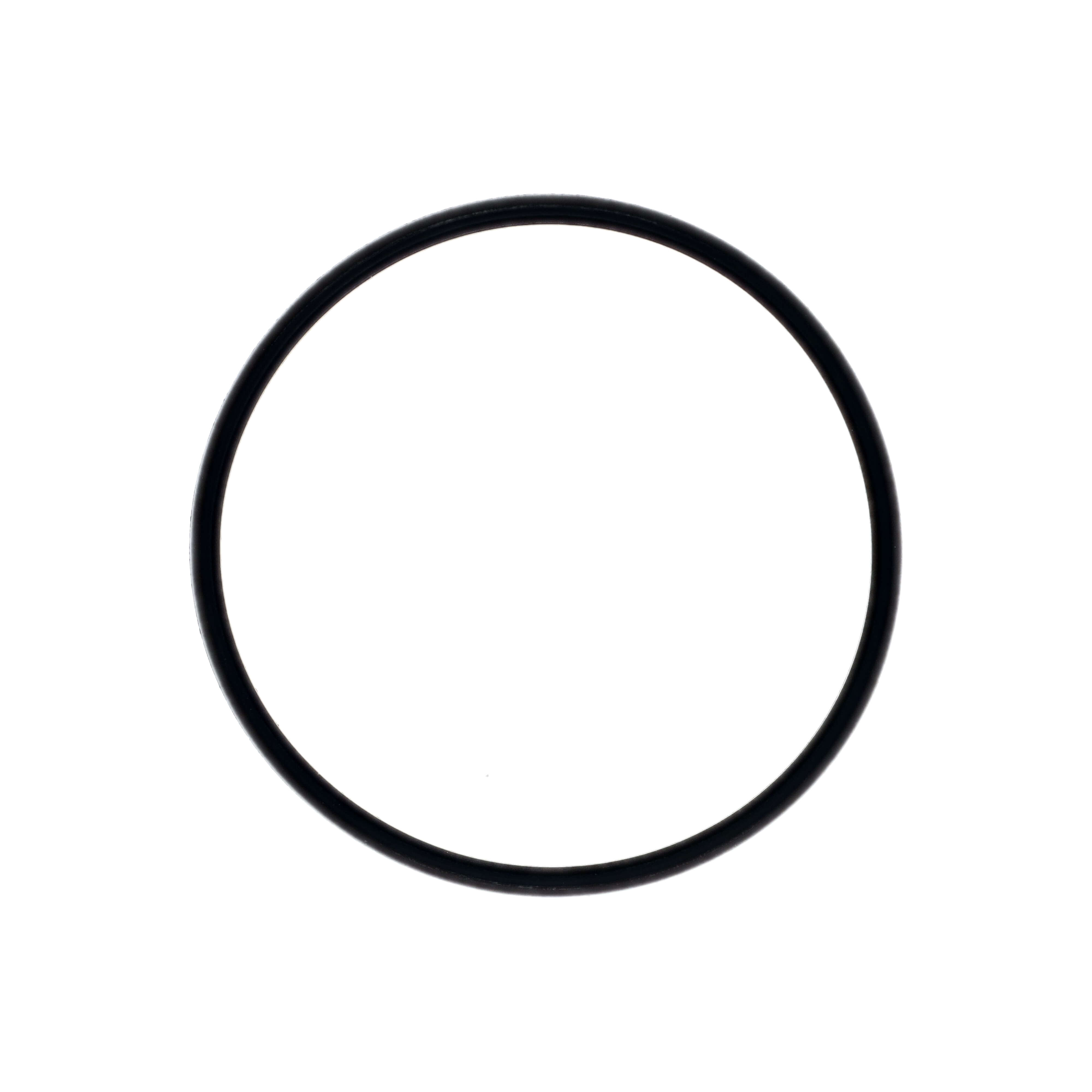

- a sealing gasket
Use this rotor kit if the E10 circulation pump of your spa fails due to:- Dry running or chemical etching
- Carbon bearing failure
Symptoms indicating the need for rotor replacement:- blockage, grinding, or rattling of the pump during operation
Ensure that the ceramic ball on the motor is in perfect condition before considering replacing this impeller; otherwise, a complete pump replacement is necessary.
Attention, not suitable for E10 pumps with metal base plates or any version of SM9xx series pumps. This is a
one-piece unit that cannot be further disassembled. Red E10 pumps are not compatible with this kit.
Dimensions:- Bearing diameter: 80 mm
- Impeller diameter: 65 mm
- Part depth: 42 mm
If you need a
replacement kit without a bearing, kit R112 is suitable for you.
Compatible with
Laing E10 pumps
