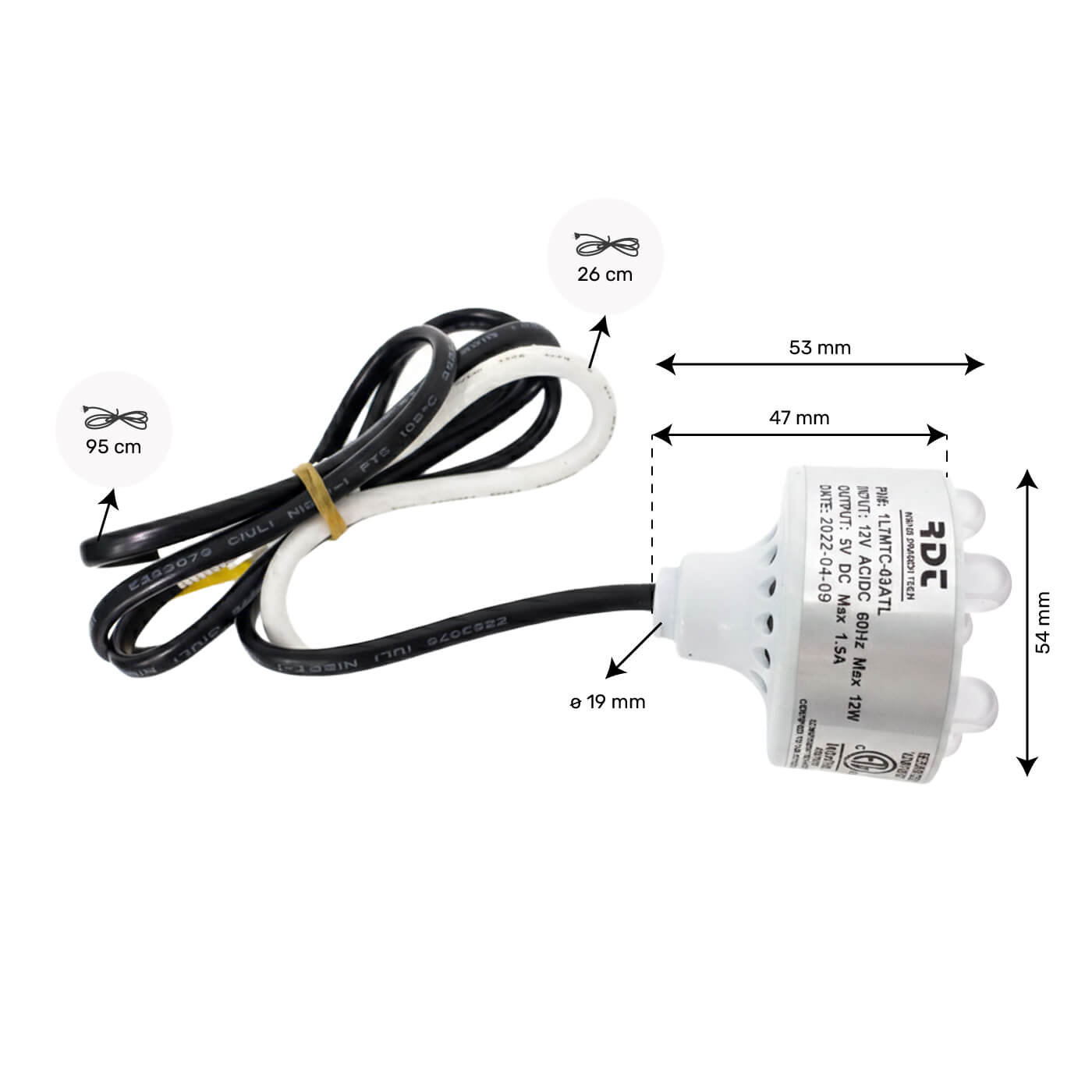

Power cable and chaining cable length: 95cm and 26cm
Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)
| Product Type | LED / Spa lighting module |
| Brand | Rising Dragon |
| Series | Evolution Plus |
| Reference | 1L7MFC-03ATL |
| Number of LEDs | 7 |
| Color | RGB |
| Power Supply Voltage | 12V AC |
| Output Voltage | 12V DC |
| Maximum Power | 10W |
| Controller | Integrated |
| Main Connector | 3 pins |
| Chaining Connector | Round 4-PIN connector |
| Power Cable Length | 1 meter |
| Chaining Cable Length | 30 cm |
| Diameter | 55 mm |
| Thickness | 34 mm |

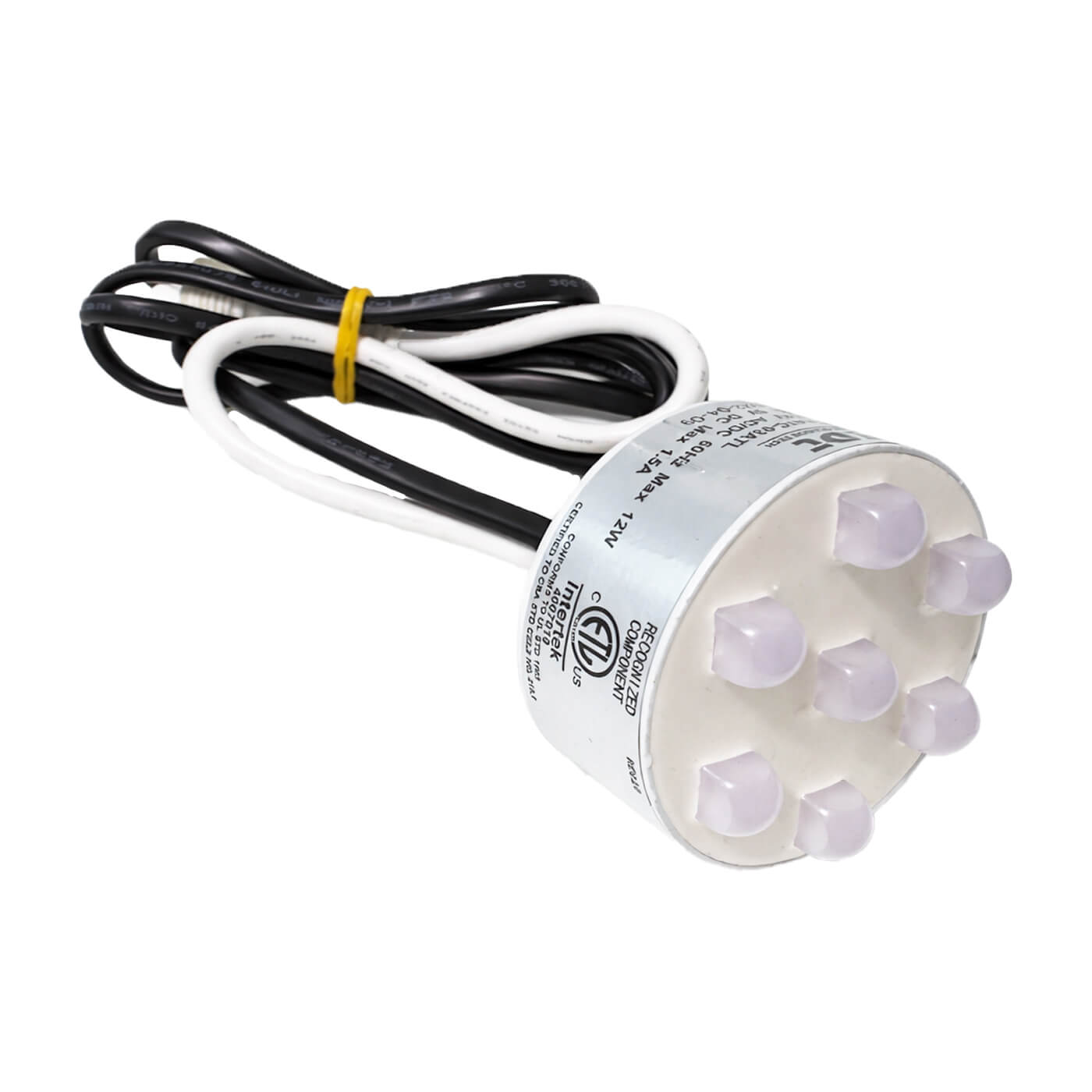

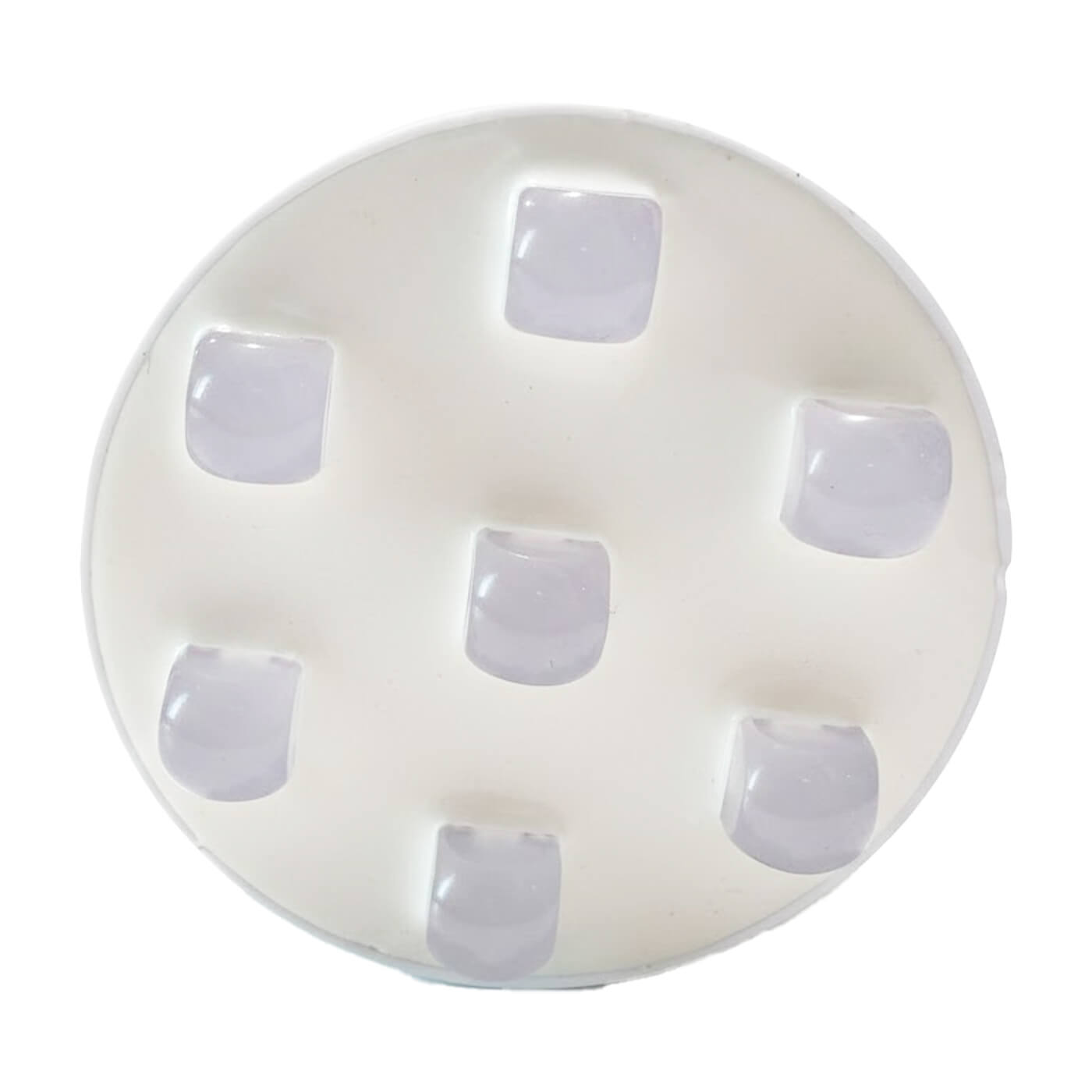

LED module Rising Dragon Evolution Plus equipped with 7 RGB LEDs with integrated controller. Works on 12V AC with 12V DC output and allows for various lighting effects: static lighting, slow or fast color sequences, intensity variations, and strobe effect. Each ON/OFF pulse on your remote control changes the color sequence. Its round 4-PIN connector allows for chaining, using the splitter (included), a slave bulb and/or one or more splitters (with double or quadruple LEDs for example).
Check the reference 1L7MFC-03ATL and compatibility with a 12V AC system. Ensure that your installation uses a 3-pin connector and that the dimensions match your housing. This multicolor Rising Dragon bulb, part of the Evolution Plus range, operates on 12V AC and can be connected to various systems such as Gecko MSPA or Astrel control units. It can also be pre-wired with an AMP plug for installation compatible with units like those from Balboa or Waterway.
Disconnect the power before any intervention. Connect the module via the 3-pin connector and connect the 4-PIN chaining system if necessary. Check the correct positioning and waterproofing before putting it back into service.
1 LED module Rising Dragon Evolution Plus 1L7MFC-03ATL with cables and connectors.
What lighting effects are available?
The module features several lighting modes. It allows for fixed lighting, slow or fast color sequences, intensity variations, and a strobe effect.
Is this model compatible with the classic Evolution series?
No, this model is designed for the Evolution Plus series in 12V AC. It should not be confused with Evolution models operating on 5V DC.
