Dimension One Reference: 1510-23
Front diameter: 83 mm
Only projector body.
Complete projector available
Worldwide delivery
100% compatible parts
2-year warranty (1 year for professionals)
| Product Type | Spa Projector |
| Brand | Dimension One Spas |
| Reference | 01510-23 |
| Type | Projector Body / Lighting Lens |
| Front Diameter | 83 mm |
| Screw Thread Diameter | 62.5 mm |
| Inner Diameter | 54.5 mm |
| Height | 48 mm |
| LED Included | No |
| Compatibility | Compatible with Dimension One Spas |

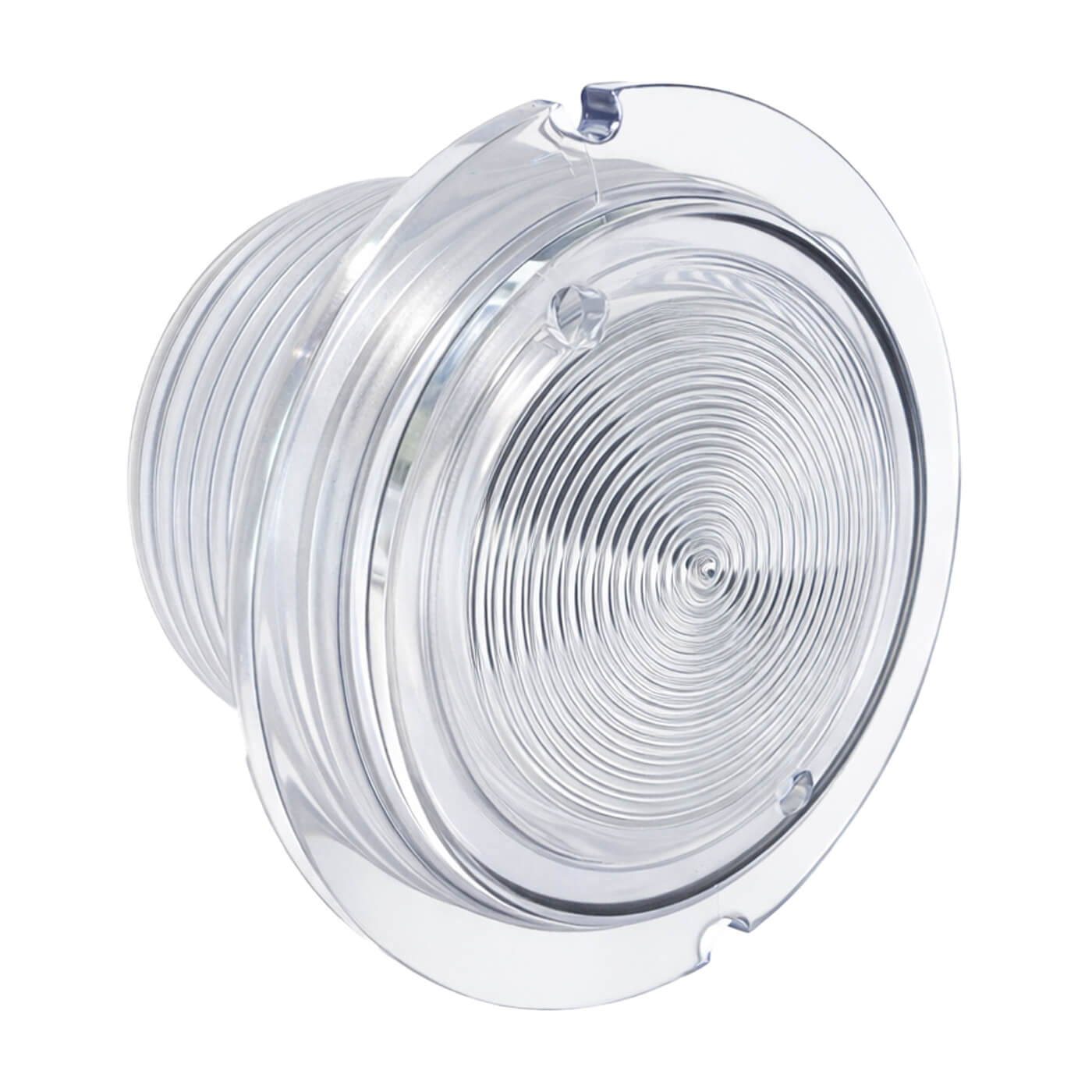

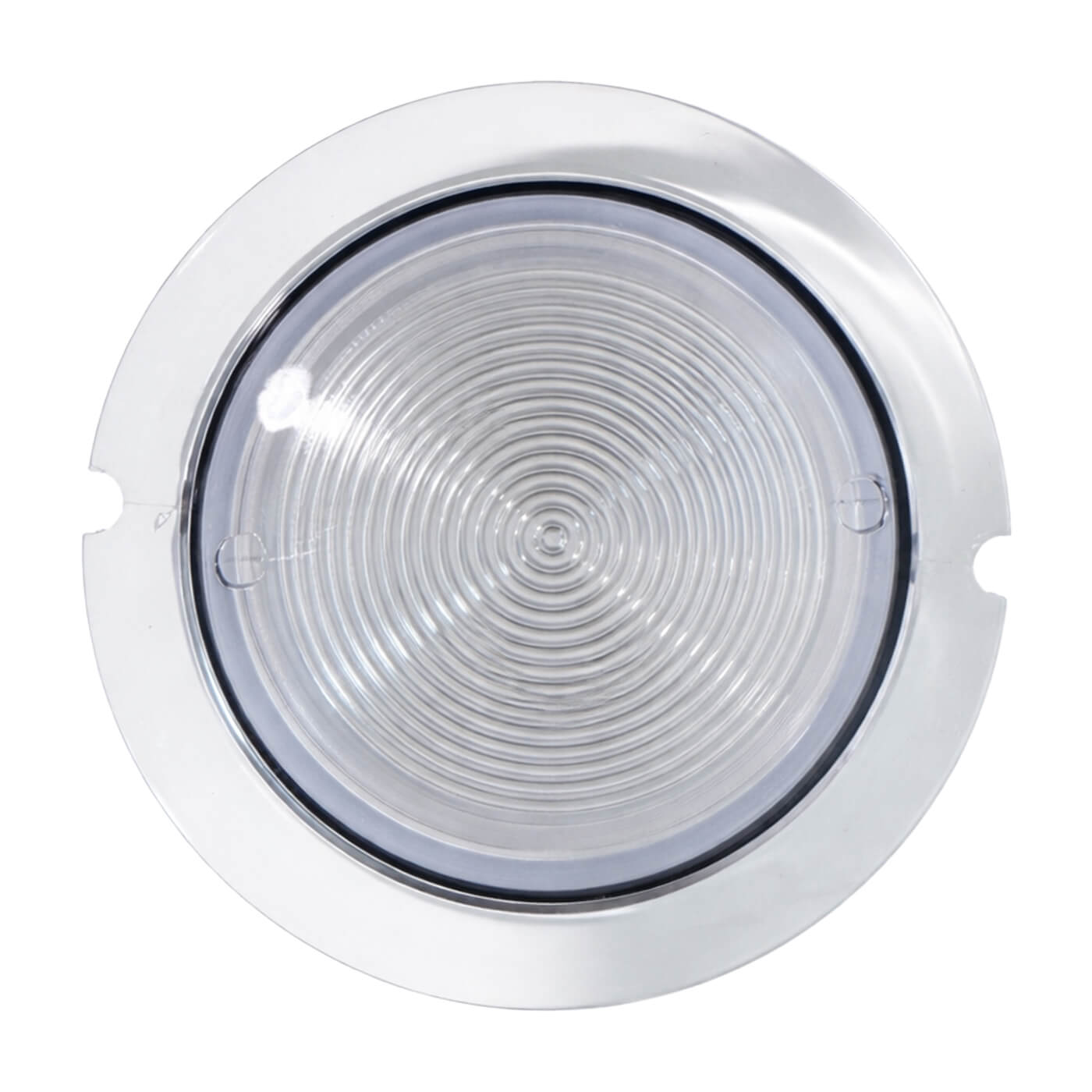

The Dimension One 01510-23 projector is a replacement projector body designed for certain D1 Spas. This part includes the front and the projector body but does not include the LED. It allows you to replace a damaged projector while retaining other compatible components of your installation.
This reference 01510-23 corresponds to the projector body used in certain Dimension One Spas. Before ordering, check the reference of your original part as well as the dimensions of the projector. If you want to replace the complete lighting set, refer to reference 01510-100.
Replacing the projector requires removing the old lighting body and reusing or replacing the sealing elements according to their condition. Check the condition of the O-ring and fixing nut to ensure correct installation and good sealing.
1 Dimension One projector with reference 01510-23.
The LED, O-ring, fixing nut, and connection receptacle are not included.
Is the LED included with this projector?
No. This reference corresponds only to the projector body. The LED must be ordered separately if needed.
What are the dimensions of this projector?

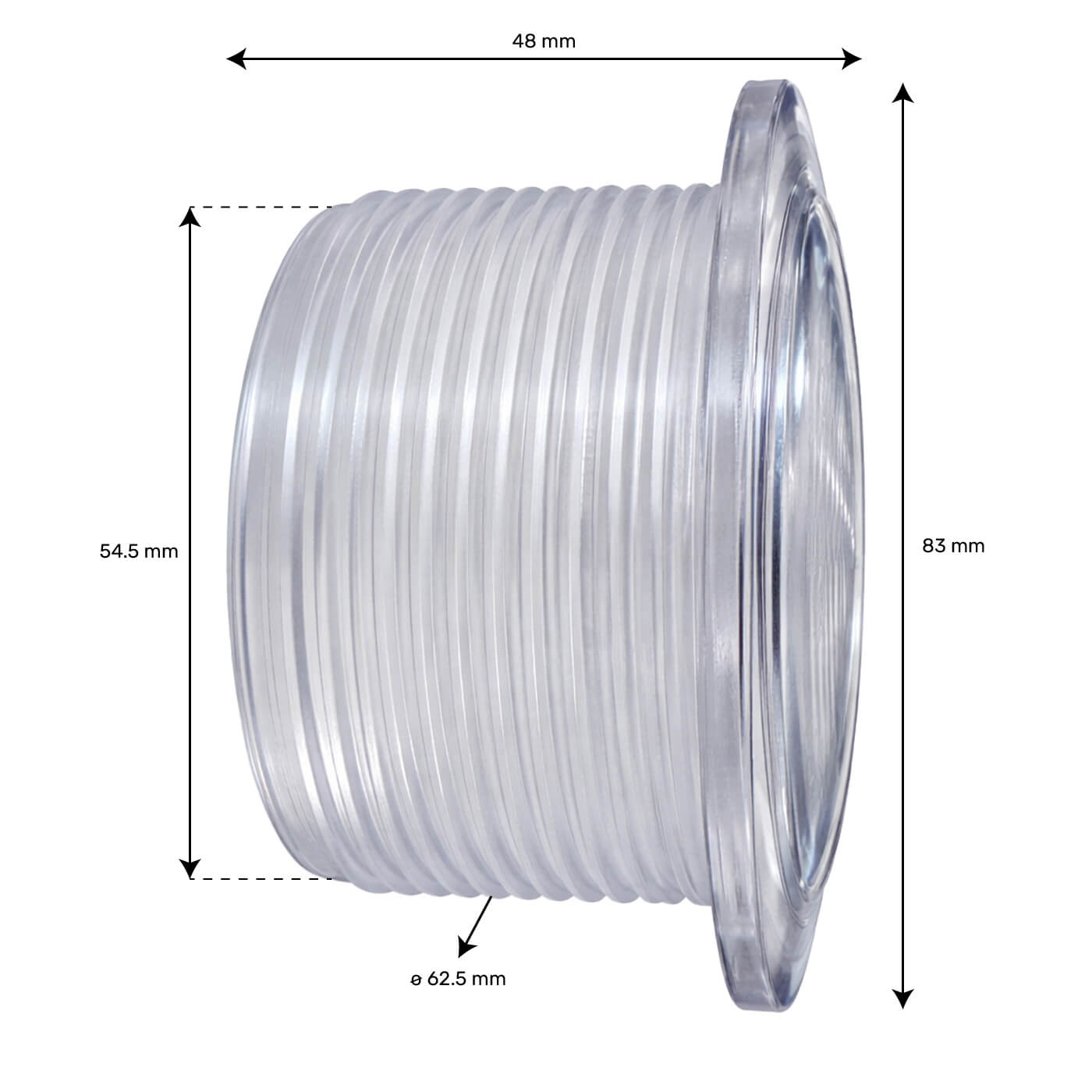

The front measures 83 mm in diameter. The screw thread diameter is 62.5 mm, the inner diameter is 54.5 mm, and the total height is 48 mm.
What is the difference between references 01510-100 and 01510-23?
Reference 01510-100 corresponds to the complete lighting set. Reference 01510-23 corresponds only to the separately sold projector.
Which components allow reconstitution of the lighting set?
The set consists of projector 01510-23, O-ring 01510-329, fixing nut MRQ740-0064, and connection receptacle 01510-196. The complete set is available under reference 01510-100.
