Mechanical Seal Kit 1213004 for Waterway Spa Pumps Seal kit to repair leaks in the pump body of your spa pump.

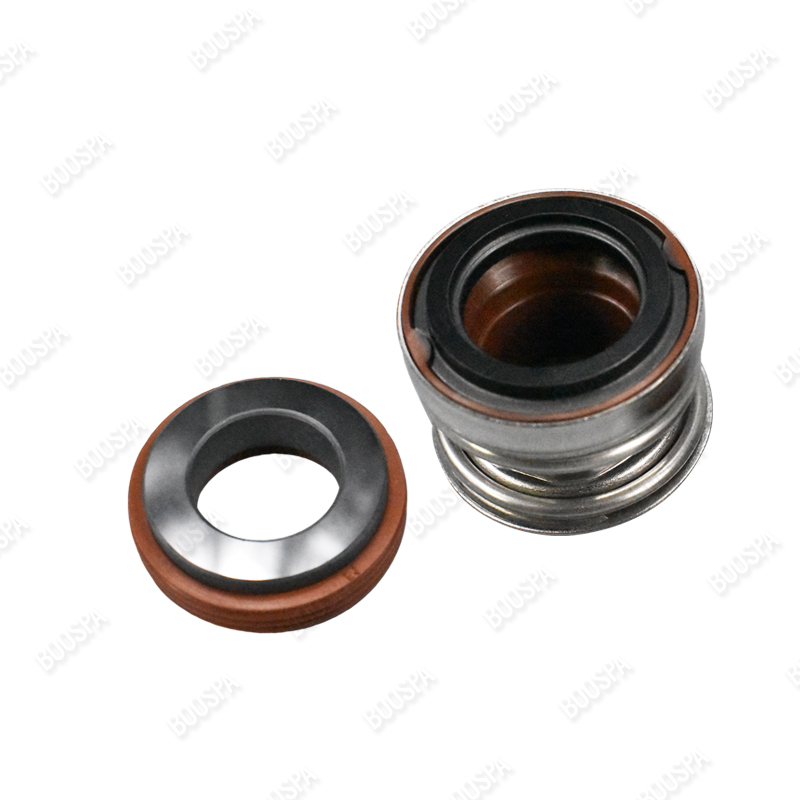

The 319-3090B mechanical seal for Waterway pumps consists of a metal part and a ceramic part that ensure the motor block's sealing.
The seal kit consists of 2 pieces, the larger one is mounted on the pump body itself, the second one is installed after the impeller.
Waterway Reference: 319-3090B Dimensions:- Ceramic Part:
- Outer Diameter: 31mm
- Inner Diameter: 17mm
- Thickness: 10mm
- Mechanical Part:
- Outer Diameter of Spring Part: 20mm
- Inner Diameter: 5.5mm
- Thickness: 11mm
Compatible with
Compatible with Waterway pumps:
- SVL56
- High Flow
- Champion 56 Frame
- Executive
- Spa-Flo
- Iron Might
- Hi-Flo Side Discharge
- CSA Hi-Flo Side Discharge
- Center Discharge
- Workman
