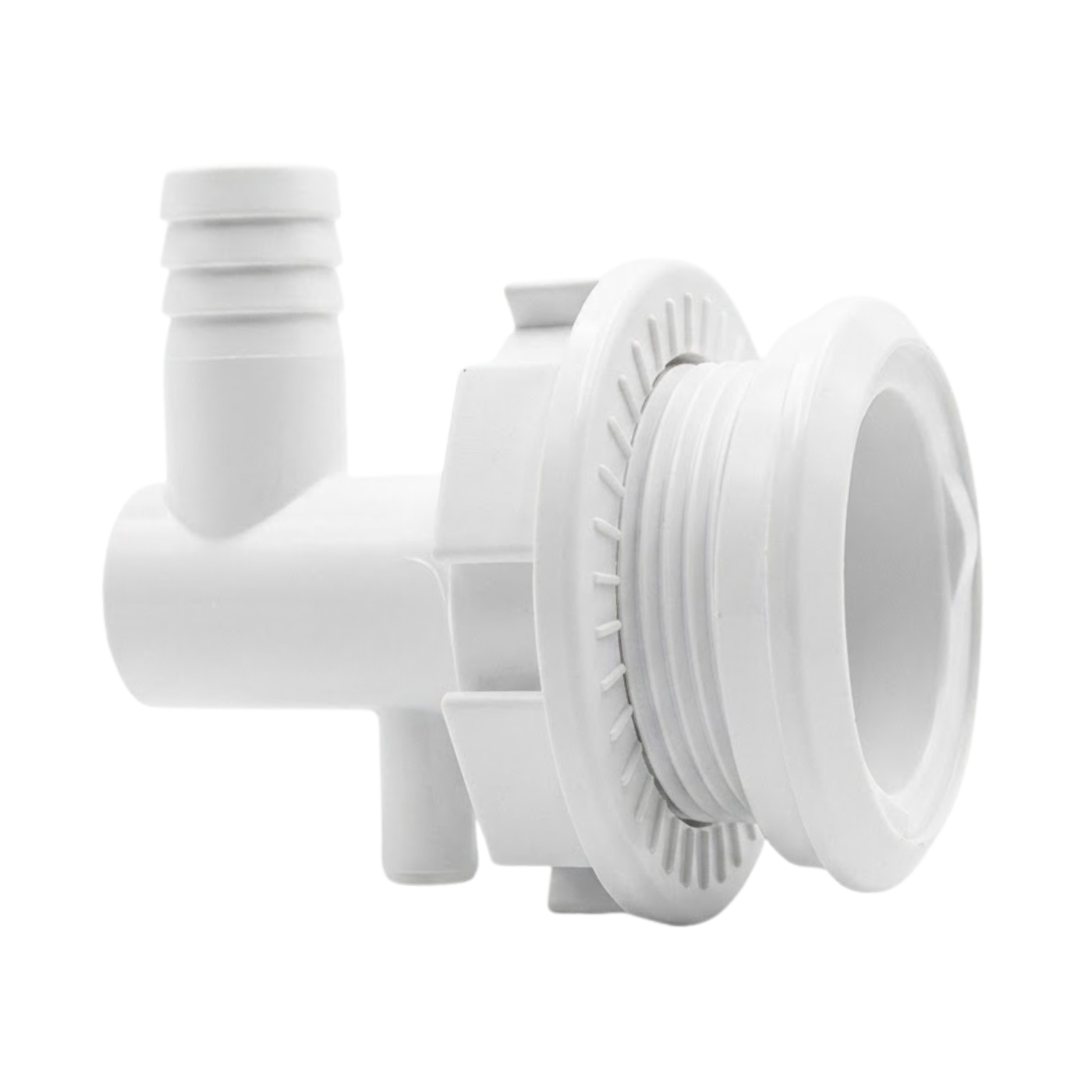

This clip-on socket attaches to the spa shell and receives the LVJ nozzles, formerly LVS, from the Small 2.5-inch series. It is compatible with all 2.5-inch LVJ nozzles, especially the Aurora, Flying, and Phantom series. It allows water and air to flow to the nozzle. The water flow creates a Venturi effect that draws in air to add bubbles to the jet and increase the massage power.
| Category | Jet Sockets |
| Reference LVJ / LVS | L-1004B |
| Old reference | L-0077 |
| Attachment type | Clip-On |
| Length | 89 mm |
| Body length | 80.5 mm |
| Front diameter | 58.9 mm |
| Inner front diameter | 45.8 mm |
| Embedding hole diameter | 45 - 53 mm |
| Male external thread pitch | 20.5 mm / 11 mm |
| Female internal thread pitch | 14 mm / 6.3 mm |
| Water connection | Barbed fitting for flexible hose 3/4 inch |
| Air connection | Barbed fitting for flexible hose 3/8 inch |
| Compatibility | All 2.5-inch LVJ nozzles, including the Aurora, Flying, and Phantom |
| Included elements | Socket, fixing nut, and gasket |
Check the reference of your old socket and the installation dimensions. This model corresponds to reference L-1004B, previously L-0077, and is suitable for LVJ or LVS nozzles from the Small 2.5-inch series. The 2.5-inch LVJ nozzle body (L-1004B) is a universal component designed to be used with all 2.5-inch LVJ nozzles.
The socket attaches to the spa shell using the provided nut and gasket. The nozzle is then clipped into the socket. The water inlet connects to a 3/4-inch flexible hose and the air inlet to a 3/8-inch flexible hose.
| You will receive a 2.5-inch LVJ jet socket, a fixing nut, and a gasket. | .jpg) |
Yes, this socket is suitable for LVJ spa nozzles, previously known as LVS, from the Small 2.5-inch series. Also, check the L-1004B reference or the old L-0077 reference before ordering.

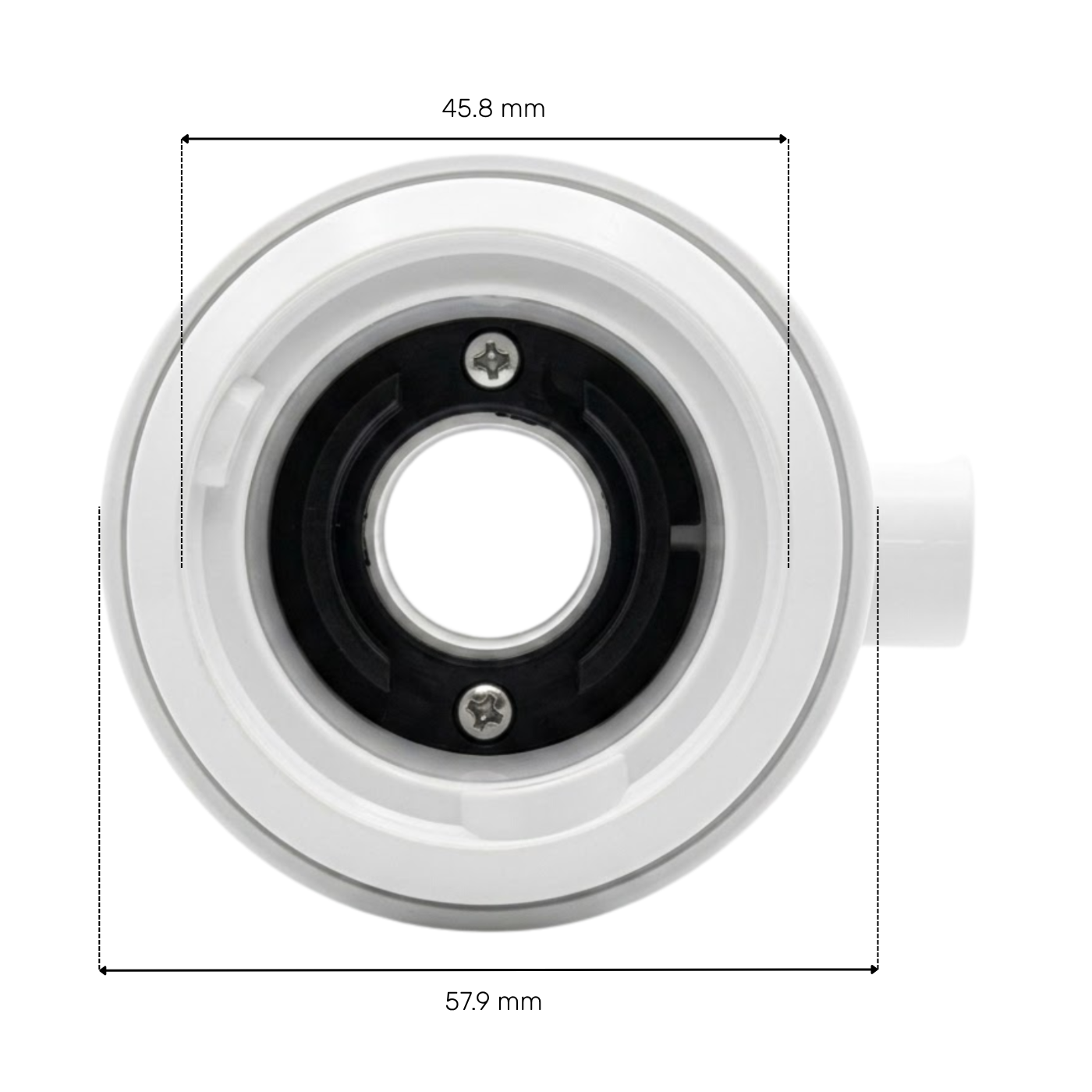

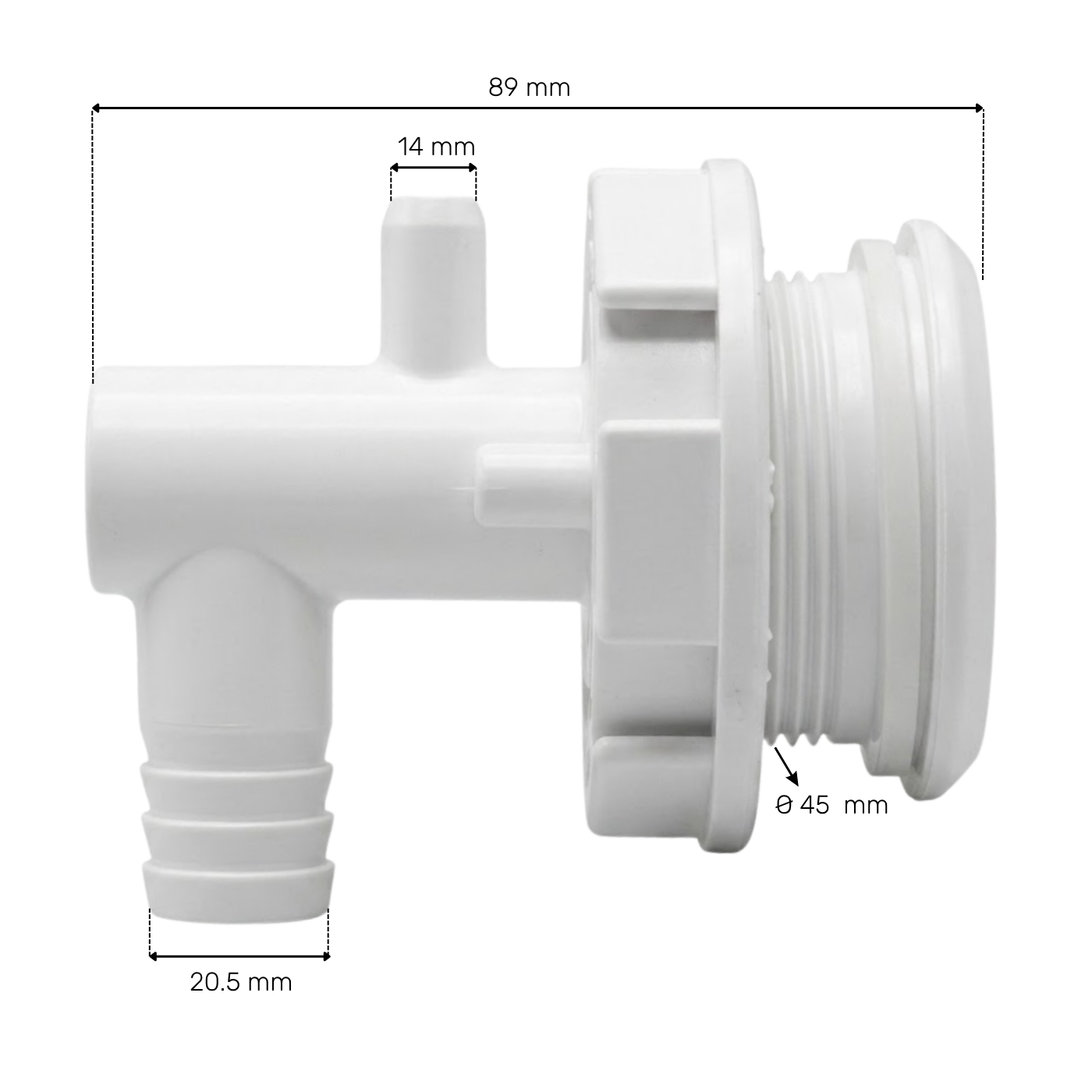

The front measures 57.9 mm in diameter, and the embedding hole should measure 45 mm. The socket has a total length of 89 mm.
The water inlet uses a barbed fitting for a 3/4-inch flexible hose. The air inlet uses a barbed fitting for a 3/8-inch flexible hose.
The water flow in the socket draws in air through the Venturi effect. This air intake adds bubbles to the water jet and increases the massage power.
Yes, the air inlet can be blocked when you do not want to add bubbles to the water jet. In a standard installation, the air inlets are connected to a common manifold and then to a valve to adjust the air and water mixture.
