5-inch SpaTouch™ 3 Touchpad for Balboa BP Systems
The
SpaTouch™ 3 keypad is the evolution of the
SpaTouch™ 2, which itself is the evolution of the
original SpaTouch.
These 100% touchpad models are designed by the leading spa electronic parts manufacturer: BALBOA.
It features a
more ergonomic and simpler interface than its predecessors, along with a wider screen.
There is also the
Balboa SpaTouch™ 3 Plus with a
7-inch screen.
Specifications:- Dynamic screen display, 2x brighter than the SpaTouch2™
- Waterproof against environmental conditions such as splashes or contamination

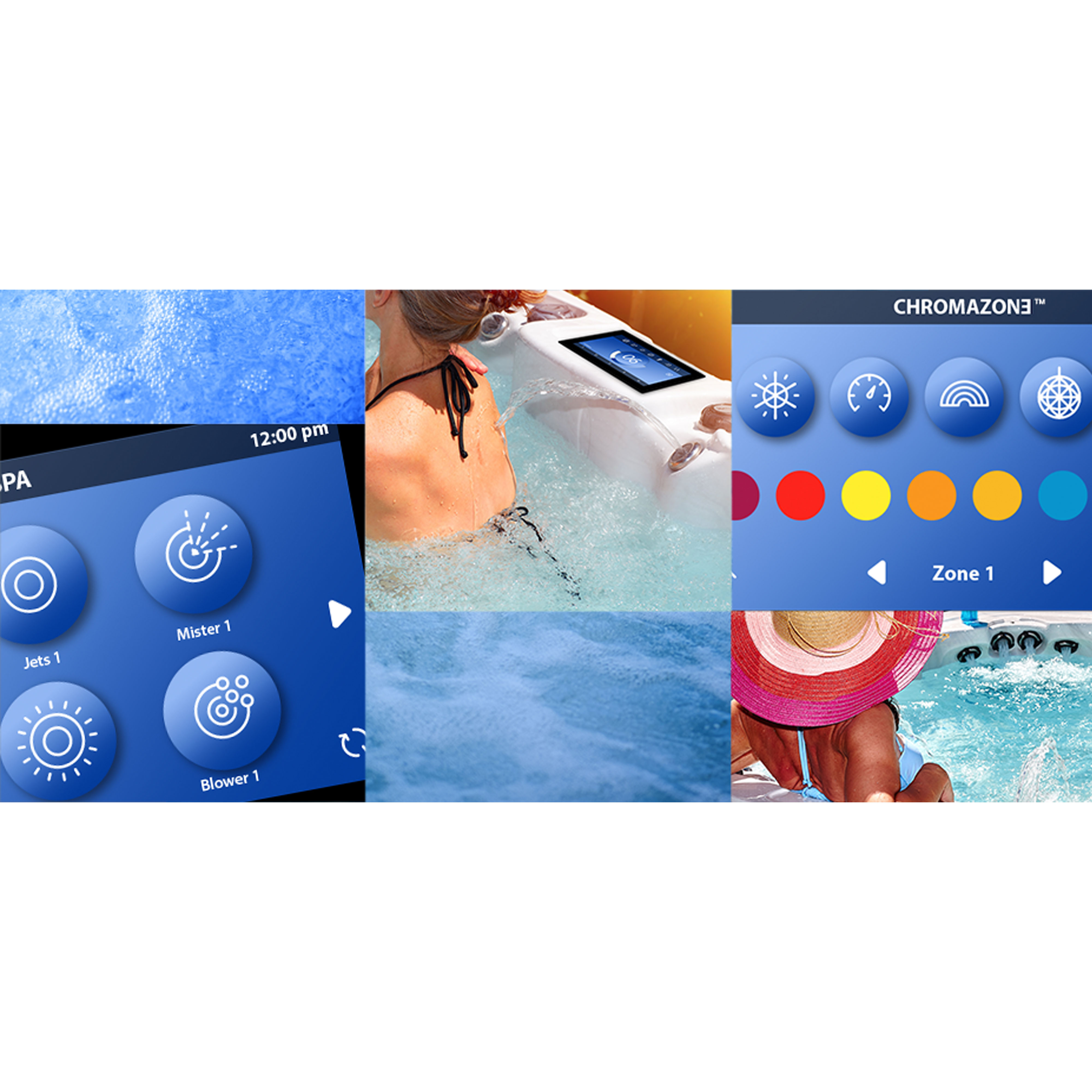

- New menu, larger, brighter, and bolder
- The touch screen incorporates the latest capacitive touch technology
- Provides stunning clarity and premium true color display
- NOT compatible with the heat pump Clim8zone. (The SpaTouch3 ref 57254-07 is the compatible model)
Dimensions and Interface
3rd generation Balboa touchpad interface: Dimensions:- Screen: 5" (127 mm)
- Height: 101 mm
- Width: 145 mm
- Depth: 40mm

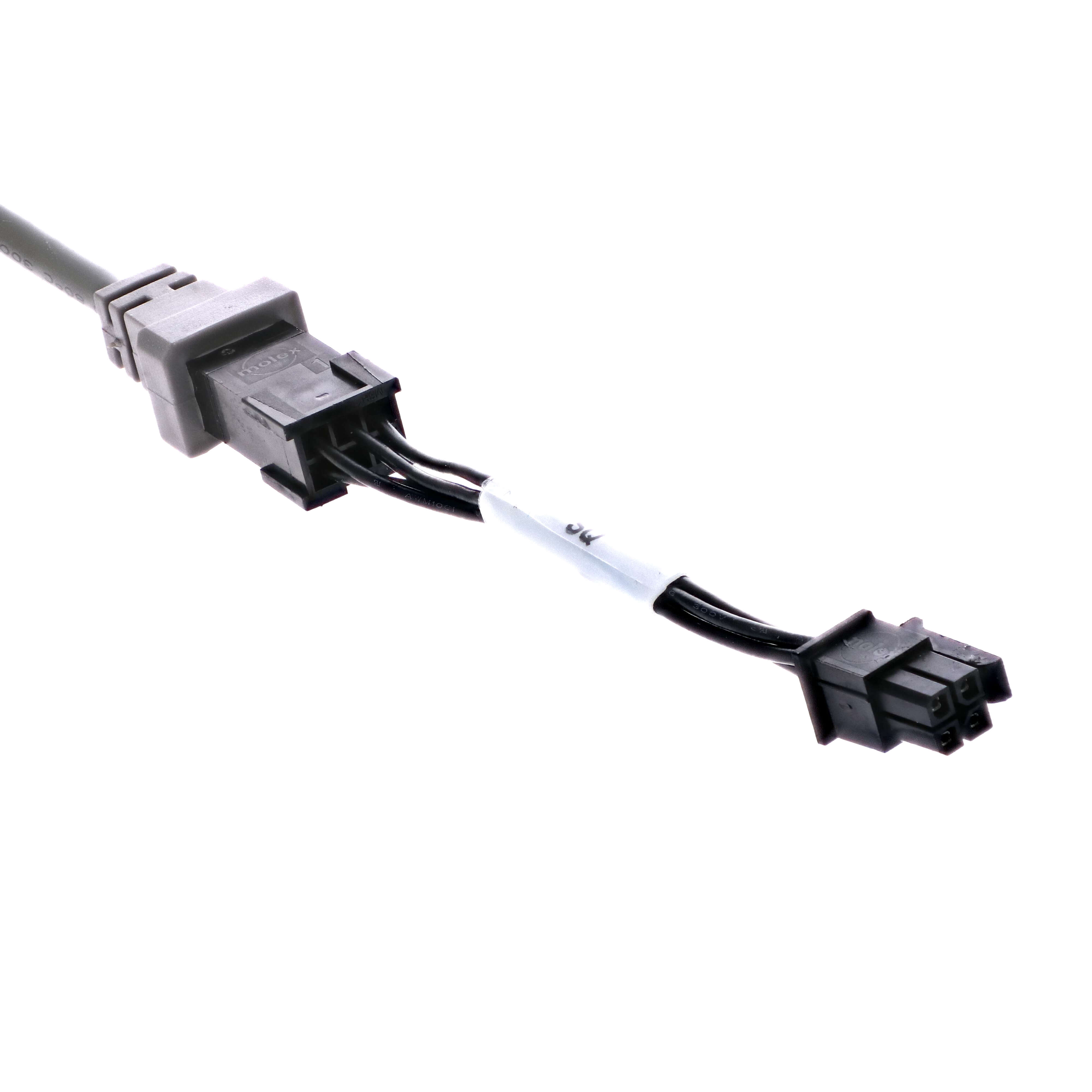

- Cable length: 2m
- Mounting dimensions: 80 mm x 130 mm
Installation
There are several precautions to take when installing your SpaTouch 3 keypad:
Compatibility
SpaTouch™ 3 panels are compatible with all BALBOA BP systems that support
TP800 and
TP900 (B) models.
They can potentially replace
TP400 and
TP600 keypads, but in some cases, this may lead to display defects.
Attention: This keypad model is NOT compatible with the heat pump Clim8zone. (The SpaTouch3 ref 57254-07 is the compatible model)
