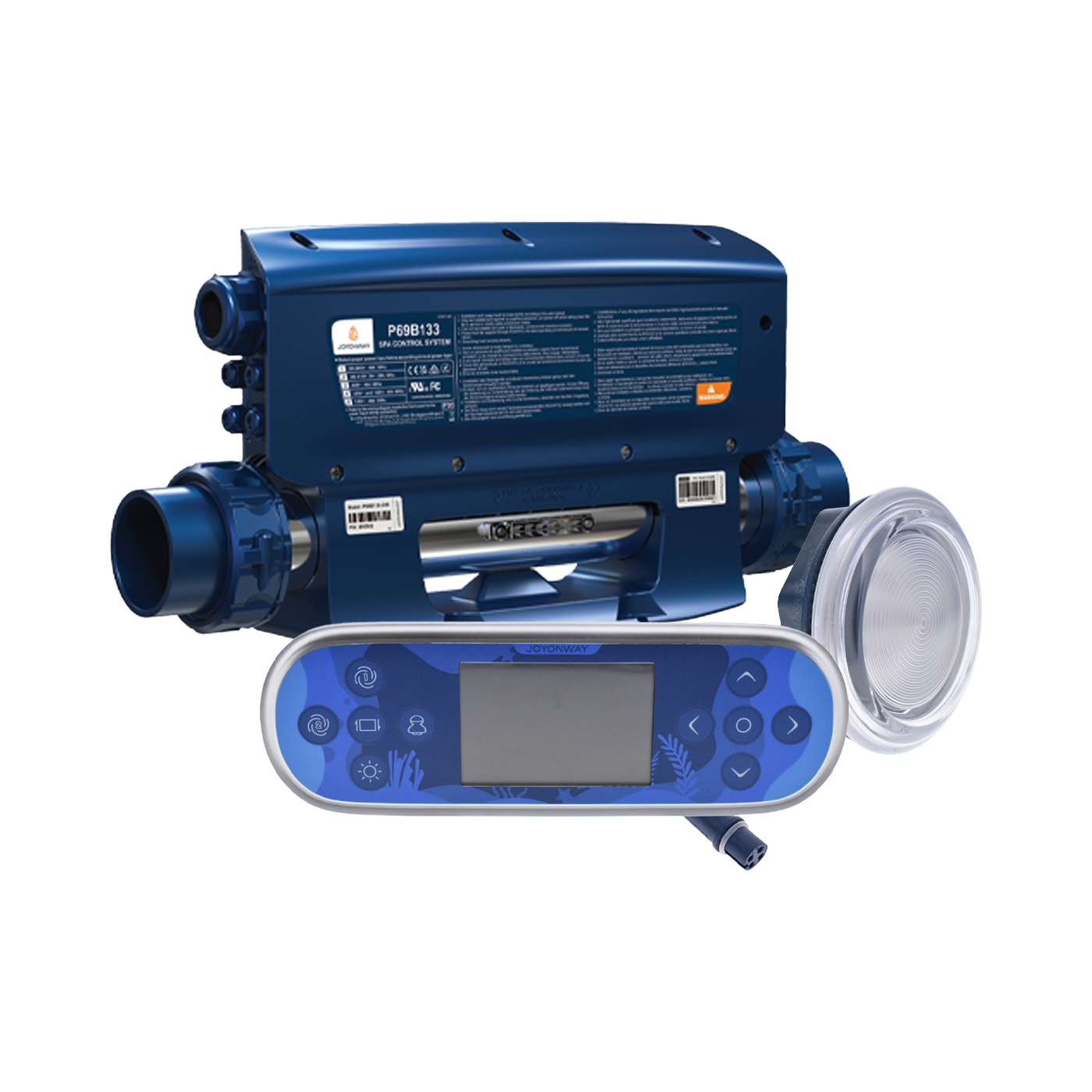

Complete Replacement System P69B133 + PB563Plus Keyboard with Wifi - JOYONWAY

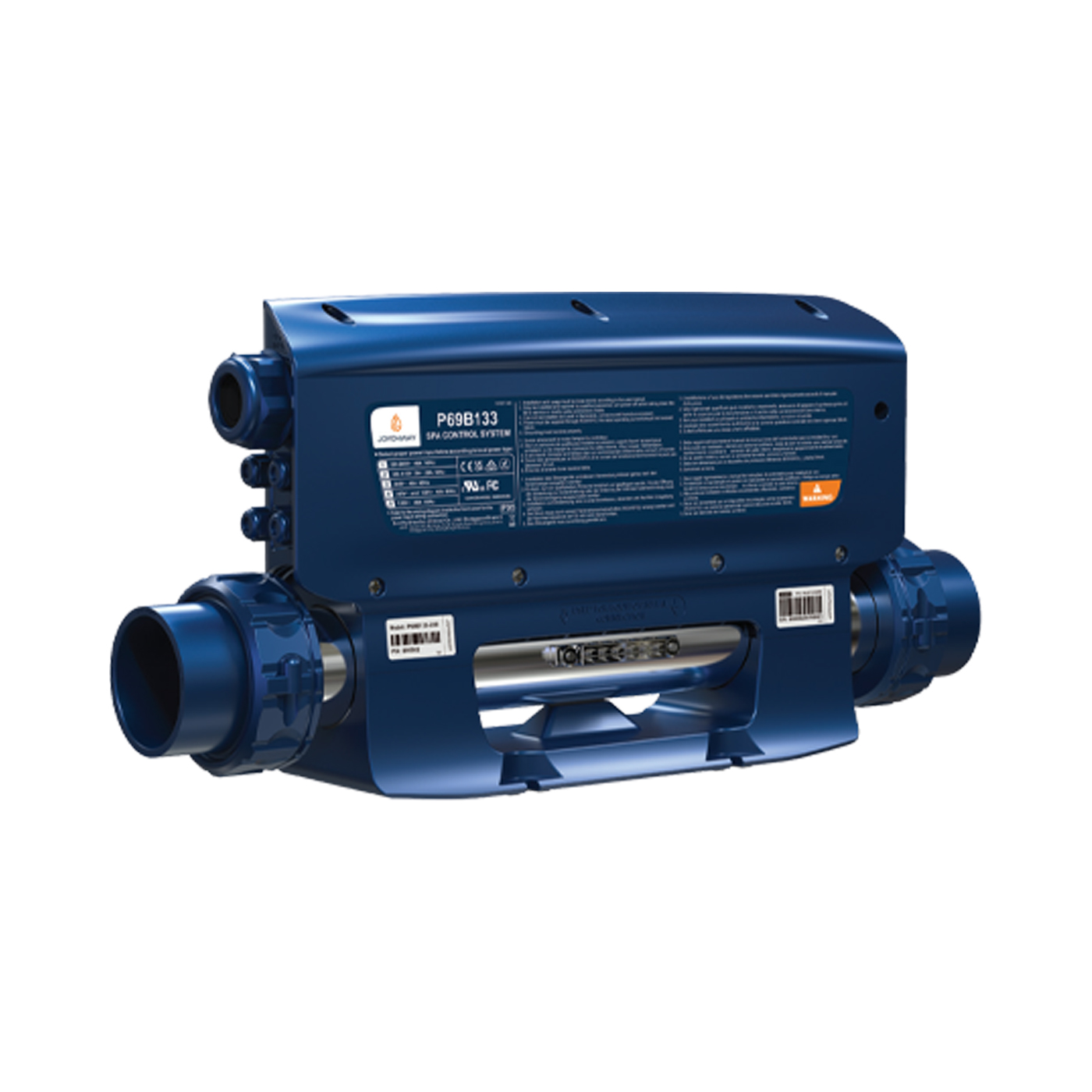

The P69B133 control box from Joyonway is designed to optimize the management of your spa, integrating advanced technology with a power of 3 kW.
Compatible with power input of 100-240V~ 48A 50Hz/60Hz or 380-415V 3N~ 28A 50Hz, this robust system allows easy and efficient use of multiple spa components.
Manufacturer's Reference: 880501
| Features | Specifications |
|---|
| Dimensions | Length: 380 mm, Width: 100 mm, Height: 238 mm |
| Power Input | 100-240V~ 48A 50Hz/60Hz or 380-415V 3N~ 28A 50Hz |
| SPA Light Type | ON/OFF or RGB (+5V/3A or +12V/3A) |
| Single-Speed Pumps | 4 (10.5A each) |
| Blower | 1 (10.5A) |
| Circulation Pump | 1 (3.5A) |
| Heater | 1 (3000W at 230V~) |
| Ozone | 1 (1A) |
| Auxiliary Power Output | 1 (10.5A) |
| Additional Functions | Clock, freeze protection, timer for heating, timer for water circulation |

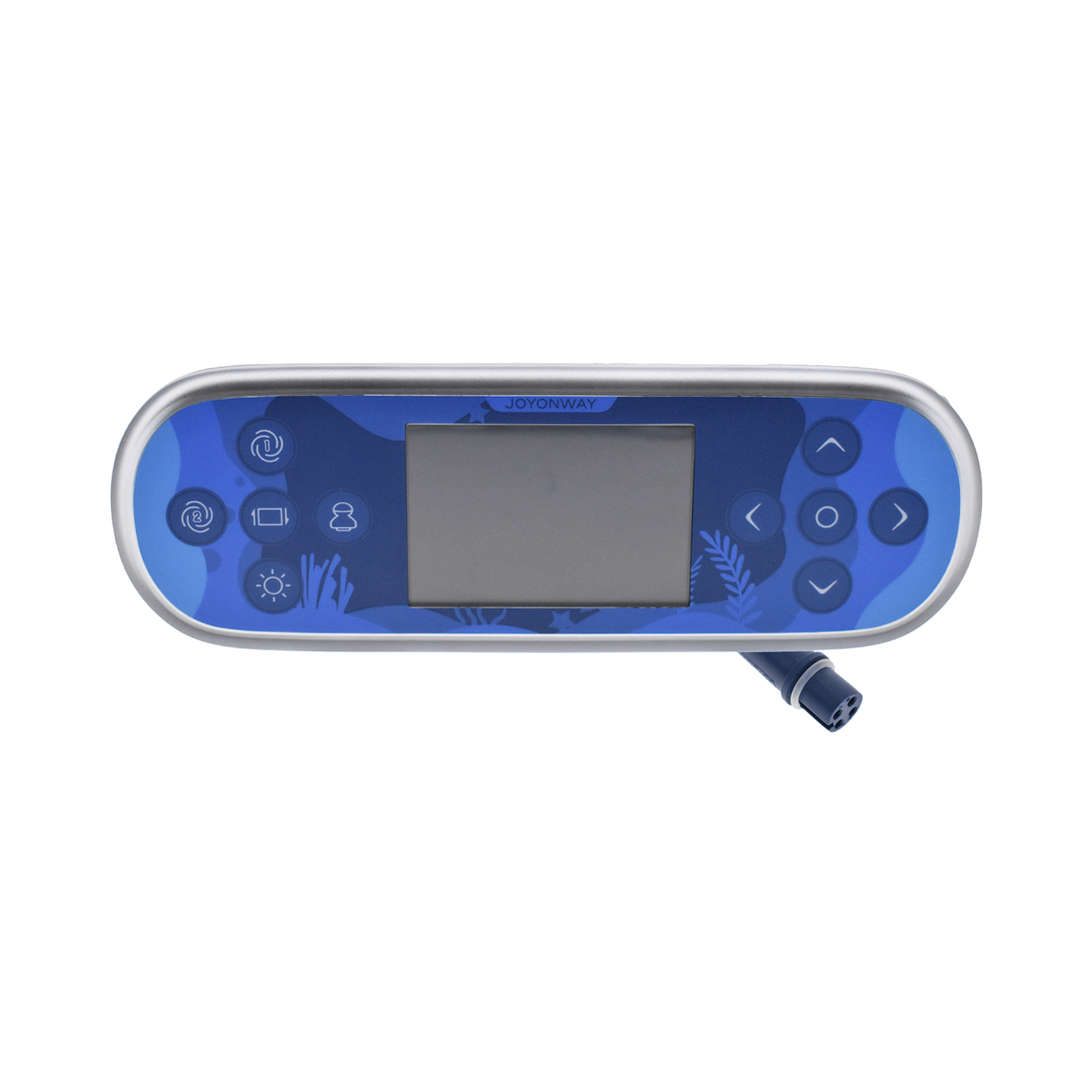

The PB563 PLUS control keypad from Joyonway is a great choice to enhance the management of your spa. Equipped with a 3.5-inch TFT LCD screen and capacitive touch buttons, this keypad offers smooth and intuitive interaction. The integrated WiFi module allows easy remote management, enhancing the user-friendliness and efficiency of your equipment.
| Features | Details |
|---|
| Manufacturer's Reference | 860204 |
| Screen Type | 3.5-inch TFT LCD |
| Control Type | Capacitive touch buttons |
| Connectivity | Integrated WiFi module |

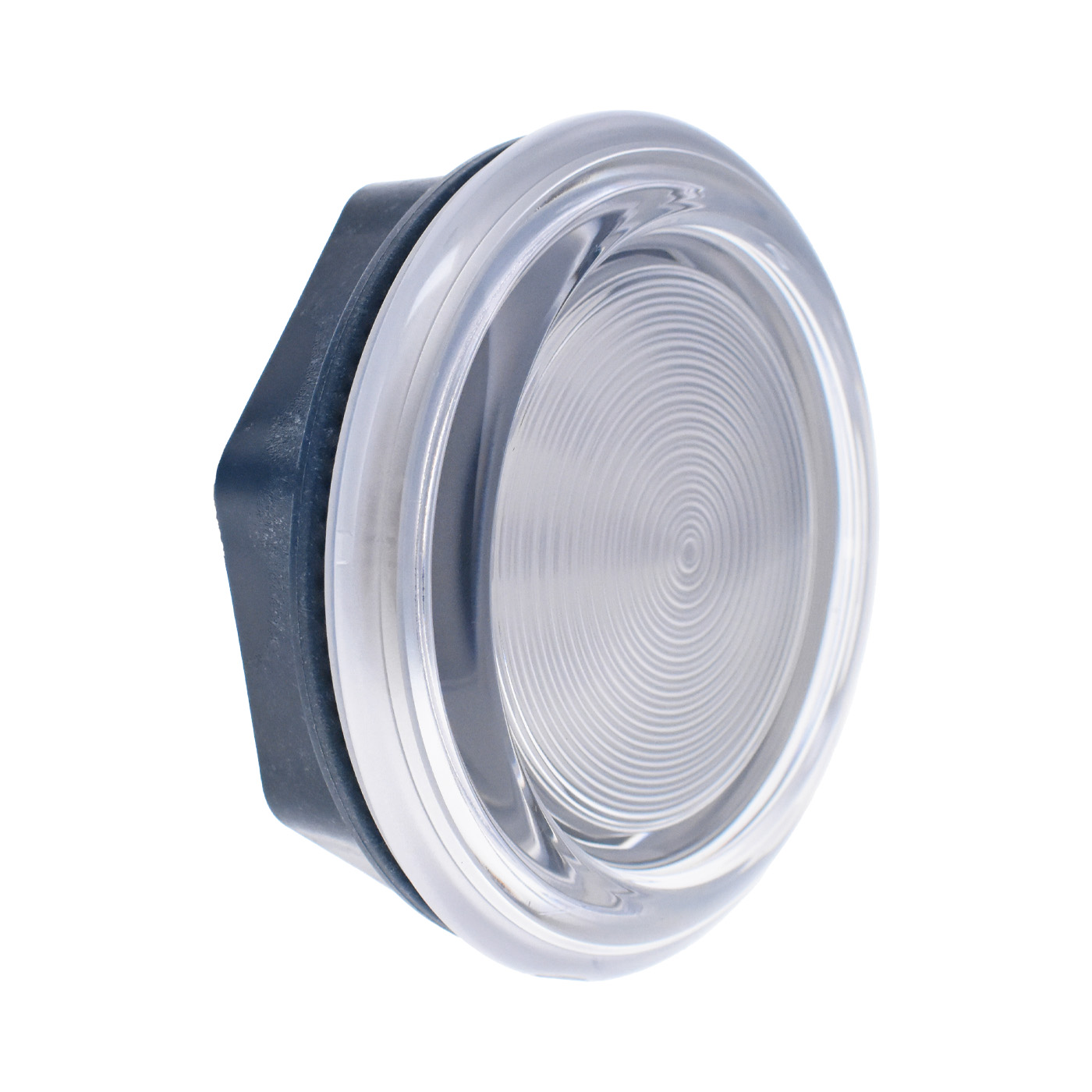

Supplied with an AC/DC 12v Led projector.
