LX
Ref : A-000000-0c195

2-Speed Massage Pump WP250II - 2.5HP

In Stock
241,67 €
203,71 £
Delivery Worldwide delivery
  • 100% compatible parts
    100% compatible parts

  • Warranty - 2 years
    Warranty - 2 years

Our technical team is at your disposal

Technical characteristics

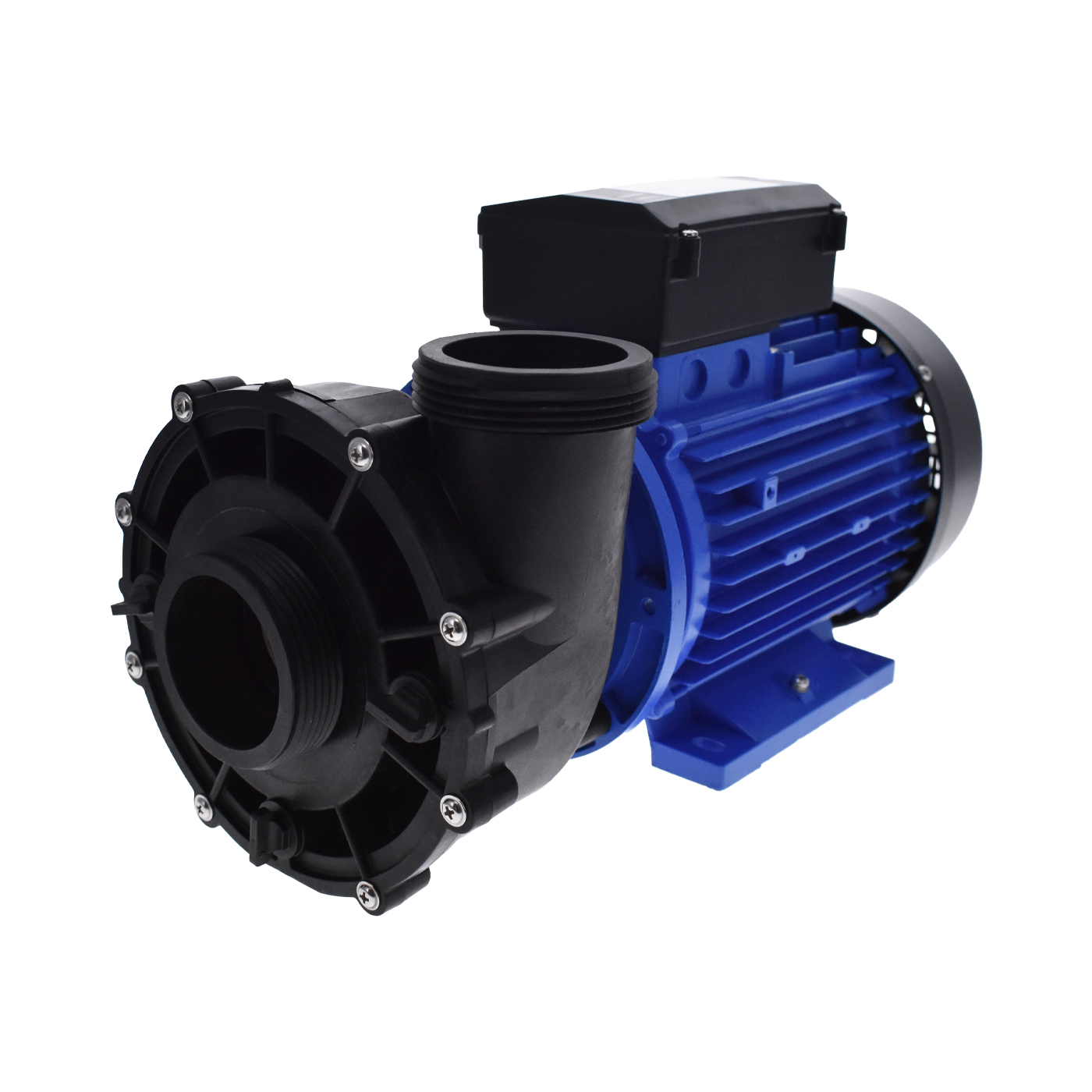

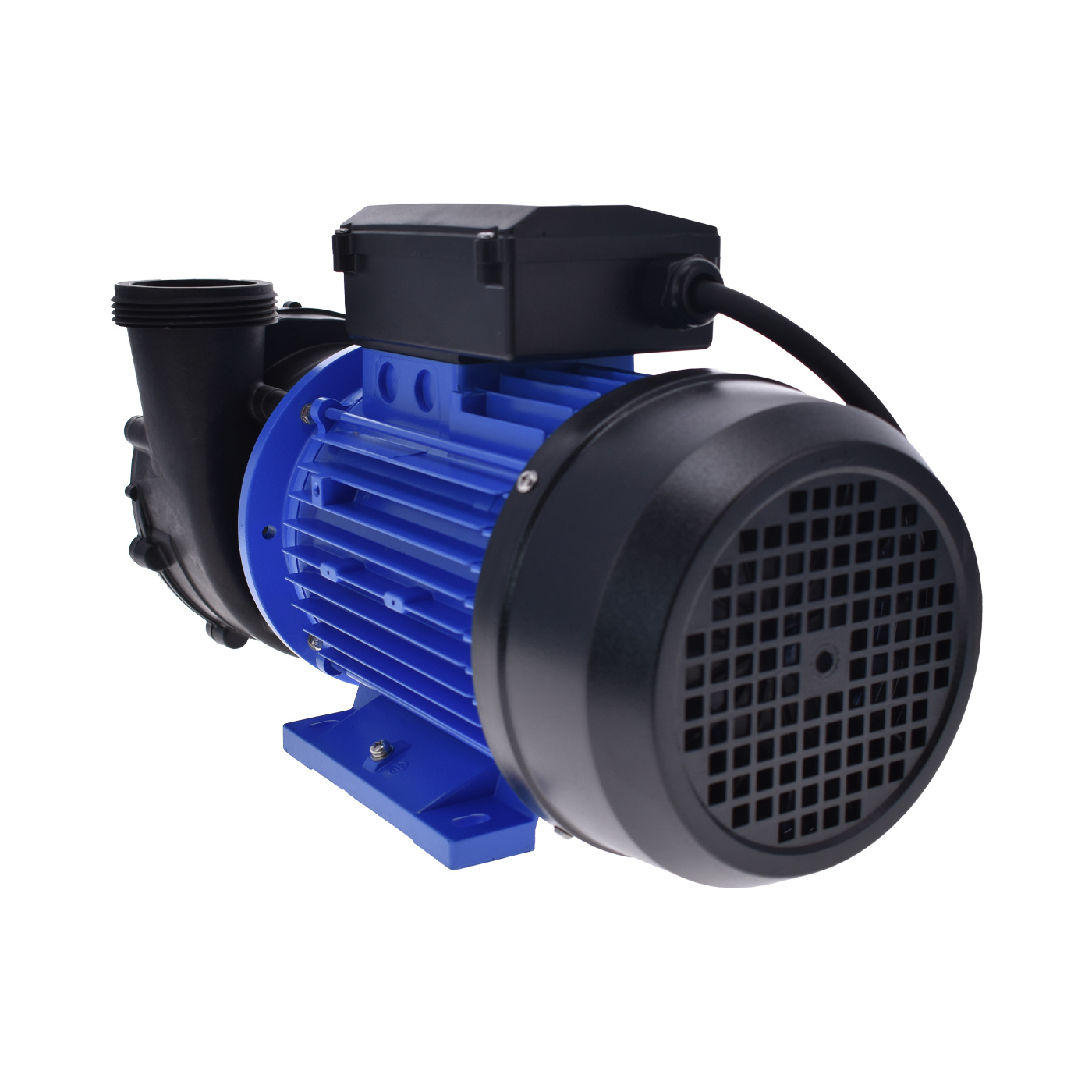

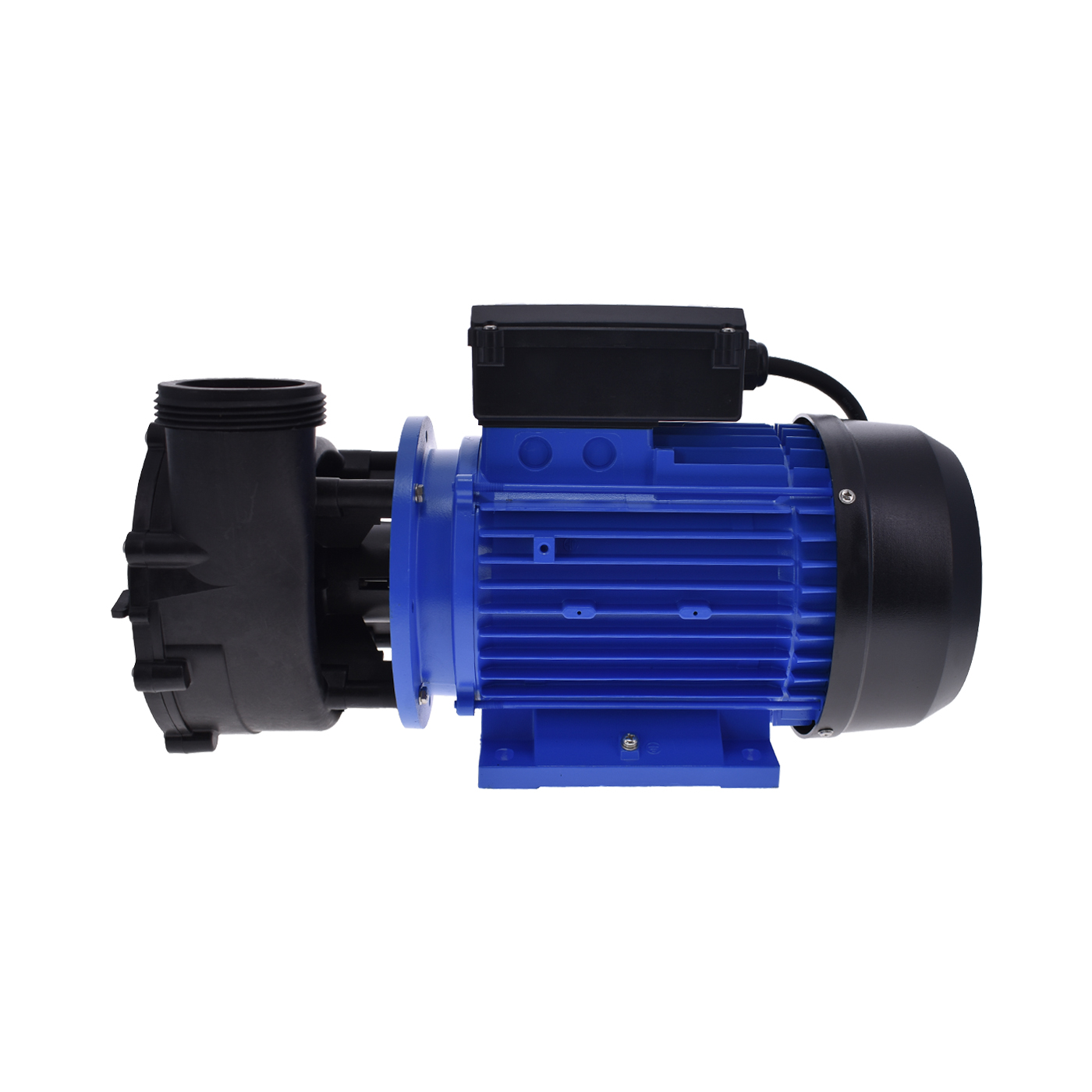

Pump WP250II by LX WHIRLPOOL
2-speed pump for spa 2.5HP

Power 2.5 HP (1.85 Kw)
Maximum output of 670 liters per minute
  • This pump allows to manage the filtration of your spa and the massage
  • Designed for an optimal performance and flow
  • Suction and backflow diameter of 2'' (60 mm) for an accrued performance and a reduced noise
  • Motor cooling norms IPX5 for a gradual temperature increase
  • Thermic overheat detector to preserve and increase the motor’s lifespan
  • Equipped with a capacitor (allows to start/trigger the pumps)
  • Material adapted for spas and pools



Model Qmax (l/min) Hmax (m) Power L

Weight (kg)
HP kW
WP200II 620 14 Slow speed: 0.375 HP 0.35 kW 431  17
High speed: 2 HP 1.5 kW
WP250II 670 16 Slow speed: 0.4 HP 0.0.4 kW 431  17
High speed: 2.5 HP 1.85 kW
WP300II 730  18 Slow speed: 0.625 HP 0.45 kW 431 18
High speed: 3 HP 2.20 kW


Dimensions WP300 WP200 Perform

Pipe Connection


Delivered with the 2" (60 mm internal) output connection
You can use your old pump union connections. If these connectors aren't compatible with your pipe, click on the link below : Pump union connections

Electronic Connection

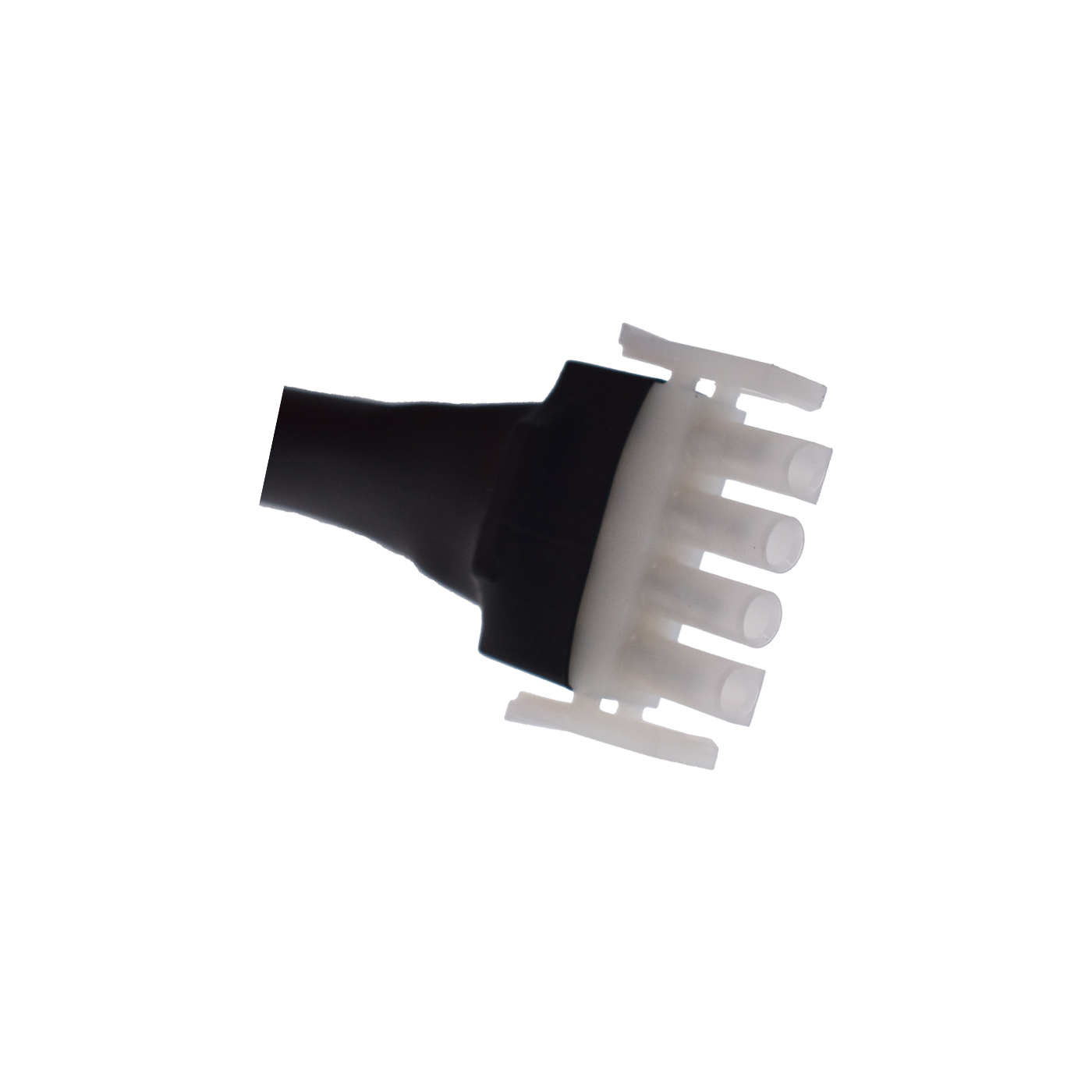

Delivered with cable with AMP plug. You can use your old cable to connect your new pump. If we can't connect it, choose your new cable in our cable range : Cables and plugs

The most famous plugs in Spa World:
prise amp prise J&J
 AMP Plug   J&J Plug


Technical documentation

Download data sheet
