Product is no longer manufactured

HLW

Ref : A-000000-0j074

Electronic control unit A-YH19

Name: Electronic control unit A-YH19
Brand: HLW
SKU: A-000000-0j074
Price: 499 EUR
Availability: InStock

HLW A-YH19 Control Box
Control up to 3 massage pumps and 1 blower
Compatible with A-YH19 keypads sold separately

Final break

See replacement products

Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

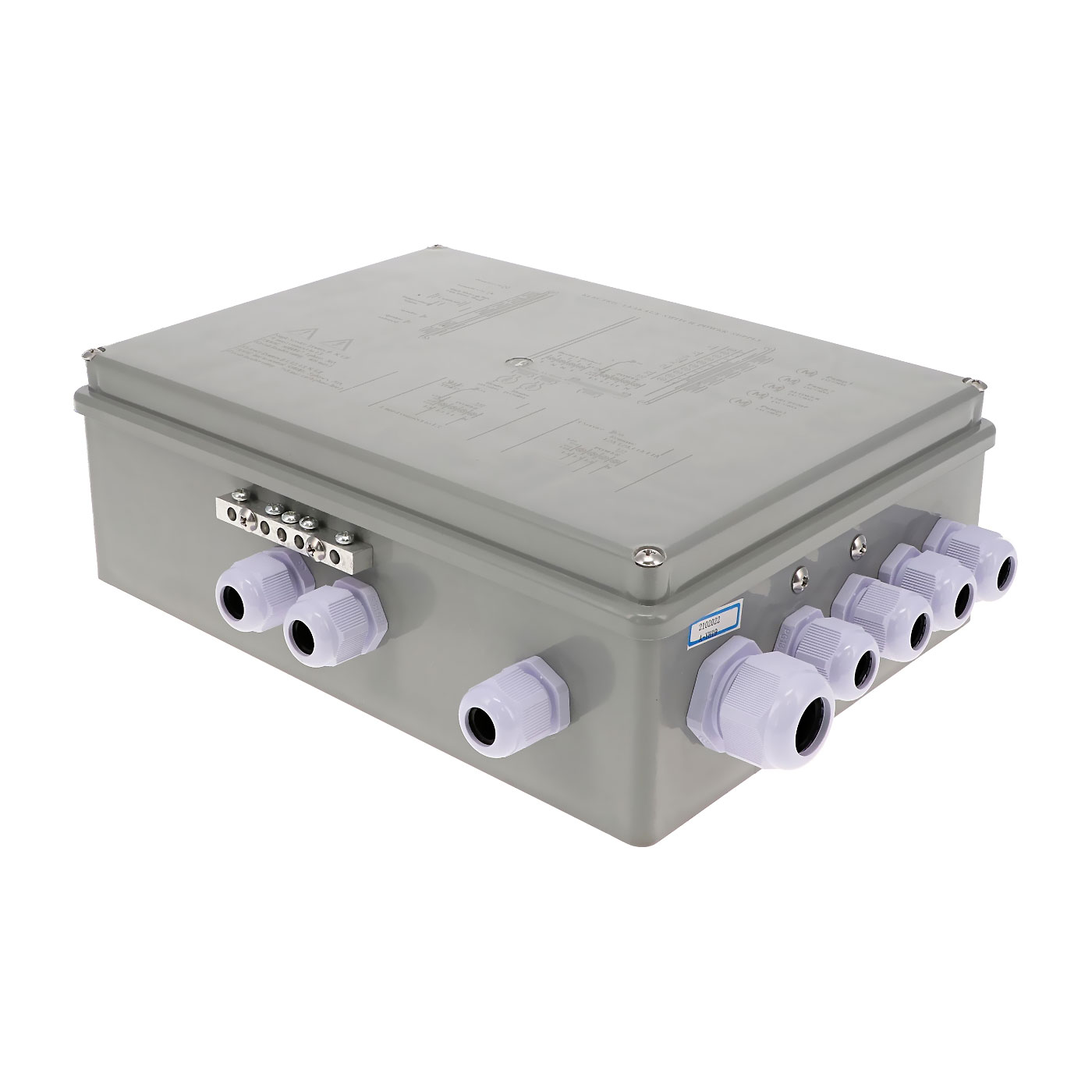

HLW A-YH19 Spa Control Box

This control box is compatible with the A-YH19 keypad sold separately.

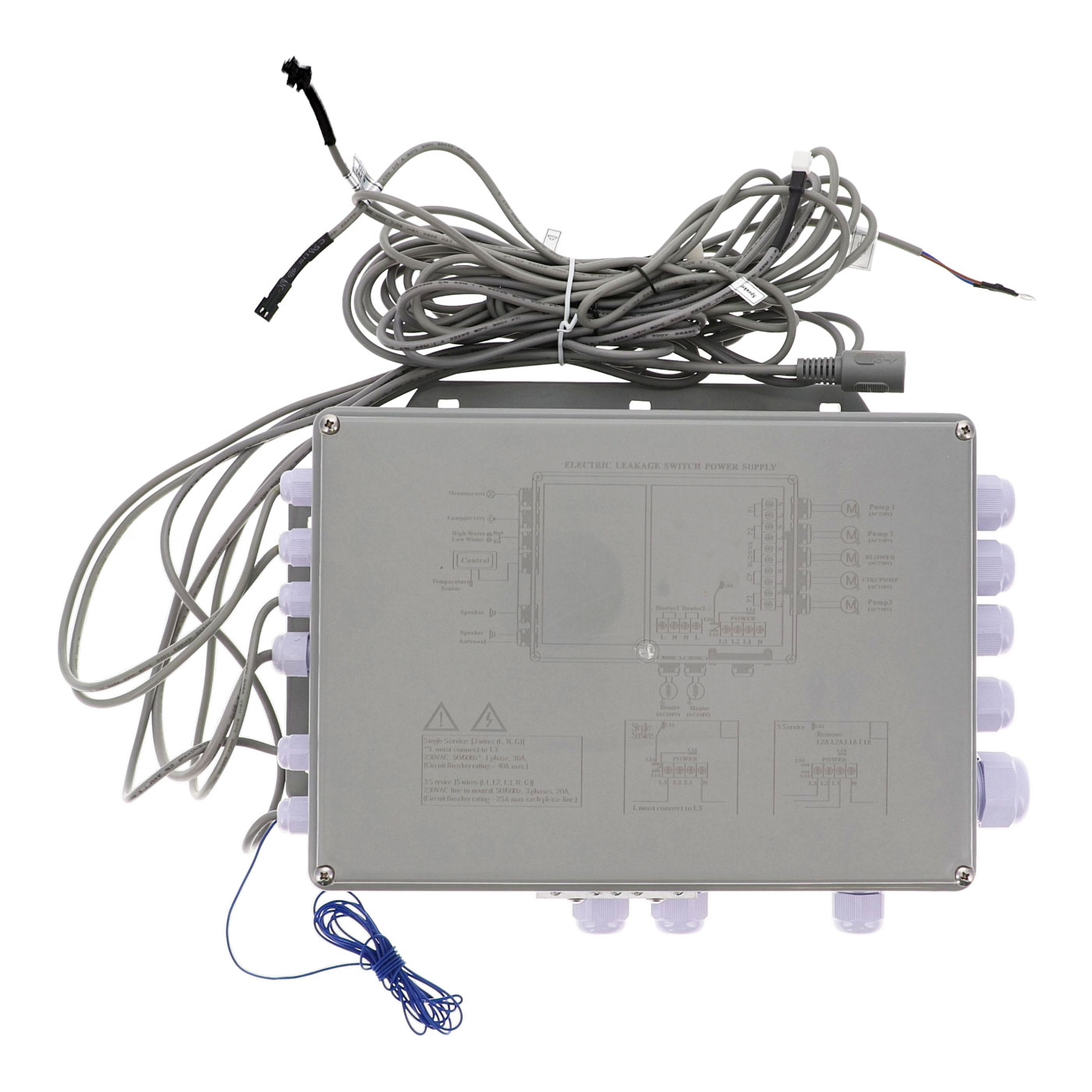

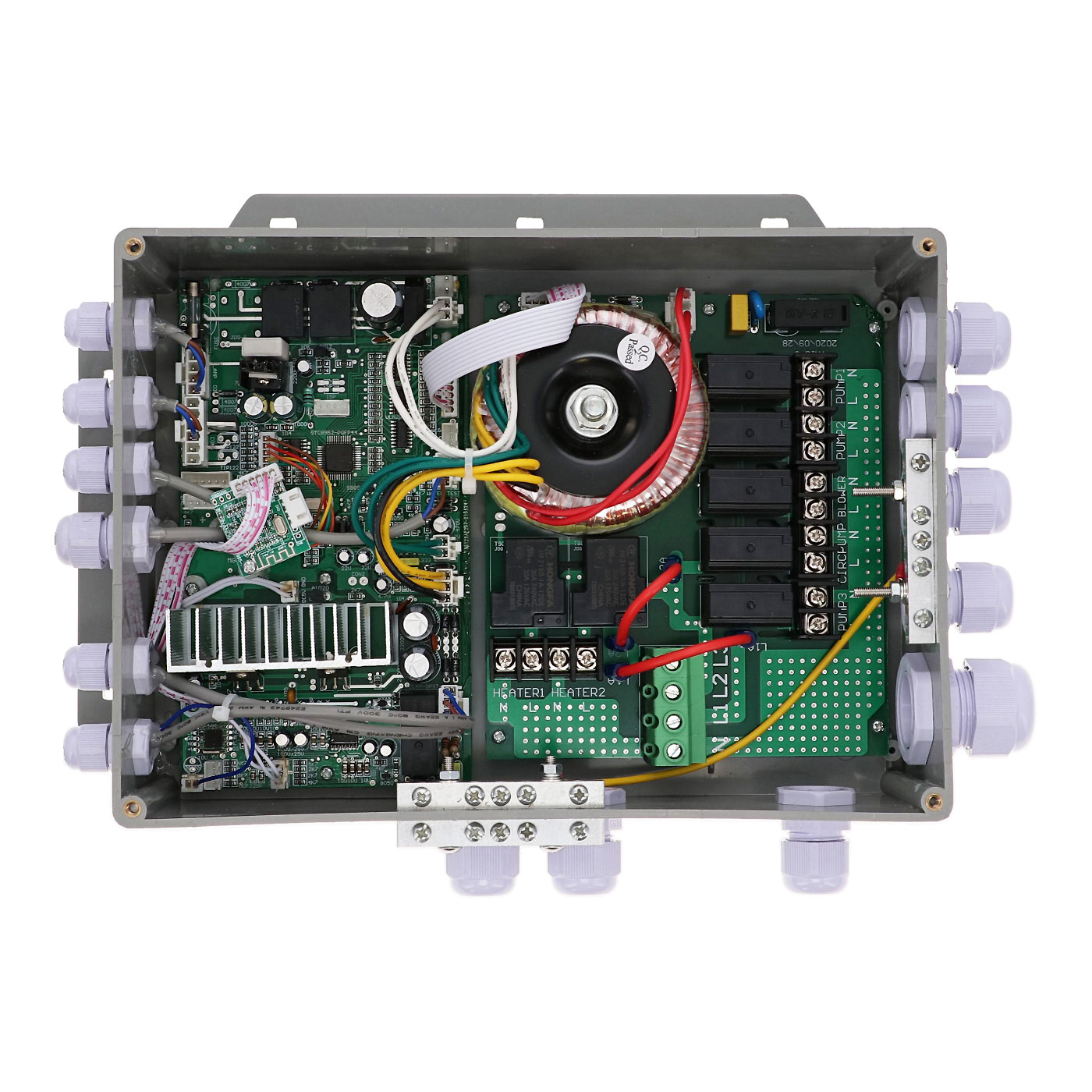

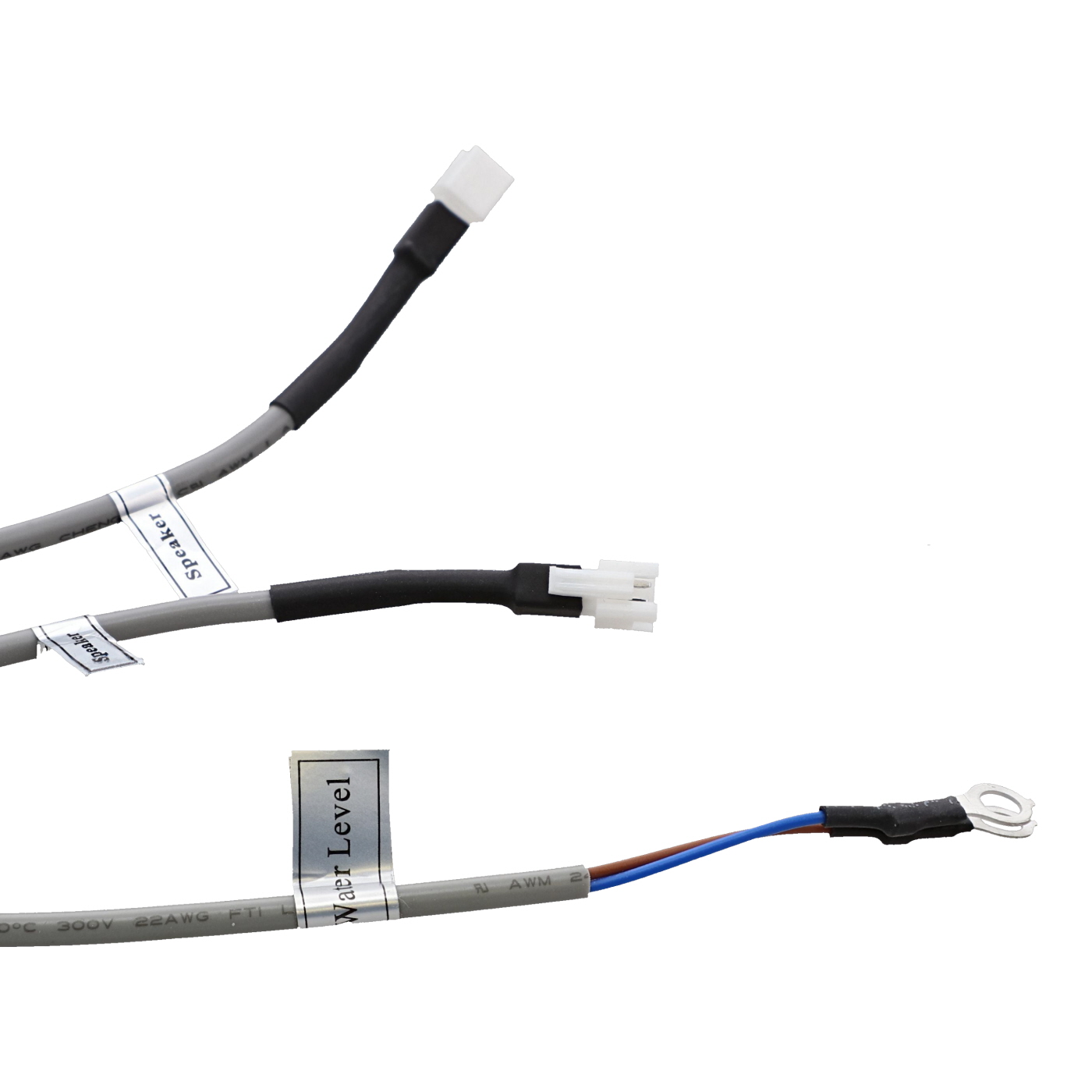

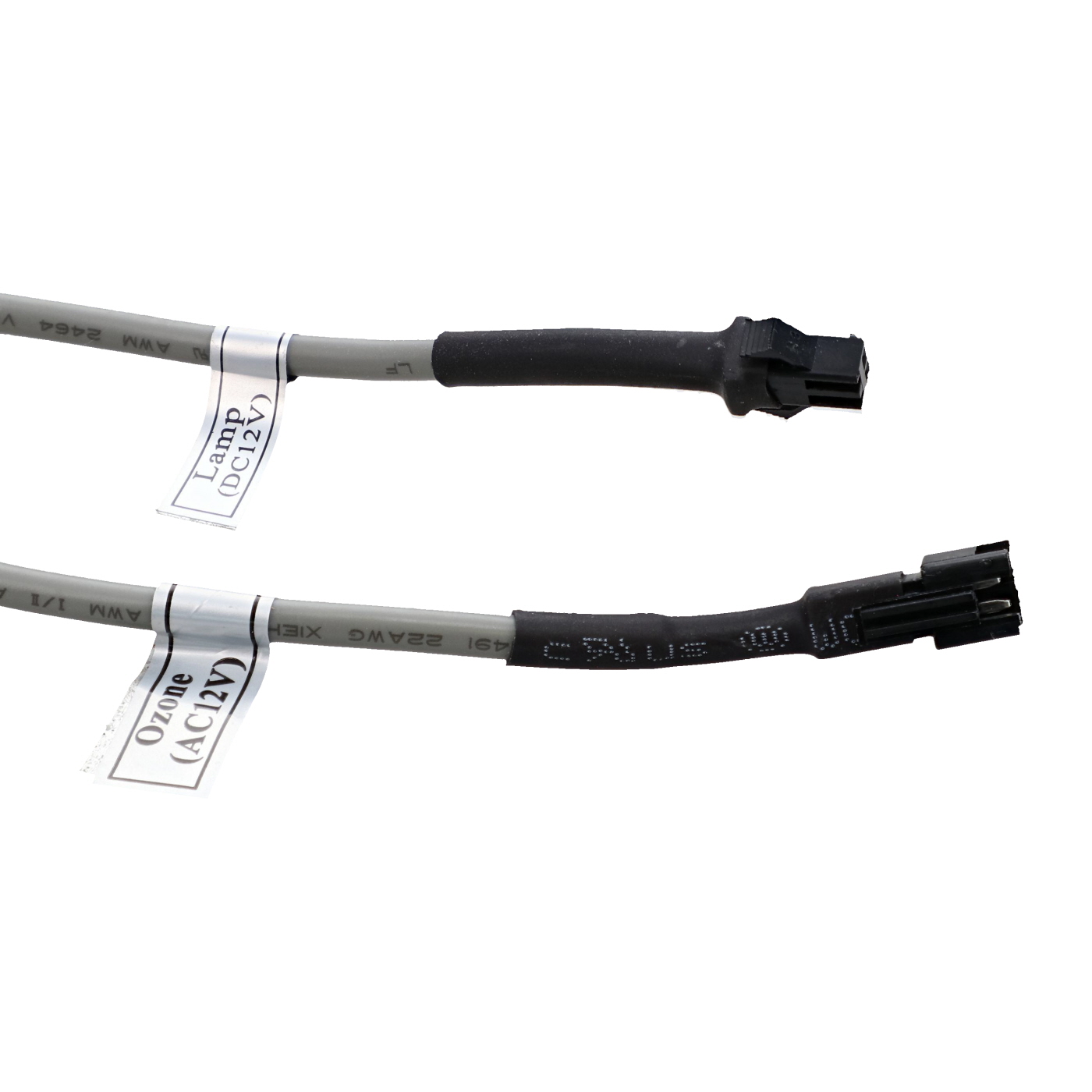

It comes with its motherboard and all its connectors (see photos). This box can replace the KL8-3 box.

Attention, the KL8-3H keypad is not compatible with this box, only the A-YH19 has the correct connectors to link the 2 devices.

Performance Indicators:

Operating Voltage: AC220V-240V/50Hz
Max Operating Current: 42.0 A
Dielectric Strength: 1250 V/1 minute without breakdown.
Insulation Resistance: MΩ200
Waterproof Level: IPX5
Electric Shock: Category 1

Maximum Output Load Indicator:

Heater: AC220V/3KW
3 Massage Pumps: AC220V/2HP
1 Circulation Pump: AC220V/1HP
1 Blower: AC220V/1HP
Light: DC12V/20W
Ozone: AC12V/10W
Radio:

Radio Frequency Range: FM: 87.5 ~ 108.0 MHz
Max Output Power: 20 W
Double Speaker: 8 Ω moisture-resistant horn

Dimensions:

Length: 350mm
Width: 260 mm
Depth: 95.50 mm
