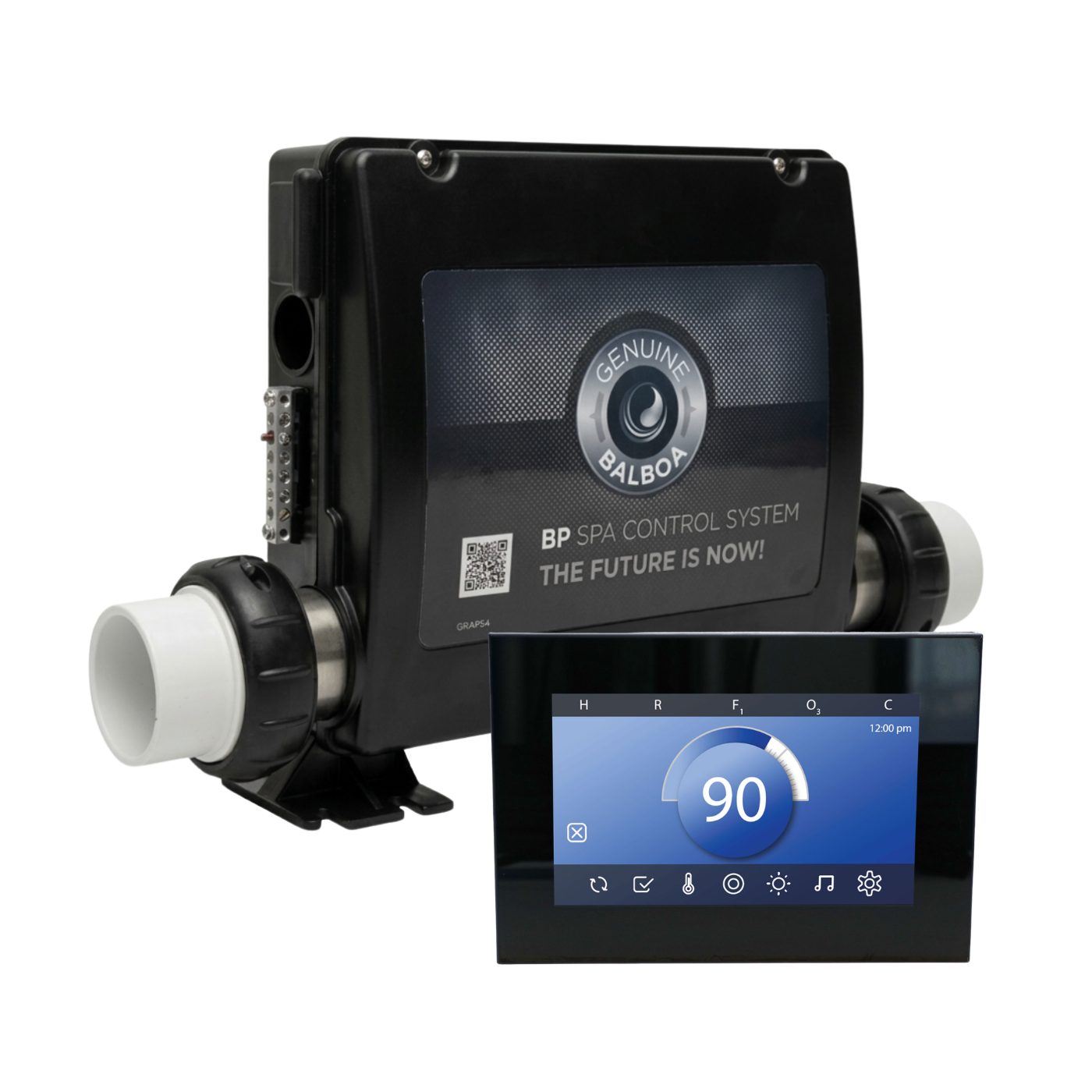

Complete Balboa BP10 spa replacement control system with spaTouch 3 touchscreen panel
The Balboa BP10 + SpaTouch 3 kit includes a control box with a built-in 3 kW heater, a 5-inch color touchscreen control panel, and the accessories needed for the connections supported by this kit.
It provides a solution for replacing an existing spa control system, provided it is compatible with your setup.
| Brand | Balboa |
| Control Box | BP10 |
| Built-in Heater | 3 kW |
| Control Panel | SpaTouch 3 touchscreen |
| Display | 5 inches |
| Connectors | AMP |
| AMP Extension Cables Included | 3 |
| Lighting | Balboa cable, socket, holder, and bulb |
| Kit Contents | 6 items |
What's Included in the Kit
- 1 Balboa BP10 control box with a built-in 3 kW heater – Part No. 11384.
- 1 SpaTouch 3 touchscreen control panel with a 5-inch display – Part No. 0F282.

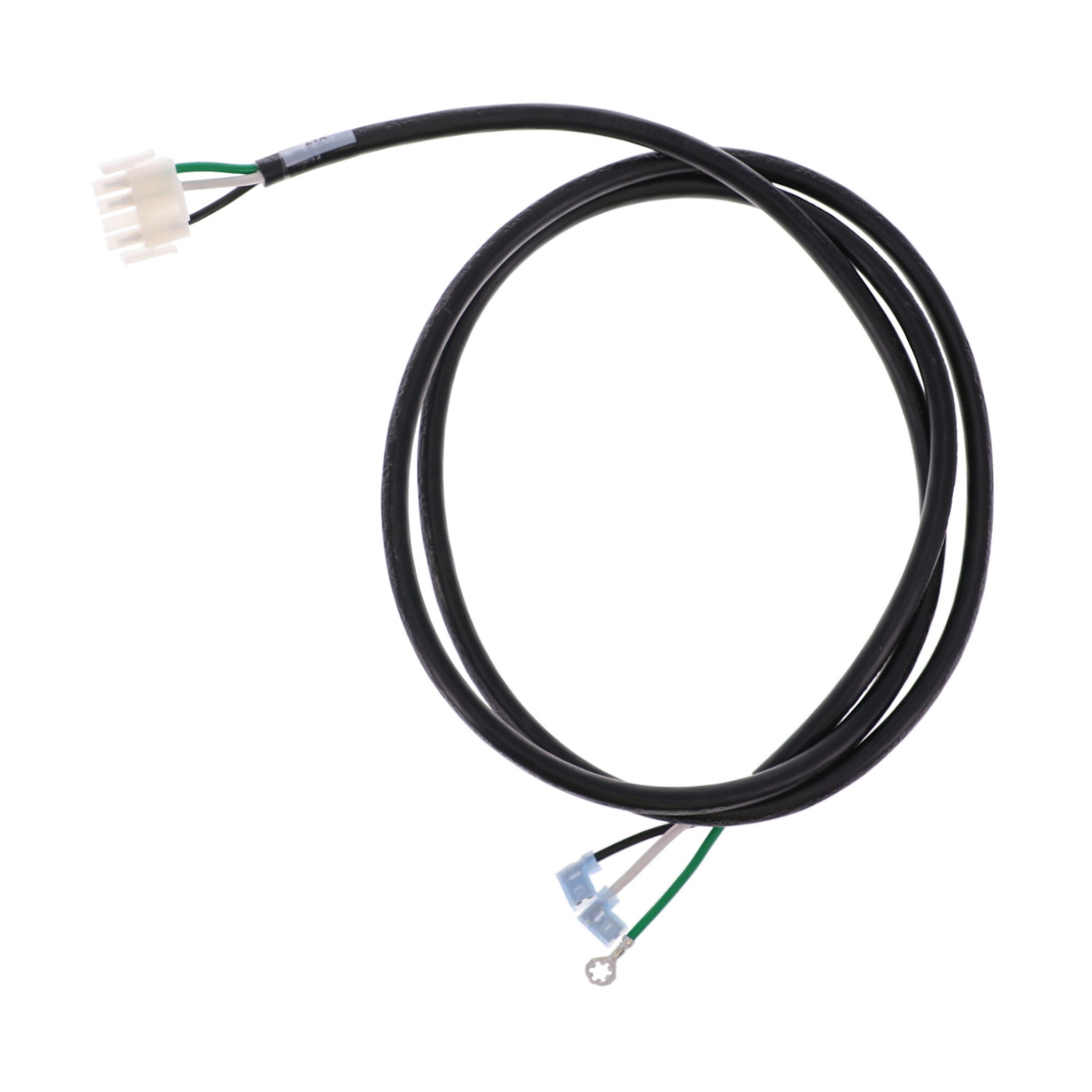

- 2 AMP extension cables for single-speed pumps, blowers, or ozonators – Part No. 00073.

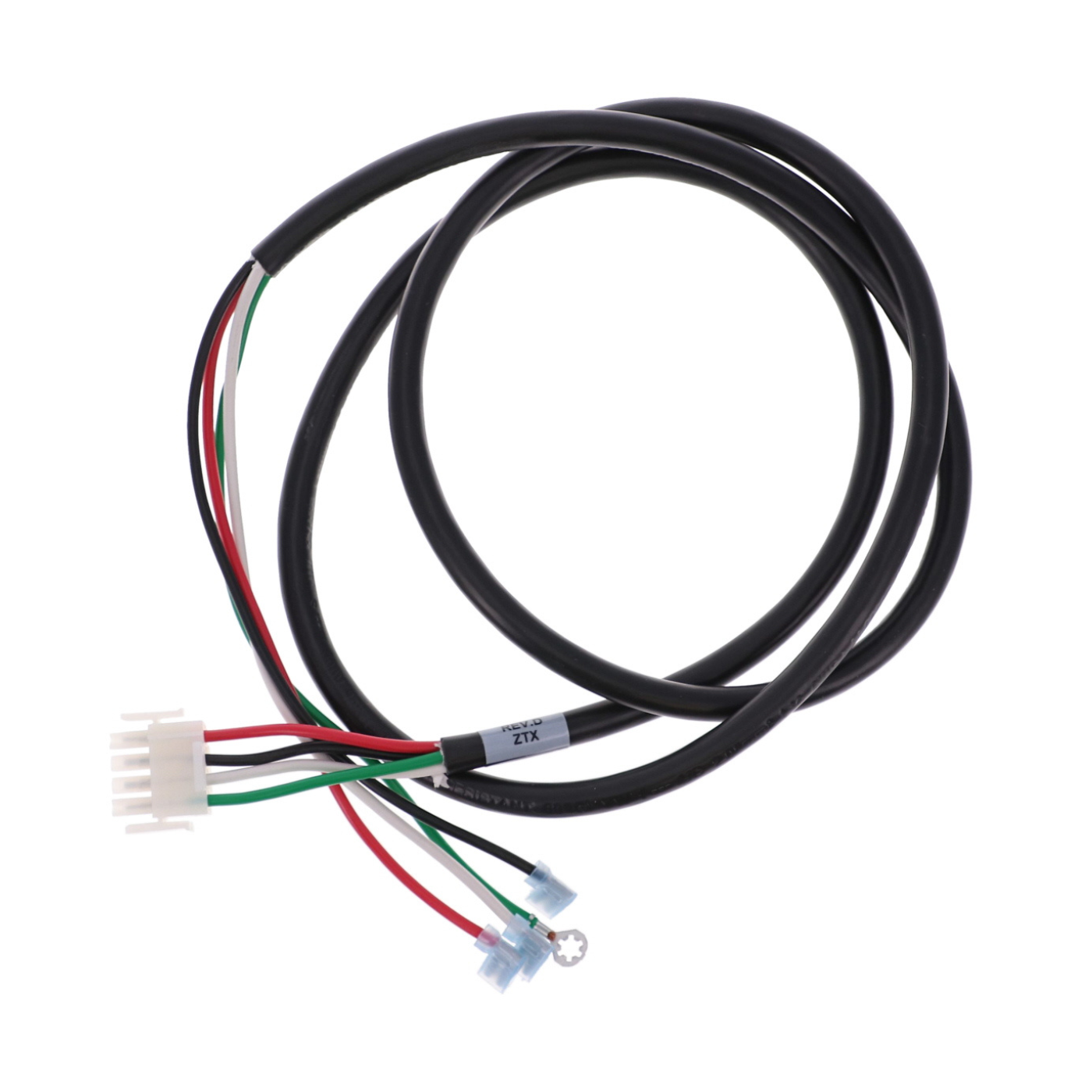

- 1 AMP extension cable for a dual-speed pump – Part No. 00074.

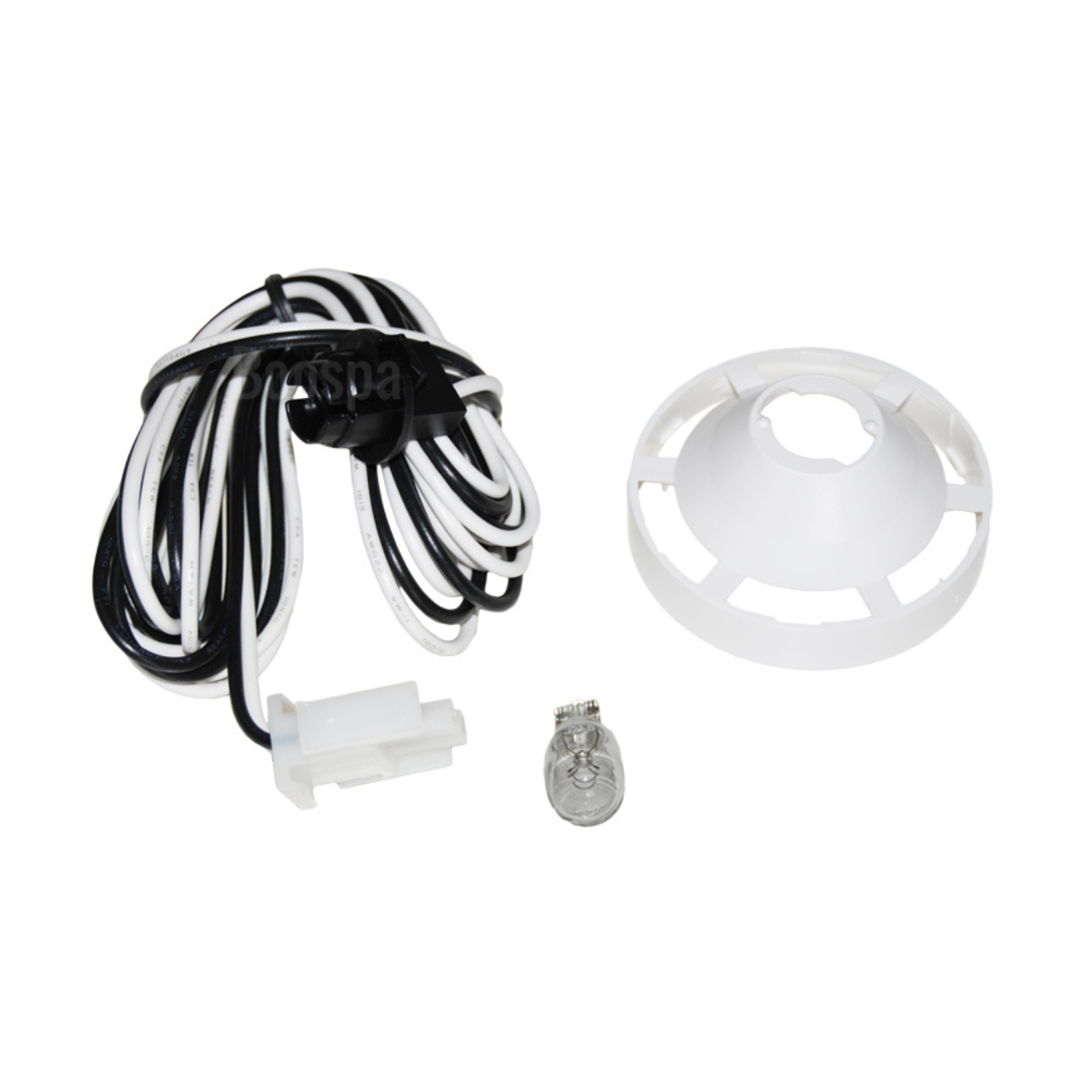

- 1 Balboa lighting assembly with cable, socket, holder, and bulb – Part No. 04286.
Main Component Dimensions

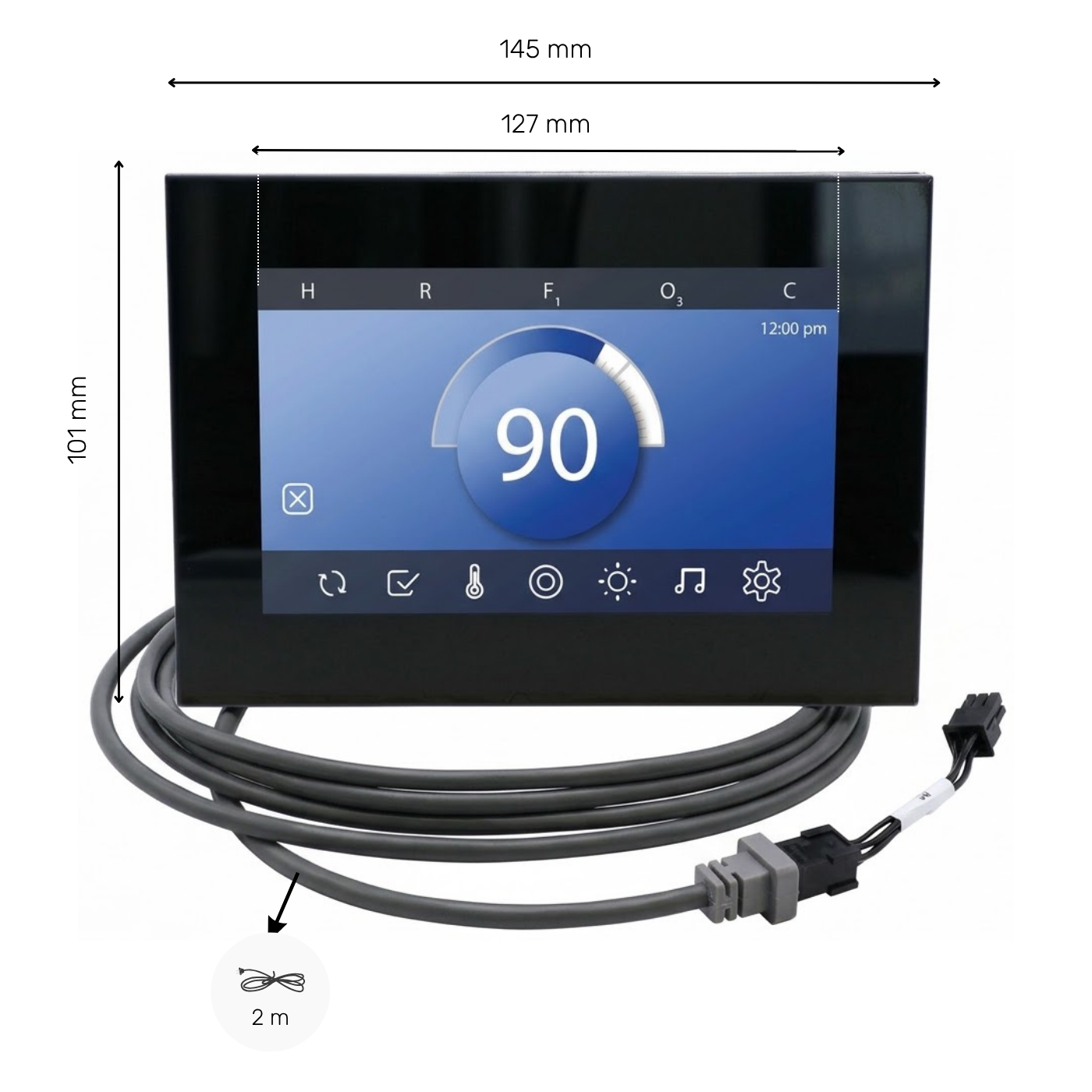

Balboa SpaTouch 3 Touchscreen Control Panel
- Screen: 5 inches (127 mm).
- Height: 101 mm.
- Width: 145 mm.
- Depth: 40 mm.
- Cable length: 2 m.
- Cutout dimensions: 80 x 130 mm.

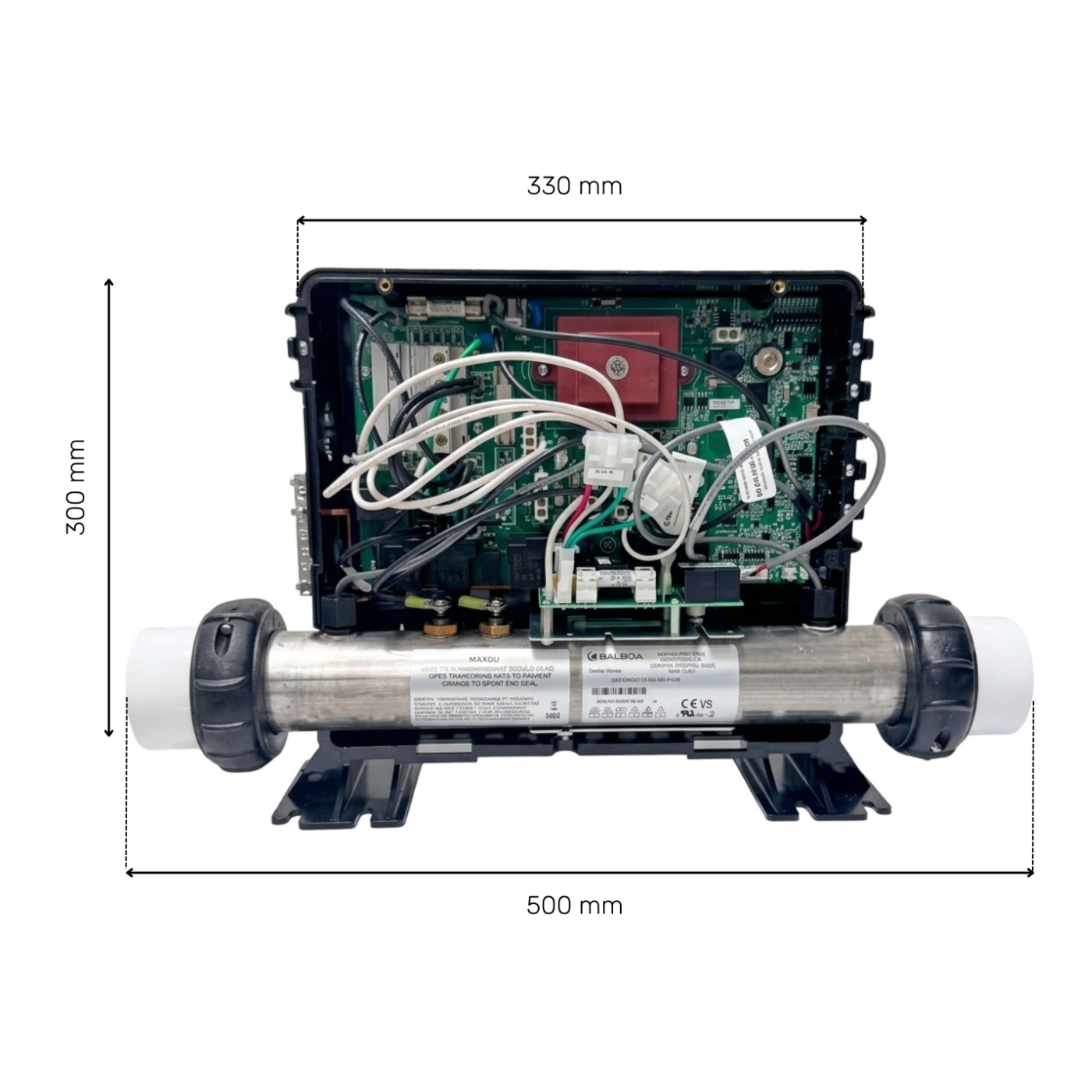

Balboa BP10 Control Box
- Height: 300 mm.
- Depth: 120 mm.
- Overall length with heater: 500 mm.
- Heater width without unions: 330 mm.
- Heater width with unions: 430 mm.
AMP Extension Cables
- 2 extension cables for single-speed pumps, blowers, or ozonators: 1.60 m each.
- 1 extension cable for a dual-speed pump: 1.60 m.
Compatibility and Checks Before Buying
Before replacing your spa control system, check the following:
- Compatibility of the BP10 C8Z with your spa equipment.
- Your spa's electrical configuration.
- The connector types used by your pumps and accessories.
- Available space for the control box and heater.
- The SpaTouch 3 control panel cutout dimensions.
These checks will help ensure the components are suitable for your existing setup.
Installation and Replacement
This kit includes the BP10 control box, its touchscreen control panel, and AMP connection cables.
Before installation, identify your existing connections and check the component dimensions. The control box settings must be configured to match your spa equipment.
Frequently Asked Questions
Is the heater included with the BP10 control box?
Yes, the BP10 control box features a built-in 3 kW heater. The heater is integrated directly into the control box included in this kit.
Can this kit replace an older spa control system?
Yes, provided it is compatible with your existing setup. Check your spa's electrical configuration, connected equipment, connectors, and available installation space before choosing this replacement system.
Is the built-in 3 kW heater powerful enough to heat my spa?
Yes, the built-in 3 kW Balboa heater provides standard heating power suitable for efficiently heating and maintaining the water temperature in most residential and recreational spas. It ensures consistent and safe heating throughout your spa.
