DIMENSION ONE®

Ref : A-000000-06456

Keyboard TSC24/K24 - 01560-310 - 2 pumps - With sticker - 01560-352

Name: Keyboard TSC24/K24 - 01560-310 - 2 pumps - With sticker - 01560-352
Brand: DIMENSION ONE®
SKU: A-000000-06456
Price: 610 EUR
Availability: InStock

Model: K-24 or TSC24 - 2 Pumps

With sticker - 01560-352
Compatible with LFX Californian Dupree Bay Spas

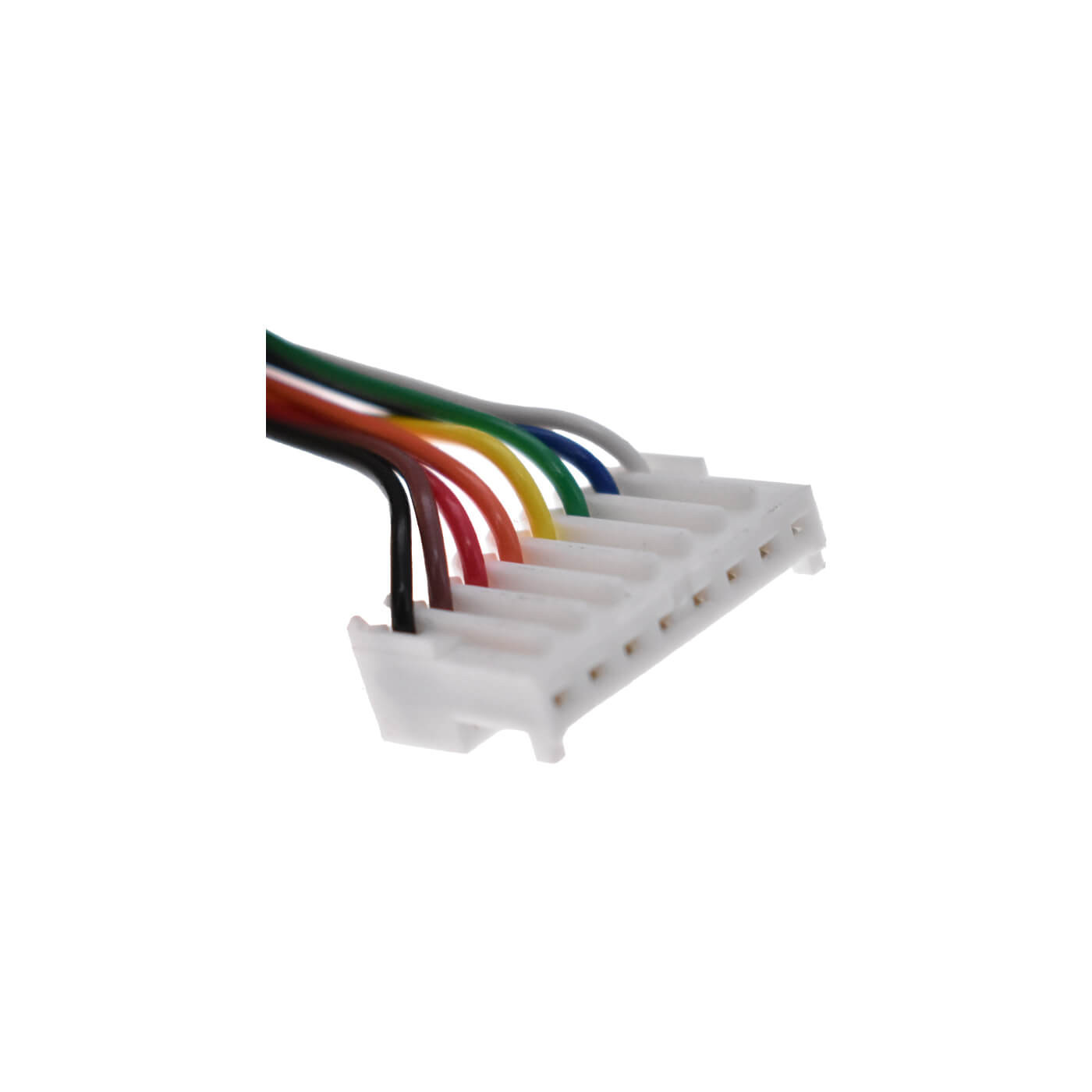

The keypad has 1 connector, unlike the 01580-0001 which has 2

610,00 €

Restocking in progress

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

TSC24/K24 Keyboard - 01560-310 for Dimension One ® Spas

LCD Screen

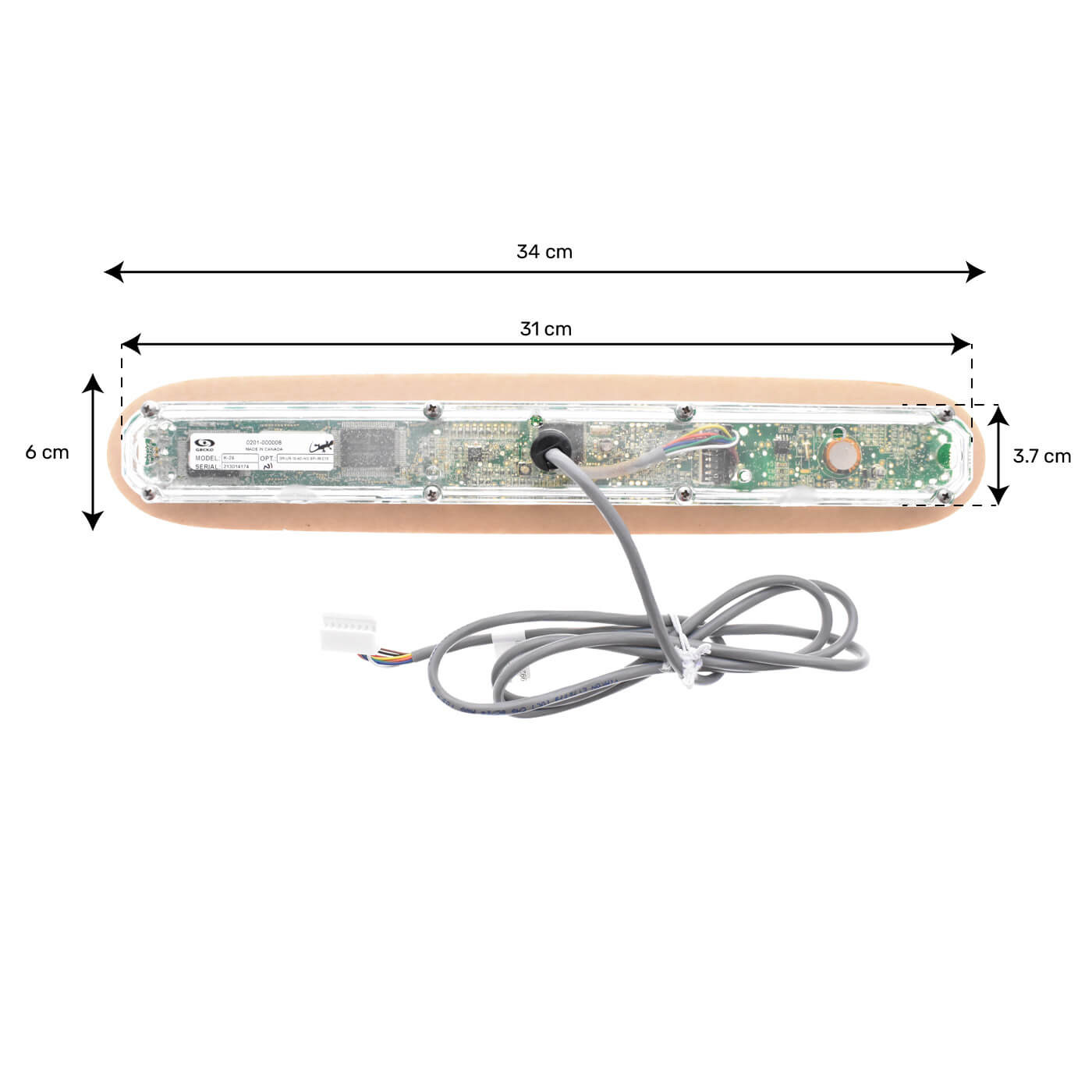

Dimensions: 33cm x 6 cm
Dimension One® reference (keyboard only): 01560-310
This keyboard has 1 connector, unlike the 01580-0001 which has 2.

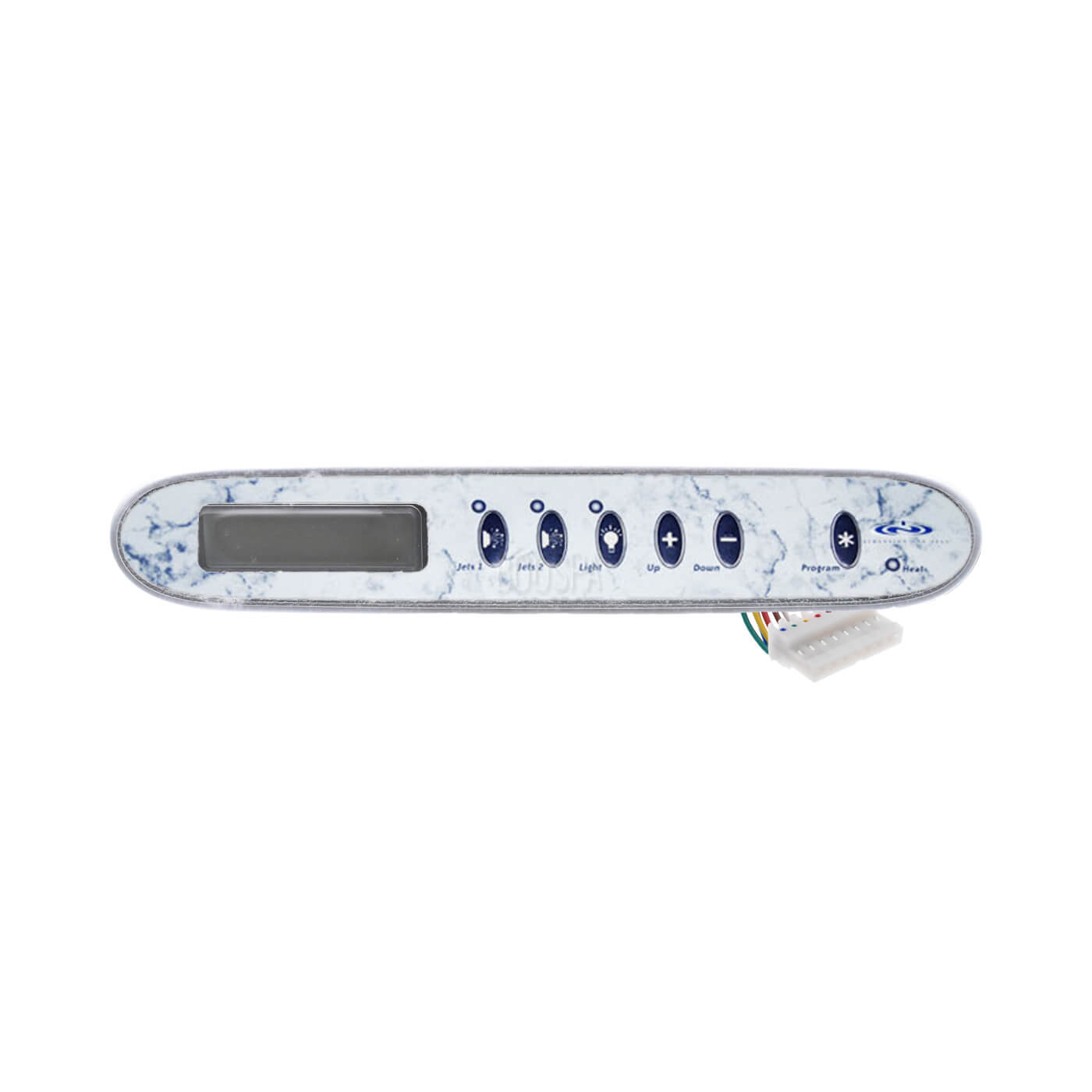

This 01560-310 keyboard presented with sticker 01560-352 consists of the following 6 buttons:

Jets 1
Jets 2
Light
Temperature Increase
Temperature Decrease
Program

Here are other available references for the 01560-310 keyboard:

- With sticker 01560-350 (Jets 1/Jets 2/Light/+/-/Input/Program)

- With sticker 01560-351 (Jets/Light/+/-/Input/Program)

- With sticker 01560-305 (Pump Jet 1 and 2/Pump Jet 3/Jet Type/+/-/Input and Light/Program)

Replaces the following references:

01710-1006
01710-1004
01560-1010

Compatible with

Dimension One ® Spas:

LFX Californian collection
Dupree Bay collection
