Reference: A-JZ3C
Replaced models: TY2, TY3, M24A
Compatible with control units A-JZ3C and mn-07hb
Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)
The A-JZ3C control panel is a complete control panel for spas, designed to replace the old models TY2, TY3, and M24A. It allows for the intuitive management of all main functions of the spa directly from the top panel: heating, massage pumps, blower, lighting, ozone, and music. This model, manufactured by HLW, is widely used in Monalisa, Jazzi, Champion, Jazzipool spas, and other Asian brands.
| Feature | Detail |
|---|---|
| Model | A-JZ3C |
| Compatibility | Replaces TY2, TY3, M24A keypads - Compatible with the mn-07hb control box |
| Manufacturer | HLW |
| Power Supply Voltage | 12 V |

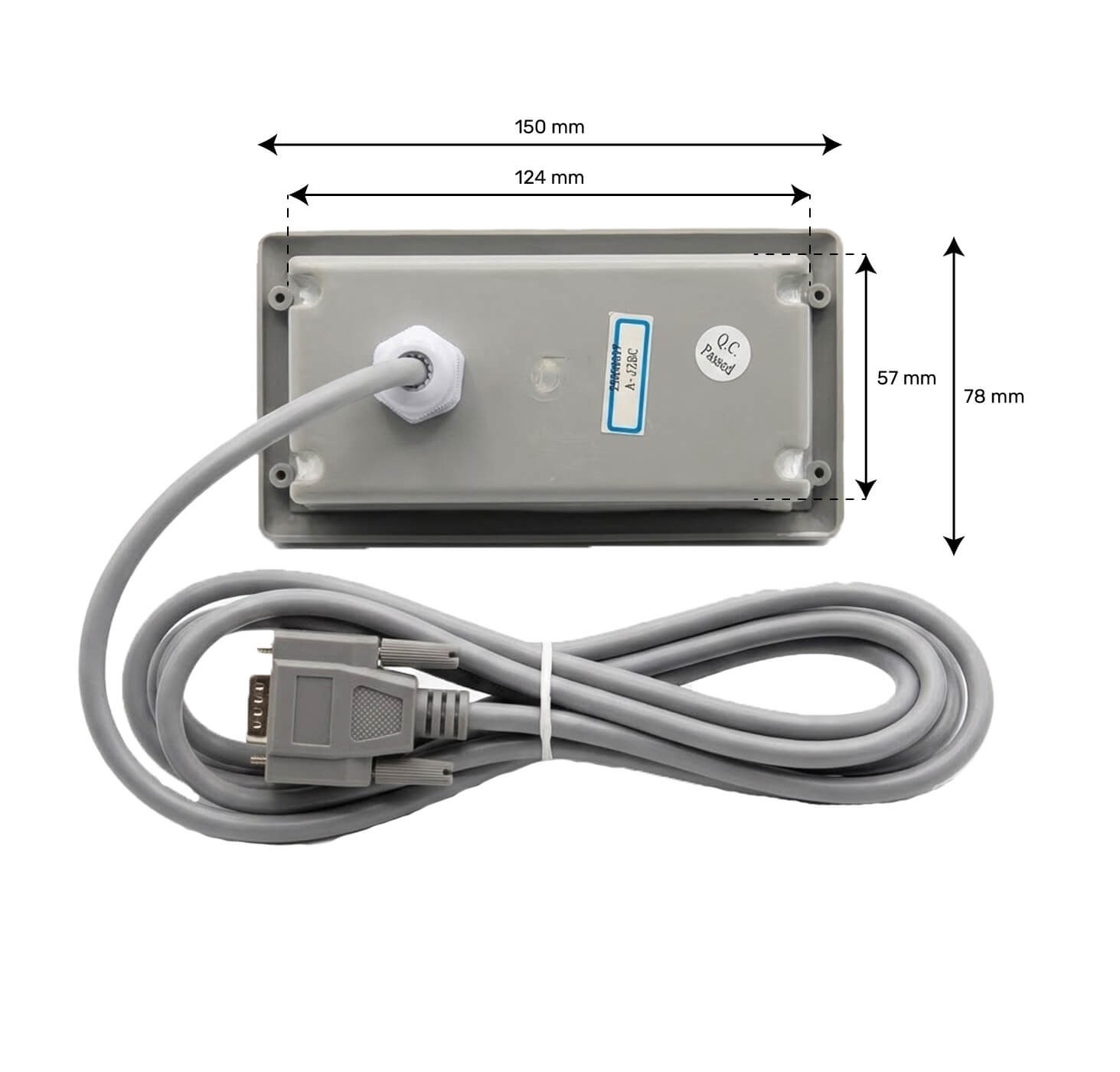

| Dimensions | 124 x 57 mm |
| Mounting Area | 78 x 150 mm |
| Product Type | Surface touch keypad (control pad) |
| Display | Blue backlit LCD screen |
| Managed Pumps | Up to 2 massage pumps |
| Brands Compatibility | Monalisa, Jazzi, Champion, Jazzipool, Chinese spas |

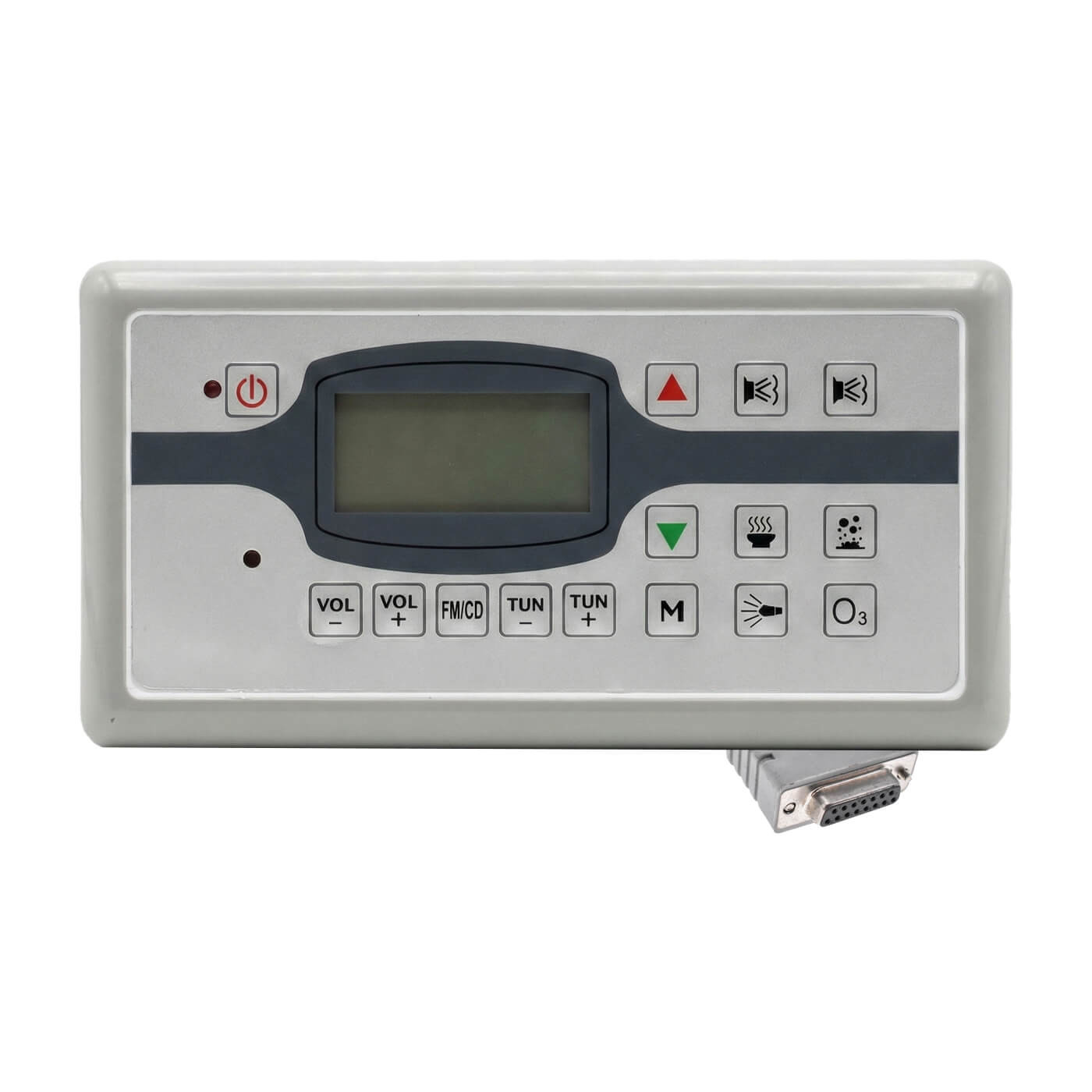

The A-JZ3C keypad offers an intuitive layout of controls for quick access to the main spa functions:
This configuration simplifies the management of filtration cycles, heating, and comfort options, while maintaining a compact and ergonomic design.

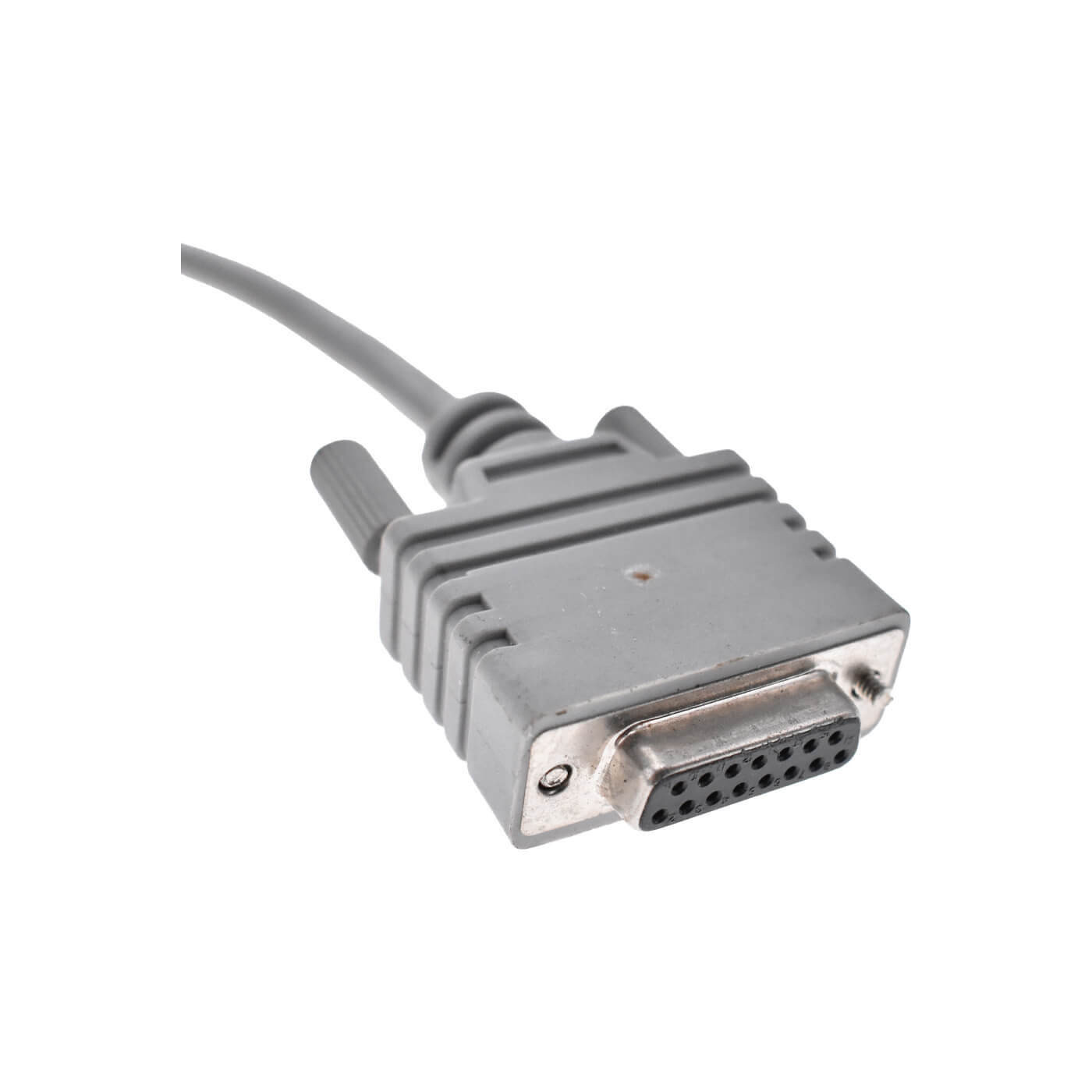

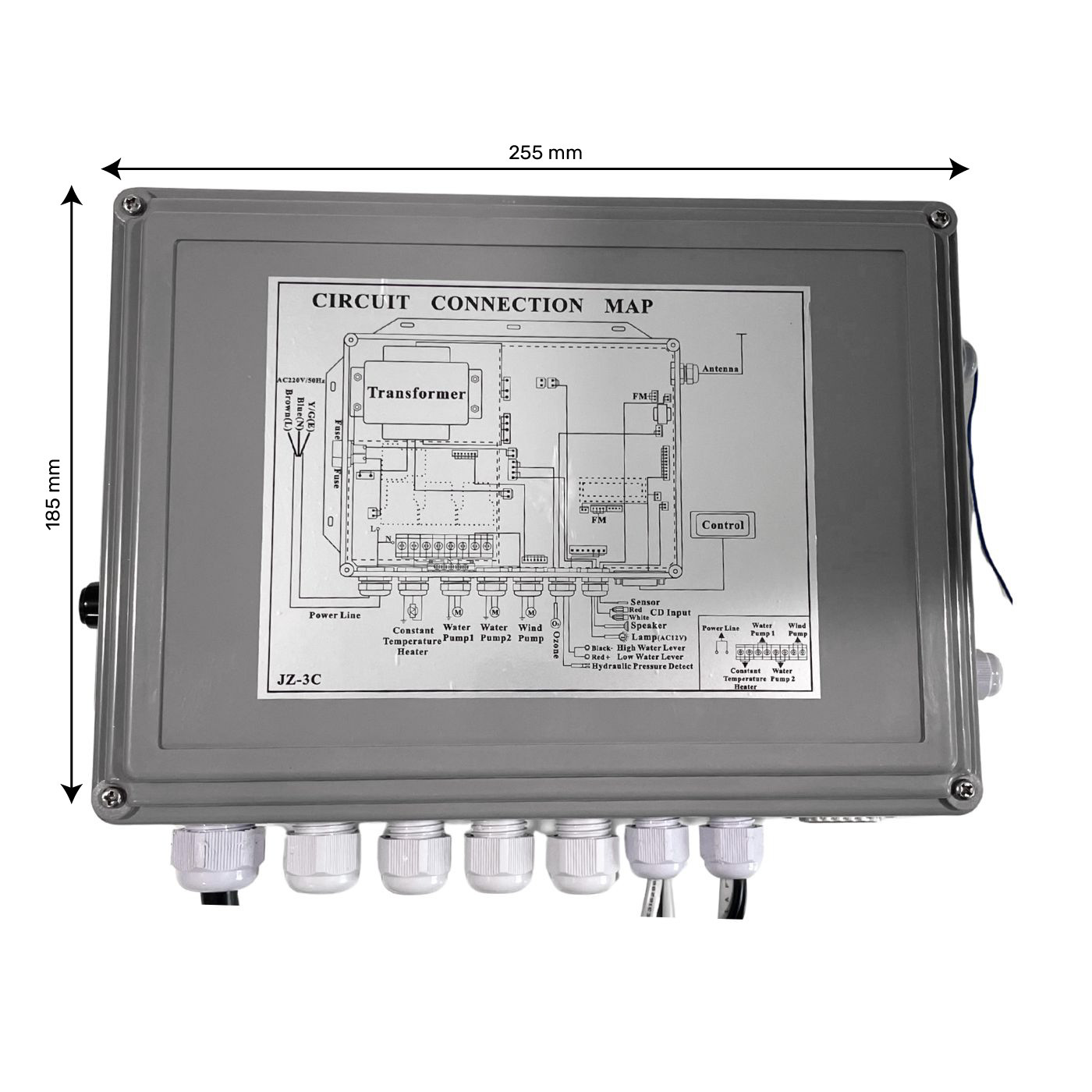

The A-JZ3C keypad connects directly to the A-JZ3C control box and can be used as a replacement for TY2, TY3, and M24A models without any particular adaptation. It is also compatible with the mn-07hb control box. It is installed on the front panel of the spa (top panel) and connects via a plug & play connector cable. This keypad is waterproof, moisture-resistant, and suitable for heavy use.
The A-JZ3C keypad combines modernity, simplicity, and performance. It allows you to control all functions of your spa with peace of mind, while offering extensive compatibility with the most common electronic systems in the Asian spa market.
