Ref : A-000000-09957

Spa pump Waterway Futura 3 - 3 HP (2.1 Kw)

Name: Spa pump Waterway Futura 3 - 3 HP (2.1 Kw)
Brand: WATERWAY
SKU: A-000000-09957
Price: 690 EUR
Availability: InStock

Power: 3 HP (2.1 kW)
Outputs: in 2"
2" outlet connections (60 mm) - connection cable and plug not included

690,00 €

In Stock

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

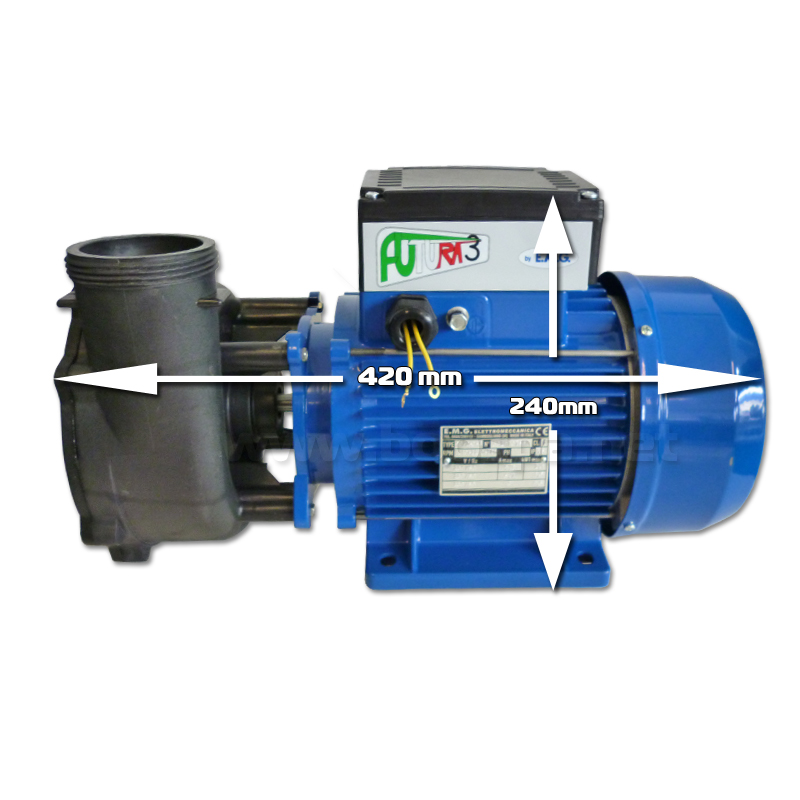

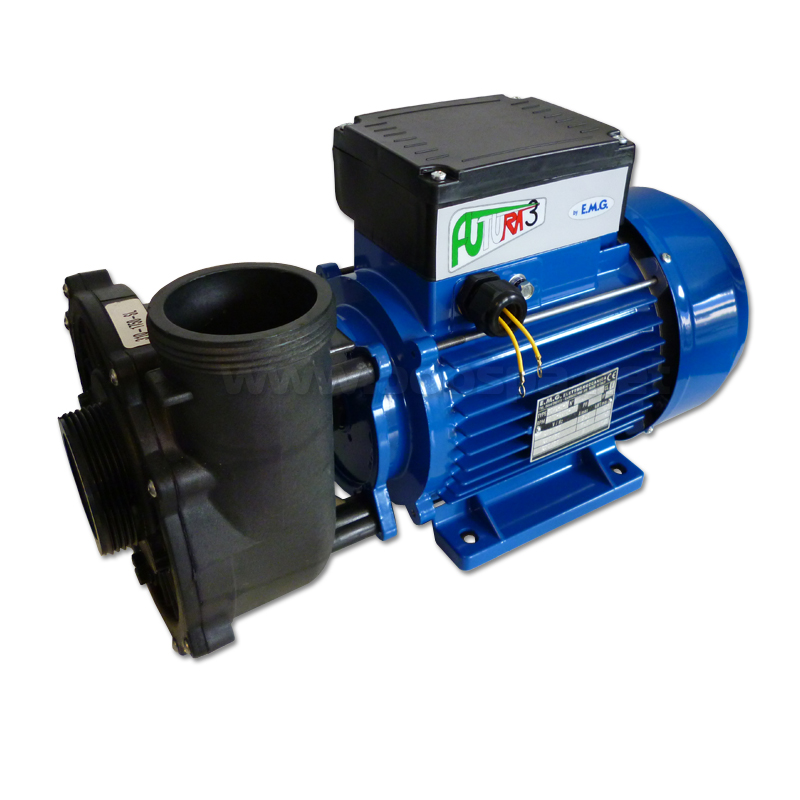

Waterway Futura 3 Spa Pump - 3 HP (2.1 Kw)

Each time the pump is turned on, the contactor activates at one speed.

5HP spa massage pump
3 speeds
Power 3 HP equivalent to 2.1 Kw
220-240V 50HZ
Maximum flow rate of 960 liters per minute
Designed for optimal performance and flow
3 Changing speeds by simply pressing the massage pump start button
Connects to a single-speed connection
2'' (60 mm) suction and discharge diameter for increased performance and reduced noise
IPX5 standard motor cooling for gradual temperature rise
Thermal overheating detector to preserve and increase motor lifespan
Equipped with a capacitor (Allows pump ignition/activation)
Material suitable for spas

First press ON	First speed active, 0.5kW
Off press + Second press ON	Second speed active 1.5kW
Off press + Third press ON	Third speed active 2.1kW
Off press + Fourth press ON	Automatic mode, succession of the three speeds Pulsating Effect

Technical Diagrams

Pipe Connection

DELIVERED WITHOUT 2" (60 mm internal) outlet fittings
You can also reuse your old pipe fittings if they are still functional.
If your piping differs, access our range of Fittings and Unions to find the fitting corresponding to your piping

The pump body is adjustable to fit your piping. You can then have a left or right discharge depending on your installation. Simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then replace the screws in place.

Electrical Connection

The pump is delivered without a connection cable or plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Spa Cables and Plugs section

Here are the most used Plugs in the Spa world:


Amp Plug	J&J Plug ( PIN position varies depending on the device)
