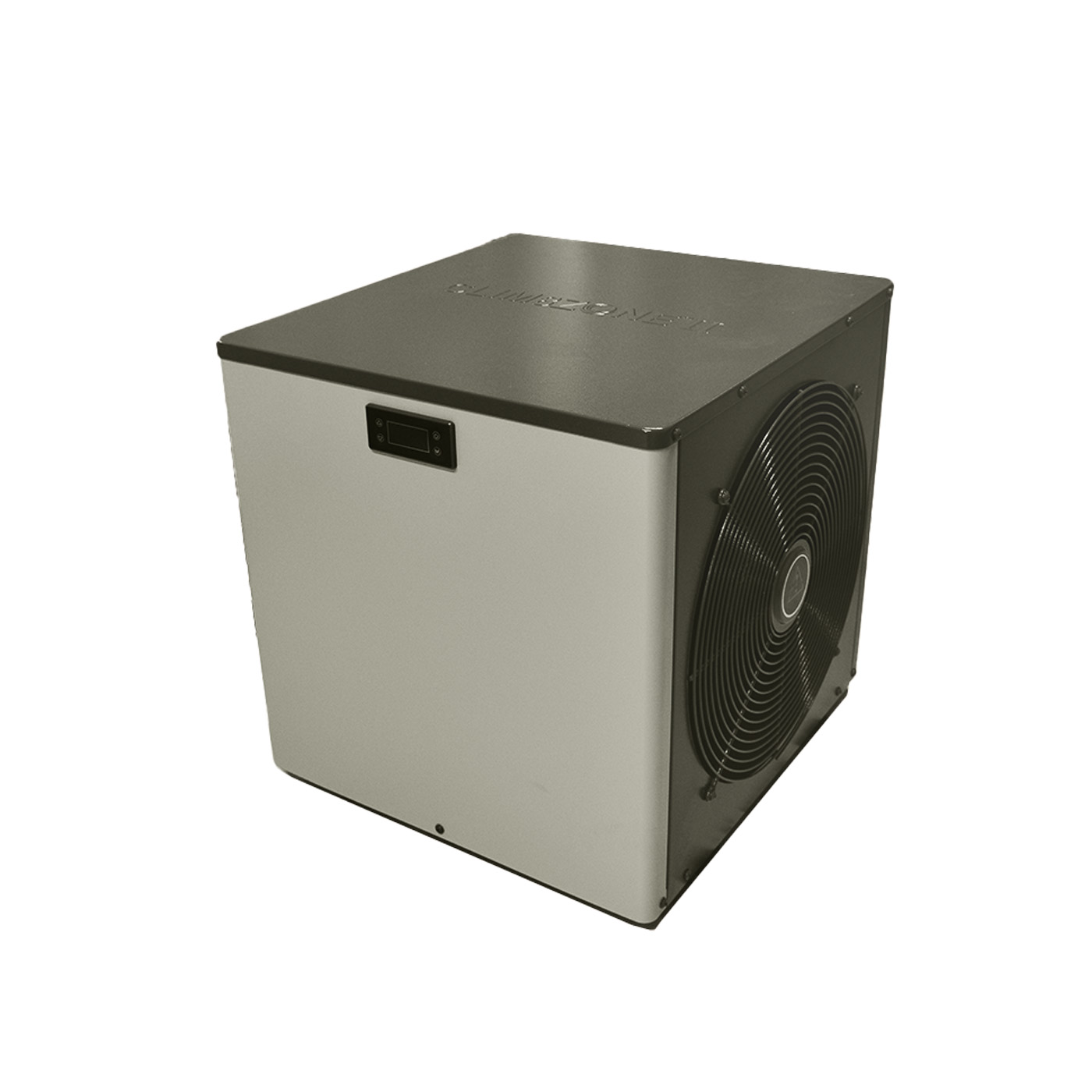

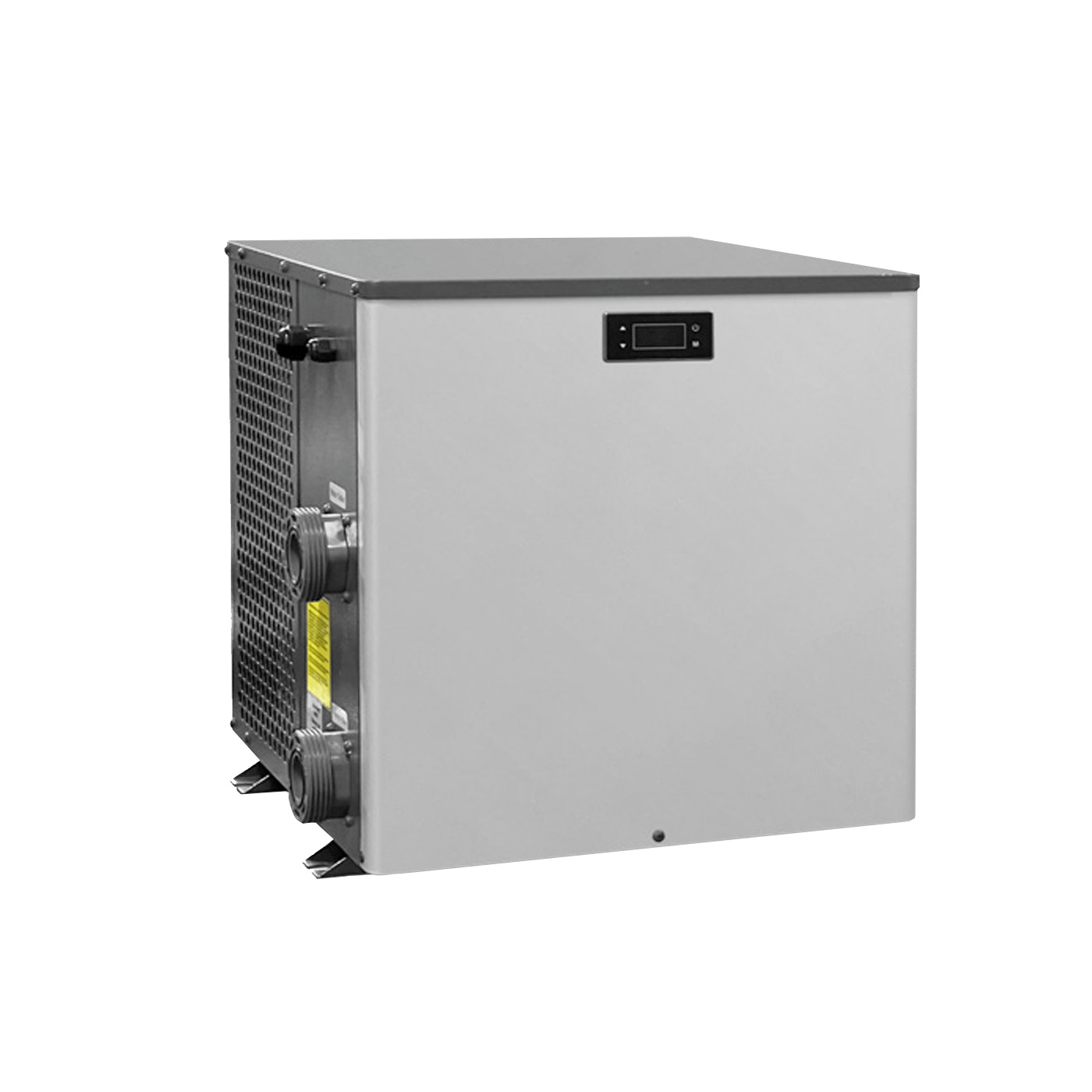

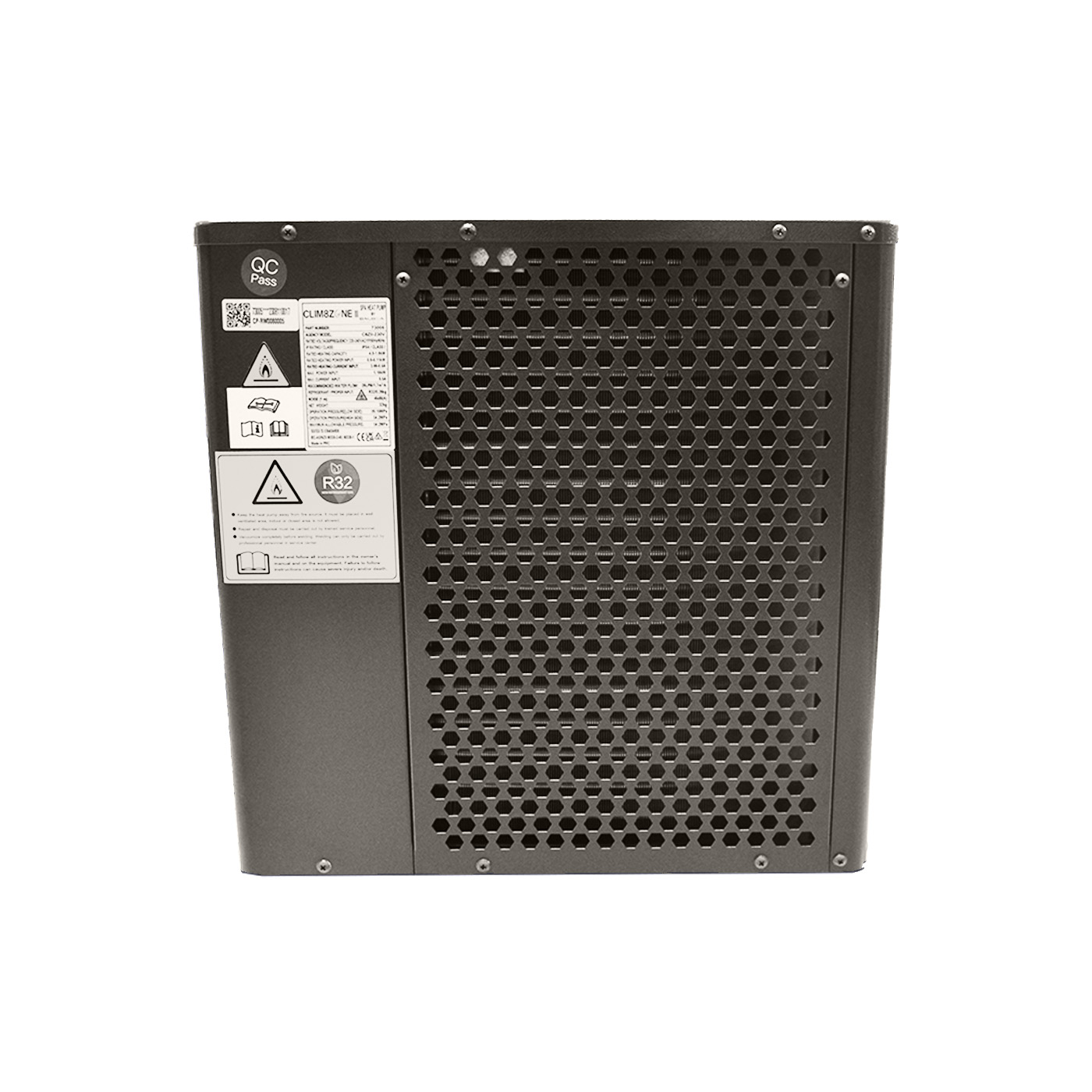

Clim8zone™ II - Spa Heat Pump
The Balboa Clim8zone™ II heat pump or how to reduce Spa operating costs
The design of Clim8zone™ II meets the health and wellness industry's need to reduce a spa's operating costs. Its smart automatic mode uses artificial intelligence and sensors to automatically adjust the compressor speed up or down while providing accelerated heating or cooling of the spa. This can result in up to 75% energy savings*.
The outcome is a drastic reduction in the cost of maintaining the hot tub water temperature, while significantly using less energy.
Features and benefits of Clim8zone™ II:
- Unlike other spa heat pumps on the market, Clim8zone™ II operates at low ambient temperatures (-5°C / -23°F) ideal for cold climates.
- Variable speed compressor with intelligent algorithm.
- Operates quietly at less than 45 dBA.
- Easily configurable from the SpaTouch3™ panel or remotely from a smartphone.
- Offers a typical energy efficiency (COP) up to 5 times higher than traditional spa heating and can reach up to 10 times in certain operating conditions, using less energy to maintain hot water, enabling significant smart savings.
- Single efficiency mode setting for the heat pump: the default smart automatic mode, offering high energy efficiency.
- Allows spa users to adjust the BP control system to use only the Clim8zone™ II heat pump, the traditional electric spa heater, or both simultaneously if needed.
- Dimensions: 49.8 cm (L) x 49.5 cm (W) x 48.6 cm (H).
- Power: 4 kW.
- Fully integrated with BP systems.
- 2" fittings.
Compatible Models:
The Clim8zone™ II Mini is compatible with Balboa systems ending with "C8Z" models:
- BP6013G1 – C8Z
- BP6013G2 – C8Z
- BP6013G3 – C8Z
- BP2100G0 – C8Z
- BP2100G1 – C8Z
- BP214PBC – C8Z
Clim8zone™ II Specifications:
- Reference: 73005
- Season: All year round
- Installation: Outdoor
- Pool volume: 5-15 m3
- Weight: 40 kg
- Sound Level: 45 dBA
- Refrigerant: R32
- Heating Capacity A27/W27: 4.0 kW
- Heating Capacity A15/W25: 2.5 kW
Compatible with the following Balboa control panels:
- Spa Touch 3+,
- Spa Touch 3,
- Spa Touch mini,
- Spa Touch 2,
- TP740,
- TP700
* average savings observed for normal use of a 220x200 spa at normal temperatures and equal operating durations compared to a heater
