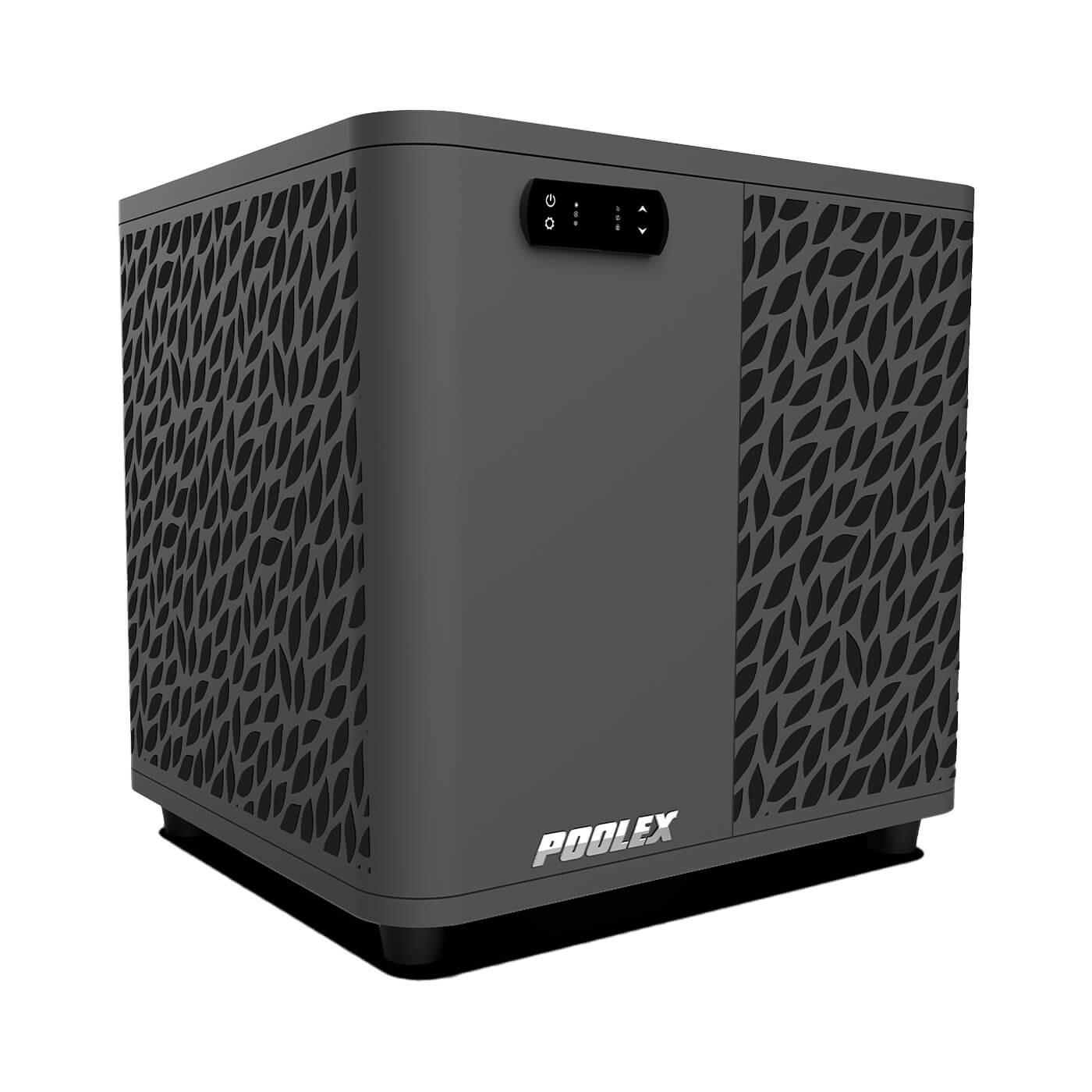

Poolex Spawer O'Spa 5 kW: Comfort and Efficiency for Your Spa
With the Poolex Spawer O'Spa 5 kW, you can stabilize the temperature of your spa all year round. The reversible mode heats or cools depending on the season. The Wi-Fi feature simplifies programming and monitoring. The compact size allows for installation near the spa, with 32/38 mm fittings.
The Poolex Spawer O'Spa 5 kW can control the original heater via the provided relay. This saves time on heating up the water, without the complexity of installation.
Why Choose the Poolex Spawer O'Spa 5 kW?
- Up to 75% energy savings compared to an equivalent electric heater.
- Year-round comfort: heating, cooling, automatic maintenance.
- Silent operation: < 53 dB(A) at 1 m, < 32 dB(A) at 10 m.
- Quick installation: Plug & Play, 32/38 mm fittings included.
- Wi-Fi control: remote settings and scheduling.
- Professional reliability: rotary compressor, Twisted Tech© titanium heat exchanger.
- Versatility: control of the integrated heater via relay (included).
To further reduce consumption, pair with a high-performance spa cover and suitable spa filters. Experience optimal comfort now.
Durability and Maintenance Tips
- Keep the prefilter clean and ensure a minimum flow rate of 2.16 m³/h.
- Check the 32/38 mm fittings and clamps. Replace seals if leaking.
- Spring/summer: Dust the air intake. Keep the back clear.
- Fall/winter: Activate the antifreeze. Avoid any obstructions around the unit.
- Extended winterization: Disconnect power, drain water, protect the unit.
- Update the Wi-Fi connection after changing the router.
Technical Specifications
| Product Name | Poolex Spawer O'Spa 5 kW |
| Manufacturer Reference | PC-OSPA54 |
| Power | 5 kW (also available in 3 kW) |
| Functions | Heating / Cooling / Auto (3-in-1 heating • cooling • chilling) • Wi-Fi • Heater control via relay |
| Energy Savings | Up to 75% vs electric heater |
| Power Supply | Single-phase 220–240 V / 50 Hz |
| Air Operating Range | -15 °C to 43 °C |
| Water Range (Heating) | 10 °C to 40 °C |
| Water Range (Cooling) | 8 °C to 28 °C |
| Capacity & COP (A26/E26/H80%) | Capacity 5.0 kW • Power absorbed 0.97 kW • COP 5.20 |
| Capacity & COP (A15/E26/H80%) | Capacity 4.03 kW • Power absorbed 1.00 kW • COP 4.05 |
| Minimum Water Flow | 2.16 m³/h |
| Refrigerant | R32 (charge 0.40 kg) |
| Sound Level | < 53 dB(A) at 1 m • < 32 dB(A) at 10 m |
| Hydraulic Fittings | Ø 32 / 38 mm |
| Pressure Drop | 0.8 mCE |
| Dimensions (L x D x H) | 600 x 430 x 423 mm |
| Packaging Dimensions (L x D x H) | 657 x 460 x 490 mm |
| Net / Gross Weight | 32 / 35 kg |
| Technologies | Rotary compressor • Twisted Tech© titanium heat exchanger • Patented antifreeze • R32 • Wi-Fi |
| Included Accessories | Differential plug • 10 m wired control extension • 230 V relay • 2 fittings 32/38 mm • 2 sets of clamps • Anti-vibration support kit |
| Warranty | 2 years PAC • 5 years compressor • 10 years against coil corrosion |
| Compatibility | Acrylic spas and Nordic baths (control of integrated heater via relay) |
FAQ
Is the Poolex Spawer O'Spa 5 kW compatible with my spa?
Yes, it is suitable for acrylic spas and Nordic baths. The 32/38 mm fittings make installation easy. The provided relay allows you to control the integrated heater. Ensure a minimum flow rate of 2.16 m³/h.
Can I cool the water in summer?
Yes. The Cooling mode lowers the temperature without draining. Water cooling range: 8 to 28 °C.
What energy savings can I expect?
Up to 75% compared to an electric heater. At 26 °C air / 26 °C water, the COP reaches 5.20.
What is the sound level near the terrace?
The sound pressure is < 53 dB(A) at 1 m and < 32 dB(A) at 10 m, comfortable near a relaxation area.
Up to what external temperature does it operate?
The air range is from -15 °C to 43 °C. Water can be set between 10 to 40 °C for heating and 8 to 28 °C for cooling.
