BOOSPA KIT
Ref : A-000000-0c683

Suction Kit - Single-speed Massage Pump 2 - 4 jets

Suction Kit - Single Massage Pump 2-4 Jets
For concrete spas - To be used with a massage jet kit
Allows powering up to 4 hydro-massage jets

649,00 €
In Stock
  • Delivery

    Worldwide delivery

  • Delivery

    Pay in 4x free of charge with Read more

  • 100% compatible parts

    100% compatible parts

  • 2-year warranty (1 year for professionals)

    2-year warranty (1 year for professionals)

Technical characteristics

Boospa engineering


Suction Kit - Single Massage Pump 2 - 4 Jets


Includes all the necessary parts for the first part of your massage circuit.
Simply and easily build your massage spa with our ready-to-install Boospa concrete spa kits.

The single massage suction kit 2 - 4 jets allows the feeding of 2 to 4 massage jets for a concrete spa.
The parts are made of high-quality ABS designed to seal perfectly in concrete.

It includes all the piping parts preceding the pump up to the suction drain, as well as a 2 HP single electronically controlled pump.
You can equip yourself with a pneumatic control if you do not use an electronic management system for controlling the massage pump.

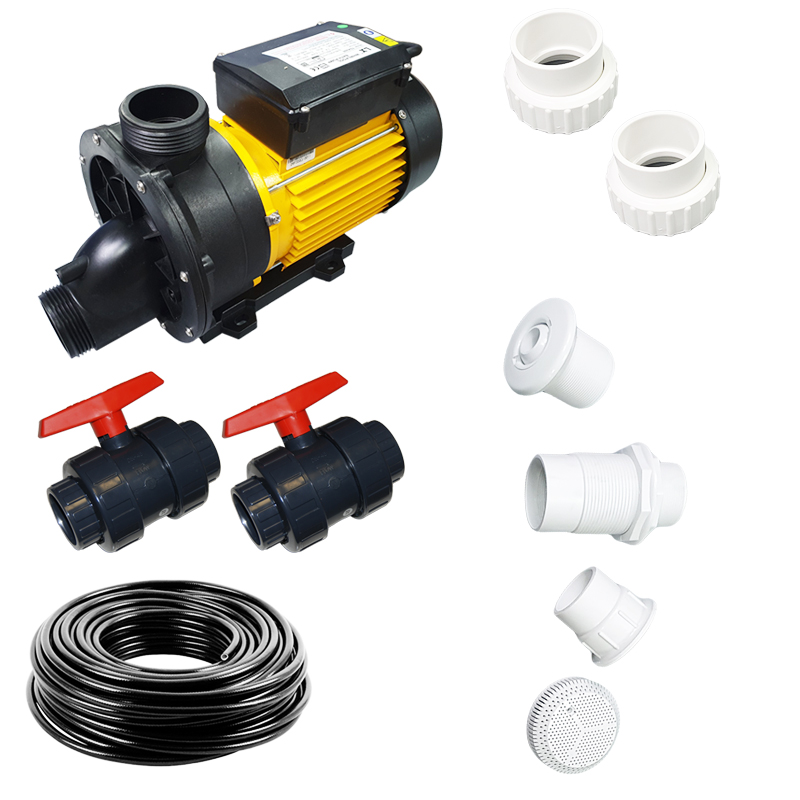

Composition of the suction kit:

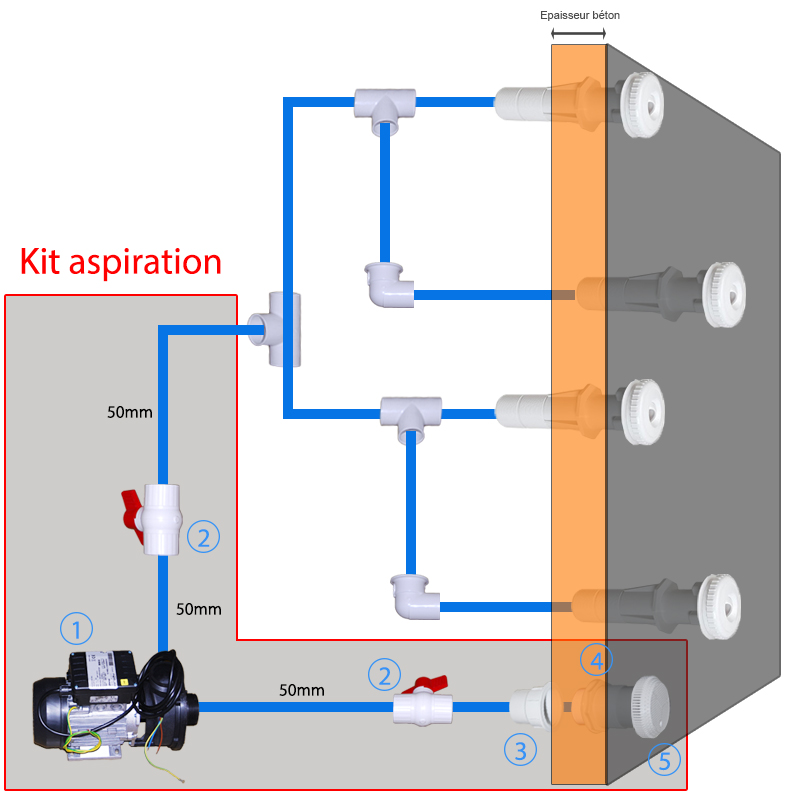

Assembly diagram of a single suction kit 4 jets
Some guidelines to follow:
  • If you opt for a pneumatic control kit, the pneumatic hose cannot exceed 5 meters (from the button to the NCC box)
  • The suction drain is to be glued and then sealed into the structure.
  • To feed more than 4 jets, opt for a 6 - 8 jets suction kit
  • The suction kits for massage circuits must be coupled with a hydro-massage jets kit for concrete spas.
  • Part number 1: TDA200 Pump - 2HP
    • The TDA200 pump allows the feeding of 2 to 4 massage jets.
    • Supplied with 50mm piping union fitting
    • Can be controlled by pneumatic button with a pneumatic control kit (Sold separately)
    • Single Phase 220V Power Supply - Pre-wired AMP
  • Part number 2: 50mm Ball Valve
    • Allows isolating the circuit to work on the pump without having to drain the system
    • Quantity: 2
  • Part number 3: 50mm Straight Union Fitting
    • Connects the through-wall fitting to the 50mm piping
    • Quantity: 1
  • Part number 4: Through-Wall Fitting
    • This piece allows passing through the structure. It may not be long enough if you use formwork blocks. In this case, the through-wall fitting + 50mm union fitting + excess piping will need to be sealed.
    • Length: 15cm
    • Quantity: 1
  • Part number 5: Suction Drain
    • Allows water suction from the pool to feed the massage pump. For 4 jets, a single drain is sufficient, beyond that, you will need to double the suction. Other suction kits are available for this purpose. In the provided kit, the suction drain screws into a nozzle where the central part needs to be removed (Recognizable by a pierced ball in its center)
    • Quantity: 1
  • Piping: 50mm Hose + Blue PVC Pressure Glue
    • Connects all the parts together.
    • Quantity: 3 meters + 1 pot of 250mL blue glue




This is a basic suction kit, it is possible upon request to adapt the parts so that the kit can meet specific needs.
