Product Specificity: Fan cover and pre-filter missing
Specifications: 1.35 HP - 0.99 kW
Worldwide delivery
Pay in 4x free of charge with Read more
Warranty - 1 year
This product is part of the Second Life selection. It is a new, refurbished, or downgraded item for aesthetic or logistical reasons, offered at a reduced price. Each product is carefully checked according to its nature to ensure proper use according to its function. Any possible defects are clearly indicated on the product sheet.
| Brand | JTC |
| Model | PCF101 |
| Type | Single-speed circulation pump |
| Motor Type | PVF101 |
| Power | 1.35 HP - 0.99 kW |
| Maximum Flow Rate | 360 L/min |
| Maximum Head | 11 m according to the technical documentation, 10.6 m according to the product information |
| Rotation Speed | 2,800 rpm |
| Power Supply | 230 V - 50 Hz |
| Current | 4.6 A |
| Protection Rating | IPX5 |
| PVC Connection | Diameter 60 or 63 mm |
| Impeller | PPO |
| Seals | NBR |
| Mechanical Seal | Graphite / ceramic |
| Maximum Liquid Temperature | 35°C |

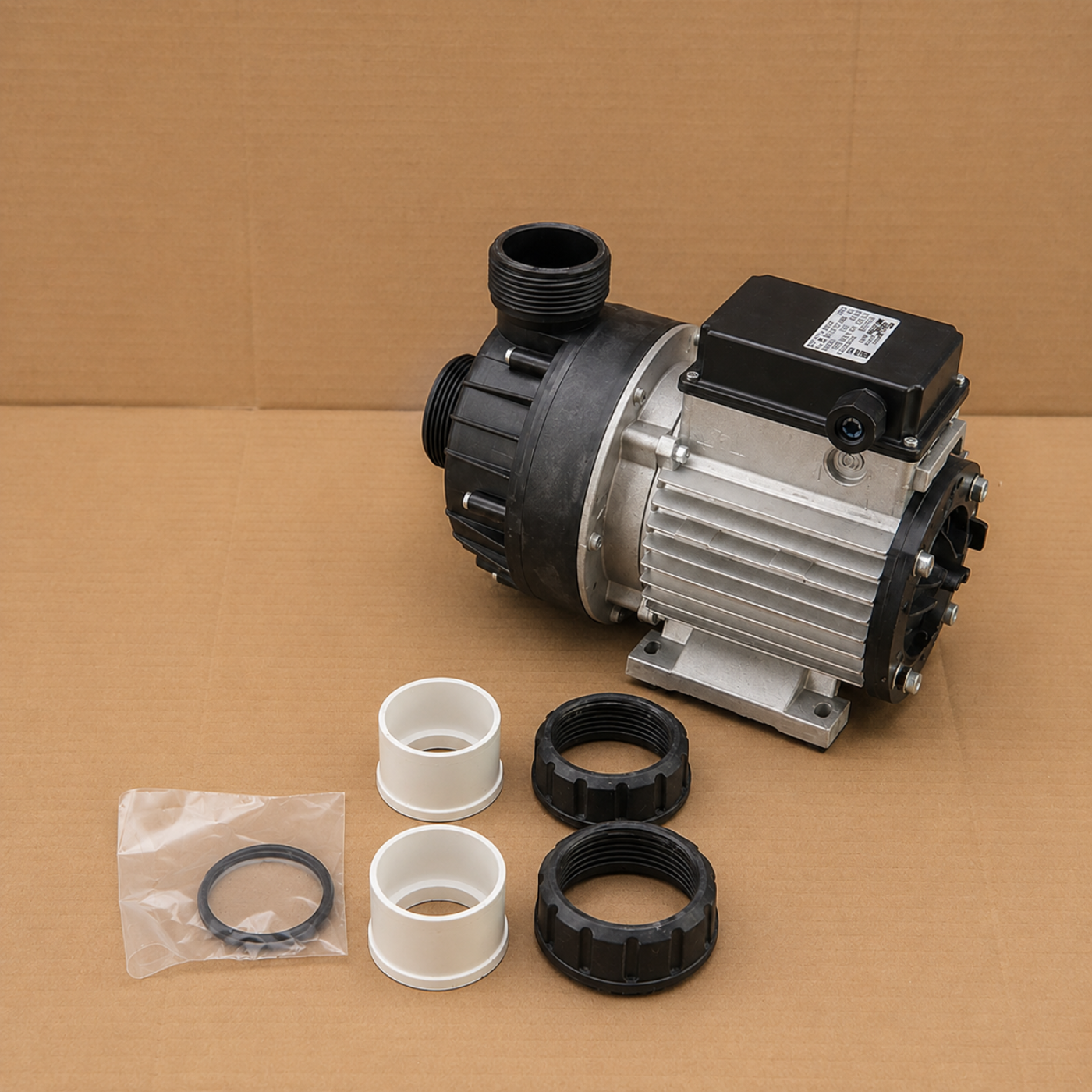

This JTC PCF101 centrifugal circulation pump delivers a power of 1.35 HP with a maximum flow rate of 360 L/min. This second-life product is offered without a fan cover or pre-filter.
This pump belongs to the JTC PCF series and has the reference PCF101. Before purchase, check the reference of the pump being replaced, the 230 V single-phase power supply, the 50 Hz frequency, and the diameter of the PVC connections.
The indicated maximum head varies between 10.6 m in the product information and 11 m in the technical documentation. This difference should be considered when comparing with the existing installation.
The pump should be installed as close as possible to the spa or pool, below the water level, in a dry or ventilated area, and protected from the risk of flooding. It should be mounted on a sturdy support to minimize vibrations.
The suction and discharge pipes should be properly supported to avoid putting stress on the pump body. Electrical connection and grounding should be done after checking the voltage and frequency of the installation.
