Can control LED Lighting Liquid FX (controller connection and modules).
Compatible with Dimension One Spas equipped with the Liquid FX system, series 136911
Dimension One reference: 01520-0029
Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)
| Type | LED lighting junction box |
|---|---|
| Reference | 01520-0029 |

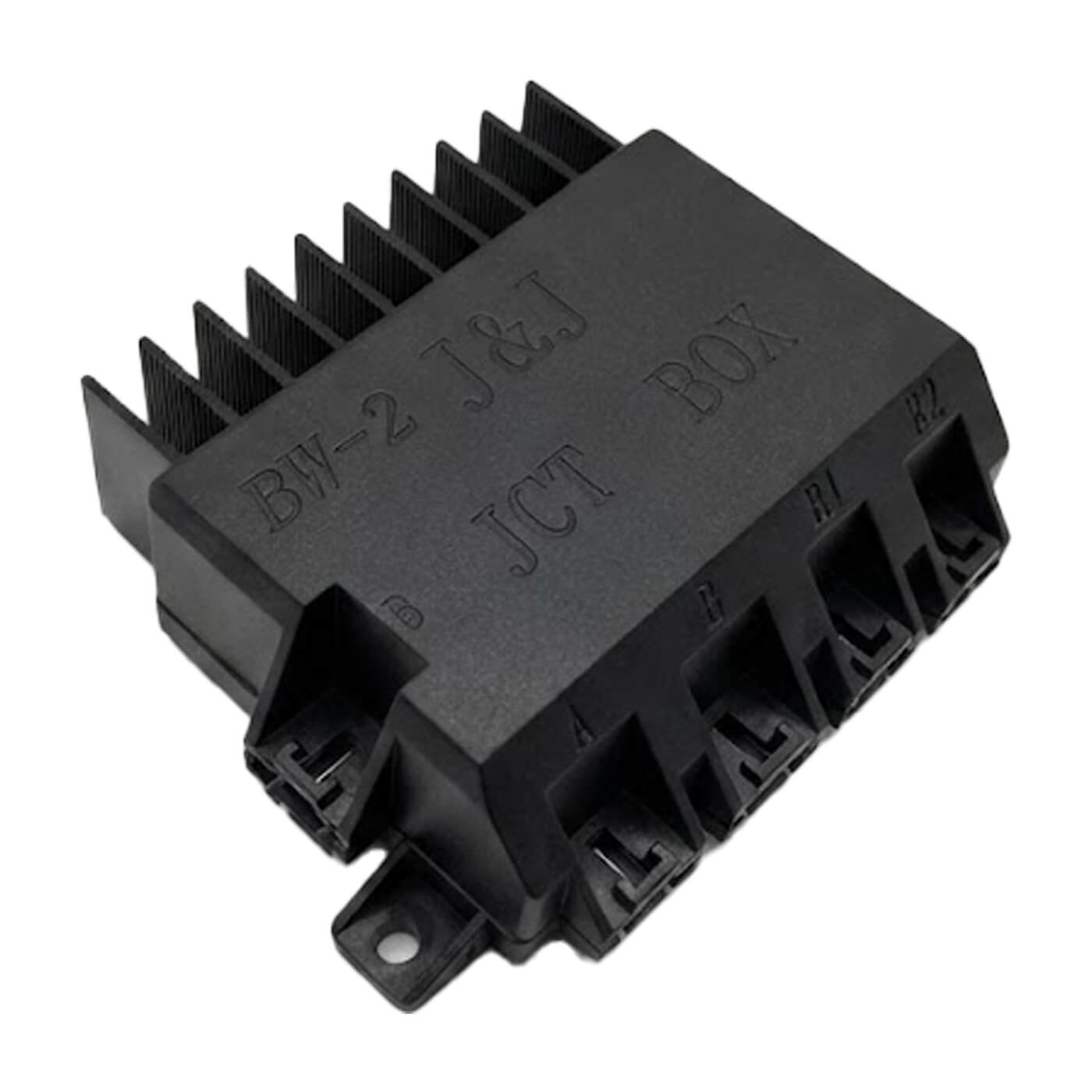

| Marking | BW-2 J&J - JCT BOX |
| System | Liquid FX (multicolor LED) |

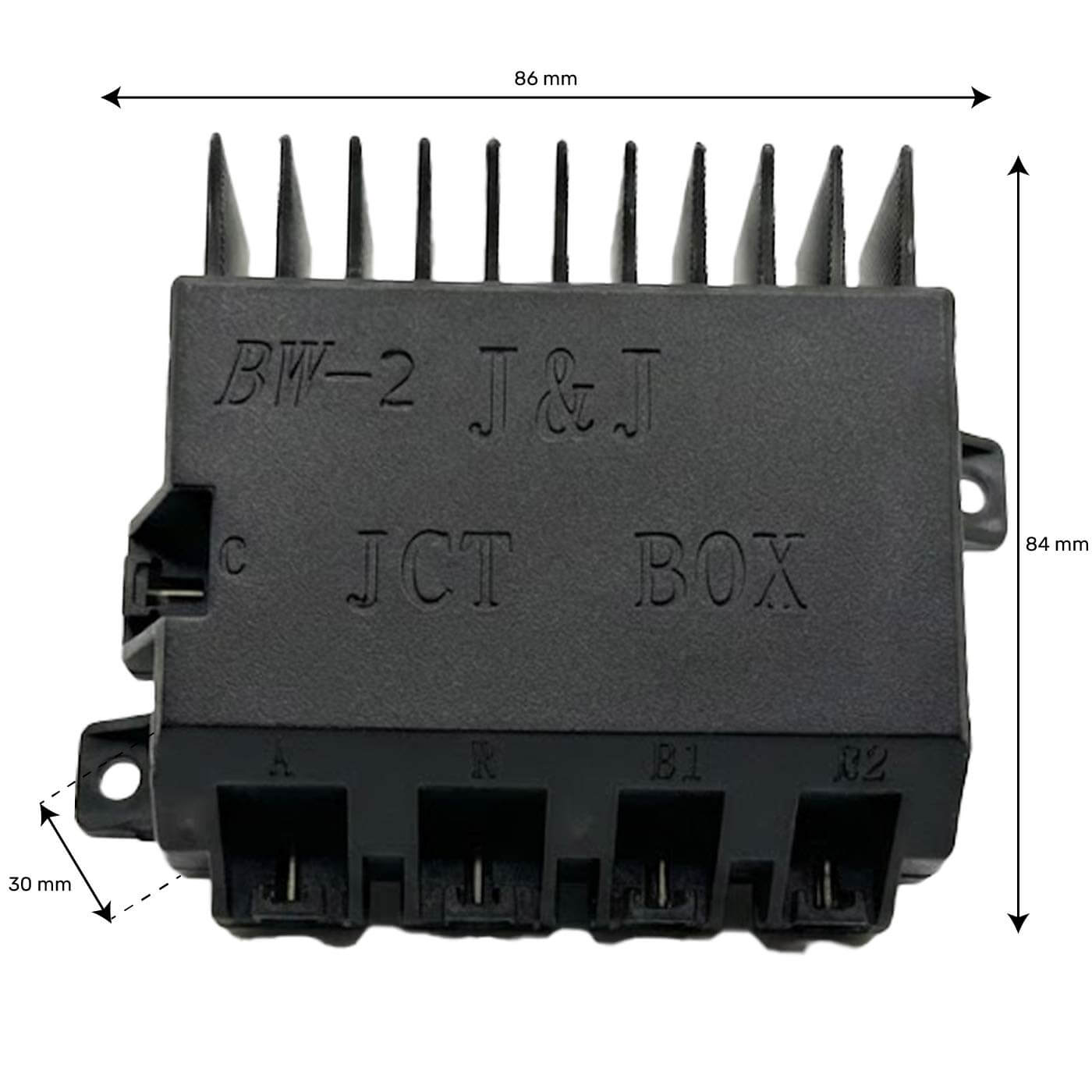

| Dimensions | 86 x 84 x 30 mm |
| Connectors (bottom front) | 4 ports: A / R / B1 / B2 |
| Side connector | 1 port: C |
| Connection type | 5-pin connectors |
| Mounting | Integrated side mounting tabs |
| Design | Plastic casing with top fins |
| Function | Centralizes and distributes connections for Liquid FX LED lights |
| Series compatibility | Compatible with spas equipped with Liquid FX, serial numbers 136911 and equipped with the Liquid FX system |
| Spa brand | Dimension One |
The LFX 01520-0029 junction box centralizes connections for Liquid FX LED lights and distributes power to the various lighting modules of the spa. It ensures the protection of electrical connections and serves as the link between the spa controller and the multicolor LED lights. It comes standard on Dimension One spas equipped with the Liquid FX system from serial number 136911 onwards.
What is the purpose of this LFX junction box?
It centralizes connections for Liquid FX LED lights, distributes power to the lighting modules, and protects electrical connections.
Which spas is it compatible with?
It is used on Dimension One spas equipped with the Liquid FX system, starting from serial number 136911.
How many connectors does this box have?
It has 5 connectors: 4 on the front (A, R, B1, B2) and 1 on the side (C), in a 5-pin configuration.
What are the exact dimensions?
86 mm wide, 84 mm high, and 30 mm deep.
How can I verify that it's the correct reference?
Check the reference 01520-0029 and the marking BW-2 J&J - JCT BOX directly on your box.
Can I replace the part myself?
Yes, if you are comfortable with wiring. Turn off the power, identify the connections, and reconnect to the same markings.
Is a return possible if I make a mistake?
A return is possible within 14 days after receipt. For industry professionals, it can be extended to 60 days.
Is the part delivered with cables or accessories?
No, you only receive the 01520-0029 junction box.
