Spa pump LX Whirlpool LP300T - 3HP (2.2 Kw) - three-phase

Name: Spa pump LX Whirlpool LP300T - 3HP (2.2 Kw) - three-phase
Brand: LX
SKU: A-000000-0e380
Price: 304 EUR
Availability: InStock

Power: 3 HP or 2.2 kW
Connection included for 2'' (60 mm) hose
Delivered without cable

304,00 €

Restocking in progress

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

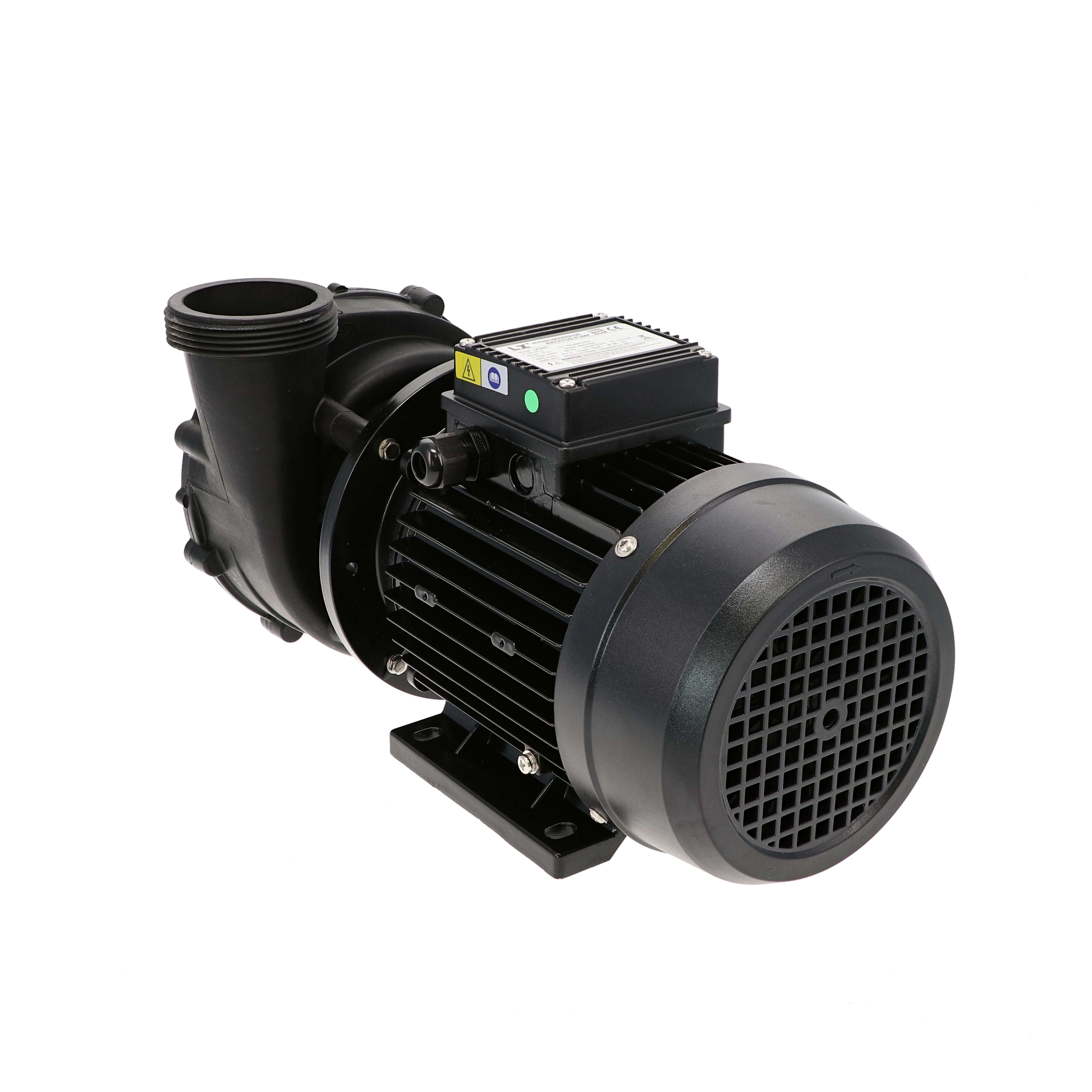

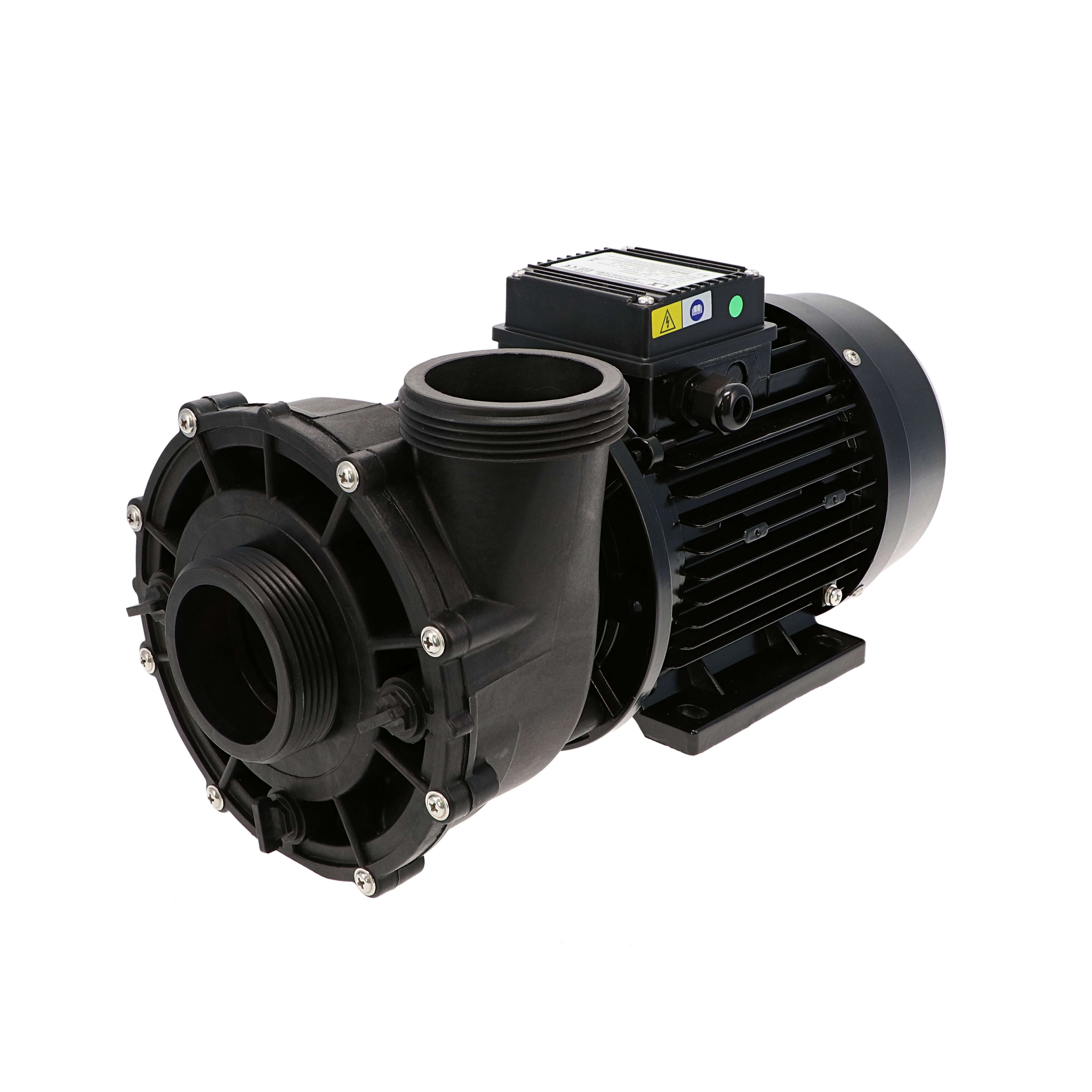

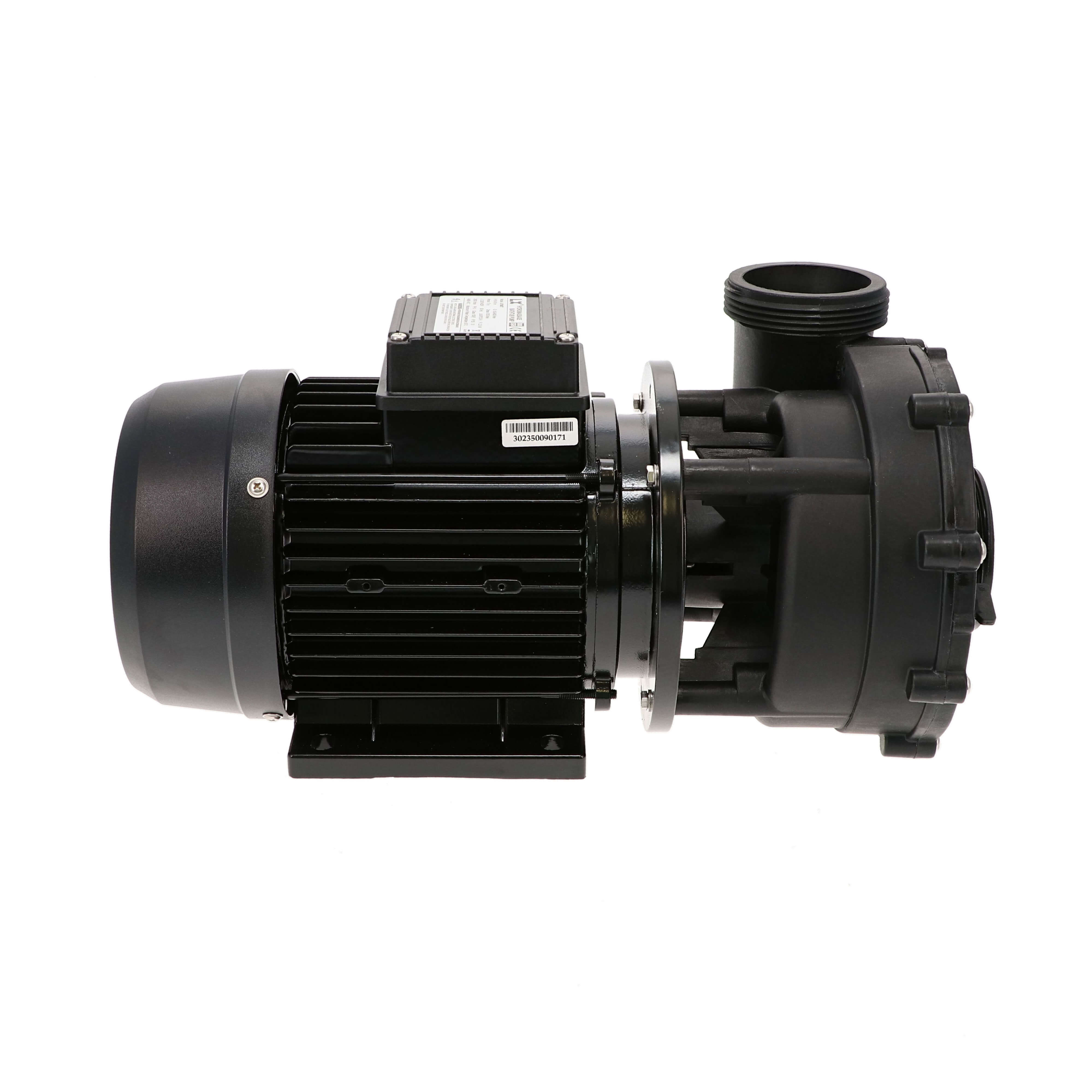

LX Whirlpool spa pump LP300T – 3 HP (2.2 kW) – three‑phase

This spa massage pump is three-phase and has a power of 2.2 kW which is 3 HP. Maximum flow rate of 635 liters per minute

Designed for optimal performance and flow
2'' (60 mm) suction and discharge diameter for increased performance and reduced noise
IPX5 standard motor cooling for gradual temperature rise
Thermal overload detector to preserve and extend motor life
Materials suitable for spas

Model	Max Flow (Q) in l/min	Hmax (m)	Power kW	Power HP	L	Weight (kg)	Package Dimensions (mm)
LP150	520	12	1.1	1.5HP	382	12.7	420x235x280
LP200	535	13	1.5	2HP	382	12.7	420x235x280
LP250	600	15.5	1.85	2.5HP	382	14.6	420x235x280
LP300	635	17	2.2	3 HP	397	16.3	435x235x280

Technical Diagrams

Pipe Connection

Included fitting for 2'' hose (60 mm outer diameter).
You can reuse your old pipe fittings if they are still functional.
If your piping differs, access our Fittings and Union range to find the fitting that matches your piping.

The pump body is adjustable to fit your piping. You can then have a left or right discharge based on your installation. To do this, simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then replace the screws in place.

Electrical Connection

The pump is delivered without a cable.

Here are the most commonly used Plugs in the Spa world:


Amp Plug	J&J Plug ( PIN positions vary depending on the device)

Technical documentation

Download data sheet
