Product is no longer manufactured

JOYONWAY

Ref : A-000000-0a209

(1)

Control box P23B32 with heater for spa

Name: Control box P23B32 with heater for spa
Brand: JOYONWAY
SKU: A-000000-0a209
Price: 499 EUR
Availability: InStock
Rating: 5 (1 reviews)

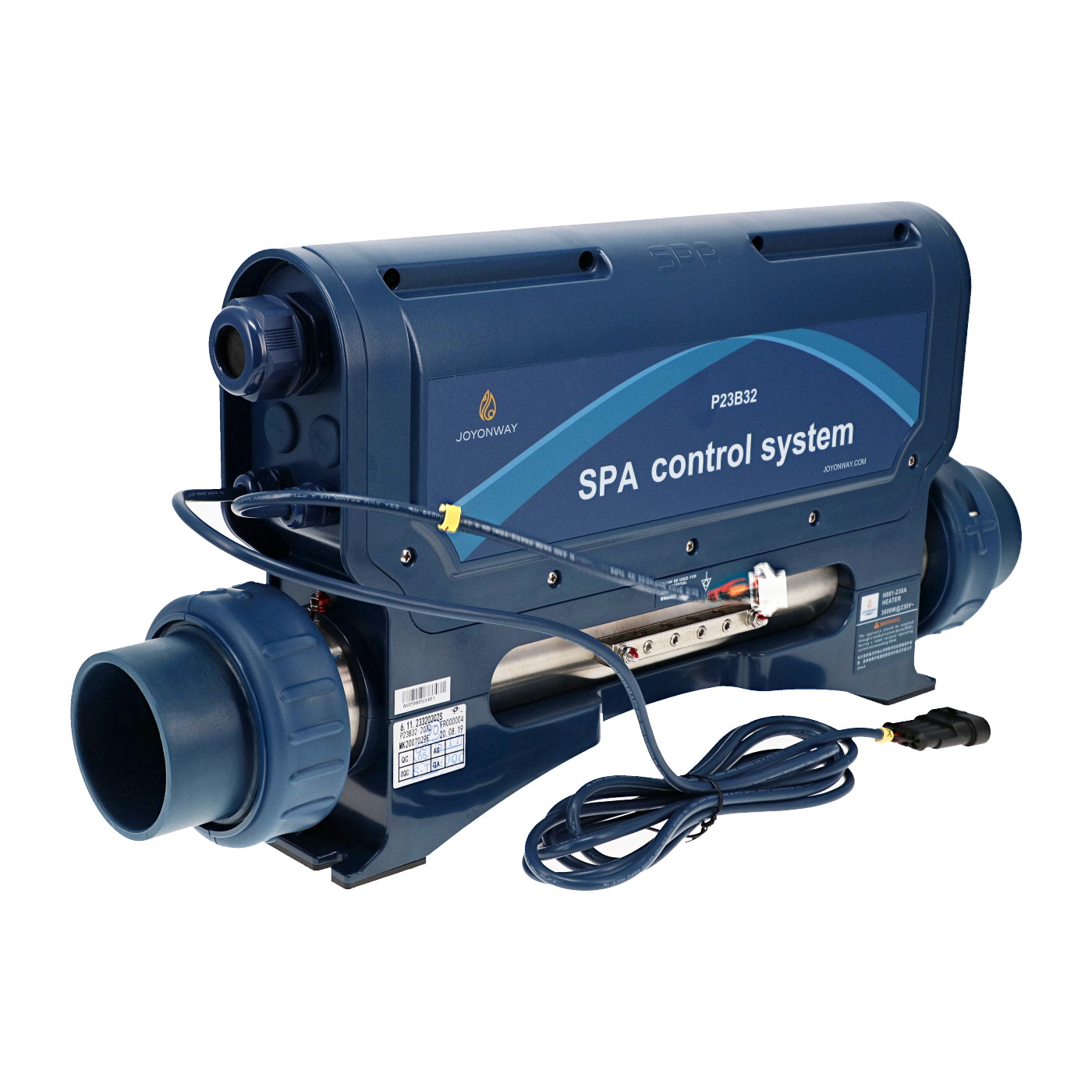

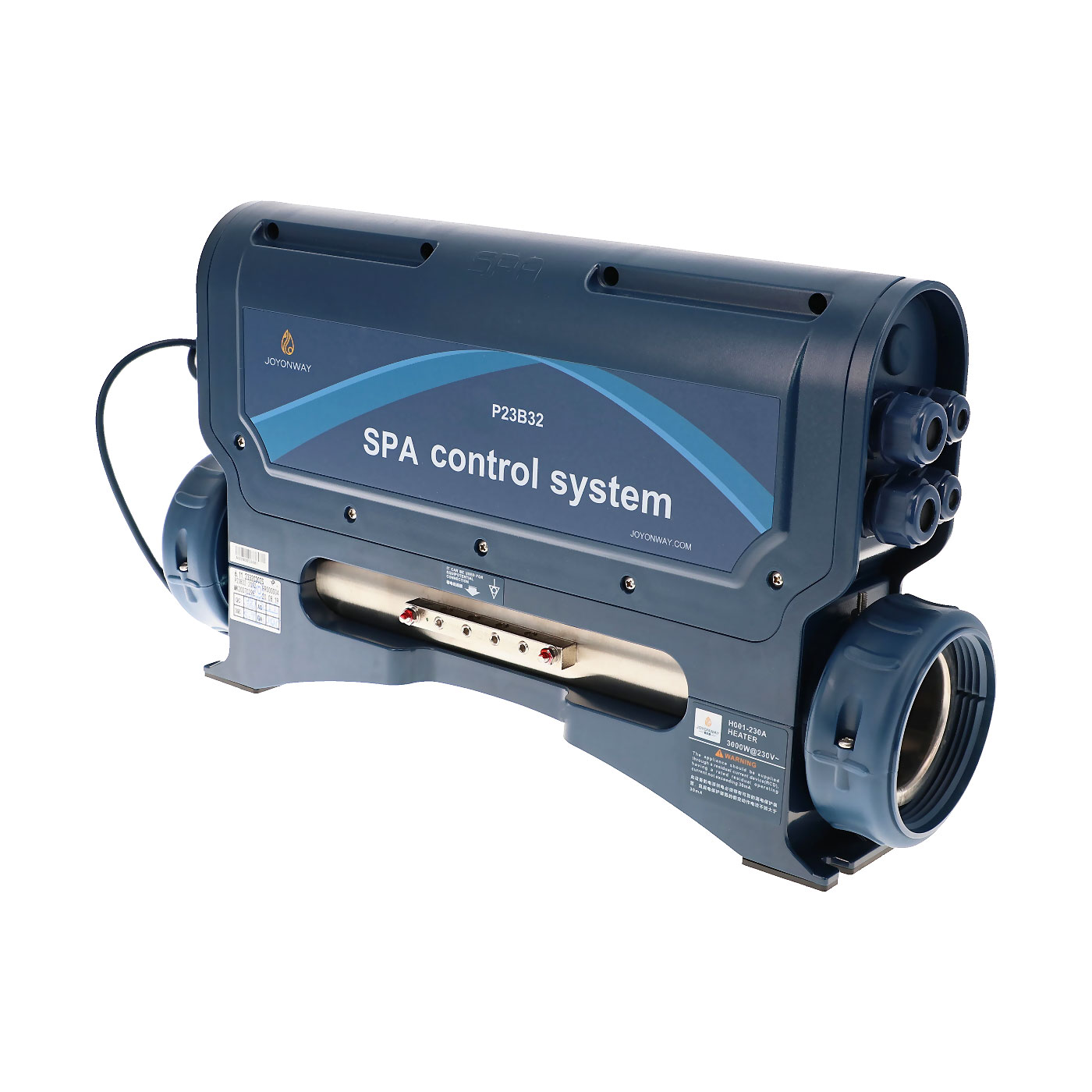

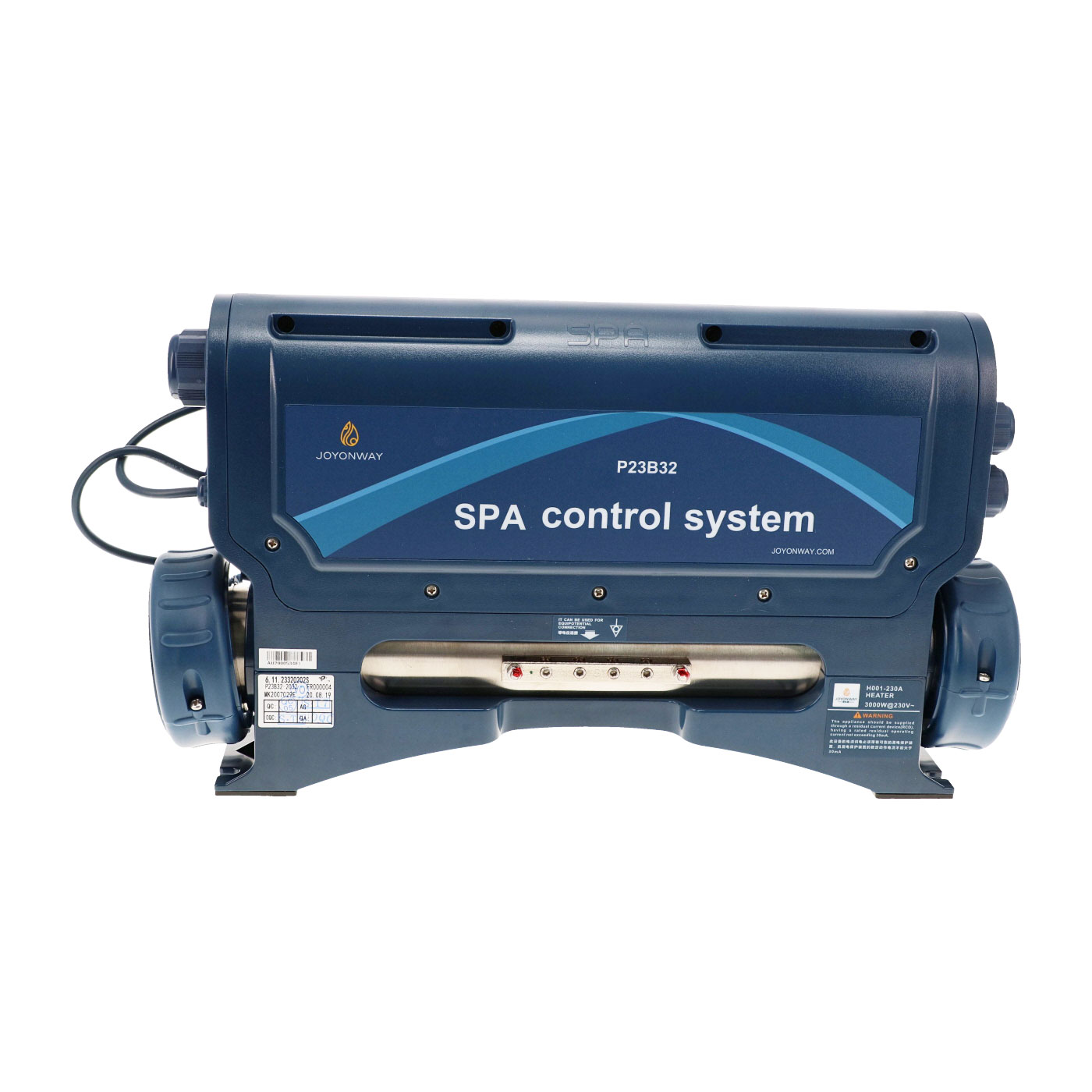

Spa Control Box P23B32 - JOYONWAY
Capable of controlling 2 massage pumps, 1 circulation pump, and 1 blower.
Integrated 3kW heater.
Wifi option available upon request.

Final break

See replacement products

Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

Spa Control Box P23B32 - JOYONWAY

The control box for spa P23B32 is a versatile unit. It allows control of:

2 massage pumps including 1 two-speed,
1 blower,
1 circulation pump,
1 ozonator,
1 lighting
and an auxiliary device.

It also features an integrated 3kW heater.

This electronic system can be easily replaced identically. However, it can also easily replace old spa control systems that are no longer available or too outdated.

The brand JOYONWAY currently offers 4 control boxes, allowing adaptation to any spa/jacuzzi. (see the characteristics of the different boxes in the table below. The gray line corresponds to the characteristics of the P23B32 box)

Systems	Pump 1	Pump 2	Pump 3	Pump 4	Blower	Circ. Pump	Ozone (Voltage)	Lighting	AV	Heaters	Keyboards
P20B29	230V 1 or 2 speeds	230V 1 or 2 speeds	230V 1 or 2 speeds	230V 1 speed	230V 5A Max	230V	230V	DC 12V	230V	3.0kW	PB553 PB554 PB555
P23B32	230V 1 or 2 speeds	230V 1 or 2 speeds	/	/	230V 10A Max	230V	230V	DC 12V	230V	3.0kW	PB553 PB554 PB555
P25B37	230V 1 or 2 speeds	/	/	/	230V 10A Max	230V	230V	DC 12V	/	3.0kW	PB553 PB554 PB555
P15B66	230V 1 or 2 speeds	230V 1 speed	/	/	230V 10A Max	230V	230V - DC 12V	DC 12V	230V	H002 3.0kW	PB557 PB559

Other features of the P23B32 box:

Easy jaw connection terminals
The box can be equipped with a WiFi receiver (reference: WF01) allowing remote control of the box (not included)
IPX5 Box

DIMENSIONS / ELECTRICAL CONNECTIONS:

Technical documentation

Download data sheet

Equivalent products

Related categories

Retrofit kit for spa

Control boxes

Spa control panels

Overlays for spa control panels

Spa printed circuit board

Cables and plugs for Spa

10/10

Based on 1 reviews

Anonymous A.

Haben das Produkt noch nicht eingebaut, da wir ab 13.5. für 2 Wochen auf Urlaub sind. Sollte es Probleme geben, werde ich mich rühren!
