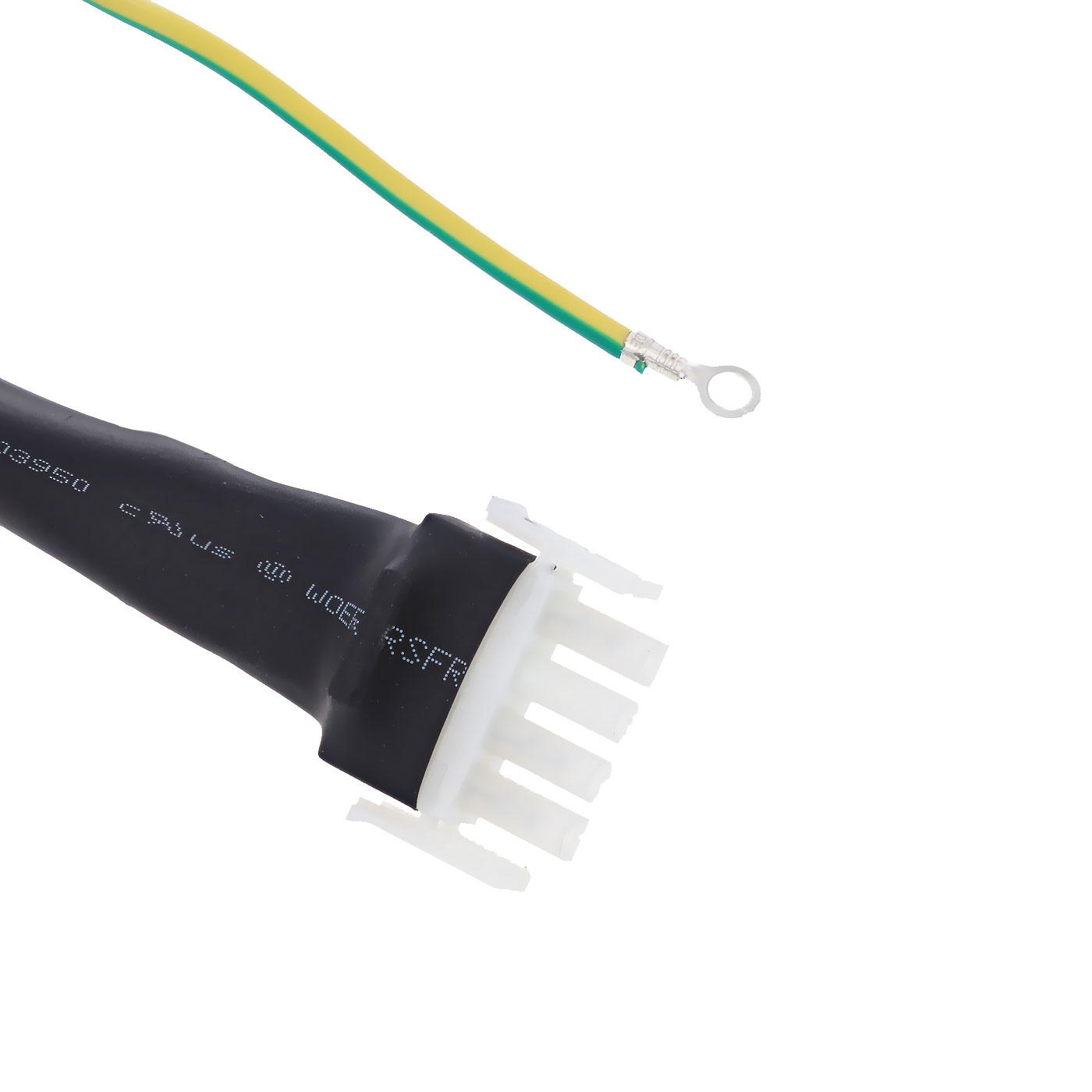

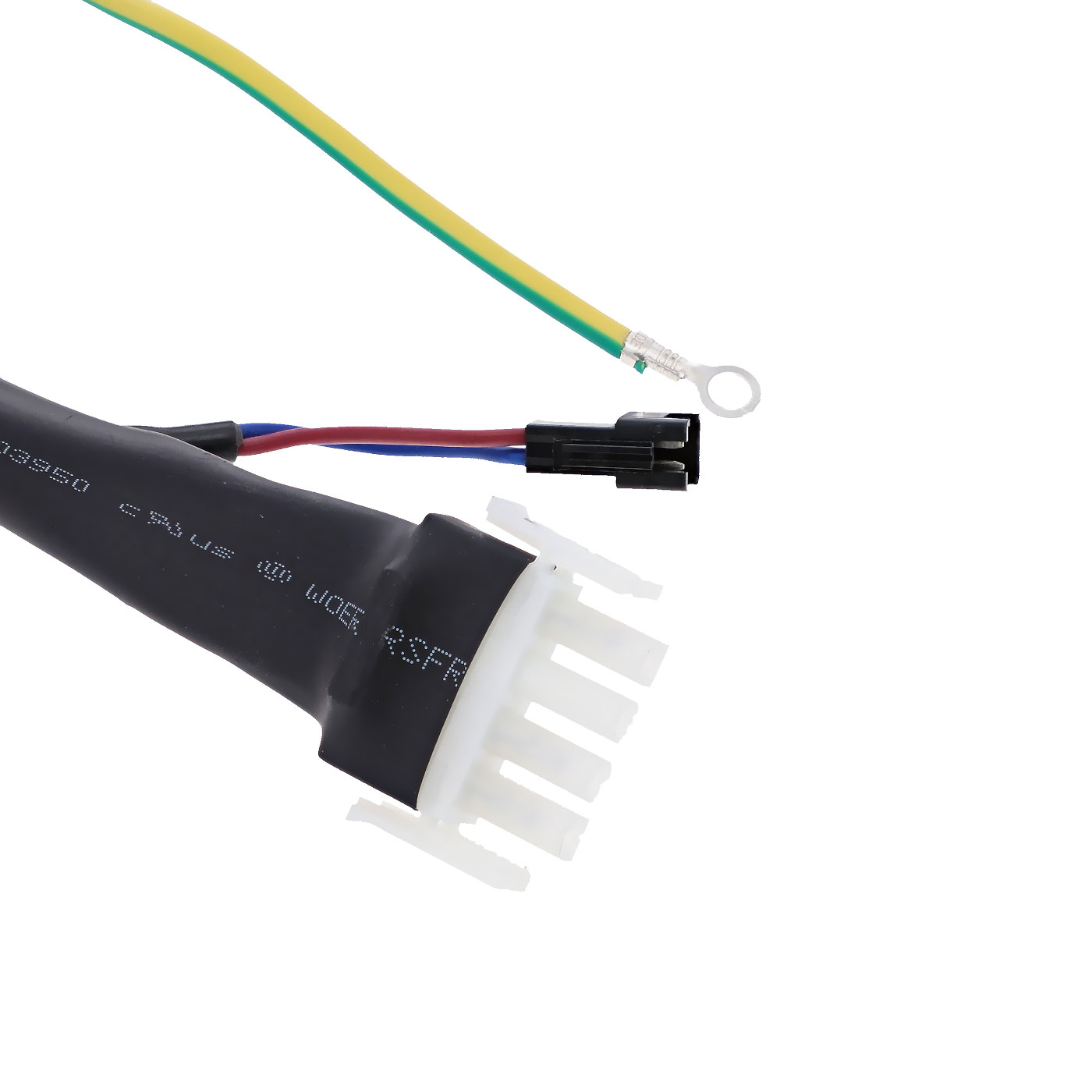

H30-RS1 Heater With connection cable to PCB

Need help to install your parts?

Need help to install your parts?
Trust Boospa Services

Make a request

Ref : A-000000-0b080

(1)

H30-RS1 Heater With Pressure Switch Cable

Name: H30-RS1 Heater With Pressure Switch Cable
Brand: LX
SKU: A-000000-0b080
Price: 140 EUR
Availability: InStock
Rating: 4 (1 reviews)

Heater H30-RS1 LX Whirlpool
From the HRS series
Power 3KW
Pipe diameter 48mm

140,00 €

In Stock

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

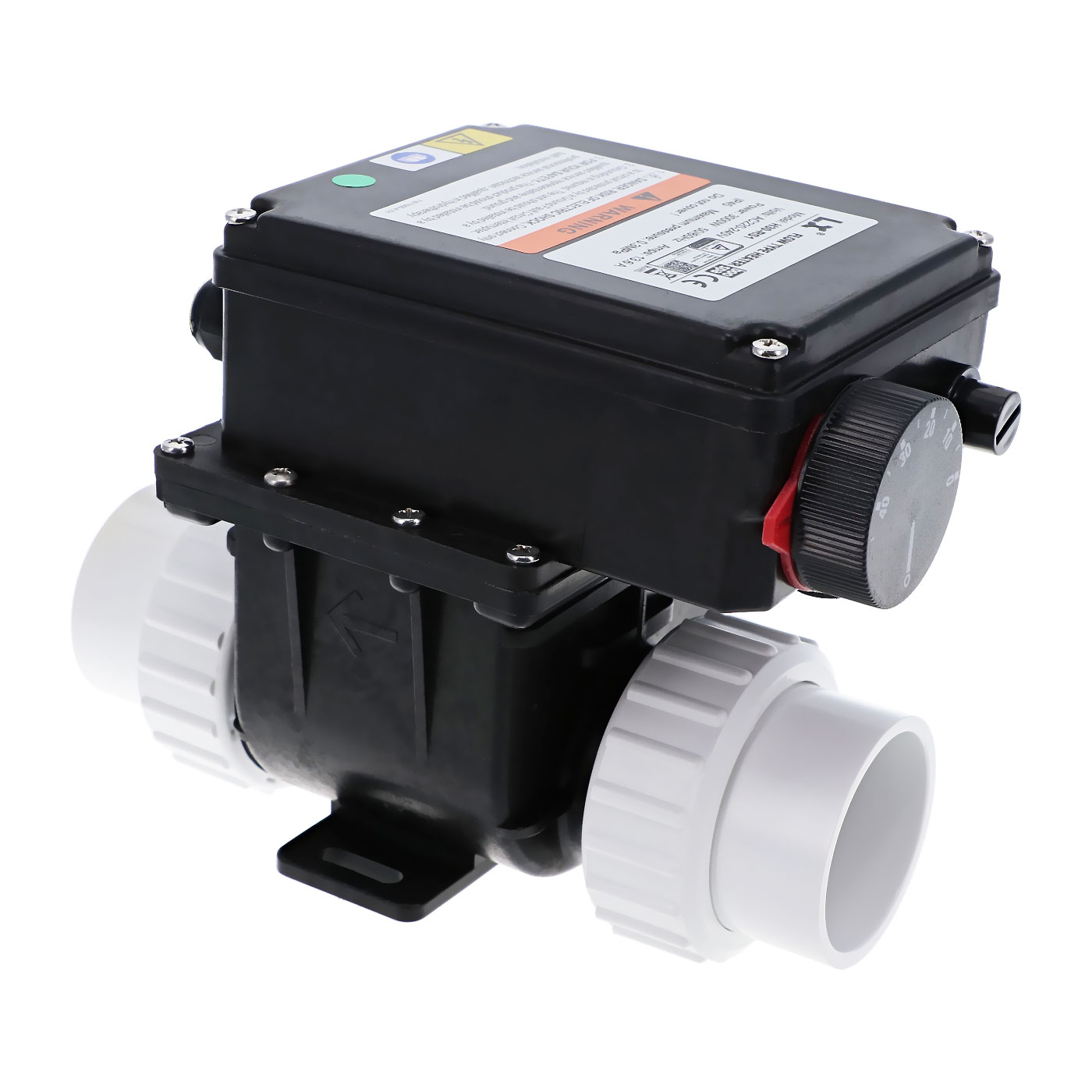

H30-RS1 LX Whirlpool Heater

Specifications

Part of the HRS series
Heater with integrated temperature control, no need for electronic board
Heating power 3kW
Power supply 230V - 13.6 Amp
1 reinforced U-shaped immersion heater
Adjustable thermostat from 0°C to 45°C
Operating indicator light
Low flow protection
Stainless steel body
Overheat protection (safety feature at 60°C)
Minimum flow rate for flow detector activation: 60L/minute
Maximum pressure: 1 bar

Common issues with heaters:

Defective pressure switch
Defective thermostat
Overvoltage on the resistor
Heating element overheating
Heating element causing a short circuit

Technical Diagrams

Model	L	L1	L2	L3	L4	H	A
H10-RS1	226	210	186	130	120	156	48
H15-RS1	226	210	186	130	120	156	48
H20-RS1	226	210	186	130	120	156	48
H30-RS1	226	210	186	130	120	156	48

Pipe Connection

The heater connects directly to a 1.5" (48mm outer diameter) piping.

1.5" fittings are provided with the heater.

Outer diameter of suction and discharge thread: 62 mm

You can also reuse your old piping fittings if they are still functional. If your piping differs, check our range of Fittings and Unions to find the fitting that matches your piping.

Electrical Connection

The pump comes with a power cable equipped with an AMP plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Cables and Plugs for Spas section.
